Reese Weight Distribution System w Shank - Trunnion Bar - 12,000 lbs GTW, 1,200 lbs TW

Reese Weight Distribution - RP66542

High-performance system is designed to offer the best in weight distribution with an easy-to-adjust, forged head; a raised ball platform; and flexible, powder coated steel, trunnion spring bars. Adjustable shank included. Hitch ball sold separately.

Features:

• Evenly distributes weight over axles of tow vehicle and trailer for stability and control
  • Creates a more level ride for both tow vehicle and trailer
• Trunnion spring bars are hot rolled and tapered for superior strength and flexibility
  • Bars flex appropriately over uneven terrain for a controlled, even ride
  • Curved ends are designed for use with dual-cam sway control (RP26002 - sold separately)
• Adjustable spring-bar tension - just switch links in lift chains to fine-tune
• Desired tilt is easily achieved with serrated-washer design - no more piling on washer after washer
• Forged, raised ball platform on head eliminates need for raised hitch ball
• Solid steel shank has corrosion-resistant powder coat
• System includes head assembly, adjustable shank, lift brackets, trunnion spring bars, lift chains, pin and clip, and all necessary hardware
  • Hitch ball sold separately - requires 1-1/4" diameter shank
• Made in the USA

Specs:

• Tongue weight: 600 lbs - 1,200 lbs
• Gross towing weight: 12,000 lbs
• Fits: 2" x 2" trailer hitch receivers rated for use with weight-distribution systems
• Lift-bracket positioning: mount about 30" back from hitch ball
  • Requires approximately 5-1/2" of space along trailer frame
    • Optional mounts (sold separately) that take up less space on a trailer frame are available
  • Will not fit trailer frames wider than 2-1/2"
• Shank length: 14" from center of hitch pin hole to center of ball hole
• Total height adjustment along shank: 5-1/4"
  • Maximum rise: 6-1/2" from top of hitch receiver opening
  • Maximum drop: 1-1/4" from top of hitch receiver opening
• Limited lifetime warranty

Create a stable ride for your tow vehicle and trailer with a weight-distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.

Selecting a Weight-Distribution System

The tongue weight rating is the most important factor in determining which size weight-distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.

To determine the proper weight rating for a weight-distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight-distribution system.

Unique Features of Reese Trunnion-Bar Weight Distribution

The easy-to-use, serrated washers on the Reese system make adjusting the tilt of the weight-distribution head a snap. This is a huge improvement over the standard pin-and-washer method, which involves piling washers - one on top of another - onto a difficult-to-access pin. The serrated-washer system lets you easily loosen, adjust and tighten a single washer and nut on either side of the head for simple, secure positioning.

The trunnion spring bars of this system slide into the weight-distribution head for quick, easy installation. With a tapered design and hot rolled steel construction, these bars offer superior flex, ensuring a smooth, controlled ride for both your tow vehicle and your trailer. In addition, these specially designed bars have rounded, hooked ends, making them the only kind of spring bars that can function with Reese's active-style, dual-cam sway control (sold separately).

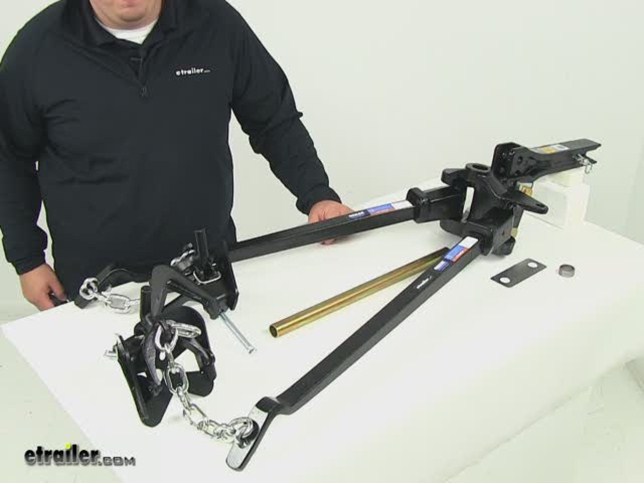

66542 Reese Trunnion Bar Weight Distribution Hitch with Hitch Bar

Customers compare RP66542 to these similar products

Strait-Line Weight Distribution w Sway Control - Trunnion Bar - 12,000 lbs GTW, 1,200 lbs TW$485.66

Reese Weight Distribution w/out Shank - Trunnion Bar - 12,000 lbs GTW, 1,200 lbs TW$320.95

Pro Series Weight Distribution System w Friction Sway Control - Round - 10,000 lbs GTW, 1,000 lbs TW$257.95

Strait-Line Weight Distribution System w Sway Control - Trunnion Bar - 12,000 lbs GTW, 1,200 lbs TW$568.00

Pro Series Trunnion Style Weight Distribution Kit with Shank, 1,200 lbs. TW / 12,000 lbs. GTW$280.00

Customers Who Purchased This Weight Distribution Also Bought...

Hitch Ball with 2-5/16" Diameter and Medium Shank, 12,000 lbs GTW - Chrome $12.49

Wet Equalizer Bolt with Locknut and Grease Zerk for Double-Eye Springs - 3" Long $3.08

Pin and Clip For Class III, IV and V Trailer Hitch Receiver $5.16

Trailer Hitch Ball with 2-5/16" Diameter and Medium Shank, 30,000 lbs GTW - Machine Finish $17.59

Weld On Trailer D-Ring $7.67

Replacement parts available for this product

Replacement Lift Brackets with Handle for Reese Weight Distribution Systems $77.95

Replacement Trunnion Spring Bar for Reese Weight Distribution System - 1,200 lbs TW $92.95

Replacement Head for Reese Weight Distribution System - Trunnion Bar $133.95

Replacement Lift Bracket for Reese Weight Distribution Systems $45.95

Ask the Experts about this Reese Weight Distribution
Do you have a question about this Weight Distribution?

• Is Weight Distribution Needed On A 2003 Chevy 3500 Towing A 7,500 Lbs. Wildwood Trailer

• Weight distribution systems should be used anytime the trailer weighs more than 50 percent of the vehicles weight. So I would recommend a weight distribution system for your 2003 Chevy 3500 Dually towing a 7500 lb. trailer. In addition to eliminating the squat experienced when the trailer is attached, a weight distribution system can lead to performance increases in steering, traction, and braking while also decreasing trailer sway. Weight distribution systems are rated by the tongue weig
  view full answer...


• How to Pick Out a Weight Distribution System for a 2012 Dodge Ram 1500 Towing a 7,000 lb Camper

• The best way to pick out a weight distribution system is to based on the loaded tongue weight of your setup when it is fully loaded and ready to go. I would recommend loading your trailer up camper like you are going on a trip and then determining the tongue weight. Check out the FAQ article I attached that details how to do this. Most likely the Reese Weight Distribution System # RP66542 would work since it has a tongue weight range that should work well with your setup. I attached an FAQ on
  view full answer...


• How to Pick out a Weight Distribution System for a 2008 Dodge Ram 1500 Towing a 35 ft Travel Trailer

• The most reliable way to get towing capacities on a vehicle is to check the owners manual. There can be a lot of contradictory information floating around the internet so I would recommend you either check your owners manual or contact a Dodge dealer. The best way to pick out a weight distribution system is to base it off of the loaded tongue weight of a setup. Once you know that you can pick out a system that will work the best for you. You should note that any weight from cargo behind the r
  view full answer...
