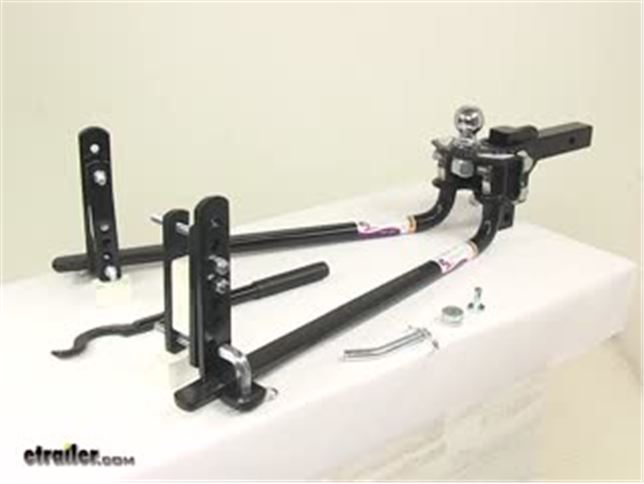

Two points of steel-on-steel friction work to prevent and correct trailer sway in this weight-distribution system. Sway-control brackets help to ensure that your trailer stays in line with your tow vehicle. Shank and 2-5/16" hitch ball included.
|Included w/ FA94-00-1061||Required - Sold Separately||Optional Add-Ons|
Create a more stable ride for your tow vehicle and trailer with a weight-distribution hitch. Adding spring bars to your towing system applies leverage, which transfers the load that is pushing down on the rear of your vehicle to all the axles on both your tow vehicle and your trailer, resulting in an even distribution of weight throughout. The result is a smooth, level ride, as well as the ability to tow the maximum capacity of your hitch.
The tongue weight rating is the most important factor in determining which size weight-distribution system you should use. If the bars of the system you choose are rated too high for your setup, they will create a rigid ride, which can result in a bouncing trailer. If, on the other hand, the bars are not rated high enough, the system will be unable to properly distribute the weight, rendering it virtually useless.
To determine the proper weight rating for a weight-distribution system, you must first determine your trailer's tongue weight. Then add to that the weight of the cargo behind the rear axle of your tow vehicle. These two measurements make up the tongue weight rating for a weight-distribution system.
The two points of sway control within the e2 are created by the steel-on-steel friction that occurs when the spring bars slide within the L-brackets that are mounted on the trailer tongue. Most traditional weight-distribution systems have spring bars that are suspended by chains. Although this ensures that the system is not so rigid as to create bounce in the trailer, it also allows a good deal of side-to-side play in the system.
The direct friction that is applied to the spring bars in the e2 system helps to stop sway once it has begun. The concept is similar to the way in which an add-on friction-sway-control device functions. When each spring bar moves forward or backward, or side to side, it rubs along the bracket, creating friction. The resistance created by this action limits the movement of the spring bar, thus preventing further side-to-side movement of the trailer.
Most add-on units feature some sort of friction material similar to that used in automotive brakes. But the e2 uses direct steel-on-steel contact to create resistance. This is the same sort of friction that is used with locomotives that pull loaded railcars weighing tons. No additional materials are needed. The steel will outlast any of those other materials, providing an extremely durable, functional sway-control system.
Customers compare FA94-00-1061 to these similar products
Replacement parts available for this product
Average Customer Rating: 5.0 out of 5 stars (1 Customer Reviews)
Is this review helpful?
Awesome shipping on Etrailers part! I love this hitch for the ease of setup and to take a part. There are arguments that the bend in the bars comprimises the strentgh of the set up but these are only rated for a certain weight anyways! These bars make absolutely no noise if properly lubed in the head and bars are level with the trailer. They do an awesome job with the W/D and the sway control! Easy enough that my wife can hook up and tear down! Highly recommended!58261
Ask the Experts about this Fastway Weight Distribution
