Thule Trunk Bike Racks - TH9009XT
Premium Hold Fast cradles and the patented FitDial mounting system make the Archway an affordable yet exceptional trunk bike rack. It includes independently adjustable arms, a body designed to fit over factory spoilers, and a built-in cable lock.
Features:
- Trunk-mounted carrier transports up to 2 bicycles
- Long, arcing body tubes are designed specifically to fit vehicles with factory spoilers
- Hold Fast cradles offer road-dampening technology (RDT) and detachable anti-sway arms (No-Sway Cages)
- 2 Layers of cushioning absorb road shock and minimize vibration
- Anti-sway cradles with bumpers hold bike frames at 3 points to prevent sway and bike-to-bike contact
- Reinforced cradle straps provide maximum strength and durability
- Patented FitDial system with Quick-Fit levers ensures quick and easy setup
- Just identify the correct number for your vehicle, press the levers, and rotate the frame into position
- Cinch Levers let you adjust the arms independently to accommodate unique bike frames
- Also help to ensure that bikes are level on the rack
- Narrowly spaced arms make it easy to load bikes onto the rack
- Arms fold down for storage when the rack is not in use
- Some bike frames may require a bike adapter bar (sold separately)
- 6 Nylon attachment straps with rubber-coated hooks and cam buckles anchor the carrier securely to your vehicle
- Holders with hook-and-loop tabs secure excess strap length to protect your vehicle during transport
- Integrated locking cable with Thule One Key lock secures bikes to the rack
- Passive security strap (included) secures the carrier to your vehicle when trunk lid is closed and locked
- Oversize, molded foam foot pads help to prevent the rack from scratching your vehicle
- Blue load strap secures bikes to each other and to the rack to improve stability during transport
- Sturdy steel frame construction is durable and rust resistant
Specs:
- Carrying capacity: 2 bikes
- Weight capacity: 70 lbs
- Limited lifetime warranty
Factory spoilers are always a potential hurdle when you are searching for a trunk-mounted bike rack. The Thule Archway is designed to clear that hurdle with long, arcing body tubes and a patented FitDial mounting system that ensures easy and irritation-free installation on your specific vehicle.
FitDial System
The patented FitDial system lets you easily adjust the rack body. Simply press the levers on the base and move the rack so that the arrows line up with the correct number on the dial. These numbers are specified in the instructions included with the rack. Just find your vehicle, identify the correct number, and dial away.
Hold Fast Cradles with RDT
Unique to Thule trunk-mounted racks, the Archway also includes premium Hold Fast anti-sway cradles with Road Dampening Technology (RDT), designed for use with carbon-frame bikes. RDT is composed of 2 layers. The inner layers of the cradles are made of soft "fingers" that flex to absorb large shocks and jolts from the road. The second, upper layer is composed of thermoplastic elastomer (TPE), a gel-like substance that gently but firmly cups your bike frame and enables the cradles to both absorb road shock and reduce vibration for a smoother ride. The cradles also include No-Sway Cages that provide a third contact point for the bike, preventing sway and bike-to-bike contact. The cages also have TPE bumpers that protect your bike frames from scratches.
Independently Adjustable Arms
The Archway has narrowly spaced arms that make loading and unloading bikes hassle free. These arms are independently adjustable with the built-in Cinch Levers. All you have to do is flip the lever up, rotate the arm to the desired position, then flip the lever down to lock the arm in place. This enables you to carry bikes with unique frames, and it helps to keep your bikes level on the rack. An adapter bar may be required, however, for some women's, children's, and alternative bike frames. These levers also allow you to fold down the arms when the rack is not in use and to fold the rack flat for storage when it's not mounted on your vehicle.
Anchor Straps
While the FitDial system ensures that the body of the rack is correctly spaced on your vehicle, it is the 6 nylon straps that keep the rack anchored in place. Padded hooks on these extra-long straps prevent scratches on your vehicle, and the straps tighten in place with easy-to-use, backpack-style cinches. Holders with hook-and-loop tabs are included to bind up the excess strap length when the rack is mounted. Simply wrap the holders around the straps to help protect your vehicle from flapping straps.
Security Cables
The Archway includes an integrated cable lock to secure your bikes to the rack. The lock includes a Thule One Key cylinder so that you can make all your Thule products keyed alike. A trunk strap also is included for passive security. This steel-reinforced cable threads around the rack and through the trunk, securing the rack to your vehicle when the trunk lid is closed and locked.
Molded Rubber Pads
The Archway includes oversize, molded rubber pads on the body to ensure that your vehicle is protected at all contact points with the rack. These pads prevent the rack from scratching and abrading your vehicle's paint.
9009XT Thule Archway 2 Bike Carrier - Adjustable Arms - Trunk Mount
Video of Thule Archway 2 Bike Carrier - Adjustable Arms - Trunk Mount
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

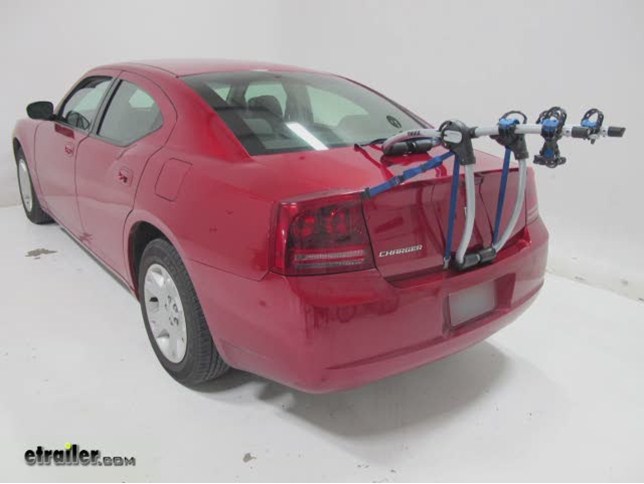

Video Transcript for Thule Archway Trunk Mount Bike Rack Review
Today well be reviewing the Thule Archway 2 Bike Carrier with adjustable arms trunk mount bike rack, part number TH9009XT. Now the Archway is a trunk-mounted carrier which will transport up to two bikes. It has large arcing body tubes that are designed specifically to fit vehicles with factory spoilers. Now before we put our bike rack on the vehicle, its a good idea to go ahead and clean the surface of the vehicle where the bike rack will be mounted. This will help to prevent any damage to the painted surfaces that the bike rack sits on. Now weve already gone ahead and set up our bike rack to fit this particular vehicle.
Within the instructions for the Archway, you will find a fit guide. The fit guide indicates what setting youll put your bike rack in using the notches here on the side. This allows the arms to fold in and out depending on the vehicle. The bike rack has four rubber isolators that will protect the painted surfaces. Well place the bike rack on top of our rear deck lid, and well take the two top straps and hook them to the deck lid just behind the rear window.
With them hooked into place, well just kind of snug the straps down to help us hold the bike rack while we install the other straps. Now with the two top straps in, well move over here to our side and bottom straps. Now this is one strap, one side will connect to the side here by the taillight and the other side will connect to the bottom of the deck lid just above the rear bumper cover. Well then pull that snug and move over to the other side and repeat the same process. Now that we have all six attachment points in place, we can go ahead and tighten the straps down, securing the bike to the vehicle.
Now the black cable coming with the Archway is a security cable. This is a security nylon-coated cable. Well use it to hook around the Archway, or well take the other end and allow it to fall into the trunk here between the rear window and the deck lid. This gives a little added security holding the bike rack to the vehicle. Now with our bike rack secured to the vehicle, were ready to bring out the dual arms.
Each of the arms does move independently. Well just need to release the tension on this knob, where we can then unscrew it, and bring out the arm that holds the cradles. Once weve found a suitable location, well then tighten down the gray knob and latch it over, pulling the tension and securing the arm out. Well need to do this on both sides, making sure that both arms are parallel to each other. With both arms out, we can now go ahead and show you the cradles. They have two layers of cushioning to absorb road shock and minimize vibration. The anti-sway cradle here does have bumpers which will hold the bike here at the down tube to prevent sway and bike-to-bike contact. The reinforced cradle straps provide maximum strength and durability. Youll notice the cradles also twist back and forth on the arm as well as move forward and backward. Well now go ahead and undo our straps, put the bike into the cradles, and bring the straps around, securing the bike to the bike rack. Now its always a good idea to transport your bikes using the cradles closest to the vehicle and then working your way out. Now for demonstration purposes, well be loading our bike on the outermost cradles. With our bike secure, well now take the blue strap included with the bike rack and use it to further secure the bike to the bike rack. You can use it in various different ways, holding the wheels and tire as well as holding the bike to the bike rack. Now another feature of the Archway is its ability to lock a bike to the bike rack. It uses a cable lock found here in one of the arms. Well take the included lock core, and using the master key well slide it into the lock core where we can then slide it into the opening here in the arm, hold onto the lock core, and remove the master key. Well now use one of the two regular keys that come included to lock and unlock the lock, because thats what locks do. Well now bring the cable out of the arm, wrap it around the tube of our bike, place it back in the slot here where the lock core is, and using the key well lock it in place. Now our bike is locked to the bike rack, and included with the bike rack are these hook-and-loop straps. These can be used as well to help secure the excess nylon strap in place, giving you a nice clean look while youre driving down the road. Now with the bike loaded, well go ahead and take the Archway out on the road and see how it performs. That completes our demonstration of the Thule Archway 2 Bike Carrier, part number TH9009XT.
Customers compare TH9009XT to these similar products
Ask the Experts about this Thule Trunk Bike Racks
- Bike Rack Recommendation For a 2011 Ford Fusion that Does Not Use the Rear Bumper For Support
- Since you are concerned about the finish on your 2011 Ford Fusion I would recommend a trailer hitch and hitch mounted bike rack for carrying your bikes. The Draw-Tite Class I Sport Frame Receiver Hitch would be a great choice and installs easily with no modifications to your vehicle. We have an installation video for this hitch, see link, and it is the hitch most of our customers who own the 2011 Ford Fusion select.
Next you will need a bike rack. It is not recommended to carry more than two
view full answer...
- Tips for Fitting the Thule Archway 2 Bike Trunk Mount Bike Rack on a 2009 Toyota Sienna
- Thule does list the Archway, # TH9009XT, as a fit for your 2009 Toyota Sienna. When installed according to the instructions and by following the footnotes for your specific vehicle, the hooks should stay on. However, hooks moving out of position can indeed happen from time to time.
First, make sure that you are attaching the straps in the correct order. First the top straps, then adjust the arms properly, then the lower straps, followed by the side straps. Once they are tightened down enough
view full answer...
- Will The Thule Archway Trunk Bike Rack #TH9009XT Fit My 2010 Subaru Forester w/o Spoiler
- The item you selected, Thule Archway 2 Bike Carrier, part # TH9009XT will fit your 2010 Subaru Forester. If you need to carry more than 2 bikes, you can also use the 3 bike version of this rack, the Thule Archway 3, part # TH9010XT.
You will use the Fit Dial Setting of 10 on the bike rack. Also note, that you will not be able to use the rear wiper when the Thule Archway # TH9009XT is installed.
If you plan to carry womens, childrens, or bikes with odd-shaped frames, I would recommend using
view full answer...
- Recommended Bike Rack for 2006 Lincoln Town Car
- A 2006 Town Car will accommodate many of the trunk mounted racks that we offer, so finding a fit will not be a problem.
If you are wanting a rack that is pleasing to the eye as well as being very simple to install and remove, the Thule Raceway, part # TH9001 would be ideal for you. The Raceway uses 4 ratcheting cables that are used to attach the rack to the vehicle trunk, rather than the 6 straps and buckles that other racks use.
If the looks and ease of install are not as important as co
view full answer...
- Length of Integrated Cable Lock on the Thule Archway Trunk Mount Bike Rack
- The cable lock on the Archway, # TH9009XT, is indeed only long enough to reach around the nearest bike to it (the outside bike). My Thule contact stated that if carrying just one bike on the rack and you wanted to lock it, using the furthest out position is permissible and deemed perfectly safe.
However, if you wanted to you could use a separate cable lock, like # CAB-10, and leave the bike in the position closest to the vehicle.
I have included a link to a video review of the Archway for
view full answer...
- Will the Thule Archway Trunk Mount Bike Rack Fit a 2007 and 2012 Hyundai Elantra
- If the 2012 Hyundai Elantra is a Touring model, then you can use the Archway, # TH9009XT. If you have a sedan, you will need to use a different rack. I have included a link to the options for you.
For the 2007, the Archway will fit. I have included a link to a video showign a typical isntallation of the rack on a vehicle. If you will be carrying womens, childrens or alternative frame bikes, I reocmmend using the bike adapter bar # TH982XT, to carry the bikes more level. I have included a link
view full answer...
- Trunk Mount Bike Rack Recommendations for a 2012 Ford Fusion with Rear Spoiler
- Generally speaking, if a vehicle has a rear spoiler, you will not be able to mount a trunk mounted bike rack. However, if no part of the bike rack touches the spoiler and the straps can pass underneath or over the spoiler without touching it, then you can use a trunk mount bike rack.
If your Fusion has the factory spoiler, you will be able to use the Yakima KingJoe 3, # Y02620, pictured. I can verify that it will fit based on the pictures provided by Yakima. Based on the design of the spoiler
view full answer...
- Which Trunk Mount Bike Racks Will Fit a 2011 Volvo XC60 T6 AWD
- We have several rear mounted bike racks that will fit a 2011 Volvo XC60. I have included a link to them for you. For a 2 bike, I recommend the Thule Raceway, # TH9001 because it is easy to install and has a lot of useful features. The Archway, # TH9009XT, that you referenced will also fit.
First, the Raceway uses 4 retractable cables instead of straps to secure to the vehicle. This method is the easiest and fastest to install of any of the trunk mount racks I have used. It also features anti-
view full answer...
- Will the Thule Archway Trunk Mount Bike Rack Fit a 2006 Hyundai Santa Fe
- Thule does list the Archway, # TH9009XT, as a fit for a 2006 Hyundai Santa Fe. If your Santa Fe is equipped with a rear wiper, you cannot use the wiper with the bike rack attached. I have included a link to the installation details and a link to a video featuring the bike rack for you.
If you will be carrying womens, childrens, or alternative frame bikes, I recommend using the bike adapter bar, # TH982XT, for greater ground clearance and to carry the bikes more level. I have included a link t
view full answer...
- Trunk Mount Bike Rack Recommendation for 3 Bikes and a 2004 Toyota Highlander
- You can carry up to 3 bikes on your 2004 Toyota Highlander using a trunk mount bike rack. I have included a link to all of the trunk mount racks that will fit your vehicle. Out of the options, I recommend the Thule Raceway 3, # TH9002.
The Raceway 3 is the easiest and fastest bike rack to install or remove that I have used. It uses 4 retractable cables, rather than 6 straps, to secure the rack to the vehicle which is why it is so easy to install and leaves a clean looking installation with no
view full answer...
- Is the Thule Bike Adapter Required for Carrying Womens Bikes on Hanging Bike Rack
- The Thule Archway 2 Bike Carrier # TH9009XT that you referenced will work on your 2007 Toyota Solara. Depending on the angle of the top tube of your womens bikes you might not necessarily need a top tube adapter like the # TH982XT, but if you were to use one it would allow you to carry the bikes level which will allow the bikes to be loaded and unloaded easier as well as maximize the ground clearance you would have between the ground and your bike wheels.
If your daughters bike has a pretty s
view full answer...
- Thule Raceway Trunk Mounted Bike Rack Recommendation for a 2004 Toyota Highlander
- I believe the best trunk mounted rack option for your 2004 Toyota Highlander would be the Thule Raceway Bike Carrier # TH9001. This rack is one of the easiest to install, most secure due to the rubber coated steel cables and one of the most lightweight racks we offer.
Check out the review video and installation instructions I attached for this rack for you to check out.
If you plan on carrying any womens or alternative framed bikes without a horizontal top tube you might also be interested
view full answer...
- Trailer Hitch and Bike Rack Recommendations for a 2012 Lexus RX 450 H
- The spoiler on your 2012 Lexus RX 450h is going to prevent a trunk mount bike rack from being installed. The best option would be a trailer hitch. However, you will need to consult the lease agreement and the dealership from which the vehicle was leased to determine if you can install a hitch.
If you can install a trailer hitch, I recommend the Draw-Tite hitch # 75676. There is no drilling to install the hitch but you would need to trim or remove a rubber air deflector/fascia to install the h
view full answer...
- Fit of Thule Archway Trunk Mounted Bike Rack # TH9009XT on 2012 Jeep Grand Cherokee
- According to Thule, the Archway Bike Rack # TH9009XT will indeed fit your 2012 Jeep Grand Cherokee.
Before installing a trunk mounted bike rack, you should ensure that the contact surfaces between the vehicle and the rack are perfectly clean and free of grit to lessen the possibility of scratching the vehicle finish.
Another option would be a hitch mounted rack like the Thule Vertex, part # TH9028. Installing a hitch like part # 75699 would not only provide an attachment point for a bike r
view full answer...
- Trailer Hitch and Bike Rack Recommendations for a 2012 Ford Focus SEL Hatchback
- The rear spoiler will prevent the use of a trunk mount bike rack. To carry bikes with your 2012 Ford Focus I recommend using a trailer hitch and hitch mount bike rack. This is the safest way to carry bikes and it keeps the bikes off of the vehicle.
For a trailer hitch, I recommend the Draw-Tite hitch # 24872. This is a Class I trailer hitch with a 1-1/4 inch receiver. For a compatible bike rack with locks for the hitch and bikes I recommend the Thule Helium, # TH970XT. I have included some li
view full answer...
