Derale Transmission Coolers for the 2009 Chevrolet Suburban

Derale Series 7000 Tube-Fin Transmission Cooler Kit w/ Hose Barb Inlets - Class IV - Standard - 2009 Chevrolet Suburban

16-5/8" Wide x 12-5/8" tall x 3/4" deep, high-quality, tube-fin heat exchanger improves the performance of your transmission and keeps it running longer. Premium tube and fin cooler with copper tubing and aluminum fins.

Features:

• Improves functioning and overall performance of transmission
• Extends life of transmission and prolongs period between necessary fluid changes
• Cuts down on heat-related failures
• Has built-in turbulators that agitate fluid for more efficient cooling
• Designed with copper tubing expanded into aluminum fins for maximum heat transfer
  • Copper is the best material for conducting the heat out of the fluid while aluminum is ideal for transferring and dissipating that heat
• Protected from possible damage during installation by plastic fin guards and powder coat finish
• Includes:
  • High-temperature, OEM spec hose with stainless steel clamps
  • Nylon mounting rods with pads
  • Bendable, metal mounting brackets
  • Insta-dapt radiator adapter
  • All necessary hardware
• Recommended for full-size trucks and SUVs
• Made in USA

Specs:

• Inlets: 11/32" hose barb
• Overall dimensions: 16-5/8" wide x 12-5/8" tall x 3/4" deep
• Core length: 13-3/4"
• Distance between inlets: 11-1/4"
• 1-Year warranty

Note: The Derale Insta-dapt radiator adapter fits most Chevrolet Suburbans with 5/16" transmission lines, but not all. In some cases, additional fittings or alteration of the OEM lines or hoses may be required for installation.

Perhaps the simplest type of heat exchanger, the tube-fin effectively cools a variety of automotive systems. The concept is simple: Fluid cools as it travels through the core by transferring heat out to the fins. The fins then provide the surface area necessary for sufficient heat exchange to take place, allowing the heat pulled from the fluid to dissipate into the surrounding air. Add to that the unique turbulator technology - whereby fluids are agitated continuously to not only facilitate heat transfer, but also to prevent any undesirable drop in pressure - and you have an easy and effective cooling system.

13105 Derale Series 7000 Tube-Fin Transmission Heat Exchanger with Installation Kit
Hidden Hitch # HH41014
Hayden Automotive # 405

Video of Derale Series 7000 Tube-Fin Transmission Cooler Kit w/ Hose Barb Inlets - Class IV - Standard

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

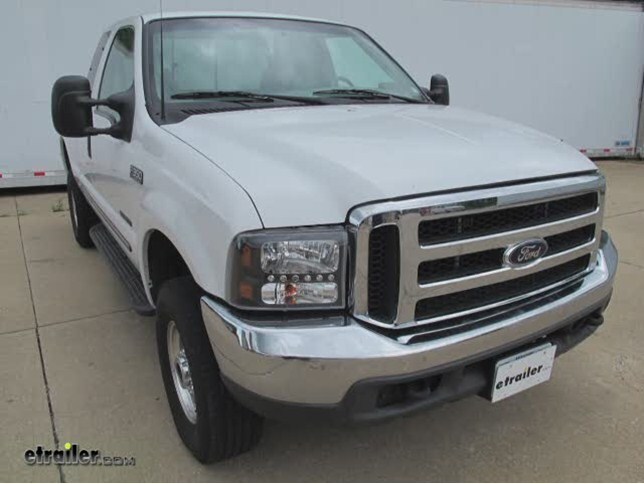

Transmission Cooler Installation - 1999 Ford F-350

2009 Chevrolet Suburban Owners Who Purchased This Transmission Coolers Also Bought...

Derale Radiator Adapter Fittings for Ford, Lincoln and Mercury $8.99

2-1/2" Round Grommet - Recessed Mount - Open Back $0.95

Sealed, Miro-Flex, 2-1/2" Round, LED Side Marker, Clearance or ID Light, 3 Diode - Red $12.95

Plug - Two Wire Pigtail for Sealed Trailer Clearance, Side Marker Lights - 6" Long $0.99

Derale Radiator Adapter Fittings for GM $9.99

Ask the Experts about this Derale Transmission Coolers

• Installation Instructions for Transmission Cooler D13105 on 2002 Ford F-250 Super Duty Diesel

• Transmission coolers are a universal fit item so there are not specific locations for each vehicle. Your F-250 Powerstroke should have come with a transmission cooler, in which case you can replace it for an upgraded, larger cooler such as this one. You will find your transmission lines that go from the transmission to the factory cooler. Mount the new Derale Series 7000 cooler to your radiator or A/C condenser and connect the lines.
  view full answer...


• Is Derale Radiator Adapter Fitting # D13025 Needed To Install Transmission Cooler on 1999 Ford F-250

• You will need the Derale Radiator Adapter Fittings for Ford, Lincoln, and Mercury, # D13025, which will allow you to connect to the return line of the factory transmission cooler. Part # D13025 allows you to connect to transmission return line without flaring the line when installing on your 1999 Ford F-250 Powerstroke. Installing the cooler behind the front grille, but in front of the radiator will provide the greatest cooling efficiency. You will want to measure a mounting location for part
  view full answer...


• Derale Transmission Cooler # D13105 Recommendation for a 2007 GMC Sierra With a 4.8 Liter V8

• This Derale Series 7000 Tube-Fin Transmission Cooler Kit, part # D13105, measures 16-5/8 inches wide by 12-5/8 inches tall and 3/4 inches thick. You will need to do some measuring in front of the radiator that is in your 2007 GMC Sierra. If you find that you have enough clearance there to install the # D13105 cooler, then it would work well for you. You will also want to purchase a Derale Radiator Adapter Fittings for GM, part # D13018, so you will not have to cut or flare any lines to instal
  view full answer...


• Can a Derale Transmission Cooler Fit Inline With Factory Cooler on 2000 Ford F-250

• The Derale Series 7000 Transmission Cooler, part # D13105, that you have referenced is a tube-fin design cooler and is a top rated transmission cooler. This Derale transmission cooler will fit inline with your factory transmission cooler. You will want to route the transmission fluid through the factory cooler first, and then through the # D13105 cooler, and finally back to your transmission. So the Derale cooler will be added after the factory transmission cooler in the radiator. See attac
  view full answer...


• Transmission Cooler Recommendation for a 2000 Ford F-350 with 7.3 Liter and Heavy Towing

• A large cooler like # D13105 that you have referenced would be a good choice. The larger the cooler and the more airflow it can get the more efficient it will be in cooling the transmission fluid. You may also need to add fitting # D13025 so you will not have to cut and flare lines. But I think you would benefit more from a remote cooler that has its own fan like # D13960. That way you will always get the optimum amount of cooling all the time. I have included a link to our FAQ article on tra
  view full answer...


• What Size Hose Is Needed to Add to Transmission Cooler # D13105 for a 1997 Ford Heavy Duty 7.3 Liter

• You can get 25 feet of 11/32 inside diameter hose using part # D13007. We also have a 4 foot length, # D13003. The hose that comes with transmission cooler # D13105 is 11/32 inches inside diameter.
  view full answer...
