2-Leaf Slipper Spring for 1,000-lb Trailer Axles

Redline Trailer Suspension - WIC2

This 2-leaf slipper spring is 24-1/4" long x 1-3/4" wide. It is designed for use on trailers with 1,000-lb axles.

Features:

• Flexes to absorb road shock and provide smooth ride
• Reduces wear and tear on trailer
• Ensures level ride on bumpy and uneven surfaces
• Mounts to trailer frame with hangers or a hanger kit (sold separately)
• Includes nylon bushing

Specs:

• Number of leaves: 2
• Spring width: 1-3/4"
• Eye diameter: 9/16"
• Spring capacity: 500 lbs
• Axle capacity: 1,000 lbs
• Dimensions: see table

Leaf springs are an integral part of your trailer suspension system. The slipper spring is suspended at one end by a hanger that attaches to the eye. The other end slips into a hanger or, in the case of tandem-axle or triple-axle systems, into an equalizer. To determine the type of hangers or hanger kit you need, you must know the specific type of leaf spring you have, as well as your axle diameter and capacity. Depending on the hanger kits used with them, springs can be configured to work for single-, tandem- or triple-axle applications.

Please Note: To ensure proper axle alignment and suspension performance, leaf springs should always be replaced in pairs.

WIC2 Trailer Slipper Spring - 2 Leaf - 500 lbs

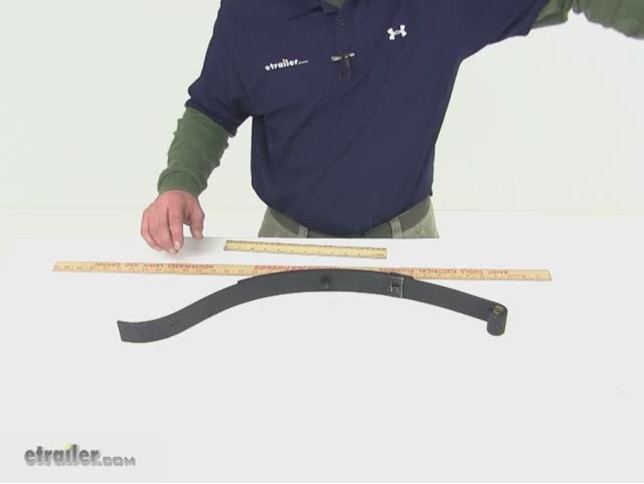

Video of 2-Leaf Slipper Spring for 1,000-lb Trailer Axles

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Redline Trailer Suspension WIC2 Review

Customers compare WIC2 to these similar products

3-Leaf Slipper Spring for 1,500-lb Trailer Axles$17.95

2-Leaf Slipper Spring for 2,000-lb Trailer Axles$20.95

4-Leaf Slipper Spring for 2,000-lb Trailer Axles$19.95

3-Leaf Double-Eye Spring for 2,000-lb Trailer Axles$14.99

3-Leaf Slipper Spring for 3,000-lb Trailer Axles$25.95

Customers Who Purchased This Trailer Suspension Also Bought...

Spring-Eye Bolt with Locknut for Slipper Springs - 3-1/2" Long $2.98

Rear Hanger for 1-3/4" Slipper Spring $1.79

Shackle Bolt with Locknut for Double-Eye Springs - 3" Long $3.08

U-Bolt Plate for 1-1/2" Square Trailer Axles with 1-3/4" Wide Springs $5.99

Replacement U-Bolt with Nuts for 1-1/2" Wide, Square Trailer Axles - 1/2" Diameter $6.99

Ask the Experts about this Redline Trailer Suspension

• What is the Length of Trailer Leaf Slipper Spring, # WIC2, Center of the Eye to End of the Spring

• I went out to the warehouse and pulled 2 of Trailer Leaf Slipper Springs, # WIC2, to measure them. I measured 2 of them just to be certain. The length of the spring, from the center of the eye to the very end of the spring is 24-3/4 inches.
  view full answer...


• What parts are Needed To Replace the Suspension on a 4x8 Utility Trailer

• I would be happy to explain all the components you will need to replace the suspension on the trailer and offer some installation tips along the way, free of charge. First, you will need to determine if the trailer uses slipper springs or double-eye springs. What ever the trailer is currently using, I would stick with the same type of spring. After determining the spring type, you will need to know the axle capacity. There is usually a sticker or plate on the trailer tongue that states the c
  view full answer...


• How to Order The Correct Slipper Springs For A 1970s Harding Boat Trailer

• The springs you have on your boat trailer are called slipper springs. One end of the spring has an eye and the other is an arched, open end. The front eye of the spring is attached to a front hangar on the trailer and the slipper end is inserted into a rear hangar. To get the correct slipper spring for your trailer you will need to know the number of leaves, the width of the spring, the length of the spring, and the weight rating of the axle on your trailer. The 2-Leaf Slipper Spring for 1,00
  view full answer...


• Replacement Slipper Leaf Springs for a Shoreline Boat Trailer with 3,000 Pound Axle

• In order to find the correct replacement slipper spring, you will need to measure the old spring when there is no weight on it. Jack up one side of the trailer and measure that spring. The measurements you need to find can be found in the diagram on the product page for any of the springs. With an axle capacity of 3,000 pounds, you would need two 1,500 pound springs like # WIF3. Make sure to check the measurements on the product page against your current spring. Springs should always be repla
  view full answer...


• Is there a Centering Stud on Both Sides of the Redline Slipper Spring # WIC2

• I pulled a 2-Leaf Slipper Spring # WIC2 from our warehouse and found that it has a mounting stud on both sides of the slipper spring. Check out the video I attached that shows both sides of the spring.
  view full answer...


• Slipper Spring Recommendation for a 1983 Dilly Trailer

• The 2-Leaf Slipper Spring # WIC2 that you referenced should work well for you. Springs will stretch over time so it may seem like the # WIC2 would be too short, but it is actually perfect since its length. Did you measure the length of the springs when they were on the trailer, or when the springs were removed?
  view full answer...


• Can Double Eye Springs be Replaced with Slipper Springs on a 1969 Shoreline Boat Trailer

• In most cases switching from double eye to slipper spring requires new hangers and mounting hardware. This would require you to cut the old spring hangers off the trailer and mount the new hangers in the correct location for the slipper springs. Due to the extra welding involved, I suggest you stay with your original suspension set-up. To select the correct springs you need the weight capacity of each axle. Then you need to measure the dimension from center of eye to center of eye on your do
  view full answer...
