Redline Trailer Suspension - TE30
This single-leaf double-eye spring is 25-1/4" long x 1-3/4" wide. It is designed for use with 6,000-lb trailer axles.
Features:
- Flexes to absorb road shock and provide smooth ride
- Reduces wear and tear on trailer
- Ensures level ride on bumpy and uneven surfaces
- Mounts to trailer frame with hangers or a hanger kit (sold separately)
Specs:
- Number of leaves: 1
- Spring width: 1-3/4"
- Eye diameter: 9/16"
- Spring capacity: 3,000 lbs
- Axle capacity: 6,000 lbs
- Dimensions: see table
NOTE: Bushings are not included.

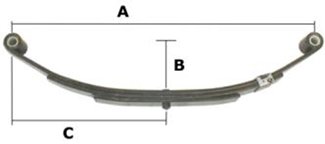

| Part Number | A | B | C |
|---|
| TE30 | 25-1/4" | 3" | 12-5/8" |
Leaf springs are an integral part of your trailer suspension system. The double-eye spring is suspended at the ends by hangers that attach to its eye or, in the case of tandem-axle or triple-axle systems, into hangers in the front and rear and an equalizer or equalizers in the center. To determine the type of hangers or hanger kit you need, you must know the specific type of leaf spring you have, as well as your axle diameter and capacity. Depending on the hanger kits used with them, springs can be configured to work for single-, tandem- or triple-axle applications.
Please Note: To ensure proper axle alignment and suspension performance, leaf springs should always be replaced in pairs.
TE30 Trailer Double Eye Spring - 1 Leaf - 3,000 lbs
Video of 1-Leaf Double-Eye Spring for 6,000-lb Trailer Axles
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Video Transcript for Redline Trailer Suspension TE30 Review
Today were gonna be taking a look at part number TE30, the Single-Leaf Double-Eye Spring for 6,000-lb Axles.This spring does only have one leaf within it and it was two 9/16-inch mounting eyes.When ordering a spring for your trailer, there are a few things you do need to know first. This spring measures 25 inches long by 1 inches wide. You will need to know the springs half-length which is measured from the center of the mounting eye to the center of the spring here at the leaf bolt. This springs half length is 12 5/8 inches. The final measurement youll need to know is the spring height. To get this measurement, youll draw an imaginary line from the center of the mounting eye to the center of the mounting eye on either side.
Using that imaginary line, well measure from the spring surface to it. In this case we have 3-inch height for this spring.And that does it for part number TE30, the Single-Leaf Double-Eye Spring for 6,000-lb axles. .
