Trailer Suspension > Leaf Springs > For Double Eye Springs > For 1-3/4 Inch Wide Spring > 6000 lbs > 5 Leaf > 25-1/4 Inch Long > Redline

5-Leaf Double-Eye Spring for 6,000-lb Trailer Axles

Redline Trailer Suspension

(60 reviews)


Code:   PR5

Retail:$36.98

Price:$28.95


Shipping Special

Shipping Weight: 17.5 pounds

Quantity:






Redline Trailer Suspension - PR5

This 5-leaf double-eye spring is 25-1/4" long x 1-3/4" wide. It is designed for use with 6,000-lb trailer axles.


Features:

  • Flexes to absorb road shock and provide smooth ride
  • Reduces wear and tear on trailer
  • Ensures level ride on bumpy and uneven surfaces
  • Mounts to trailer frame with hangers or a hanger kit (sold separately)
  • Includes nylon bushings


Specs:

  • Number of leaves: 5
  • Spring width: 1-3/4"
  • Eye diameter: 9/16"
  • Spring capacity: 3,000 lbs
  • Axle capacity: 6,000 lbs
  • Dimensions: see table
  • Quantity: 1 spring


Double-Eye Spring

Part NumberABC
PR525-1/4"3"12-5/8"

Note: To ensure proper axle alignment and suspension performance, leaf springs should always be replaced in pairs.


Leaf springs are an integral part of your trailer suspension system. The double-eye spring is suspended at the ends by hangers that attach to its eye or, in the case of tandem-axle or triple-axle systems, into hangers in the front and rear and an equalizer or equalizers in the center. To determine the type of hangers or hanger kit you need, you must know the specific type of leaf spring you have, as well as your axle diameter and capacity. Depending on the hanger kits used with them, springs can be configured to work for single-, tandem- or triple-axle applications.



PR5 Trailer Double Eye Spring - 5 Leaf - 3,000 lbs










Customers compare PR5 to these similar products





Customers Who Purchased This Trailer Suspension Also Bought...





Economy
$13.96 Less

3-Leaf Double-Eye Spring for 2,000-lb Trailer Axles


3-Leaf Double-Eye Spring for 2,000-lb Trailer Axles
Redline Trailer Suspension

57 reviews

Code: 1020


Retail:$23.19

Price:$14.99


3 Leaf

20-1/4 Inch Long

2000 lbs



This 3-leaf double-eye spring is 20-1/4" long x 1-3/4" wide. It is designed for use with 2,000-lb trailer axles.

more information →
Value
$8.00 Less

4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles


4-Leaf Double-Eye Spring for 3,500-lb Trailer Axles
Redline Trailer Suspension

162 reviews

Code: PR4B


Price:$20.95


4 Leaf

3500 lbs



This 4-leaf double-eye spring is 25-1/4" long x 1-3/4" wide. It is designed for use with 3,500-lb trailer axles.

more information →
Premium
$8.00 More

6-Leaf Double-Eye Spring for 4,500-lb Trailer Axles


6-Leaf Double-Eye Spring for 4,500-lb Trailer Axles
Redline Trailer Suspension

36 reviews

Code: PR626


Retail:$50.98

Price:$36.95


6 Leaf

26 Inch Long

4500 lbs



This 6-leaf double-eye spring is 26" long x 1-3/4" wide. It is designed for use with 4,500-lb trailer axles.

more information →

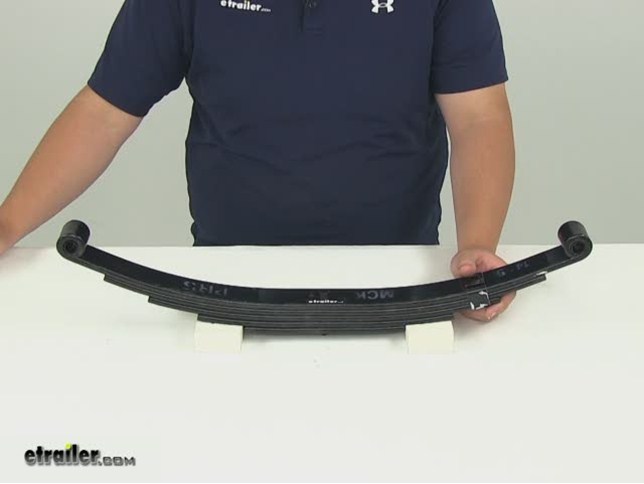

Video of 5-Leaf Double-Eye Spring for 6,000-lb Trailer Axles


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Redline Trailer Suspension PR5 Review

Today we are going be taking a look at part number PR5, the 5-Leaf Double-Eye Spring for 5,800-lb Axles. Before ordering a new spring for your trailer, there are a few things you do need to know first. This spring measures 25 1/4 inches long by 1-3/4 inches wide. You will need to know the springs half-length which is measured from the center of the eye mount to the center of the spring here at the leaf bolt. This spring has a 12 5/8 inches half-length. One more measurement you will need to know is the spring height. To get the spring height well actually draw an imaginary line from the center of the eye to the center of the eye.

And using that line we will measure from it to the spring surface. This spring is 3 inches high. You will notice that it does have two 9/16-inch holes for mounting. They do have nylon bushings in them. The nylon bushing helps to prevent metal on metal contact while the spring is on the trailer. It does have 5 leaves within it giving it a capacity of 2,900 lbs. When you multiply that by two per axle, you get your 5,800-lb total axle capacity. And that does it for part number PR5, the 5-Leaf Double-Eyed Spring for 5,800-lb axles.

.
