Stud Mount Four Function Light performs as a stop, turn, tail light and license illuminator. Features a wrap-over lens retained by two screws onto a black plastic housing making the light dust resistant. Mounting hardware and 1157 bulb included.
Video of Peterson Round Trailer Tail Light with License Plate Light, 2 Stud Mounting, Left Hand
installation instructions And specs For complete information.

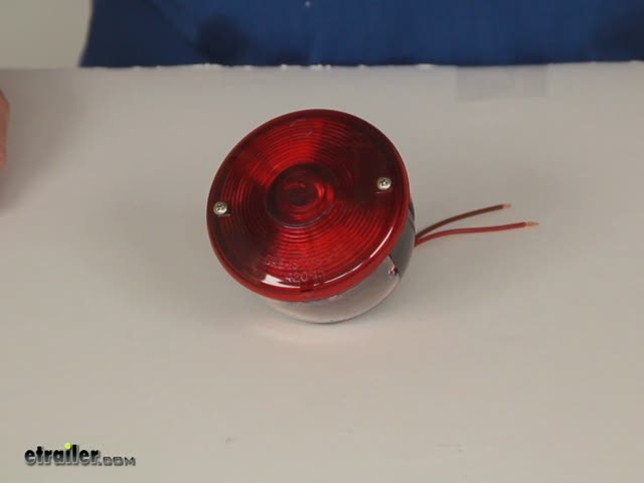

Today we are going to review part no. 432000. This is the Peterson Round Trailer Tail Light with the License Plate Light. And this is a two-stud mounting light, and it is for the left-hand side. That is why they actually have the license plate light down here, designed to go on the left-hand side of your trailer. Now, this light will ground through the mounting studs; these two mounting studs on the back.
Basically you just unscrew the bolts. And then when you mount this onto a trailer, you just want to make sure that this does attach to a nice, clean, unpainted surface, because you do want to get a good ground through the studs itself. Now this lens right here, you can see the two screws. They can be removed. Also, this clear lens down here can be popped out.
And it does include a 1157 dual-filament bulb. Its included. And, it can replaced if it does burn out. Now, it has two wires on the back here. You can see, this ones a brown wire which is designed for the running lights.
This one is a red wire which is designed for the turn signal and the stoplights. Do want to give you a few measurements on this. Give you an idea of the overall width. Its going to be right at 3 and 3/4 inches. The depth from the lens to the back here is going to be 2 and 5/8 inches.
The distance between the center of both mounting studs is 2 inches. Now what Im going to do is, I have a 12-volt power source here. Were going to connect it up just to give you an idea of how bright the light is, and what the features are. Im first going to take the 12-volt power and then, again, we are going to take the brown wire and hook the power to that. Then the red wire, were going to take the turn signal and brake, hook it up. Then, again, for the ground, Im going to take the ground and just ground it to this mounting stud, as you can see right here, and were all set up to go. Now, well go ahead and turn off the overhead lights. Now, Im going to turn on the 12-volt power source. Now, youll see this is your running lights, on your trailer. The power connected. And when you hit your brakes, youll be able to see how the dual filament bulb will get brighter. Also, when you do your turn signals, thats what your turn signals will look like. I do want to turn it up so you can actually see this clear lens will give the light. The light will shine onto your license plate; eliminate your license plate light. Okay, now, well go ahead and turn the overhead lights back on. Im going to disconnect it. And that should do it for the review on part no. 432000. This is the Peterson Round Trailer Tail Light with the License Plate Light. .
Average Customer Rating: 4.6 out of 5 stars (23 Customer Reviews)Stud Mount Four Function Light performs as a stop, turn, tail light and license illuminator. Features a wrap-over lens retained by two screws onto a black plastic housing making the light dust resistant. Mounting hardware and 1157 bulb included.
by: Stan R10/24/2013
Just received my 2 nd order, the first was fast and great condition. The lights were wrapped in plastic bags. Bright and shiny housings.This order had the tail lights wrapped in paper, they actually were terribly scratched and scuffed both of them, one did not include the 2 star washered nuts... My first thoughts were these were used. Disappointed , I called to voice my opinion. She thanked me for the call. Too much trouble to return...hope they work when I get them installed. Disappointed customer, Stan 105019
Great lights, didn't read description saying bulbs included. These lights are about twice as bright as my truck and almost blinding, really helps when backing up at night time. If you don't need a license plate under the light you can go with two right hand lights as they seem identical except the left hand one has a clear lens on the bottom. 191312
by: John W02/05/2015
The tail lights are replacements for ones that rusted. They are not installed, but the stud pattern and size are exactly as described and fit the light bracket very well. The tag bracket only needs slight modification to attach to the left tail light bracket. The parts are satisfactory for my needs. Thanks. 172524
by: Keith J04/10/2014
I'm restoring an older snowmobile trailer and these lights worked just like I wanted. They were easy to install, fit perfectly and are exactly as advertised. They were shipped promptly with great notification from etrailer of my order status. Great job guys! 124564
This is exactly what I needed to rewrite my trailer and this is one of they few places I could find it, and the best price too! Good customer care and follow up to ensure I received the package, would do business with this store again. 203817
by: Rick Y.09/22/2015
I have yet to install the new trailer lights. They are exactly as described and pictured on your website. The delivery was timely. Packaged properly and in perfect condition. 227047
by: Cliff N.05/16/2011
Having an older trailer, it was important to find a newer match for the trailer tail lights. These were just the thing I was looing for and at the right price with shipping. 14352
Quick turn around time, got exactly what was ordered as advertised. etrailer has not let me down on anything that I have ordered over the years. keep up the good work. 218928
by: Jim B.05/23/2011
Standard trailer lights that were replacing exact same lights that were about 20 years old. Best part about the order was the quick shipping time by e-trailer. Thanks! 15162
by: jason fb04/16/2014
Awesome product. Exact replacement of my 1952 tail light(except now in plastic which is just fine). Instant shipment and the best prices on the web. Thanks guys. 125609
I have a 1967 trailer that came with this style tail light. I wanted to stay with the original look and these fit the bill perfectly...thanks. 96945
by: Jim I.10/03/2013
Exact fit for my older trailer, about the only place I could order these lights. Well packaged, great price, fast shipping. 102448
by: Richard G10/16/2013
Lights were delivered fast. Both the quality and the price were very good. 104033
by: Edgar moya05/05/2015
Great product on the night have an huge visibility and is easy to install 190701
by: Jim L08/07/2015
I have not yet installed the lights but they appear to be well made. 217619
Light came to me without the 1/4" nuts as the other side did. 22495
by: Rob S04/03/2015
The product and transaction were great. Thanks etrailer! 182654
by: Peter Krusch05/15/2014
Exactly what I needed! Also item actually made in USA 130849
by: Marcelino Ortiz03/27/2014
Great product fast shipping thank you so much 122561
by: john s.05/17/2011
very quick and got exactly what i order ed.... 14593
good lamps and great packaging and serv ice!! 130797
by: steve Tantaros10/03/2013
MADE in USA 102352
very good 214604
