Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
15" L x 1-5/8" W x 5/8" D; sealed; waterproof; corrosion resistant; 3-wire; 11 red LEDs; red lens and integrated reflector
Features:
Sealed, surface mount, over 80" LED stop/turn/tail lights with sleek, new, low-profile design - only 5/8" thick.
All models include 11 diodes for bright, dependable performance.
Polycarbonate lens is sonic welded to housing for durability. All-weather, molded plastic housing and durable lens protect against corrosion. Separate ground wire.
Video of Sealed, Thin Line, Over 80" LED Stop/Turn/Tail Light, 3-Function, 11 Diode - Red Reflector
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

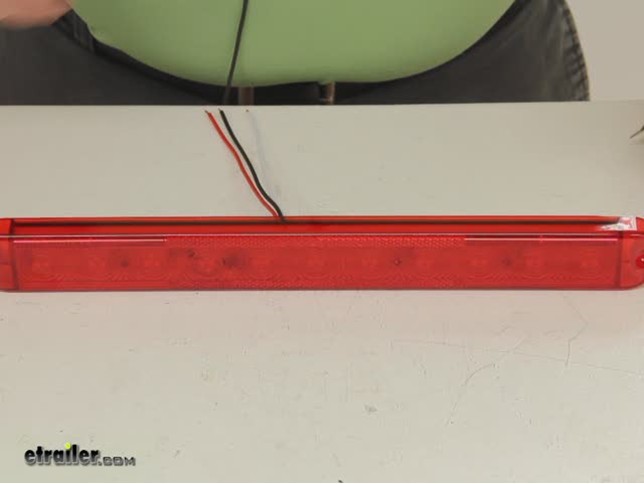

Today were going to review part number STL69RRXB. This is the Optronics Sealed Thin Line over 80-inch trailer LED stop turn taillight. This is a 3-function 11-diode red reflector. This red rectangular trailer light will serve 3 functions for trailers that are more than 80-inches wide. Itll be the stop, the turn and the taillight. It does include an integrated reflector to fulfill the rear reflex requirement.
This is a great replacement for incandescent lights. There are no bulbs to replace, no brittle filaments to break. This is waterproof and corrosion-resistant. This polycarbonate lens is sonically welded to the housing for durability. Its an all-weather plastic molded housing and the durable lens will protect against corrosion.
This is a surface mount taillight. It does have 11 red LEDs and a red lens. This does use a 3-wire design which will contain a white wire for ground, a black wire for the taillights and a red wire for the stop and turn lights. The LED lights will draw .270 amps at 12.8 volts for the stop and turn lights and itll draw .025 amps at 12.8 volts for the taillights. Ill give you a quick dimension on this.
The overall length of this light will be 15 inches. It uses mounting two holes for mounting and Ill measure the distance between the center of one mounting hole to the center of the other mounting hole thatll be 14 1/8 inch. It is 1 5/8-inch wide and 5/8 of an inch deep. There is a lifetime warranty on the LEDs. Now what Im going to do is connect this light to a power supply to give you an idea of the brightness of the light.
So well hook the light to white for the ground, well hook the black to the taillight. This will give you an idea of the brightness of the taillight. And then Ill hook the red to the stop and turn and that would be the stop and turn and then what Im going to do is turn off the overhead lights and then this will give you an idea. Theres the taillight brightness and that would be the stop and turn brightness. That should do it for part number STL69RRXB.
Customers compare STL69RRXB to these similar products
Customers Who Purchased This Trailer Lights Also Bought...
Average Customer Rating:
4.7 out of 5 stars (14 Customer Reviews)
by: jage04/01/2010
Is this review helpful?
Great, wish: flush mount wires Good and bright, quality, but didn't come with a gasket and the wires coming off the board are higher than the edge. I had to cut exact holes for one and remove material for another to fit the wires and have the whole thing to mount flush on a flat surface.2889
by: Robert M.04/29/2013
Is this review helpful?
Great products. LED lights turned out great. Great company to work with, appreciate all the follow ups.78345
by: Joe D09/25/2012
Is this review helpful?
I resived my new LED tail lights and you can't miss them, they are very bright & were easy to install. Now when I'm towing people will see me. I recived the parts fast & everything was easy to order. I will deal with e-trailer again. Good prices & fast service.55796
by: Tom M.08/16/2012
Is this review helpful?
Excellent deal, fast shipping, got all 3 lights from etrailer for the same price my dealer was asking for 1, Thanks again51955
by: Charles D.06/25/2012
Is this review helpful?
Great product, easy install 45606
by: Bob K06/04/2012
Is this review helpful?
I mounted on my boat today, works well. 42773
by: eric s05/23/2012
Is this review helpful?
nice little light, very compact. exactly what i wanted41475
by: Dennis L04/06/2012
Is this review helpful?
They are exactly what I was looking for. They were slim enough to fit in the small lip I had on my dove tail, but are bright enough to ensure the back of my trailer is seen36341
by: Steve S03/16/2012
Is this review helpful?
Just what was advertised and delivered promptly. Thanks for the quick service. 34146
by: Denvis S.12/22/2011
Is this review helpful?
Great product, super fast shipping 28521
by: Jason H09/26/2011
Is this review helpful?
These units replaced the defective one's on the 2 week old trailer I just bought. The manufacturer would not honor their warranty by not returning calls or e-mails. I am pleased with these lights as they were much better built than the one's that came on the trailer. As always, another great experience from etrailer.com. 24588
by: Thomas W07/14/2011
Is this review helpful?
These are the best light I've ever installed on a trailer. They work perfectly and show up very well at night and in daylight.19421
by: Brad K.02/25/2011
Is this review helpful?
Awesome looking light. More reflector area than I thought there was going to be. These units are slightly taller than the ones without the reflector and the center clearance lights. It would be nice if they matched or if there was a taller clearance light to match it, but only 1/4 inch difference not too bad. Also, the LED circuit board is open on the back side of the light. I will be filling it with silicone or dielectric grease before mounting and then caulking around the mount to make it water tight.7895
by: Matt W.12/15/2010
Is this review helpful?
nice lighting looks great with chrome ring...easy to mount...adds to look and lighting of trailer4146
