Sealed, 4" Round Trailer Stop, Turn and Tail Light with Reflector, Flange Mount, 4-Function

Optronics Trailer Lights - ST48RB

5-1/2" Diam x 2" D; Reflectorized lens; sealed, waterproof; shockproof socket; flange mount on 4-1/4" centers; 3-prong plug connection; 1-bulb incandescent

Sealed, 4" Round Trailer Stop, Turn and Tail Light with Reflector, Flange Mount, 4-Function

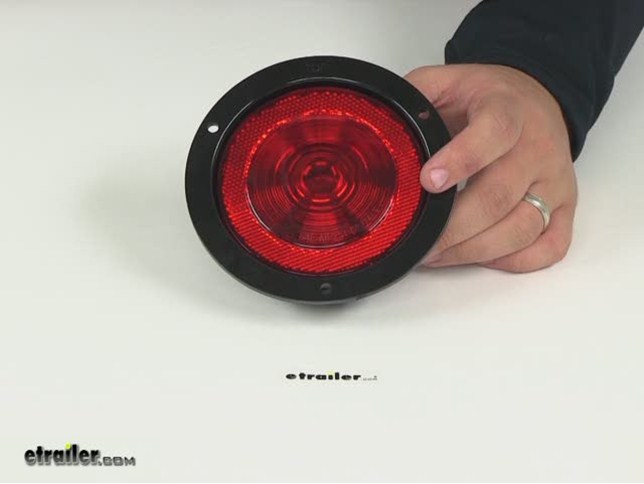

This is a sealed, round combination stop, turn, and tail light with flange mount base. The light includes reflector optics so that a separate rear reflector is not needed to be DOT compliant. This red light measures 5-1/2" in diameter by 2" deep. Lens and housing are one unit that is sonically sealed and waterproof, providing protection to the heavy-duty, long-life bulb. The light features a shockproof socket, guaranteeing long bulb life. This light flange mounts through the three mounting holes equally spaced on the flange at 4-1/4" apart. A separate, industry standard, three-prong plug is used for the wiring connection.

• Red, round trailer light serves 4 functions: stop, turn, and tail light and rear reflector
• Sealed, waterproof housing and lens unit
• Heavy-duty long-life bulb
• Shockproof socket guarantees long bulb life
• Flange mounts through three holes in housing spaced at 4-1/4"
• Accepts industry standard, 3-prong plug and grounds through mounting hardware
• Dimensions: 5-1/2" Diam x 2" D

Manufacturer Specifications

Sealed, flange mount stop, turn and tail lights. Includes reflector optics, allowing it to function as a rear reflector. Features sonically sealed, waterproof lens and housing in a single unit. Shockproof socket guarantees long bulb life. Accepts industry standard, 3-prong plug. Grounds through mounting hardware. Requires plug for complete installation.

ST-48RB 4" Round Sealed Stop, Turn and Tail Lights by Optronics, Inc.

Customers compare ST48RB to these similar products

Sealed, 4" Round LED Trailer Stop, Turn and Tail Light, Flange Mount, 3-Function, 10 SuperDiode$16.95

4-1/2" Round Trailer Stop, Turn and Tail Light, Flange Mount, 3-Function$5.75

Sealed, 4" Round Trailer Stop, Turn and Tail Light, Flange Mount, 3-Function$5.95

Sealed, 4" Round Trailer Stop, Turn and Tail Light, Flush Mount, 3-Function$4.95

Red Trailer Light, Flush Mount$16.95

Customers Who Purchased This Trailer Lights Also Bought...

Wire Loom, 1/2" Diameter (per Foot) $0.34

Straight 3-Wire Pigtail for Sealed Trailer Stop, Turn and Tail Lights $0.95

Right Angle 3-Wire Pigtail for Sealed Trailer Stop, Turn and Tail Lights $1.15

Black Bracket and Single Wire Plug for Thin Line Series Trailer Clearance and Side Marker Lights $1.85

1" Long Black Torx Wall Liner Screw $0.49

Ask the Experts about this Optronics Trailer Lights
Do you have a question about this Trailer Lights?

• What Size Mounting Hole is Needed to Install Trailer Stop, Turn, and Tail Light # ST48RB

• I went out to the warehouse and pulled a Sealed, 4 Inch Round Trailer Stop, Turn and Tail Light, # ST48RB, to measure. You will need to cut a 4-1/2 inch diameter hole in order to properly mount the light. The compatible wiring pigtail for this light is # A45PB.
  view full answer...


• How to Wire the Sealed 4 Inch Round Trailer Stop Turn and Tail Light

• The sealed, 4 inch round trailer stop, turn and tail light, # ST48RB, is designed to be used with the straight or right angle 3-Wire Pigtail, # A45PB or # A47PB. The white wire with the ring terminal on the end of it is ground, the red wire is for the brake and turn signal functions, and the black wire is for the tail light function.
  view full answer...
