1-1/4" Diameter x 1-1/4" deep; sealed, waterproof, 1-piece housing and lens; corrosion proof; surface mount with gasket and O-ring; 2-wire design; 1 white LED; clear lens. Lowest Prices for the best trailer lights from Optronics. LED Mini Utility Light - 1 Diode - Waterproof - 1" Round - White w/ Clear Lens part number LM112CB can be ordered online at etrailer.com or call 800-298-8924 for expert service.
$5.49
Select Your Vehicle

View Cart


Trailer Lights > Utility Lights > 1-1/4 Inch Diameter > LED Light > White > Round > Surface Mount > Optronics

LED Mini Utility Light - 1 Diode - Waterproof - 1" Round - White w/ Clear Lens

Optronics Trailer Lights

Code:   LM112CB

Price:$5.49


Shipping Special

Shipping Weight: 0.04 pounds

Quantity:






Optronics Trailer Lights - LM112CB

1-1/4" Diameter x 1-1/4" deep; sealed, waterproof, 1-piece housing and lens; corrosion proof; surface mount with gasket and O-ring; 2-wire design; 1 white LED; clear lens.


Features:

  • White mini utility light for use above ground or below water level
  • Long-lasting LEDs (light emitting diode) are great replacements for incandescent lights
    • Multi-diode design optimizes light output
    • No bulbs to replace - no brittle filaments
    • More efficient - provide brighter light with less power
  • Sealed, waterproof housing and lens unit
    • Durable and corrosion proof
  • 2-Wire design - includes 10-1/2" of lead wire for power and ground wire
    • Requires 3/4" hole to run wiring


Specs:

  • Shape: round
  • Dimensions: 1-1/4" diameter x 1-1/4" deep
  • Diodes: 1
  • Power draw: 0.013 amps at 12.8 volts
  • Installation: surface mount with watertight gasket and screw-on O-ring (included)
  • Lifetime warranty on LEDs


LM112CB LED Mini Utility Light - 1 Diode - Waterproof - 1" Round - White w/ Clear Lens






Customers compare LM112CB to these similar products





Customers Who Purchased This Trailer Lights Also Bought...





Economy
$0.50 More

Uni-Lite LED Mini Utility Light - 2 Diode - Sealed - 1" Round - White w/ Clear Lens


Uni-Lite LED Mini Utility Light - 2 Diode - Sealed - 1" Round - White w/ Clear Lens
Optronics Trailer Lights

23 reviews

Code: UCL11CKB


Price:$5.99


Recessed Mount

1 Inch Diameter



1-1/10" Diameter x 15/16" deep; sealed, waterproof, 1-piece housing and lens; recess mount; 2-wire design; 2 white LEDs; Crystal Clear lens.

more information →
Value
$4.50 More

Sealed, Miro-Flex, 2" Round, LED Side Marker, Clearance or ID Light, 9 Diode - Clear


Sealed, Miro-Flex, 2" Round, LED Side Marker, Clearance or ID Light, 9 Diode - Clear
Optronics Trailer Lights

4 reviews

Code: UCL50CB


Price:$9.99


Recessed Mount

2 Inch Diameter



2" Diameter; sealed; waterproof; 2-prong plug connection; 9 white LEDs; Miro-Flex - brightest light using the least energy; clear lens

more information →
Premium
$14.46 More

Sealed, 6-1/2" Oval LED Trailer Utility Light, Flange Mount, 10 Super Diode - Clear


Sealed, 6-1/2" Oval LED Trailer Utility Light, Flange Mount, 10 Super Diode - Clear
Optronics Trailer Lights

47 reviews

Code: BUL78CB


Price:$19.95


Oval

7-1/2L x 3W Inch



7-9/16" L x 3-5/16" W x 3/4" D; Sealed, waterproof; corrosion resistant; flange mount on 7" and 2-3/4" centers; 2-wire; 10 super diode LEDs

more information →


Video of LED Mini Utility Light - 1 Diode - Waterproof - 1" Round - White w/ Clear Lens


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Optronics 1

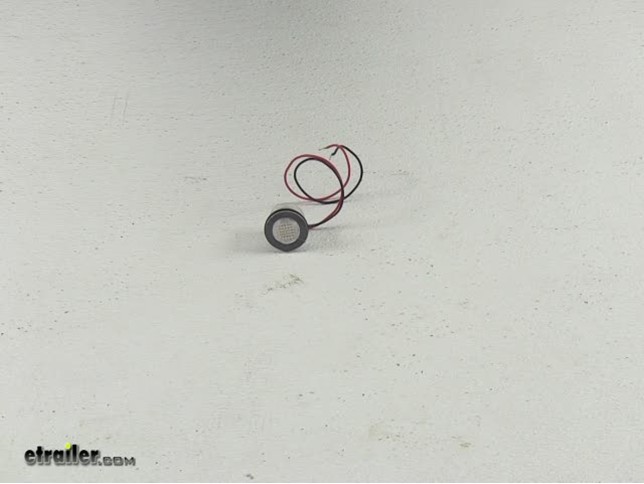

Today we are looking at the LED mini light from Optronics, part number LM112CB. This is a sealed waterproof housing and lens unit. It is a two wire design with 10-1/2 inches of lead wire for both power and ground. The light consists of one diode, and has a power draw of .013 amps on 12.8 volts. There's a lifetime warranty on the LED. Lets go ahead and connect the power supply so we can see what it looks like when its lit up.

Now we'll turn off the overhead light so we can see what it looks like in the dark. And there you have it for our Optronics LED Mini Utility Light part number LM112CB. .

0
0


Ask the Experts about this Optronics Trailer Lights
Do you have a question about this Trailer Light?


  • Options for a Small, Round LED Side Marker Light
  • We do have a similar light to # LM112CB that is a red LED. Take a look at # MCL11RKB. It isn't exactly the same but it is a close match. We also have # MCL110RKB which is part of the Glo Light series which lights up a little differently. I have linked a video review for you. For a clear lens we have # MCL11CRKB with red diodes. Another close match is # MCL12RKB with a red lens. There are others that are a little larger. I have included a link to the round LED red marker lights that...
    view full answer...

  • Installation Of Optronics Mini Utility Light
  • I have attached a link to our product review video for the Optronics Mini Utility Light, part # LM112CB. As the video shows, this is a very simple installation. You can connect the black wire to a ground and then connect the red wire to your 12 volt power source. No relay is required when installing this light.
    view full answer...
