2-1/2" L x 1-3/16" W x 7/8" D; PC-rated; sealed, waterproof; clear lens w/amber diodes; 2-prong plug connection; 3 LEDs
This thin-line, sealed, rectangular LED mini-light can be used as a clearance or side marker light. This PC-rated light functions as both a marker and clearance light when mounted properly at a 45 degree angle. This amber light measures 2-1/2" long x 1-3/16" wide x 7/8" deep. Crystal Clear lens and housing are one unit that is sonically sealed and waterproof, providing protection to the 3 amber light-emitting diodes. The light draws 0.051 amps at 12.8 volts. A separate, industry standard, two-prong plug is used for the wiring connection, making it simple to upgrade from incandescent lights. Choose from many mounting and wiring options, required to complete the installation.
LED clearance and side marker light. PC-rated light that functions as both clearance and side marker light when properly mounted on a 45 degree angle. Features sonically sealed, waterproof lens and housing in a single unit. Accepts industry standard, 2-prong plug for easy retrofit of incandescent lights. Multiple mounting and wiring options available.

Video of Sealed, Mini Rectangular LED Trailer Clearance, Side Marker Light, 3 Diode - Amber with Clear Lens
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

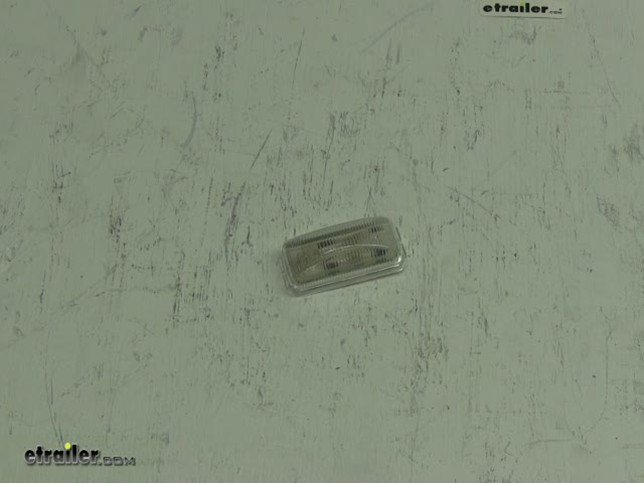

Now we are going to take a look at Optronics Sealed Mini-Rectangular LED Light with Clear Lens, part number AL91CAB. This is a mini sized clearance light. It has 3 amber LEDs behind a clear lens. The light draws a total of .051 amps at 12.8 volts. The housing is sealed and waterproof, so it is fine to use on boat or jetski trailers. It is designed to snap into Optronics brackets using these tabs on the side and it will use these contacts on the back for our electrical connections. Next we will show you how it works with a power source. We will take our ground connection and clip it to one of the contacts and then our power source to the other. Next, we will turn off the overhead lights, so you can see how bright the light is. And that does it for Optronics Sealed Mini-Rectangular LED Clearance Light with Clear Cover, part number AL91CAB.
Customers compare AL91CAB to these similar products
Customers Who Purchased This Trailer Lights Also Bought...
Average Customer Rating:



5.0 out of 5 stars (2 Customer Reviews)




by: NeilG12/07/2012
Is this review helpful?
These side markers for trailers are sharp looking and, most of all, they are bright! With 3 LEDs in each unit, they provide excellent visibility. They are also sealed, so no chance of water contaminating or destroying the LEDs. They are also smaller in size so you can position them in more places. I'm rewiring my utility trailer with all new LED units. The previous lights using incandescent bulbs were just too dim and subject to corrosion. Once you wire a trailer using these LED units, you'll always use them!60882




by: J Scott02/22/2012
Is this review helpful?
Great product and delivered early!! I would highly reccomend this company. 32232
