14-1/16" Long x 6-15/16" wide x 1-1/4" thick; 84, 85 Series; 3-light fixture; red brake, tail and turn lights with long-lasting LEDs; center, reverse light with Class A red reflex reflector; black base; 2-wire design; recessed mount. Lowest Prices for the best Trailer Lights from Bargman. Bargman Triple Tail Light - 84, 85 Series - Red LED, Center Incandescent Backup - Black Base part number 47-84-522 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
$59.95

Select Your Vehicle
Select Your Vehicle

Bargman Triple Tail Light - 84, 85 Series - Red LED, Center Incandescent Backup - Black Base


1 review


Shipping Weight: 1.87 pounds

Retail:$76.77

Price:$59.95


Trailer Lights > Tail Lights > Stop/Turn/Tail, Backup, Rear Reflector > Submersible Lights > 14L x 7W Inch > LED Light > Red > Rectangle > Recessed Mount > Bargman


Bargman Triple Tail Light - 84, 85 Series - Red LED, Center Incandescent Backup - Black Base

Bargman Trailer Lights

(1 reviews)


Code:   47-84-522

Retail:$76.77

Price:$59.95


Shipping Special

Shipping Weight: 1.87 pounds

Quantity:






Bargman Trailer Lights - 47-84-522

14-1/16" Long x 6-15/16" wide x 1-1/4" thick; 84, 85 Series; 3-light fixture; red brake, tail and turn lights with long-lasting LEDs; center, reverse light with Class A red reflex reflector; black base; 2-wire design; recessed mount.

Features:

  • 3-Light fixture has 2 red LED tail lights and 1 incandescent reverse light for your trailer or RV
    • Red LED lights function as combination brake, tail and turn signal lights
      • LEDs last longer and burn brighter than incandescent lights
        • Low power consumption
        • Quick activation - LEDs respond faster than incandescent bulbs
    • Incandescent reverse light is surrounded by Class A red reflex reflective lens
      • Backup light sits between 2 red tail lights
  • Tail light is designed to be mounted horizontally or vertically
  • Stylish black base has rounded corners
  • Pre-wired design - power and ground wires
  • Department of Transportation compliant
    • Meets FMVSS/CMVSS 108 requirements


Specs:

  • Overall dimensions: 14-1/16" long x 6-15/16" wide x 1-1/4" thick
  • Overall depth: 1"
  • Cutout dimensions: 12-11/16" long x 5-1/2" wide
  • Installation: recessed mount
  • Limited lifetime warranty


With brighter and faster illumination than incandescent bulbs, light emitting diodes are setting the new standard in automotive lighting. LEDs illuminate faster upon activation than incandescent bulbs, giving motorists behind you a better indication of when you're braking, turning or reversing and thus boosting their response time. These efficient little lights are environmentally friendly, too. With six times the life expectancy and ten times less power consumption than incandescent bulbs, the choice is obvious.



47-84-522 Bargman LED Recessed Triple Tail Light - 84, 85 Series - Red Stop/Tail/Turn, Incandescent Backup with Black Base







Video of Bargman Triple Tail Light - 84, 85 Series - Red LED, Center Incandescent Backup - Black Base


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.



Video Transcript for Bargman Trailer Lights 47-84-522 Review

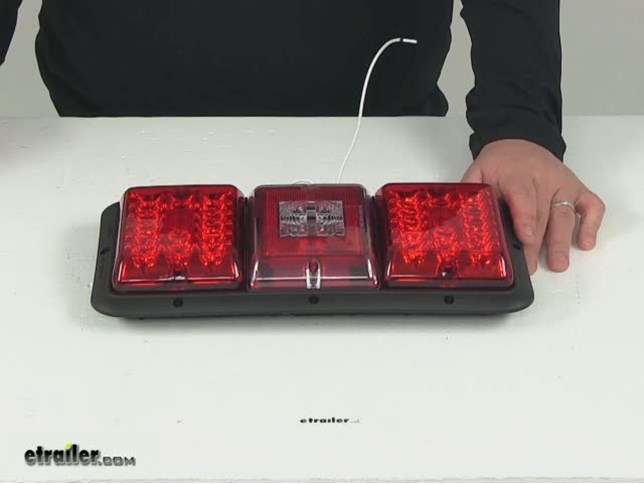

Today, we're going to be taking a look at part #47-84-522. This is the Bargman Triple Tail Light: 84 and 85 series. The 3 light fixture is going to feature 2 red LED tail lights and here in the middle, it's going to feature an incandescent reverse light for your trailer RV. The red LED lights function as a combination of brake, tail and turn signal lights. LEDs are a great system to have in place. They're going to last longer, burn brighter, draw less power.

They're going to have a quicker activation, when compared to incandescent bulbs. Here in the middle's going to be the incandescent reverse light. It's going to be surrounded by class A red reflects, reflective material. The back up light sits between the 2 red tail lights. This can be mounted horizontally or vertically. It's going to feature a nice, stylish base with the rounded corners on it.

Here on the back side, it's going to expose the pre-wire design. White wires going to be your ground. Your green wire is only for the tail lights, then your black wire is going to be for your stop and turn signal. The black wire, coming out the incandescent light or the reverse light is going to be for the reverse function. This unit is Department of Transportation compliant and meets FMVSS and CMVSS 108 requirements. We're going to go ahead and take a look at the overall dimensions.

It's going to give us an overall link of pretty close to 14". Overall width of about 7" and the thickness is going be an inch and a quarter. This is a recessed mount installation. So we're going to go ahead give the measurements of the cut-out that you'll need as well. That's going to give you a length of 12-11/16ths of an inch, and then a width of 5-1/2".

You see that it has a mount hole here. It has one on the other side, and then 3 along each end. If we take a measurement just between the center of the mount holes here on this side. This sides' going to measure about 4-1/4 of an inch. That's going to be the same for each set. Bargmans covers this light with a limited lifetime warranty. We're going to go and hook it up to our external power source. That way you can see what it looks like with power running to it. Just make our connections real quick. This is going to be the tail light function. You can see that it sends out a nice consistent LED signal. Then when we apply our brakes, sends out a brighter signal. It's also going to do that same thing when we activate our turn signal. I'm going to go ahead and take this and hook up our reverse light. You see there that that's going to be the incandescent bulb. The clear light allows a lot of that white light to come through and it really looks nice in between the 2 LED red tail lights. That's going to do it for today's review of part #47-84-522. This is the Bargman Triple Tail Light: 84 and 85 series. .


Customers compare 47-84-522 to these similar products





Customers Who Purchased This Trailer Lights Also Bought...



Replacement parts available for this product








Customer Reviews

Bargman Triple Tail Light - 84, 85 Series - Red LED, Center Incandescent Backup - Black Base - 47-84-522

Average Customer Rating:  5.0 out of 5 stars   (1 Customer Reviews)

14-1/16" Long x 6-15/16" wide x 1-1/4" thick; 84, 85 Series; 3-light fixture; red brake, tail and turn lights with long-lasting LEDs; center, reverse light with Class A red reflex reflector; black base; 2-wire design; recessed mount.


- 47-84-522

by: Alan W.09/23/2013


We replaced the old incandescent bulbs with new LED on our 97 Ford E Super Duty bus. The old bulbs were extremely hard to see in sunlight and nominal at night. Most of all we were concerned that no one would be able to see our brake or turn signals because the light was so dim. The LED lights have made it MUCH safer and easier to see. I no longer cringe when I stop. Installation was VERY EASY. We simply cut and spliced existing wires to function just like to old lights were wired. We were able to have these new lights working within a half an hour. See the attached picture of the old lights on the right in comparison with the new LED lights on the left. The vast difference is even greater at night. 101078
