8-7/16" Long x 5-15/16" wide x 2-5/16" thick; 07 Series; designed for use with either 47-07-001 or 47-07-100; red combination brake, tail and turn light; long-lasting LEDs; white base; 2-wire design; surface mount. Lowest Prices for the best Trailer Lights from Bargman. Bargman Surface Mount LED Tail Light - 07 Series - Red - White Base part number 47-07-003 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
$29.95
view cartView Cart

Select Your Vehicle

CALL NOW - 800-298-8924

Product Experts Available Now!



Trailer Lights > Tail Lights > Stop/Turn/Tail, Rear Reflector > Non-Submersible Lights > 8-1/2L x 6W Inch > LED Light > Red > Rectangle > Surface Mount > Bargman


Bargman Surface Mount LED Tail Light - 07 Series - Red - White Base

Bargman Trailer Lights

(20 reviews)


Code:   47-07-003

Retail:$36.32

Price:$29.95


Shipping Special

Shipping Weight: 1.25 pounds

Quantity:






Bargman Trailer Lights - 47-07-003

8-7/16" Long x 5-15/16" wide x 2-5/16" thick; 07 Series; designed for use with either 47-07-001 or 47-07-100; red combination brake, tail and turn light; long-lasting LEDs; white base; 2-wire design; surface mount.

Features:

  • Red light functions as combination brake, tail and turn signal light for your trailer or RV
  • LEDs last longer and burn brighter than incandescent lights
    • Low power consumption
    • Quick activation - LEDs respond faster than incandescent bulbs
  • Sleek, rounded design with white base
  • Tail light can be mounted vertically or horizontally
    • Designed for use with 47-07-001 or 47-07-100 mirror-image lights
    • See mounting options below
  • Snap-on lens
  • Pre-wired design - power and ground wires
  • Department of Transportation compliant
    • Meets FMVSS/CMVSS 108 requirements


Specs:

  • Dimensions: 8-7/16" long x 5-15/16" wide x 2-5/16" thick
  • Number of diodes: 16
  • Installation: surface mount
  • Quantity: 1 light
  • Limited lifetime warranty


With brighter and faster illumination than incandescent bulbs, light emitting diodes are setting the new standard in automotive lighting. LEDs illuminate faster upon activation than incandescent bulbs, giving motorists behind you a better indication of when you're braking or turning and thus boosting their response time. These efficient little lights are environmentally friendly, too. With six times the life expectancy and ten times less power consumption than incandescent bulbs, the choice is obvious.


07 Series Tail Lights


47-07-003 Bargman Surface Mount LED Tail Light - 07 Series - Red Stop/Tail/Turn

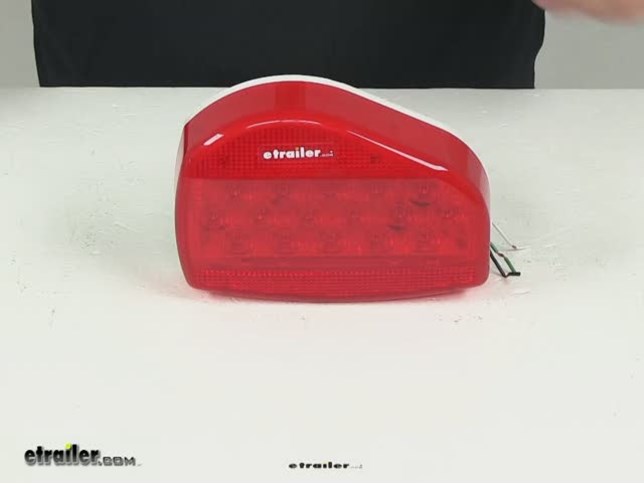

Video of Bargman Surface Mount LED Tail Light - 07 Series - Red - White Base


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Bargman Trailer Lights 47 07 003
Bargman Trailer Lights 47-07-003 Review

Video Transcript for Bargman Trailer Lights 47-07-003 Review

Today we're going to be taking a look at part number 47-07-003. This is the Bargman surface-mount LED taillight. The red light function is a combination of brake, tail, and turn signal lights for your trailer or RV. LEDs are a great system to have in place. They're going to last longer, burn brighter when compared to incandescent lights. They don't draw as much power and they have a quicker activation when compared to incandescent bulbs. It's going to feature this sleek, round design.

It's going to have a white base. The taillight can be mounted vertically or horizontally. This is designed for use with part number 47-07-001 or 47-07-100. Those are going to be mirror image lights. It's going to feature a snap-on lens.

It's got a little tab on each side to push in. That's going to allow the lens to pop right off. Here on the back it's going to feature the pre-wired design. You're going to have a green wire, a white wire, and a black wire. The white wire is going to be your ground.

The green wire is going to be for the taillights, and the black wire is going to be for the stop and turn signals. This is Department of Transportation-compliant so it meets FMVSS and CMVSS 108 requirements. If we taking a look at the overall dimensions real quick, it's going to give us an overall length of, from edge to edge, about 8-7/16", an overall width of about 5-15/16", and then an overall thickness of about 2-5/16". It's going to contain 16 diodes. This is a surface-mount installation. You can see back here that you have the different mount holes: one, two, three, and four.

The distance that we have between the mount holes up here going across, looks like it's going to be right on 5". This one down here is going to be center on center right on 7". Going this direction looks like it's about 3-1/2" and then going this direction looks like it's about 4-1/8". You're going to get one light with this part number. Bargman covers it with a limited lifetime warranty. I'm going to go to connect it to our external power source. That way we can see what it looks like with power running to it, and with our overhead lights turned off. This is going to be the taillight function, sends out a nice consistent LED signal. Then we can apply our brakes, which is going to illuminate it for a brighter signal. It's also going to function as our turn signal. You'll notice here that below and above the LED system it's going to have nice reflective material built into the lens. That's going to do it for our review of part number 47-07-003. This is the Bargman surface-mount LED taillight. .




Customer Reviews

Bargman Surface Mount LED Tail Light - 07 Series - Red - White Base - 47-07-003

Average Customer Rating:  4.9 out of 5 stars   (20 Customer Reviews)

8-7/16" Long x 5-15/16" wide x 2-5/16" thick; 07 Series; designed for use with either 47-07-001 or 47-07-100; red combination brake, tail and turn light; long-lasting LEDs; white base; 2-wire design; surface mount.


- 47-07-003

by: Jim R.08/15/2012


Received the item packaged well and in a timely Manner. Had to make the modifications to accept the odd design which was expected . The only negative I can find is the thickness of the light and the unused dead space which I feel Bargman should have filled with diodes. etrailer was a pleasure to deal with 51721






- 47-07-002

by: Jason S.08/04/2014

Review from a similar Bargman 07 Series in Trailer Lights


I installed Bargman 47-07-001 and 47-07-002 to replace the existing tail lights on my RV trailer. I am very pleased with the brightness compared to the old fixtures, both when illuminated as running lights and when the brakes are activated. I wanted increased visibility and stopping time for those following behind me on interstate highways, since we travel at 60-65 mph. These lights will definitely provide the brightness needed. 144187


Comments

Are the screw holes in the camper body from the previous set hidden once the new set got installed?

comment by: Alain G - 10/20/2014


7335
Comments

The previous stock trailer lights were Bargman 92 series rectangular mounted horizontally. The new Bargman LEDs just barely cover the holes from the 92 series. It took some measuring and a template to make sure the old holes were covered.

comment by: Jason S - 10/22/2014


7378

- 47-07-001

by: Jason S.08/04/2014

Review from a similar Bargman 07 Series in Trailer Lights


I installed Bargman 47-07-001 and 47-07-002 to replace the existing tail lights on my RV trailer. I am very pleased with the brightness compared to the old fixtures, both when illuminated as running lights and when the brakes are activated. I wanted increased visibility and stopping time for those following behind me on interstate highways, since we travel at 60-65 mph. These lights will definitely provide the brightness needed. 144186



- 47-07-002

by: Brian G07/20/2014

Review from a similar Bargman 07 Series in Trailer Lights


Replaced the tail lights on our new camper since the stock ones were very dim. I was concerned about getting rear ended during the day. These lights installed just as easy as any other, hard part was removing the caulking from the old lights. They are bright, tail light mode is brighter than brake mode was on the old lights. Very bright once you hit the brakes. The license plate mounts are shorter and not as angled as the old lights, also much stiffer. They seem like they will last longer than the floppy ones on the old lights. 142323



- 47-07-001

by: Brian G07/20/2014

Review from a similar Bargman 07 Series in Trailer Lights


Replaced the tail lights on our new camper since the stock ones were very dim. I was concerned about getting rear ended during the day. These lights installed just as easy as any other, hard part was removing the caulking from the old lights. They are bright, tail light mode is brighter than brake mode was on the old lights. Very bright once you hit the brakes. 142322



- 47-07-001

by: kevin02/03/2015

Review from a similar Bargman 07 Series in Trailer Lights


install was easy as removing 4 screws and replacing the incandescent lights I had. however this light was wired wrong during assembly. the black wire ended up being the parking light and the green wire ended up being the turn signal/stop I had to remove and swap the wires. 172248



- 47-07-002

by: Tom T08/03/2011

Review from a similar Bargman 07 Series in Trailer Lights


Easy to install. Greatly improves visibility over stock taillights. 21058



- 47-07-002

by: flifisher08/19/2014

Review from a similar Bargman 07 Series in Trailer Lights


Purchased a set of the Bargman surface mount LED tail lights to replace the stock tail lights on my Jayco Eagle fifth wheel trailer. The LED's are far brighter than the stock bulbs. Without a doubt, it will be easier for cars behind me to see me slowing down. 147446



- 47-07-001

by: Mike B.08/13/2014

Review from a similar Bargman 07 Series in Trailer Lights


Significant inprovement in visibility over manufacture lighting, which I have always had concers about. I installed the on my 2012 Keystone Cougar 21RBS in less than 2 hours, including prep and cleanup. I would highly recommend this product. 146614



- 47-07-001

by: Handydc12/31/2013

Review from a similar Bargman 07 Series in Trailer Lights


Replaced the tail lights on my Rockwood Windjammer with these and they are super bright. The old ones were very dim and I worried people would not see I was slowing or turning, not anymore. 111607



- 47-07-001

by: Jeff S02/07/2015

Review from a similar Bargman 07 Series in Trailer Lights


Product was delivered on time allowing me to install tail light over the weekend. This is my 2nd order from etrailer and they exceeded my expectations both times. 172836



- 47-07-002

by: Dave06/29/2013

Review from a similar Bargman 07 Series in Trailer Lights


This taillight installed quickly and fit the original attachment location perfectly. This is much brighter than the factory original, and a definite improvement. 86687



- 47-07-001

by: Dave06/29/2013

Review from a similar Bargman 07 Series in Trailer Lights


Exactly what I ordered. Fits perfectly and was simple to install. The lights are bright and a definite improvement over the factory original. Thanks, etrailer. 86686



- 47-07-002

by: TONY S.07/08/2014

Review from a similar Bargman 07 Series in Trailer Lights


Great service. Fast and exactly as ordered. Parts packed in a very professional way. Will use again. Great follow up. Thanks 139988



- 47-07-001

by: Tom T08/03/2011

Review from a similar Bargman 07 Series in Trailer Lights


Easy to install. Improves visibility greatly over the original bulb taillights. 21057



- 47-07-002

by: kevin02/03/2015

Review from a similar Bargman 07 Series in Trailer Lights


easy install to upgrade from the factory lights my trailer came with. 172250



- 47-07-002

by: mark.c08/23/2011

Review from a similar Bargman 07 Series in Trailer Lights


simple instalation and they look good and are very bright. 22554



- 47-07-001

by: Rpn01/21/2015

Review from a similar Bargman 07 Series in Trailer Lights


Nice bright light and easy to install 170747



- 47-07-001

by: craig S.03/30/2012

Review from a similar Bargman 07 Series in Trailer Lights


Replacement part; worked PERFECT! 35602



- 47-07-002

by: mlt01/26/2012

Review from a similar Bargman 07 Series in Trailer Lights


great lights 30435

24
24


Ask the Experts about this Bargman Trailer Lights
Do you have a question about this Trailer Lights?


  • Left Turn Signal is Dim and Left Brake Signal is Bright on a 2010 Heartland Edge M18 Trailer
  • I would suspect a poor ground connection as well. It is odd that the brake signal is bright and the turn signal is dim because those signals typically run through the same wire. Any time there is a loss of power or brightness, a ground issue is the likely culprit. It is also important to check for the ground issue first because a new light will have the same problem if there is a poor ground. I did some research on your trailer and found that it probably has an aluminum frame. Finding...
    view full answer...
