Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Topwind - 15" Lift - 5,000 lbs

Video Transcript for Pro Series Trailer Jack PS1401480303 Review

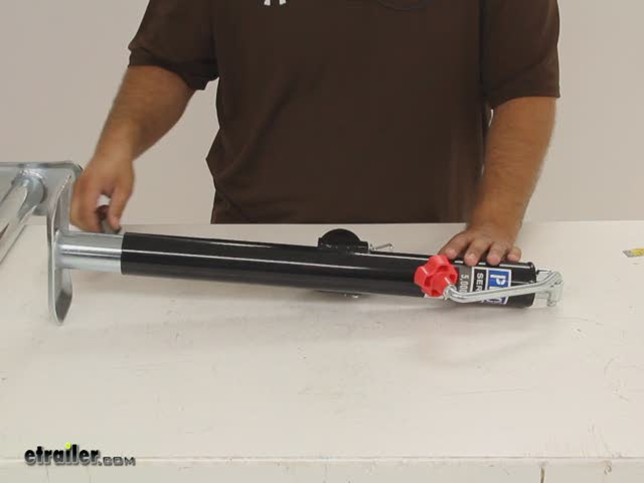

Today were going to take a quick look at the Pro Series round pipe mount swivel jack part #: PS1401480303. Now this jack is covered by a limited one year warranty, it offers a lift capacity of 5,000lbs. its constructed out of 2 inch diameter tubing. This jack is a top wind setup with a foldable arm and a hand knob that makes operating the jack nice and easy. The outer tube is finished in a black paint and the inner tube is finished with a zinc plating as is the footplate welded to the bottom. Now this footplate is going to offer a nice flat base for supporting the nose of your trailer.

Next we want to go over a few measurements. We want to talk about the clearance from the center of the mount to the top of the jack and that measures 10 inches. We also want to measure from the center of the mount down to the bottom of the footplate and that comes out to about 14 of an inch. We have the same jack, but weve already extended it out all the way. Well take that same measurement and this time were at about 29 of an inch.

The difference between the two is 15 inches and thats known as the jacks lift or travel. Last thing we want to show you the mounting system. On the back of the jack youll see a ring. Youll remove this ring from the jack and then weld it to your trailers frame. Youll slide the jack back over it and use the pin to secure it.

There are multiple holes drilled in this sleeve so that you can rotate the jack up flat and out of the way, so when youre trailering down the road you dont run the risk of damaging it against the ground. And thats it for our quick look at the Pro Series round pipe mount swivel jack part #: PS1401480303.
