Code: PS1400850383
Retail:$75.21
Price:$56.95
Shipping Weight: 21 pounds
Shipping SpecialDrop-leg jack with integrated footplate welds directly onto your application, has 25-1/5" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank.
Features:
Specs:
Video of Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 15" Lift - 8,000 lbs
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

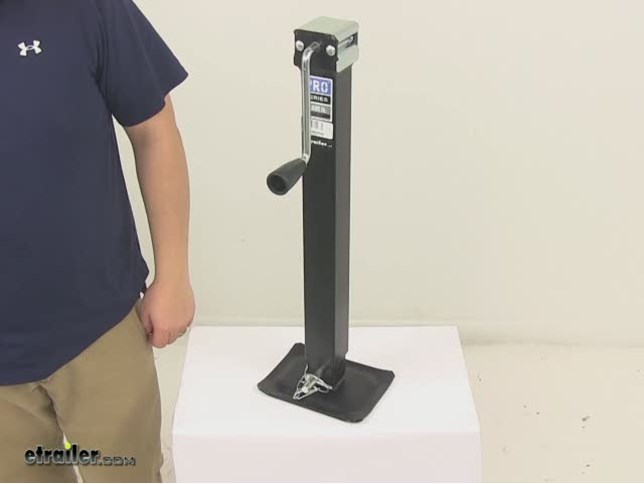

Today we're taking a look at the Pro Series side wind square jack with foot plate number PS1400850383. This is a drop leg jack that welds directly onto your application and offers superior side load strength for your agriculture or industrial needs. The square design provides additional support for side loading. It has a durable, long lasting, steel construction with a black paint finish on the outer tube and a zinc plate finish on the inner tube and the foot plate. The side wind handle has smooth ergonomic design for easy cranking and the drop leg increases the overall extension for maximum adjustability. It's really easy to maneuver.
You just pop that over, take this pin out, pull the pin out of here, and you can lift that up. As you can see you have different holes so you can choose the height that works for you. Very easy to put that back. Then you just lock that right back up. Taking a look at some of the specs again this is the fully retracted setting.
Looking at ta height of about 25 1/8th inches. We have another jack. It's the same model and it is fully extended as you can see here with the drop leg completely extended. The fully extended version is about 53 and 11/16th inches. The full extension of the drop leg is approximately 13 and 11/16th inches.
The lift which is the inner tube when it is at full extension is approximately 15 inches. The lift capacity is 5,000 pounds with a static capacity of 8,000 pounds. This product does come with a limited one year warranty. That should about do it for our Pro Series side wind square jack with foot plate number PS1400850383.
Customers compare PS1400850383 to these similar products
Customers Who Purchased This Trailer Jack Also Bought...
Average Customer Rating: 4.8 out of 5 stars (15 Customer Reviews)
by: Joe Raats03/23/2011
Is this review helpful?
This item was actually much heavier and larger than the image portrayed which was a very pleasant surprise. The quality appears to be excellent!!10193
by: spudman03/18/2011
Is this review helpful?
The top of one of the 4 jacks was dented in somewhat--did not cause any mechanical damage. I think the shipping box was to big. Otherwise product was just right for the job we got it for. Super fast shipping--ordered one day & got it the next day.9760
by: Denny K03/09/2011
Is this review helpful?
This product was ordered on saturday, shipped on sunday and recieved on wednesday am. It was exactly the jack I was looking for. Great job "etrailer'. you have a permanent customer. Denny K Ohio8872
by: Ken M.03/04/2011
Is this review helpful?
Great product at a fair price. 8433
by: Rickie02/13/2013
Is this review helpful?
Better price than I could get around here. On my door step very quickly. Worked perfect, low shipping costs on such a large item. I'll be buying more gear in the future.66227
by: Wade12/05/2012
Is this review helpful?
Very pleased with the quality of the Ja ck.60739
by: John S. Conroe,TX10/31/2012
Is this review helpful?
Great service,,,barely put my credit card back in my wallet and the FedEx truck was pullin' up,,,well maybe not that quick but it was dern quick service and for a jack I had been paying almost double this price at Tractor Supply......thanx to all at eTrailer,,,more business for you in the future from me. John S.58475
by: tom g.08/17/2012
Is this review helpful?
I really like the extended foot jack. It was a good price, delivered to my door, and the shipping was fast. Thanks!52057
by: Dave Harris06/27/2012
Is this review helpful?
If etrailer didn't have such a detailed website, I may have shopped somewhere else. But it was because they have a section where you can ask questions and get detailed answers that I decided to buy the Pro Series jack above. My ATV trailer jack is 2-1/4 " square at the top and welded to the frame. The large nut inside that moves the jack up and down had stripped. Couldn't find another nut anywhere - not locally or on the internet, nor would a machine shop make one for less than $200! Only options were to cut the old jack free and weld on a new one - or - scab parts from a new one and hope they would fit. I took a chance on the latter. Michael Howell really went out of his way to disassemble another of these jacks and measure the o.d. of the main screw inside for me. It was exactly what I needed! The jack came on time and was immediately placed on the operating table. Had a devil of a time punching the pin from the side gear, but after that, and a little grinding on the screw top, I fitted the lower half of the new jack to the gears and handle of the old one. Chock another one up for good old American inginuity and elbow grease! $77 and 2 hours later I had a brand new bouncing baby jack. No cutting, No welding, No Problem!! Pictures of finished jack included. Thanks guys! This saved me well over $100, and now I can go 4-wheeling again! 45935
by: Paul D.06/07/2012
Is this review helpful?
Not as stout as I would expect for an 8K rating but overall a good buy for the price. I would purchase again. 43107
by: NORBERT HIESS04/13/2012
Is this review helpful?
VERY HAPPY, THE PRODUCT WAS AS I HAD EXPECTED. VERY GOOD VALUE FOR THE MONEY. THANKS37122
by: Carl Hill02/24/2012
Is this review helpful?
Shipping was very prompt and correspondence was very good.32395
by: Kris c09/16/2011
Is this review helpful?
Recieved product faster then expected and the Jack is alot more heavy duty then even advertised.Very happy with product. 24051
by: Terry P07/28/2011
Is this review helpful?
Well built, very sturdy and beefy. Arrived in good condition and appear to be heavier duty than I was expecting. Works smooth and the drop legs are great for making up large variations in vehicle to ground contact heights.20476
by: nick w.06/28/2011
Is this review helpful?
thanks great products and really fast shipping18160
