Pro Series Round, Snap-Ring Swivel Jack - Bolt On - Topwind - 10" Lift - 2,000 lbs

Rating: rating rating rating rating rating
30 reviews

Code: PS1400300303

Retail:$36.11

Price:$31.95

Shipping Weight: 13.7 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

Pro Series Trailer Jack PS1400300303 Review - Video

Pro Series Trailer Jack - PS1400300303

Retaining-ring mount fits up to a 3" x 4" tongue and lets you easily swing jack up for travel and down for use. Jack has 11" retracted height and measures 4" from mounting bracket to top, excluding handle.

Features:

Utility jack is perfect for agricultural and commercial applications
Convenient, spring-loaded, plunger-pin swivel feature
- Swing up to stow parallel to tongue for travel
- Move back into upright position for use
Precision-fit parts provide exceptional stability and reliability
Topwind handle has smooth, ergonomic design for easy cranking
Outer tube has black paint finish
Inner tube is zinc plated
Bolt-on mounting bracket, mounting hardware and footplate included

Specs:

Bracket height:
- 11" Retracted
- 21" Extended
Lift: 10"
Clearance: 4" from mounting bracket to top of jack
Application: up to 3" x 4" trailer tongue
Tubing diameter: 2"
Lift capacity: 2,000 lbs
Limited 1-year warranty

1400300303 Pro Series Round Retaining Ring Swivel Jack - Topwind - 10" Travel - 2,000 lbs

140030 Fulton Bolt-On Retaining Ring Swivel Utility Trailer Jack - Round, Topwind, 2,000 lbs

1401160317 Eclipse Round Retaining Ring Swivel Jack, Topwind, 10" Travel, 2,000 lbs

Video of Pro Series Round, Snap-Ring Swivel Jack - Bolt On - Topwind - 10" Lift - 2,000 lbs

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Pro Series Trailer Jack PS1400300303

Pro Series Trailer Jack PS1400300303 Review

Video Transcript for Pro Series Trailer Jack PS1400300303 Review

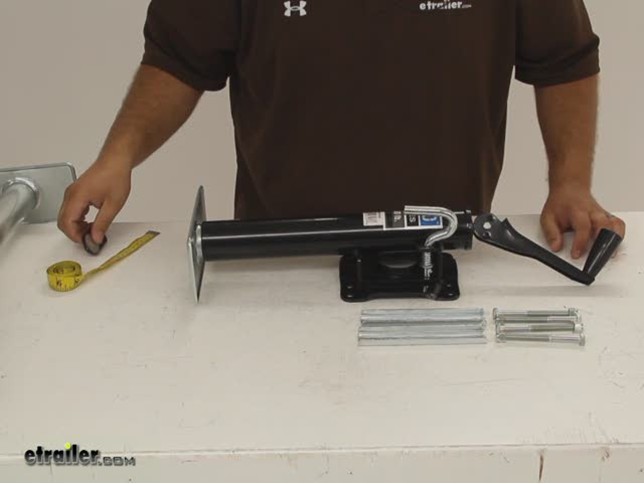

Today were going to take a look at the Pro Series round snap ring swivel jack part #: PS1400300303. Now Pro Series covers this jack with a limited one year warranty. It has a lift capacity of 2,000lbs. Its a bolt-on design for trailer tongues and frames up to 3 inches by 4 inches. Included with the jack is the mounting hardware that youll need to secure it to the frame. The jack is used with 2 inch tubing and it has a black finish on the outer tube.

The inner tube as well as the footplate thats welded to it are finished in a zinc plating to protect against corrosion. Now were going to go over a few measurements. From the center of the mounting bracket to the top of the jack weve got about 4 inches. Were also going to go over the bracket height of the jack, thats from the center of the bracket down to the bottom of the footplate. When the jack is fully retracted like we have here it measures in at 11 inches.

Now we have another jack, same model thats fully extended. Again, when we measure from the center of the bracket down to the bottom of the jack we get 21 inches. The difference between the two, 10 inches, is our jacks lift or travel. Once you have the jack bolted to your trailer frame youll be able to swivel it up and out of the way when youre pulling your trailer down the road. Youll pull this release pin and flip the jack up, that way you dont run the risk of damaging the jack against the ground.

Its a top wind setup with a nice handle that makes it easy to operate the jack. And thats it for our quick look at the Pro Series round snap ring swivel jack part #: PS1400300303.
