Powered jack can be operated wirelessly with included remote. Ball-bearing screw system reduces noise and wear and operates more efficiently than standard screw systems. Automatic stop prevents damage to gears. LEDs offer nighttime visibility.
The wireless capability of this powered jack lets you raise or lower your trailer from anywhere within 40 feet. Climb inside your camper while jacking it up to make sure everything is level inside, or eyeball your rig from afar to get it just right. Two key fob remotes are included, each with controls to turn the jack on and off and to raise it or lower it.
Smooth, Low-Friction Operation
Typical jack screw systems feature direct contact between the surfaces of the screw and the threaded nut. This constant contact produces a good deal of friction, which not only increases the amount of power necessary to operate the jack but also creates heat within the system. Heat leads to increased wear on the threads, and this wear can ultimately lead to failure.
The Brute is built with ball bearings that roll smoothly along the threads of the screw shaft and the nut, thereby eliminating direct surface-to-surface contact. This produces far less friction along the threads, leading to a reduction in heat and wear, as well as noise. In addition, because much of the friction is eliminated, less power is needed to operate the Brute. This electric jack pulls 30 percent less amperage than jacks with traditional screw systems. The overall result is a jack that can be raised and lowered faster, smoother and more efficiently.
When a typical trailer jack is extended beyond the recommended height, the threaded nut that creates the up-and-down movement of the jack will hit a built-in stop at the top of the shaft - and hit it hard. If you leave the motor running, the nut will continue to apply pressure to this stop as it attempts to rise higher. The result is extreme stress on the gears and on the jack as a whole.
The Husky Brute has an integrated safety feature to combat this problem. The SmartStop timing system ensures that the jack motor shuts off before the nut can hit the built-in stop. No hard mechanical stops. No undue stress on the screw system. And most importantly, no damage to your powered jack.
Video of Husky Brute Electric Trailer Jack w Wireless Remote - Drop Leg - A-Frame - 18" Lift - 4,500 lbs
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

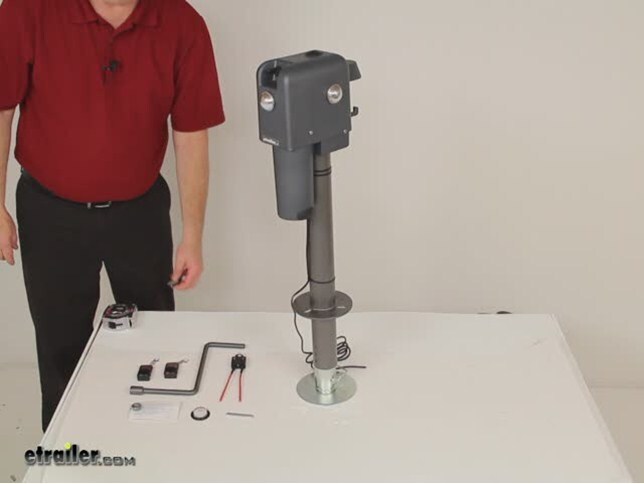

Today we're going to review Part #HT87641. This is the Husky Brute Electric Trailer Jack with the wireless remote. This is a drop-leg design, it fits A-frame trailers and it has a 4500 lb. weight capacity. This electric jack with the power-drive will let you lift or lower your trailer quickly and easily. It does have the wireless capability. It comes with these two wireless key fob remotes right here.
This will let you raise or lower your trailer from anywhere within 40 feet of the jack. Basically, what's nice about this is you can climb inside your camper while you're jacking it up to make sure everything is level on the inside or you can eyeball your trailer from a distance to get it just right. You could control all the features of the jack by these wireless remotes which are included. Each one you notice it has the covers, you just slide the covers and you'll see the buttons on there. Each of them will control to turn the jack on or off and to raise or lower it. This jack does come with the three built in LED lights, one in front and one on each side.
This will help light and brighten up the area to the front and sides of the jack for superior nighttime visibility. The nice thing with these side lights is their designed to point down and what that does is it will help you when you are a going to have a weight distribution hookup or disconnection on the trailer. This will brighten up that area down there when it's dark out to help you with that connection. On the very back of this jack, you can see this is a trailer connector storage bracket. In other words, on your trailer your four-way, five-way, six-way or even seven-way you can just hang it up here. It will store it.
This cover will protect it from the elements getting to the connector. It does have this drop-leg here with the pin and clip in it. This will allow for greater adjustability. This will basically, if you leave it out all the way, it'll give you an additional six inches of total travel. The large footplate, it's a 5 and 1/2 inch diameter footplate, it will provide excellent stability for the jack. On the inside it has hardened steel gears and stainless steel fasteners which offer maximum durability. It has a nice sturdy cover and the switchers are weather guarded, it has a weather protection over it. This will prevent water related damage to the motor.

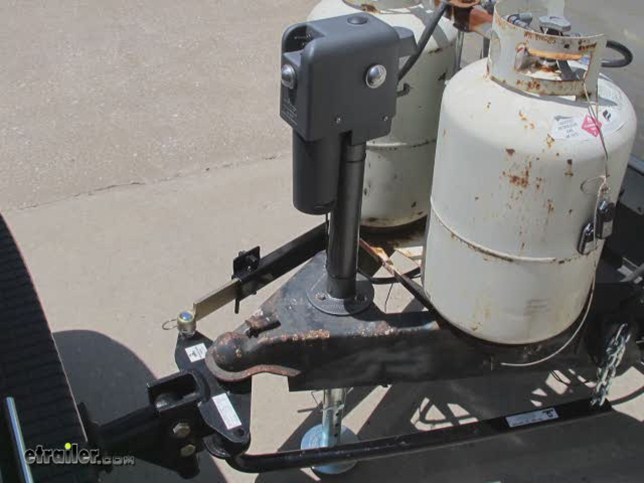

It has a nice silver powder coated finish which will help resist corrosion. As you can see here, it is a bolt-on installation for A-frame trailers. It has the three elongated holes which are usually matched up, it's an industry standard measurement on most of your A-frame trailers, so this should match up to those. Now it comes with everything showing here. It comes with the manual override crank that is used to manually operate the jack. It comes with six feet of 10 gauge power supply wire to hook to the 12 volt power supply. It comes with this 30 amp circuit breaker that you would wire in-line before you hook the wire to the battery. The nice thing since they include a circuit breaker, what's nice over a fuse is if it was a fuse, it would blow and you'd have to find a fuse to replace it. With the circuit breaker and it blows, you can just push the button to reset it. It also comes with the three star washers. The reason those are included, since you only have one wire which is for the power, you do need to have a ground. It grounds through this plate and since it's painted, you want to make sure you get a good ground connection. You put these star washers on your bolts and as you tighten it down, those star washers would gouge into the mounting bracket some to give you a good ground connection. It comes with this bubble level that you can put on top of the jack to make sure it is level. You can put it on the trailer to make sure it's level or anything you want to make sure is level. It comes with this little slotted bracket or slotted wrench here, and what this would be used for is when you used the manual crank, I'll show you in a minute here, this will need to be used to release the brake on the jack. I'll show you how that's used. Basically, on a typical jack screw system, it'll feature direct contact between the surfaces of the screw and the threaded nut. This constant contact on the typical jack screw system will produce a good deal of friction which not only increases the amount of power necessary to operate the jack, but it will also create heat within the system. Of course, when you create heat, that leads to increased wear on the threads and this wear can cause the jack to fail. What Brute does with this jack is they built a low friction ball screw system. Basically what that means is it has ball bearings that will roll smoothly along the threads of the screw shaft and the nut. When it does that it eliminates direct surface to surface contact. This will produce far less friction along the threads leading to reduction in heat, wear and even noise. In addition, because much of the frictions eliminated, less power would be needed to operate this jack and this jack will pull 30% less amperage than jacks with that traditional screw system. Overall your jack can be raised and lowered faster, smoother and more efficiently. It also includes the SmartStop system, which is Husky's name, it's an automatic stop. Basically what that does is the SmartStop will shutdown power to the motor before the nut will reach the hard stopping point of the jack. In other words, in the case you we're going to raise it, you pull up on your toggle switch, your jack will keep raising, when it hits the point where it stops, even if your finger's on the toggle switch, the SmartStop will shutdown the power to protect the jack from getting damaged. Same way if you push down on it, as you're lowering the jack, if your finger's still on it and you hit the point where it stops, it will shut the power down. The bracket height on this right now where it's set up is from the footplate to the mounting bracket, it's going to be 8 and 1/2 inches retracted. Now when it's extended it has an 18 inch lift, so when the jack is fully extended that 18 inches, if you add on the 8 and 1/2, it will give you 26 and 1/2 inches extended. And if you drop that leg out, if you want to add 6 more inches, that will give you a total travel of 18 for the lift, 6 for the drop leg of 24 inches. The lift capacity on this jack is 4500 lbs. Tubing diameter is 2 and 1/4 inches and we mentioned the footplate diameter is at 5 and 1/2 inches. This is a 12 volt motor. It has a 25 amp draw at the rated low and it would move the jack about 10 inches in about 38 seconds. First what I'm going to show you is how the manual crank would work. You just have this rubber plug up on top here, we pull this rubber plug out, it gives you a hole right here. You take the socket end of the manual crank, drop it in until it lines up in there, it latches on. Then what you need to do, right now it won't crank anywhere because it's locked, the brake is on. You need to release the brake. To do that, you go to the side here by the motor, pull this plug out, take this part that's included, you just slide this onto a lever in there, you just push it forward and that will release the brake. When you do that, you'll be able to see that you can hand crank it manually up or down, whichever you need to do. But you do need to make sure you release that brake. Now what I'm going to do, I do have a 12 volt power supply here. Let's see if we can fit this plug back in here. The main thing you want to do is just make sure, right now I still have the brake released. What you want to do if you're going to operate with power, you want to pull that back so it locks, puts that brake back into application or the brake will be working now, so let's put the plug back, I can't get that plug in. So we get this plug in. What we'll do, we won't worry about that right now. What I'm going to do is hook this up to 12 volt power. I have a 12 volt power supply here. The ground, and again the ground is usually through here, but since it's painted, it probably won't give us a good ground so what I'm going to do is use the bottom part as our ground. What we're going to do, you see the light, turn the front light on. You should be able to see the side light also, they both light up. You can turn them on or off. Then the jack, in other words, if you pull up on it you'll see that it will raise the jack up. If you go down, I'm going to show you that SmartStop, I got my finger on it. It's going all the way down and you'll see I still have my finger on it and it hit the point where it won't go any further. It will automatically shut out the power. The last thing I want to show you is the wireless remote. We have it hooked up. You just slide that open, push the on and then you should be able to go up or down. The same SmartStop feature will work. I have my finger on the button, it's working that way. That should do it. For the review on Part #HT87641, the Husky Brute Electric Trailer Jack with wireless remote for A-frame trailers. .
Average Customer Rating: 4.9 out of 5 stars (18 Customer Reviews)Powered jack can be operated wirelessly with included remote. Ball-bearing screw system reduces noise and wear and operates more efficiently than standard screw systems. Automatic stop prevents damage to gears. LEDs offer nighttime visibility.
by: Jim H02/24/2014
I just installed the jack.Installation is quite simple if you have any small amount of mechanical ability.Wiring on the other hand is vague if you are not a professional load and lind could be confusing on the breaker,most installers would use a butt connector I used a 2 pin deutcsh connector to keep out moisture from the jack to breaker from breaker to battery.The jack posed no strain on my 7800lb.33ft. bumper pull toy hauler when lifting it. Jim 117530
by: Steve M03/12/2014
Excellent transaction. Great service and help from etrailer. Product arrived quickly and in perfect shape. Installation was very easy and only took about 40 minutes from start to finish. For those wondering about the electrical bracket on rear of unit. It can easily be removed so jack will fit if you don't have much room due to propane tank cover. It is sealed behind the bracket so there is no worry about removing it. You can the. Easily install it elsewhere if you wish to use it. Powerful jack. Operates smoothly and quietly. Lights are the only con but not a big deal. Love the jack and will definitely recommend to my friends will try to add a pic later 120470
by: Old Dog03/22/2014
My wife and I are both in our 60’s so saves a lot of time and work installing my equalizer. I also use it to level my trailer front to rear. It installed in just a few minutes and works great. Remote controls more helpful than I thought they would be. You can’t go wrong buying one these. 121779
by: Tim M.07/10/2013
Awesome shipping, communication and service. Install time from removing the old to complete install of new less than 30 minutes!!!! 88669
by: Marcus H.05/20/2013
I have not yet been able to use this while camping, that will have to wait a few weeks, but the installation took under 30 min. I think I actually spent more time "testing" the jack than actually installing it!! The only thing I wish was that the in line circuit break was pre attached, But this was not a big deal. My E-3 camper is only 3 years old so the original jack came off with no problem and this one was bolted in just as fast. Wiring was simple, the most difficult part of the instillation was getting under the tongue to zip tie the wires. I can not wait to use this to hook up to my truck. I will take pictures and upload in a few days. Over all this was a great purchase!! Very happy with whole process, ordering, shipping and installation. E-trailer is the only trailer supply store I will use. 81099
The first one sent was defective. No big deal, things happen. When I told customer service what happened, they got a new one to me in just a couple of days. They sent a label for shipping the old one back. No charge an any of it, nor did they want my credit to insure the old one would be shipped back. Best customer service Ive experienced. The trailer jack is the second one Ive ordered. The new one has remote. They both run nice and smooth, and lift the tongue on my toy hauler, with little or no effort. I would recommend this trailer tongue jack, to any one that wants an electric jack. 189511
by: Eric Weir12/13/2013
I received my Trailer Jack on time as quoted and in great condition. It was a very easy install, about 30 minutes. I did go to purchase the connectors for the wiring. I used the Jack this week camping and it was fantastic. The lights are a little dull. Thanks for the Great Service. Cheers, Eric 110102
by: rusty branum04/28/2013
My new jack arrived in three days, exactly when my salesman said it would. The installation was very easy, took about one hour, including removing the old jack and addressing an ugly previous wiring job. The jack works flawless, extremely smooth and quite, I opted for the remote feature and glad I did. I'm very pleased with the product and service. 78220
by: Mike F11/24/2013
Wow, What a difference. Own six trailers all various sizes. Used and babied other jacks, the brand (nameless) we have been buying for 30yrs never did the job without assisting with a hand jack at times.Should have bought this brand first..The remote is a time and step saver..Put it on in 12 minutes,love the fuse box feature.(circuit Breaker). 108335
by: Keith B01/23/2013
This unit was breeze to install. It works well, I could not be happier. I love the remote controls, hooking up is a pleasant job now. Also the service from Etrailer is second to none. This is my third purchase from Etrailer and I will not even bother looking anywhere else for parts and accessories. 63922
by: Dr. Gary M.06/02/2015
I just got this jack and it has done everything I wanted and that it said it would do. But I must give the fokes at etrailer a big 5 stars on their costumer service. they worker very heard to go out of their way to make sure that I had it as quickly as possible. I really appreciated their efforts. Thanks 199831
The jack works great but had a cosmetic crack in the plastic housing I noticed after installing. Carla at eTrailer was great in coordinating a warranty exchange with Husky and a new jack is on the way. Outstanding customer service from both companies!!! 178152
by: Larry W.04/27/2015
Easy to install took about 20 minutes works like a champ so far but don't expect any trouble. Quality looking piece.Thanks Larry 188482
by: Billy K01/29/2015
I am thoroughly delighted with my jack. 1). Because it is a heavier duty jack 2). Because of the remote control 171749
by: Scott Mailand07/26/2013
Easy to install. Works great. So far so good! 91630
Overall great product... 69993
by: JMR Trucking, Inc.05/26/2015
Great product and remote is great! 197953
20 minutes to install. works great 187691
