Remote-controlled power jack has a high-capacity ball-bearing screw system that reduces noise and wear, and is more efficient than standard screw systems. Automatic stop prevents damage to gears. Front and side LED strips offer superior illumination.
The wireless capability of this powered jack lets you raise or lower your trailer from anywhere within 70 feet. Climb inside your camper while jacking it up to make sure everything is level inside, or eyeball your rig from afar to get it just right. The LED lights on the housing unit will flash to confirm that the remote is communicating with the jack. Two key fob remotes are included, each with controls to turn the jack on and off and to raise or lower it. Built-in sleep circuits will keep the remotes from losing power when they're not being used.
Typical jack screw systems feature direct contact between the surfaces of the screw and the threaded nut. This constant contact produces a good deal of friction, which not only increases the amount of power necessary to operate the jack but also creates heat within the system. Heat leads to increased wear on the threads, and this wear can ultimately lead to failure.
The Super Brute is built with ball bearings that roll smoothly along the threads of the screw shaft and the nut, thereby eliminating direct surface-to-surface contact. This produces far less friction along the threads, leading to a reduction in heat and wear, as well as noise. In addition, because much of the friction is eliminated, less power is needed to operate the Super Brute. This electric jack pulls 30 percent less amperage than jacks with traditional screw systems. The overall result is a jack that can be raised and lowered faster, smoother and more efficiently.
This jack has an advanced 20-mm ball design with a high-capacity ball screw that allows it to lift up to 33 percent more weight than comparable ball and screw systems.
When a typical trailer jack is extended beyond the recommended height, the threaded nut that creates the up-and-down movement will hit a built-in stop at the top of the shaft - and hit it hard. If you leave the motor running, the nut will continue to apply pressure to this stop as it attempts to rise higher. The result is extreme stress on the gears and on the jack as a whole.
The Husky Super Brute has an integrated safety feature to combat this problem. The SmartStop timing system ensures that the jack motor shuts off before the nut can hit the built-in stop. No hard mechanical stops, and no undue stress on the screw system. Most importantly, there's no damage to your powered jack.
The head unit on the jack is sealed and water resistant. This gives extra protection to the motor, gears, and electrical components housed inside. The sleek design of the head also gives this jack a stylish appearance. There is no need to open the head because the motor is maintenance-free. In addition, the ball screw doesn't need to be greased routinely. The toggle switches are soft and weather protected, and they sit on a backlit panel that makes them easy to see and operate at night.
A unique feature on this jack is that it has a place to store your trailer plug. This protects the plug from weather damage and makes it easier to find when it's time to hookup.
Video of Husky Super Brute Electric Trailer Jack w/ Wireless Remote - Drop Leg - A-Frame - 24" Lift - 5K
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

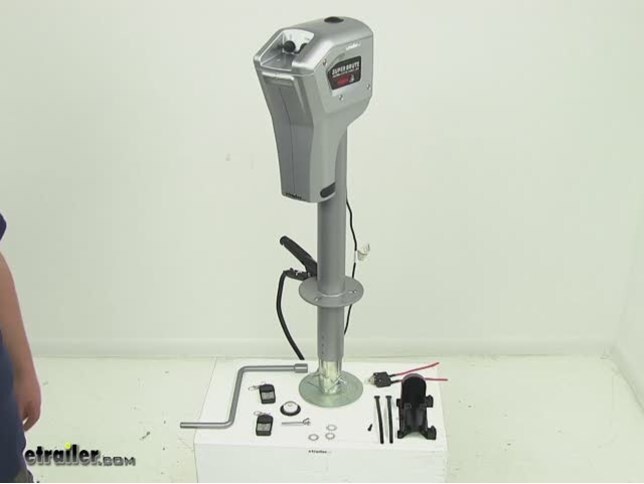

Today we're going to be reviewing part number HT82022. This is the Husky Super Brute Electric Trailer Jack with wireless remotes. It's going to come with a drop leg and it's rated at 5,000 pounds. It is designed for a-frame trailers. You're going to have your standard bolt pattern for the a-frame setup. Your outer tube is going to give us a diameter of 2 and 1/4 of an inch.
Inner tube is going to measure 2 inches when it comes to the diameter. The electric tongue jack is going to let you lift and lower your trailer quickly and easily. It's going to come with 2 wireless remotes. That's going to be these fobs right here. They're going to offer a range of up to 70 feet so you can easily operate the functions of your jack when you're not even around it. It's going to feature an advanced ball screw design that's going to supply superior lifting capacity.
It's going to reduce friction, it's going to reduce amperage draw and motor wear. It also offers a maintenance free design so there's no need to get in there and grease that ball screw system. As far as maintenancing and greasing, you don't have to worry about any of that with this jack. It's also going to feature an internal overheat protection that's going to safeguard the motor and help extend the life of the jack itself. One of the neat things I like about this jack is it has an automatic stop that's going to prevent damage to the motor because when it extends or retracts, to its full extent, the motor's actually going to shut off, it's going to power down before the nut reaches the end of the shaft so it's going to protect the gears and the components internally, making sure that you get a lot of years of use out of this trailer jack. Another neat thing I want to point out is here on each side, front and on each side, you're going to have an LED strip.
It's going to provide high output so it's going to illuminate the area to the front and the sides of the jack for superior visibility even in low light conditions. The side lights are going to be good because that's going to cast a light down to the weight distribution setup that you may have. This is going to be good because it's going to cast light down at an angle towards your coupler and your connection point. I already have connection or power running to it just so I can show you those functions. It's an easy on and off switch right here. When you have power running to the jack, all the functions, on/off, up and down that has a backlight into it so even in a lowlight setting, you'll always be able to identify what switch you're operating.
That's awesome to have. Again, you're going to have LEDs on each side of the unit here at the head except for the very back side. Just to go over some of the components here on the table, this right here is going to be your trailer connector storage bracket. You can mount this to the actual tubing here of your jack or you can mount it to a flat surface on your trailer. That's just going to provide a storage position for your trailer plug. It's going to make sure it stays up and out of the elements. It's gong to safeguard it and again it can be mounted to the jack tube or to a flat surface. It comes with all the included and necessary ties and hardware. Your drop leg's included as well. That's going to allow for more adjustability so it's going to offer an additional 6 inches of travel and it's going to have 5 holes that are going to be separated an inch 1/2 on center. The large foot plate is going offer a diameter of 5 1/2 inches. It's going to distribute the weight, provide excellent stability on a variety of surfaces. It's going to feature a sleek, water-resistant housing that's going to be sealed to prevent damage to the motor, the gears and the electrical components. You got the soft trigger switches that are all weather protected as well. You got the backlit panels so you can really see the switches, even in lowlight settings. Silver powder coat here on the outer tube. Zinc finish, zinc plated on the inner tube and the drop leg. That's all designed to resist rust and corrosion. Right here you're going to get a manual override crank. That goes in this unit up here. All you got to do is remove that watertight plug and you can install the crank handle. It's just an option for you in case you have power failure. Before doing that though, you want to make sure that you disengage the brake on the unit. It's got this little key in here, slides over the lever. You move it to the back position, that's going to allow you to operate with manual override. Just go ahead and reinsert that plug. Another neat thing that it comes with is it's going to come with a leveler. You can mount this to a nice flat surface that way you can always make sure your trailer is level. It's got 3 mount holes on there. It's going to come with some of these washers right here. Now your mounting hardware's going to be sold separately, it's not included but in the instructions it does recommend what hardware to use. It does come with these right here. These are going to be washers that are going to dig through the paint, that way you can get a nice ground connection when using and making your electrical connection. You want to make sure you get those installed because it is going to be grounded through the mounting hardware. This unit right here, this is going to be your 30-amp resettable push button circuit breaker and plug. It gets installed with the wiring. You're going to have a 1-wire design coming out of the unit. It's going to be your power wire so you can splice that in to this unit right here. Run one to the power wire of the jack, run the other one to the power source, a 12-volt battery. It's going to have a power draw, a 25-amp draw when connected to a 12-volt DC system. That power wire is going to be gauge 10. You're going to have 6 feet of wiring to work with, this is FCC and IC approved. The bracket height when fully retracted, that's measuring from the ground to this point here, we're looking at about 8 1/2 inches. When extended, that's going to increase to 26 1/4, not including the extension of the drop leg. It's going to have a total travel of 24 inches, 18 inches of lift with just the jack and an additional 6 inches with the drop leg. Again, this jack's going to offer a lifting capacity of 5,000 pounds and I guess now all we have left to do is just hook it up to our power source which we already do. That way we can go over the power function of the jack. Again, you got your light operation, you can operate the jack from the switch right here. Quick response time. It's also got really quick movement as well. And you can use either one of the remotes to operate the up and down function of the jack. I am going to show you that the motor actually stops when it gets pushed all the way down so that way we don't damage the components. I still have it pushed down but you can see that the motor completely shuts off, that way we don't damage our internal components. That's a great feature to have as well. That's going to do it for today's review of part number HT82022. This is the Husky Super Brute rated at 5,000 pounds.
