Landing gear set includes 1 single-speed and (1) 2-speed jack designed to work in tandem for your heavy-duty towing applications. Sidewind crank included. Cross shaft not included. Lowest Prices for the best Trailer Jack from Bulldog. Bulldog 2-Speed Tandem Landing Gear Set - Weld On - 17" Lift - 45,000 lbs part number BD500153 can be ordered online at or call 800-298-8924 for expert service.

Select Your Vehicle

Trailer Jack > Landing Gear > Sidewind Jack > Weld-On > 17 Inch Lift > With Foot > 45000 lbs > Bulldog

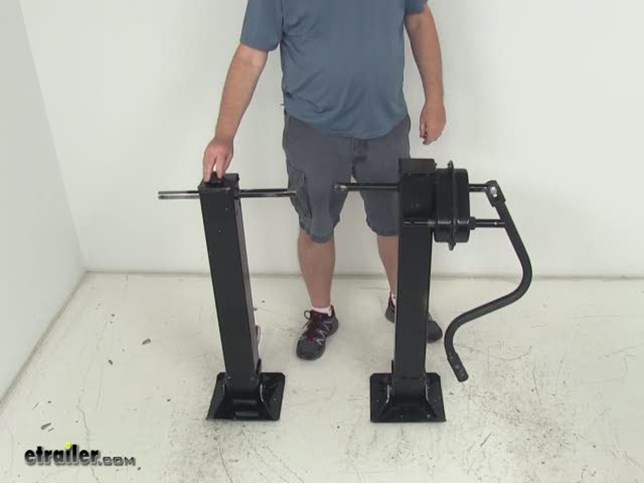

Bulldog 2-Speed Tandem Landing Gear Set - Weld On - 17" Lift - 45,000 lbs

Bulldog Trailer Jack

Code:   BD500153



Shipping Special

Shipping Weight: 158.64 pounds


Bulldog Trailer Jack - BD500153

Landing gear set includes 1 single-speed and (1) 2-speed jack designed to work in tandem for your heavy-duty towing applications. Sidewind crank included. Cross shaft not included.


  • Ideal for horse, livestock and heavy-duty trailers
  • 2-Speed jack makes cranking faster and easier
    • Low gear: full lifting power offers smooth and easy ratio of 1" for every 27-1/3 turns
    • High gear: ultimate speed with 1" for every 4-1/2 turns
  • Traditional gearbox design requires you to reposition crank to switch gears
    • Sidewind crank included
  • Easy-to-access grease fittings
  • Heavy-duty steel leg band provides extra strength and support
  • High-efficiency, double-lead screw
  • Self-leveling sand shoe offers absolute stability
  • Set includes 2-speed jack, single-speed jack and crank
    • Cross shaft not included - a user-made connecting rod is required to match the width of your trailer
  • Direct-weld design
  • Black paint finish


  • Bracket height:
    • 31-11/16" Retracted
    • 48-11/16" Extended
  • Lift: 17"
  • Lift capacity (per set): 45,000 lbs
  • Static capacity (per set): 90,000 lbs
  • 5-Year warranty

500153 Bulldog Tandem Non-Drop-Leg Landing Gear Set - Weld On - 45,000 lbs


Ask the Experts about this Bulldog Trailer Jack
Do you have a question about this Trailer Jack?

  • Recommend Electric Landing Gear For 26 Foot Gooseneck Trailer
  • Yes, checkout the Ultra-Fab Deluxe Electric Landing Gear Set, part # UF17-943010. This electric landing gear set will bolt to the frame of your gooseneck trailer. The combined weight capacity of the # UF17-943010, is 12,000 lbs. For a non-electric landing gear set, we have the Bulldog 2-Speed Tandem Landing Gear Set, part # BD500153. The Bulldog landing gear is a weld-on application, and you will also need to have a connecting rod fabricated to connect both jacks. I would recommend having...
    view full answer...

  • Bolt On Trailer Landing Gear Jack for a 24,000 Pound Trailer
  • Bulldog jack # BD500154 is very much overkill for a 12 ton trailer but also one of only a few we are going to have for 24,000 pounds. The manufacturer has not provided us with images and we have not yet had the item in to take pictures. But it is a landing gear set not unlike # BD500153 which is the weld-on counter part. We also have a 45K option, # BD1839060383, bolt on or # BD1839050383 weld-on. For 25K we have some options that I have linked for you but they are all weld on.
    view full answer...

  • What Shaft Diameter Size Will the Bulldog Sidewind Crank # BD8001090283 Fit On
  • The Bulldog Sidewind Crank, part # BD8001090283, will fit on a shaft diameter of 1 inch. It is designed to be used on the Bulldog Heavy Duty 2-Speed Tandem Landing Gear, part # BD500153, and part # BD500154.
    view full answer...

  • Bulldog 2-Speed Tandem Landing Gear Set Jack Recommendation for a 20 ft Trailer
  • Our strongest landing gear jack that you could potentially use on your 20 foot trailer would be the Bulldog 2-Speed Tandem Landing Gear Set # BD500153. This jack has 45,000 lbs of lifting capacity and can handle 90,000 lbs of static weight. If you are tired of breaking jacks and want to be done with the hassle of having new jacks welded on I would recommend the # BD500153.
    view full answer...

  • Recommended 2-Speed Jack for a 34 Foot Gooseneck Flat Bed Trailer
  • I have a couple options for you but there isn't a electric kit for a 2-speed jack that we currently offer. The Bulldog powered-drive kit # BD1824200100 for a single speed jack is a solid option. To use this setup, you will need 2 single speed jacks like # BD1823050383 and the Bulldog powered-drive kit # BD1824200100 and the cross shaft # BDCS730300. You may also need the hand crank # BD8001090283. For a 2-speed setup, I recommend using the 2-speed tandem landing gear set # BD500153 and...
    view full answer...

  • Installation Instructions for Bulldog 2-Speed Tandem Landing Gear Set # BD500153
  • According to the installation instructions for the Bulldog 2-Speed Tandem Landing Gear Set, # BD500153, this jack is to mount directly to the load-bearing member. Before mounting the jack confirm that there will be no interference from the tow vehicle, tongue, ground, or any other mounted accessories while stationary or in motion. Bulldog states that all welding must be done by an AWS certified welder. Three, 2 inch long, 1/4 inch fillet welds must be placed on both sides of the jack along...
    view full answer...

  • Availability of Jack Set with 45,000-lb Lift Capacity
  • We offer two sets of landing gear rated for 45,000-lbs lift, the Bulldog 2-Speed Tandem Landing Gear Set # BD500153 that you referenced, and the Bulldog 2-Speed Tandem Bolt On Landing Gear Set # BD500154. Both offer 17-inches of lift, include a foot plate and are backed by Bulldog's 5-Year warranty. In a drop-leg jack we offer the Bulldog 2-Speed Square Jack with Drop Leg and Spring Return, part # BD183750, and also # BD183749 with non-spring return, both rated for 25,000-lb lift.
    view full answer...

  • Replacement Bulldog Tandem 2-Speed Jack Recommendations
  • The only tandem Bulldog Jack set with 2 speeds that we offer is the Bulldog 2-Speed Tandem Landing Gear Set # BD500153. Which if you needed them individually you would want the part # BD1823050383 and part # BD1839050383. This jack set has a 45,000 lb capacity and does not have a spring release handle like you said you have though which makes me think you may have something different like the part # BD182800 that you referenced which is actually a single speed jack. If you need a...
    view full answer...

  • Weight of the Various Components of Bulldog 2-Speed Tandem Landing Gear Set
  • I went out to the warehouse and weighed the various components of the Bulldog 2-Speed Tandem Landing Gear Set # BD500153. Here's what I found: The single speed jack weighs 64 lbs. The dual speed jack with gear box weighs 81 lbs. The hand crank weighs 4 lbs. If you are interested in the Telescoping Cross Shaft Extension Tube for Bulldog Tandem Landing Gear you will need part # BDCS730300.
    view full answer...

  • Dimensions Of Bulldog Tandem Landing Gear
  • It looks like you are asking about the Bulldog 2-Speed Tandem Landing Gear Set, part # BD500153. These landing gears have a weld-on installation and have a lift capacity of 45,000 lbs. I have included a drawing that shows the dimensions of the landing gear you can check out. This landing gear includes the sidewind crank and has a 17 inch lift height.
    view full answer...
