Fixed-leg jack without base welds directly onto your application, has 24-3/16" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank.
Features:
Specs:
Video of Bulldog Square Jack - Fixed Leg - Sidewind - 15" Lift - 5,000 lbs
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

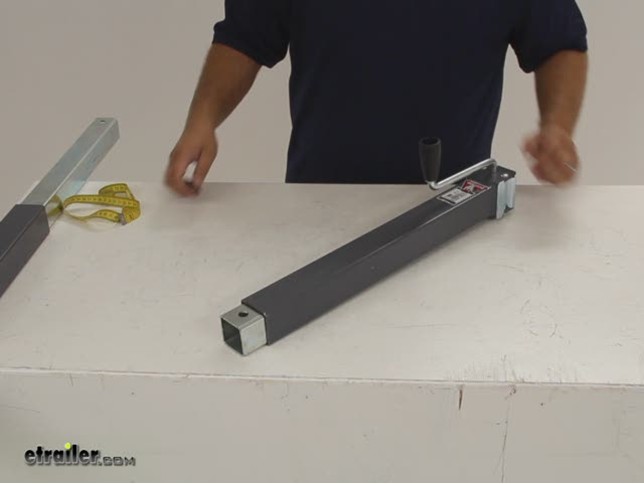

Today, we're going to take a quick look at the Bulldog Square Jack with Fixed Leg, part number BD195369. Now, Bulldog covers this jack with a limited five-year warranty. It has a static capacity of 5000 pounds and a lift capacity of 3000 pounds. It's a direct weld style jack, meaning you can weld the jack directly to the trailer frame anywhere along this jack body. The outer body is finished in a gray paint and the inner tube is zinc plated to help prevent against corrosion. There are also pre-drilled holes here at the bottom of the inner tube so you can mount things like a footplate or a wheel.
This jack has sidewind setup which may come in handy if you have LP bottles or toolbox on the front of your trailer nose. This way there won't be as much interference as you might have with the topwind jack. On the back of the jack, you also notice there's a zerk fitting here. That way you can attach your grease gun and keep the internals properly lubricated. Now, I want to go over a couple of measurements.
We have this jack here which is fully retracted. We'll measure from the top of the jack down to the bottom of the inner tube, and we get about 24-1/4 inches. We have another one of these jacks, same model, where we have it fully extended. We'll take that same measurement from the top of the jack down to the bottom of the inner tube and we get 39-1/4 inches. Now, the difference between those two measurements is 15 inches which is known as the jack's lift or travel.
And that does it for our look at the Bulldog Square Jack with Fixed Leg, part number BD195369.
