Drop-leg jack with heavy-duty footplate base and swivel mount offers superior side-load strength in a compact package. Jack has 22-2/3" retracted height and measure 12-2/5" from mounting bracket to top, excluding handle. Crank included. Lowest Prices for the best trailer jack from Bulldog. Bulldog Square Swivel Jack w/ Round Pipe Mount - Drop Leg - Sidewind - 15" Lift - 5,000 lbs part number BD190758 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
$125.95
Select Your Vehicle

View Cart


Trailer Jack > Side Frame Mount Jack > Swivel Jack - Pipe Mount > Sidewind Jack > Drop Leg > 15 Inch Lift > With Foot > Weld-On > 5000 lbs > Bulldog

Bulldog Square Swivel Jack w/ Round Pipe Mount - Drop Leg - Sidewind - 15" Lift - 5,000 lbs

Bulldog Trailer Jack

(10 reviews)


Code:   BD190758

Retail:$161.84

Price:$125.95


Shipping Special

Shipping Weight: 29 pounds

Quantity:






Bulldog Trailer Jack - BD190758

Drop-leg jack with heavy-duty footplate base and swivel mount offers superior side-load strength in a compact package. Jack has 22-2/3" retracted height and measure 12-2/5" from mounting bracket to top, excluding handle. Crank included.


Features:

  • Superior side-load capacity compared with round jacks
    • Outer and inner tubes overlap for additional strength when jack is fully extended
    • Square design provides additional support for side loading
  • Compact design is perfect for tight applications
  • Tubular swivel design lets you swing jack up for travel, down for use
    • Included pull pin holds jack in place
  • Durable, long-lasting construction
  • Weather-resistant coating on outer tube and zinc inner tube
  • Screw-nut stop prevents damage to screw and/or nut when jack is fully extended
  • Sidewind handle has smooth, ergonomic design for easy cranking
  • Drop leg increases overall extension for maximum adjustability
  • Round, tubular mount and heavy-duty footplate included
  • ASABE compliant


Specs:

  • Bracket height:
    • 12-3/4" Retracted
    • 41" Extended
  • Drop-leg travel: 13-1/2"
  • Lift: 15"
  • Clearance: 12-7/16" from mounting bracket to top of jack
  • Tubing width: 2-1/2"
  • Handle radius: 8-1/2"
  • Lift capacity: 5,000 lbs
  • Static capacity: 8,000 lbs
  • Limited 5-year warranty


190758 Bulldog Square Tubular Swivel Jack with Drop Leg, Sidewind, 15" Travel, 5,000 lbs - SWL 190 DL-BTSMQ w/ P & C








Customers compare BD190758 to these similar products





Customers Who Purchased This Trailer Jack Also Bought...



Replacement parts available for this product





Economy
$83.00 Less

Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Sidewind - 15" Lift - 5,000 lbs


Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Sidewind - 15" Lift - 5,000 lbs
Pro Series Trailer Jack

38 reviews

Code: PS1401440303


Retail:$57.75

Price:$42.95


No Drop Leg

Pro Series



Footplate, weld-on mount and pull pin are included with this round swivel jack. Ideal for agricultural and commercial uses. Jack has 15-1/2" retracted height and measures 6-1/4" from mounting bracket to top, excluding handle.

more information →
Value
$67.00 Less

Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 15" Lift - 5,000 lbs


Pro Series Square Jack with Footplate - Drop Leg - Sidewind - 15" Lift - 5,000 lbs
Pro Series Trailer Jack

44 reviews

Code: PS1400850383


Retail:$77.46

Price:$58.95


Fixed Mount Jack

29 Inch Lift

Pro Series



Drop-leg jack with integrated footplate welds directly onto your application, has 25-1/8" retracted height and offers superior side-load strength for your agricultural or industrial needs. Includes sidewind crank.

more information →
Premium
$21.00 Less

Bulldog Square Swivel Jack w/ Round Pipe Mount - Fixed Leg - Sidewind - 15" Lift - 5,000 lbs


Bulldog Square Swivel Jack w/ Round Pipe Mount - Fixed Leg - Sidewind - 15" Lift - 5,000 lbs
Bulldog Trailer Jack

Code: BD190756


Retail:$142.41

Price:$104.95


No Drop Leg



Fixed-leg jack with heavy-duty footplate base and swivel mount offers superior side-load strength in a compact package. Jack has 12-4/25" retracted height and measure 12-2/5" from mounting bracket to top, excluding handle. Crank included.

more information →

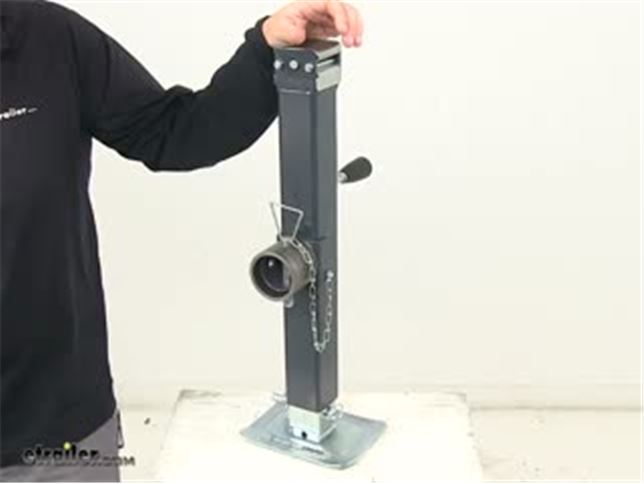

Video of Bulldog Square Swivel Jack w/ Round Pipe Mount - Drop Leg - Sidewind - 15" Lift - 5,000 lbs


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Bulldog Trailer Jack BD190758 Review

Today were going to take a look at the Bulldog Square swivel jack part #: BD190758. Bulldog covers this jack with a limited five year warranty. It has a lift capacity of 5,000lbs and a static capacity of 8,000lbs. the inner tubes and footplate are zinc plated for corrosion resistance and the footplate is going to provide a wide flat base to support the nose of your trailer. Now were going to go over a few measurements. From the center of the mounting bracket hole down to the bottom of the baseplate measures about 12 inches.

Now we have another one of these units thats fully extended. This bracket height when extended measures 27 . The difference between the two is 15 inches and that measurement is your travel or lift. Now the jack also features a drop leg feature. A drop leg feature will reduce the amount of crank you have to do before you make contact with the ground.

To take advantage of the drop leg youd remove this pin and the secondary inner tube will slide out from inside the primary inner tube. You slide this out and get it as close to the ground as you can, reinsert your pin and then you can begin cranking. The drop leg offers 13 inches of travel. This is the side wind jack with an ergonomic handle that makes operation nice and smooth. Its designed to be welded onto your trailer using this steel collar.

Youll weld this collar to the trailer, then the jack will fit inside allowing you to rotate and swivel the jack so you can get it up and out of the way when youre pulling the trailer down the highway. And thats it for our quick review of the Bulldog Square swivel jack part #: BD109758.


Customer Reviews

Bulldog Square Swivel Jack w/ Round Pipe Mount - Drop Leg - Sidewind - 15" Lift - 5,000 lbs - BD190758

Average Customer Rating:  5.0 out of 5 stars   (10 Customer Reviews)


Drop-leg jack with heavy-duty footplate base and swivel mount offers superior side-load strength in a compact package. Jack has 22-2/3" retracted height and measure 12-2/5" from mounting bracket to top, excluding handle. Crank included.


- BD190758

by: Robin A08/04/2016


First, Amazing service from etrailer, always quick shipped. This jack fit my M1102 military trailer perfectly. The original jacks are a little flimsy for max load but this thing is heavy and sturdy and fit onto the current jack mount with no modifications. The only advice is to let the jack out about an inch or so when stowed in order for the foot pad to clear the frame. When stowed I use a small bungie cord to stow the handle in line with the jack body so it doesn't hang down. Perfect option for these military trailers. This has the convenience of an extendable foot pad which really cuts down on the amount of cranking. Operates smoothly under load. 279514



- BD190758

by: RPO12/31/2013


Great quality. Have not installed yet, but it appears to meet the requirements we have. 111599


Comments

The jack performs great and is of high quality.

RPO - 12/31/2014

8301

- BD190758

by: Ted Klumpp06/17/2016


The mounting bracket which is part of the jack fits both the external bracket supplied with the jack as well as the smaller existing internal bracket on the machine from the prior jack, a nice touch not to have to cut off my male mount and weld on their larger female mount. My only comment would be that there needs to be a provision on the jack to secure the crank handle when the jack is stowed in the horizontal position. Otherwise, it just flops free and dangles below the body of the jack in the stowed position. Could contact the ground in certain situations. 262276



- BD190758

by: Tom Vesco07/30/2014


Well built and heavy duty jack. I purchased 2 of these to use on the rear of my utility trailers so I can load and unload them without being hooked to a tow vehicle. Being that these rotate and are also quickly removable, I can either rotate them out of the way or remove and store them in the trailer storage box. 143440



- BD190758

by: Pammy10/07/2015


Just had it welded to our Eagle Spirit trailer that hauls a 24 foot Thompson Fisherman and it is GREAT. Handles the heavy weight with absolutely no problem. Thank you. 229393



- BD190758

by: Mark D.02/02/2015


Awesome service. Shipped quickly and received on time. Communication from etrailer.com via e-mail was great! 172068



- BD190758

by: Mike O06/10/2015


Product shipped extremely fast. Communication was excellent. Thanks. 202281



- BD190758

by: Scott08/07/2015


Excellent product. Works well with our trailers. 217480



- BD190758

by: Rubén s08/11/2014


Good price price 145634



- BD190758

by: Craig P.01/31/2016


Well Built 236650

10
10


Ask the Experts about this Bulldog Trailer Jack
Do you have a question about this Trailer Jack?


  • Recommendations for Side-wind Pipe-Mount Weld-On Swivel Jacks Rated for 5000-8000 Lbs
  • We offer the Bulldog Round Pipe-Mount Swivel Jack rated for 5000 lbs, part # BD178203. This includes the 2-inch weld-on coupler pipe (and retaining pin and clip) and the foot plate. This jack offers 15 inches of lift. Please refer to the video link provided. We also offer the Bulldog Square Swivel Jack, part # BD190758, which also provides 15 inches of lift, includes the 2-inch weld-on coupler pipe, pin and clip, and footplate. This jack is rated for 8000 lbs static capacity and also...
    view full answer...

  • What are the Measurements on a Bulldog Square Swivel Jack # BD190758
  • I pulled the Bulldog square swivel jack # BD190758 from our warehouse to provide the measurements you requested. The jack is 26-inches in overall length, not including the handle. The handle radius is 8-1/2 inches for your reference. If the foot base plate is removed the measurement of the entire square outer tube is 24-3/4 inches. The wall thickness of the square outer tube is 0.135-inches. When the outer square tube collar is in the retracted position with the foot included it's 3-inches...
    view full answer...

  • Sidewind Jacks Versus Topwind Jacks
  • There really is not an advantage to having a side-wind jack versus a top-wind jack. It really just comes down to personal preference and what clearances are available on the trailer. You may find that the handle location would interfere with components mounted on your trailer with one style, but not for the other. In theory you would need to bend over farther to operate a sidewind jack since the jack handle goes up and down. Depending on the height of your trailer this may not be an...
    view full answer...

  • Replacement Nut and Screw for 4 Inch Square Bulldog Jack on a Gooseneck Trailer
  • Nut is the term used for that threaded collar inside the jack. And the screw would be the other part. The nut is not available by itself but you can get it with the screw (not a bad idea since there could be damage to the screw as well). If you have a 12K capacity Bulldog jack, 182 series, from 2003 to present then you would use # BD500217. If it is rated for 10K lift and 12K support then you would use # BD500250.
    view full answer...

  • What Does the Bulldog 3" Long, Weld-On Jack Pipe Mount # BD003155 Attach To
  • The Bulldog 3" Long, Weld-On Jack Pipe Mount # BD003155 is generally used for the installation of trailer jacks like the # BD190758. The other side of the mating part is permanently attached to the jack. The matching pin is on the jack as well. Check out the review video I attached for more info.
    view full answer...

  • Worm Gear Winch Recommendation For Lifting 500 lbs Off of the Ground
  • I have a solution for you, but we have had a similar question come in the past and our jack manufacturers cannot recommend you use the leg of a jack as a lift. Your best option is going to be a worm gear winch like the part # DL10954 that can be set up to be used as a ceiling hoist.
    view full answer...

  • Dimensions of the Mounting Pipes on the Bulldog Jack part # BD190758
  • I went out into our warehouse and to measure one of the Bulldog Square Swivel Jacks # BD190758 we had in stock and found that the inner diameter of the female mount is 2-17/32 inches and the outer diameter of the male pipe mount on the body of the jack is 2-15/32 inches. Yes, the female end does get welded in place on your trailer frame. I attached a review video for you to check out as well.
    view full answer...

  • Distance Between Jack and Handle on Bulldog 5K Square Trailer Jack
  • On Bulldog square 5K trailer jack # BD190758 the outer tube of the jack is approximately 1-3/8 inches from the handle.
    view full answer...
