Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 12-1/2" Lift - 12,000 lbs

Bulldog Trailer Jack

Rating: ratingratingratingratingrating
2 reviews


Code:   BD182805

Retail:$234.55

Price:$193.95

Shipping Weight: 58 pounds

Shipping Special
Quantity:




Bulldog Trailer Jack - BD182805

Heavy-duty, square, drop-leg jack has a side-facing plunger pin, an easy-to-access gearbox and 27-2/5" retracted height. Perfect for agricultural, construction, livestock or heavy-duty utility applications. Crank sold separately.

Features:

  • 7-Gauge alloy steel offers superior strength and durability
  • Painted inner and outer tubes are weather resistant
  • Gearbox is easy to access for routine maintenance
    • Includes grease fitting
  • Drop leg with spring return increases overall extension for maximum adjustability
    • Plunger pin positioned to the side
  • Direct-weld design
  • Jack can be paired with BD182800, BD183802 or BD182804 for tandem applications
  • Sidewind crank sold separately
  • Standard footplate included


Specs:

  • Bracket height:
    • 27-3/8" Retracted
    • 39-7/8" Extended
  • Drop-leg travel: 13-1/2"
  • Lift: 12-1/2"
  • Tubing width: 4"
  • Lift capacity: 10,000 lbs
  • Static capacity: 12,000 lbs
  • Limited 5-year warranty


This jack is a companion to the Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 12-1/2" Lift - 12,000 lbs (BD182800) and the Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 12-1/2" Lift - 12,000 lbs (BD182804) and can be used in tandem operations with either. When used in tandem, a user-made connecting rod is required. Both jacks are designed so that their plunger pins and footplate handles are in easily accessible positions from either side of your trailer.

182805 Bulldog Heavy Duty Square Direct Weld Jack with Spring Return Drop Leg, Sidewind, 12-1/2" Travel, 12,000 lbs - SWQ 180 DL-BX-RH





Video of Bulldog Square Jack - Drop Leg w/ Spring Return - Sidewind - 12-1/2" Lift - 12,000 lbs


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

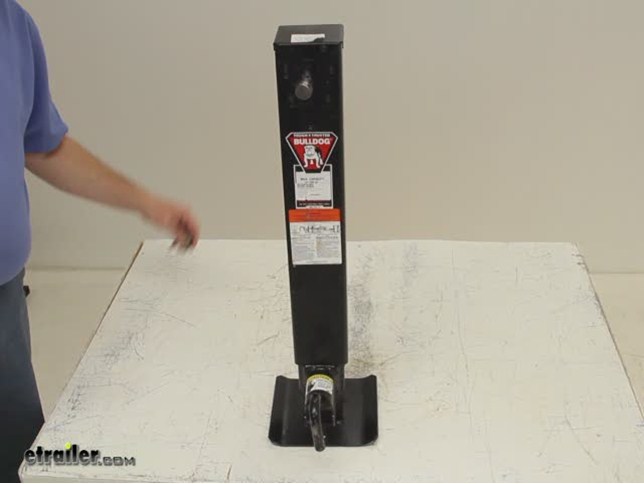

Video Demo Bulldog Trailer Jack BD182805
Bulldog Trailer Jack BD182805 Review

Video Transcript for Bulldog Trailer Jack BD182805 Review

Today, we're going to take a quick look at the Bulldog Square Jack with Drop Leg, part number BD182805. Now, Bulldog covers this jack with a limited five-year warranty. It's got a static capacity of 12,000 pounds and a lift capacity of 4000 pounds. It's a direct weld design, meaning your 4-inch square tube can be welded directly to the frame of your trailer. It can be paired up with another piece to have tandem gear on the front of your trailer. If you pair it together, this would be the right hand side.

Included with the jack is a foot plate welded to the bottom of the inner tube, which we'll need to purchase a sidewind crank separately. Now, we want to go over some measurements with these jacks so you can get an idea on how they'll fit your trailer. This front jack is fully retracted. We'll measure from the bottom of the foot plate to the top of the jack and we get about 27-1/2 inches. We have the same model here fully extended and we get about 40 inches.

Now, the drop leg feature offers an additional 13-1/2 inches of travel. It is spring reloaded, so when you pull this pin the foot plate inner tube will come back up. To get it to come down when you're lowering the gear, pull the pin and push the plate down towards the ground. The drop leg feature provides less travel as far as cranking in order to be at the gear all the way lowered as you can get span the gap with the drop leg. And that's it for our quick look at the Bulldog Square Jack with Drop Leg, part number BD182805..
