Included bracket fits up to a 3" x 4" tongue and lets you easily swing this jack up for travel and down for use. Jack has 11" retracted height and measures 4" from mounting bracket to top, excluding handle. Base sold separately.
Video of Bulldog Round, Snap-Ring Swivel Jack - Bolt On - Topwind - 10" Lift - 2,000 lbs
installation instructions And specs For complete information.

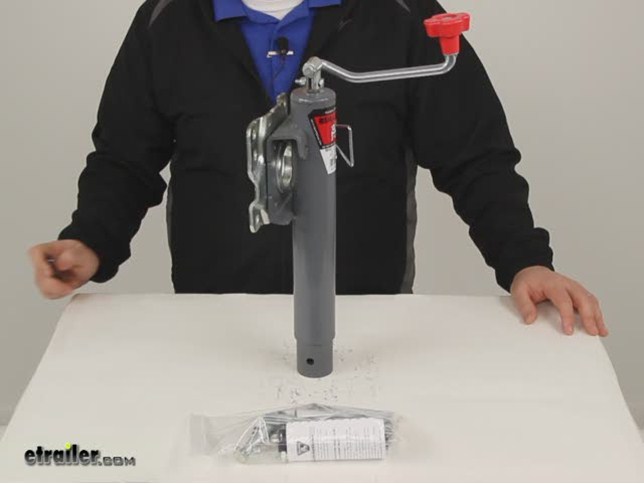

Today we'll be reviewing part number BD151443. This is a Bulldog Round, Snap-Ring Swivel Jack. It is a bolt on installation and it has a top wind handle with ten inches of lift, and it's rated at two-thousand pounds. This dependable jack is recognized as industry standard for agricultural and commercial applications. It's ASABE compliant. It has a convenient, spring-loaded plunger pin swivel feature that's going to allow you to swing the jack up into a stowed position during travel and you can move it back into an upright position for use and support of your trailer. All you need to do is pull the plunger pin and then the mounting bracket is going to be mounted to your trailer, so that's going to hold tight. And once you disengage the pin, it's actually going to allow you to swivel the jack forward or backward into whatever position you need it to be in for your application. This does have precision fitted parts that are going to provide exceptional stability and reliability.
The top wind handle has as smooth, ergonomic design for easy cranking. And it's going to provide us with a radius of six and five eighths of an inch. Another great feature about the handle is when it's not in use, you can actually fold it over into a stored position and free up a little bit of space at the top of your jack. The outer and inner tube has a nice, gray paint finish and that is weather resistant so it's going to stand up well against the elements. Again, this is a bolt on install so the bolt on mounting bracket does include all the hardware. A few additional accessories that I want to show you that are not included with the purchase of the jack: We have the caster wheel assembly. This is available and sold separately with part number BD500245.
Your jack would fit into the wheel assembly and then you'd secure it with the included pin. The other accessory is the standard foot plate. This is available and sold separately with part number BD018564. It's going to install the same way and you would also use the pin and clip to secure it in place. When the jack is fully retracted, we have a bracket height of eleven inches - that's measuring from the center of the mounting bracket to the base or the bottom of the inner tube of our jack. When it's fully extended, that measurement is going to increase to twenty-one inches. If we subtract those measurements, we're left with ten inches and that's where we get our lift measurement from. This is going to provide about four inches of clearance from the center of our mount to the top of our jack.
This is designed to fit a three inch by four inch tongue. The tubing diameter here on the outer tube is going to measure two and one quarter inches and on the inner tube it's going to measure two inches. And the plunger pin here has a diameter of a half inch. Now this jack has a lift capacity of two thousand pounds. Some of the additional measurements that I would like to go over for you are the measurements here located on our mounting bracket. We have the top two holes and the bottom holes.
The internal four holes are for our plunger pins, so we don't have to worry about those. The distance between the top two mounting holes, from the center of one to the center of the other, we have a measurement of five and three eighths of an inch. From the center of our bottom hole to the center of the top hole we have a measurement of four and three eighths. From the center of our bottom to the center of the bottom top hole we have a measurement of three and three eighths. Which leaves us with a distance between the top two mounting holes of one inch. That's going to complete today's review of part number BD151443. That's the Bulldog Round, Snap-Ring Swivel Jack, rated at two thousand pounds. .
Average Customer Rating: 4.9 out of 5 stars (12 Customer Reviews)Included bracket fits up to a 3" x 4" tongue and lets you easily swing this jack up for travel and down for use. Jack has 11" retracted height and measures 4" from mounting bracket to top, excluding handle. Base sold separately.
by: Theo v.01/15/2016
This is a heavy duty, excellent jack. The backing plate is rectangular (not square), so that you can select which way to turn it in order to get the best fit for your trailer tongue. Comes with the hardware to attach the jack. I selected this jack for my boat trailer (the trailer can handle bigger boats , but I currently have a 24 ft. Sea Ray on it). I was wondering about the 10 inch lift, but at first glance it appears more than adequate. In order to have some "lift options" I bought both a Bulldog detachable foot plate (code BD018564 - $10.99) and a Heavy duty 6 inch caster (I bought the better more-heavy-duty caster instead of the lighter one: code BDCP555 for $36.95). This is a wonderful combination of options with heavy duty hardware. I can recommend it. 235556
by: Don S.10/20/2012
I needed to replace my utility trailers jack after it was damaged when someone backed into it and I needed it fast. I was searching the web and stumbled onto etrailer.com. I was able to find what I wanted thru the detailed description of the jack I purchased. The ordering process was a snap and to my delight they upgraded the shipping at no extra coast to me so I received my order a couple of days ahead of schedule. It arrived on time and in great shape and the installation was just as it was described on their site. Great job, will defiantly do business with them again. 57766
by: mike c.02/02/2012
the trailer jack on my trailer was in the way of me putting my tailgate on my truck down so, I buy the bulldog trailer jack . I like how easy it is to install on the fame rail of my trailer. It is easy to use to lift and lower on to the hitch ball. I like the trailer jack swing up and out the way. The new trailer as solve the problem so I can put my tailgate down on my truck now. 30841
by: Bill B.09/03/2015
I replaced my existing jack on my trailer, it was getting worn out. I like the swing away feature on this. Installed using U Bolts from old unit. I was thinking it would have come with new bolts but I suppose there are so many different applications and trailer sizes. This is the 2,000 lb , I also got the wheel kit that fits so I am good to go for winter. Well pleased with easy crank up. 223802
by: Mark G08/31/2011
This was my second order from etrailer. I recommend them to anyone looking for anything trailer or cargo related. the jack is for a snowmobile lift I am building so I haven't put it to the test yet but it seems like a wellbuilt product that will more than cover my needs. A+ to etrailer.com as they are awesome with service and prompt shipment! 23274
by: Phil N06/10/2015
Great jack. I got this jack to replace a side crank on my boat trailer that was too hard to crank. This jack is much easier to crank. A had a couple of questions about the jack that were quickly answered by etrailer. How it holds up being dunked in water, time will tell. Good service. Good product. 202157
Only swivel jack that could fit my small trailer tongue because its incredibly short distance from the center of the jack to the crank at the top and the detectable wheel which I purchases with it. The jack also is very high quality, technically could support my entire trailer at 2000 pounds capacity. 192349
by: Bob M07/17/2010
great jack I replaced my A Frame jack with this one because of low ground clearance. I did the trick. Only issue I had was the bolts were too long and I had to replace then. 3251
by: Tom L04/14/2011
This product is well built and very easy to install, just what I was looking for. Ordering, shipping and order information during transit was outstanding. Thanks 11729
by: H.R. John06/28/2016
Very happy with the product, also very easy to install, this was exactly what i was looking for 110% satisfied Thanks. 265877
by: Chip S09/22/2014
Came as advertised and works as promised. What more can you want? 152480
by: Howard D.02/05/2011
This is a perfect product for my needs. Easy to install. 6682
