Titan 5 on 4-1/2 Complete Hub-and-Drum Assembly - Hydraulic Brakes - 10"

Titan Trailer Hubs and Drums

ratingratingratingratingrating (2 reviews)


Code:   T1554500042

Price:$61.95


Shipping Special

Shipping Weight: 21 pounds

Quantity:






Titan Trailer Hubs and Drums - T1554500042

10" Hub-and-drum assembly features 5 on 4-1/2 bolt pattern and includes races, inner and outer bearings, seal, bolts and grease cap.

Features:

  • Hub-and-drum assembly includes:
    • Inner bearing and race
    • Outer bearing and race
    • Grease seal
    • Grease cap
    • Wheel bolts
  • Hydraulic brake applications


Specs:

  • Drum dimensions: 10" x 2-1/4"
  • Bolt pattern: 5 on 4-1/2"
  • Inner bearing: L68149
    • Inner diameter: 1-3/8"
  • Outer bearing: L44649
    • Inner diameter: 1-1/16"
  • Grease seal: 1552900
    • Inner diameter: 1.718"
    • Outer diameter: 2.565"
  • Grease cap: 1.986"
  • Wheel bolt size: 1/2"-20
  • 1-Year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Measuring Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Measuring Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring Bolt Pattern - Side-to-Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




1554500042 Titan Hub and Drum Complete







Video of Titan 5 on 4-1/2 Complete Hub-and-Drum Assembly - Hydraulic Brakes - 10"


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Titan Trailer Hubs and Drums T1554500042
Titan Trailer Hubs and Drums T1554500042 Review

Video Transcript for Titan Trailer Hubs and Drums T1554500042 Review

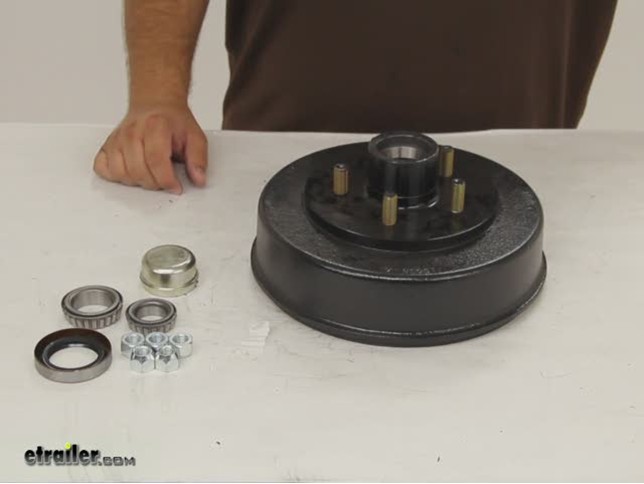

Today, we're going to take a quick look at Titan's 5 on 4-1/2 Complete Hub and Drum Assembly, part number T1554500042. This assembly is designed to work with hydraulic trailer brake applications. It's got a 5 on 4-1/2 bolt pattern. There are five studs and if we measure from the center of one to the center of the next, we get 2-5/8, which means we have a 5 on 4-1/2 pattern. Included with the hub and drum are the races which were already pressed in the main bore. You also get five conical lug nuts, a grease seal, your inner and outer bearings, and finally, your cap for the end.

We'll take a quick measurement inside. We have a depth measurement of about 2-1/2 inches. Across the diameter, we get 10 inches. With those measurements, we know that we should be using 10 by 10-1/4 brake assemblies. And finally, Titan does cover this hub and drum assembly with a one-year warranty.

And that's it for our quick look at Titan's 5 on 4-1/2 Complete Hub and Drum Assembly, part number T1554500042.


Customer Reviews

Titan 5 on 4-1/2 Complete Hub-and-Drum Assembly - Hydraulic Brakes - 10 - T1554500042

Average Customer Rating:  ratingratingratingratingrating5.0 out of 5 stars   (2 Customer Reviews)




- T1554500042

ratingratingratingratingrating by: Tai K08/17/2013

Is this review helpful?


Great product... 95532



- T1554500042

ratingratingratingratingrating by: Alex N---11/14/2011

Is this review helpful?


Good quality>>>> 26967



Ask the Experts about this Titan Trailer Hubs and Drums
Expert Answers about Titan 5 on 4-1/2 Complete Hub-and-Drum Assembly - Hydraulic Brakes - 10" - T1554500042                                       Do you have a question about this Trailer Hubs and Drums?



Info for this part was:


Written by:
Lindsey S

Installed by:
Patrick B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
