Trailer Hub Assembly - 8 on 8" - 6,000 lb

Video Transcript for Dexter Trailer Hubs and Drums AH60880FCOMP Review

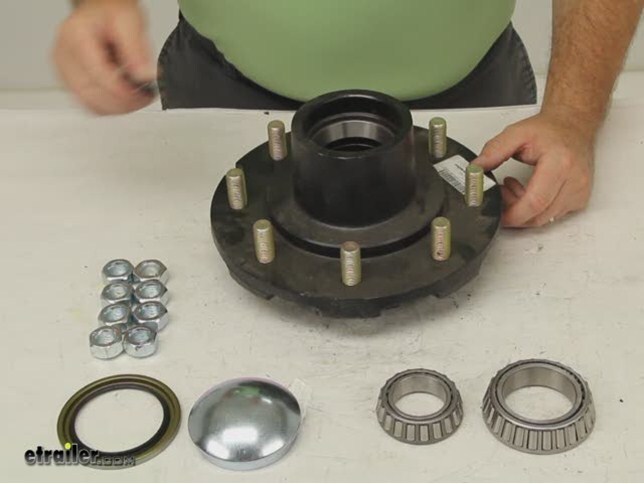

Today were going to review part number AH60880FCOMP this is a Dexter Trailer Agricultural Hub Assembly for an 8 on 8-inch bolt pattern and a 6000-lb axle. This is an agricultural hub. It is to be used with a spindle part number AS6000F. Now this part does come with eight of the 5/8-inch cone seat lug nuts, it does come with the grease seal and the grease cap. It does come with the inner bearing which is part number 506849 and it does come with the outer bearing which is part number 501349. Now the bearing races are included also.

They are already installed into the hub. Right here is our outer bearing race and on the back you can see the inner bearing race. All of our hub assemblies will come with the bearing races preinstalled in the hubs. Now this agricultural hub does have an eight lug 8-inch bolt pattern. normally on a bolt patter that have an even number of lugs like in this case eight, you can just measure from the center of one stud directly across to the center of the stud opposite.

In this case because that center is too tall you wont get a correct measurement. What you can do then is just take a measurement from the center of one lug wheel stud to the center of a stud right next to it. So in this case if you measure center to center it will be 3 inches. If youd measure that that will determine that this an 8 on 8-inch bolt pattern. And that should do it for our review on part number part number AH60880FCOMP..
