# Trailer Hub and Drum Assembly - 3,500-lb Axles - 5 on 5-1/2

Code:   84557UC3

Retail:\$94.29

Price:\$64.95

Shipping Special

Shipping Weight: 23 pounds

Quantity:

### Dexter Trailer Hubs and Drums - 84557UC3

Trailer hub-and-drum assembly includes, lug nuts, inner bearing (L68149) and race, outer bearing (L44649) and race, grease cap and grease seal. Fits 3,500-lb axles.

• Application: most 3,500-lb axles, including Dexter
• Drum dimensions: 10" diameter x 2-1/4" wide
• Bolt Pattern: 5 on 5-1/2"
• Includes bearings, races, seal, grease cap, wheel bolts and lug nuts
• Bearings:
• Inner bearings: L68149
• Outer bearings: L44649
• Capacity: 1,750 lbs

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

• If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
• If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
• If D = 3", then the bolt pattern is 5 on 5"
• If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

## 84557UC3 Trailer Hub and Drum

Video of Trailer Hub and Drum Assembly - 3,500-lb Axles - 5 on 5-1/2

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

## Video Transcript for Dexter Trailer Hubs and Drums 84557UC3 Review

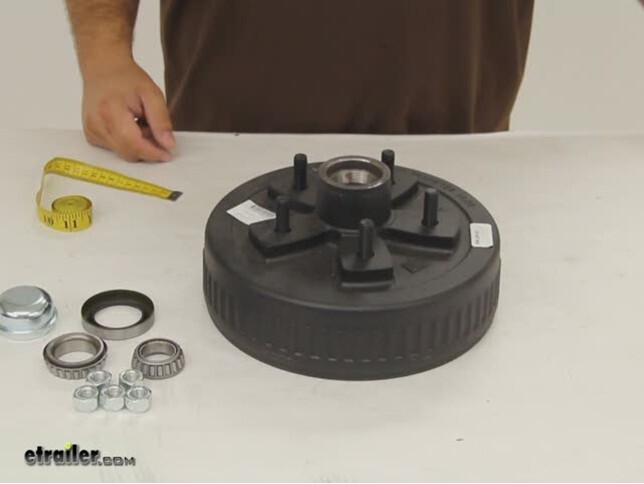

Today were going to take a quick look at Dexters Trailer Hub and Drum Assembly part number 84557UC3. This drum assembly is designed to work on 3500 lb axles. It has drum dimensions of 10 inches by 2-1/4 inches wide. The bolt pattern is 5 on 5-1/2 and you can measure that by measuring from the center of one stud to the center of the next. We get 3-1/4 inches which comes out to a 5 on 5-1/2 bolt pattern. Included with the kit are the races, bearings, seal, cap and lug nuts.

The races are already pressed inside into place so theyll fit over your spindle. Youve got the inner bearing which is L68149, the outer bearing L44649, the seal and of course the nuts and the cap. This drum has a capacity of 1750 lbs so when you pair it up with another drum youll get your total of 3500 lbs for the axle. Well go ahead and go over the measurements inside. Across the inside of the drum we get our 10 inches and for our depth we get about 2-1/2 inches which is enough space for 2-1/4 inch wide brake assembly.

And thats it for a quick look at Dexters Trailer Hub and Drum Assembly part number 84557UC3.

Customers compare 84557UC3 to these similar products

Customers Who Purchased This Trailer Hubs and Drums Also Bought...

Replacement parts available for this product

Customer Reviews

#### Trailer Hub and Drum Assembly - 3,500-lb Axles - 5 on 5-1/2 - 84557UC3

Average Customer Rating:  5.0 out of 5 stars   (2 Customer Reviews)

- 84557UC3

by: Tim L11/23/2013

Fit Great! Just what I needed! Super fast shipping! 108285

- 84557UC3

by: Tom B.03/30/2012

Great fit, form and function. Mine was hard to find so ordering was my only option and etrailer got it to me quick and complete.35710

• Converting 3500 lb Axle from Idler Hubs to Electric Brakes
• The brake mounting flanges, whether they be 4 or 5 bolt, have a standard hole spacing to fit their appropriate brake assembly. No worries about the brake assembly matching with the existing one on your axle. A 3500 lb axle like what you have will use a 4 bolt flange. You will need to get the numbers that are stamped on your existing bearings, in order to confirm the fit of the # 84557UC3. Your current bearings will need to match the bearings of the replacement hub. The # 84557UC3 uses L68149

• What is the Bore Size of the Dexter Trailer Hub and Drum Assembly # 84557UC3
• A 1.98 inch inner diameter bore is pretty common on trailer hubs. If you were to measure the bore diameter of the Dexter Trailer Hub and Drum Assembly, # 84557UC3, using a dial caliper, you would get 1.96 inches. This hub requires a grease cap with a 1.98 to 1.99 inch diameter. The grease cap that comes with this hub actually measures 1.99 inches. If you are looking for a replacement dust cover, you have many options. For a standard dust cover, you can use part # F001518 or # RG04-020. If yo
