Rating:
4 reviews
Code: 84556UC3-EZ
Retail:$98.25
Price:$65.95
Shipping Weight: 24 pounds
Shipping SpecialTrailer hub-and-drum assembly includes lug nuts, inner bearing (L68149) and race, outer bearing (L44649) and race, E-Z Lube grease cap with plug and grease seal. Fits 3,500-lb axles.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
Video of Trailer Hub and Drum Assembly - 3,500-lb Axles - 5 on 5 - E-Z Lube
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

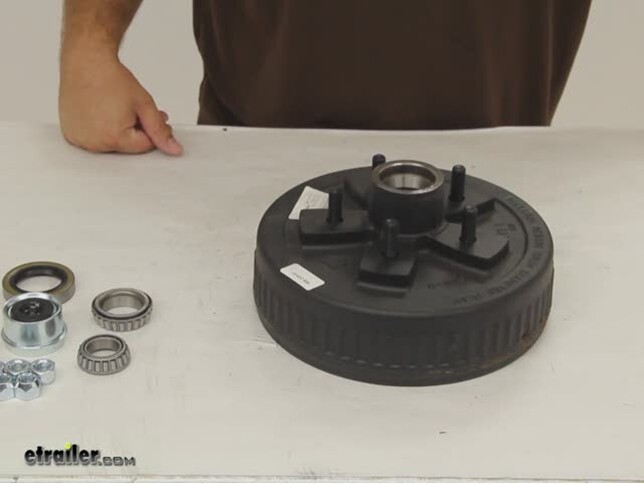

Today were going to take a quick look at Dexters Trailer Hub and Drum Assembly part number 845576UC3-EZ. Now this hub and drum assembly is designed to work on 3500 lb axles that are equipped with the E-Z lube spindles. It uses a 5 on 5 bolt pattern. We count our 5 lugs there, 5 studs and then we measure from the center of one stud to the center of the closes and we get 3 inches which tells us that this is a 5 on 5 pattern. Included with the drum assembly youll find the races already pressed into place inside the bore, your five conical lug nuts, a grease cap with a removable rubber plug so you can quickly access the grease zerk on the end of your spindle, a 10-19 seal and your inner and outer bearings. Your inner bearing is number L68149 and the outer bearing is L44649.
Now this drum has a gross weight capacity of 1750 lbs. When you pair it with the drum on the other side of the axle youll get your 3500 capacity. On the interior we can measure for the brake assemblies themselves. Across the inside we get our 10 inches. We take a depth.
We get about 2-1/2 inches which makes this the right size for 10 by 2-1/4 brake assembly. And thats it for a quick look at Dexters Trailer Hub and Drum Assembly part number 845576UC3-EZ.
Customers compare 84556UC3-EZ to these similar products
Customers Who Purchased This Trailer Hubs and Drums Also Bought...
Average Customer Rating: 4.3 out of 5 stars (4 Customer Reviews)
by: Oliver S.03/20/2012
Is this review helpful?
Well made, good priced and easily installed hubs.34530
by: DEAN04/18/2013
Is this review helpful?
Good quality drum and bearing races were already installed so that was a chore i didnt have to deal with. I didnt care for the China brand bearing otherwise it was a good fit for my Dexter EZ lube axles.76809
by: Greg01/22/2013
Is this review helpful?
Customer service at etrailer.com was nothing less than fantastic. Hub arrived as described. All of the necessary components were included in the package. Easy to put together and install.63851
by: Jamey04/20/2012
Is this review helpful?
Product is as advertised. 5 on 5 bolt pattern and fits a ten inch brake. Comes with what is in the picture. Note: there is no Cotter pin, nut or washer included. Should be no problem to reuse the old but if you can't you need to order separate. 37886
