# Trailer Hub Assembly - 3,500-lb Axles - 5 on 5

Rating:
2 reviews

Code:   84550BX

Price:\$35.95

Shipping Weight: 10 pounds

Shipping Special

Quantity:

### Dexter Trailer Hubs and Drums - 84550BX

Trailer hub includes lug nuts, inner bearing (L68149) and race, outer bearing (L44649) and race, grease cap and grease seal. Fits 3,500-lb axles.

• Application: most 3,500-lb axles, including Dexter
• Bolt pattern: 5 on 5"
• Pilot diameter: 2.58"
• Includes bearings, races, seal, grease cap, wheel bolts and lug nuts
• Bearings:
• Inner bearing: L68149
• Outer bearing: L44649
• Grease cap: 1.986" outer diameter
• Capacity: 1,750 lbs

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

• If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
• If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
• If D = 3", then the bolt pattern is 5 on 5"
• If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

## 84550BX Trailer Hub

Video of Trailer Hub Assembly - 3,500-lb Axles - 5 on 5

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

## Video Transcript for Dexter Trailer Hubs and Drums 84550BX Review

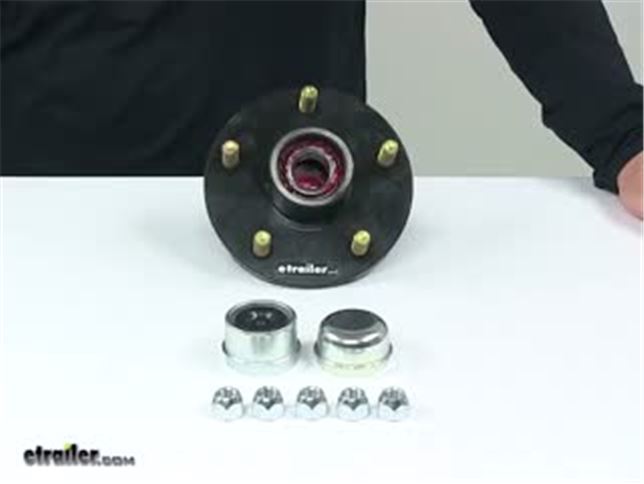

Today we're going to take a quick look at Dexter Axle's Trailer Hub Assembly part number 84550bx. Now this hub has a capacity of 1,750 pounds. When you pair it up with another you'll get a total capacity of 3,500 pounds, which is right where we need to be for use with a 3,500 pound axle. There are 5 studs pressed into the hub and we've got a bolt pattern of 5 on 5. If you measure from the center of one stud to the center of the next stud you'll get a 3 inch difference, which tells us it's a 5 on 5 pattern. Now, included with the hub are the races, but they're actually already pressed into place inside the hub.

You also get your 5 conical lug nuts for securing the wheel to the hub, a grease cap that's going to go over here on the front to protect the lubricated internals, your inner and outer bearing. The inner bearing in this case is an L68149. The outer bearing is an L44649. And you'll also get your grease seal that will go on the back. And that's it for a quick look at Dexter Axle's Trailer Hub Assembly part number 84550bx..

Customers compare 84550BX to these similar products

Customers Who Purchased This Trailer Hubs and Drums Also Bought...

Replacement parts available for this product

Customer Reviews

#### Trailer Hub Assembly - 3,500-lb Axles - 5 on 5 - 84550BX

Average Customer Rating:  5.0 out of 5 stars   (2 Customer Reviews)

- 84550BX

by: Lonnie R.12/09/2010

Great store I forgot to order bearing so I was pleased when I opened the box and the bearings and seal was with the hub.3890

- 84550BX

by: tony hempel06/13/2012

Great price on great product.Shipped so fast i haven't had time to install it.Got you bookmarked for future.43956

• 5 on 5 inch Bolt Pattern axle Hub to Replace a 5 on 4 1/2 inch Hub on Trailer
• You will need to remove an existing wheel and hub. Once this is done clean the bearings and seal off and record the part numbers, be sure not to mix up the numbers for the inner and outer bearings. With the bearing part numbers and seal part number we will be able to cross reference the correct hub with a 5 on 5 bolt pattern to replace your trailers 5 on 4-1/2 bolt pattern hub. If you find that you have a # L68149 inner and a # L44649 outer bearing and a # 10-19 or # 58846 seal then you woul
