Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2
(50 reviews)
Price: $72.08
In Stock
Dexter Trailer Idler Hub Assembly for 2,000-lb Axles - 5 on 4-1/2
Item # 8-258BTUC1
Retail:$77.17
Our Price: $72.08
You Save: 7%
In Stock
Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.
Error submitting comment. Please try again momentarily.
Need help with installation?
Locate installers near me- All Info
- Reviews (50)
- Q & A (0)
- Photos

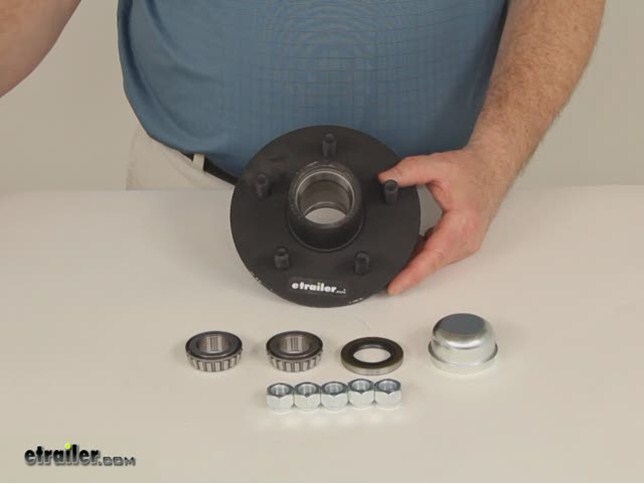

Dexter Trailer Hubs and Drums - 8-258BTUC1
- 5 on 4-1/2 Inch
- For 2000 lbs Axles
- Hub
- 13 Inch Wheel
- 14 Inch Wheel
- 14-1/2 Inch Wheel
- 15 Inch Wheel
- Standard
- L44643
- L44643
- Dexter
Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BT8 spindles. Inner bearing (L44643) and race, outer bearing (L44643) and race, grease seal, grease cap, wheel bolts, and lug nuts included.
Features:
- Trailer hub assembly fits idler axles
- Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
- Sturdy iron construction
- Hub and drum are made in the USA
Specs:
- Application: 2,000-lb trailer axles with BT8 spindles
- Wheel size: 13" to 15"
- Hub flange diameter: 6-1/2"
- Bolt pattern: 5 on 4-1/2"
- Grease cap flange diameter: 1.986"
- Wheel bolt diameter: 1/2"
- Weight capacity: 1,000 lbs
Bearing, Race, and Seal Information
- Bearings (included)
- Inner bearing: L44643 (1" inner diameter)
- Outer bearing: L44643 (1" inner diameter)
- Races (included)
- Inner race: L44610
- Outer race: L44610
- Grease seal (included): 34823
- Inner diameter: 1.249"
- Outer diameter: 1.983"
Note: Some axles rated at 2,000 lbs require a different seal and bearings. Be sure that the bearings in the hub being replaced have L44643 stamped on them. If the bearings have L44649 stamped on them, use 8-258-5UC1 trailer hub.
Note: Trailer wheels that are smaller than 15" and have 5 bolts, have a 5 on 4-1/2" bolt pattern.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
