Trailer Hubs and Drums > Hub > Standard > For 2000 lbs Axles > 4 on 4 Inch > 10 Inch, 12 Inch, 13 Inch > L44643 > L44643 > Dexter

Trailer Hub Assembly - 2,000-lb Axles - 4 on 4 - L44643 Bearings

Dexter Trailer Hubs and Drums

(105 reviews)

Code:   34822BX


Shipping Special

Shipping Weight: 5.58 pounds


Dexter Trailer Hubs and Drums - 34822BX

Trailer hub assembly includes lug nuts, inner bearing (L44643) and race, outer bearing (L44643) and race, grease cap and grease seal. Fits 2,000-lb axles.

  • Application: 2,000-lb axles
  • Bolt pattern: 4 on 4"
  • Includes bearings, races, seal, grease cap, wheel bolts and lug nuts
    • Bearings:
      • Inner bearing: L44643
      • Outer bearing: L44643
    • Grease seal: 34823
      • Inner diameter: 1.249"
    • Grease cap: 1.986" outer diameter
  • Capacity: 1,250 lbs

Dexter 8-91A should be stamped on back of hub


Note: Some axles rated at 2,000 lbs require a different seal and bearings. Be sure that the bearings in the hub being replaced have L44643 stamped on them. If the bearings have L44649 stamped on them, use 8-91-05UC1 trailer hub.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

34822BX Trailer Hub

Video of Trailer Hub Assembly - 2,000-lb Axles - 4 on 4 - L44643 Bearings

Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

Video Transcript for Dexter Trailer Hubs and Drums 34822BX Review

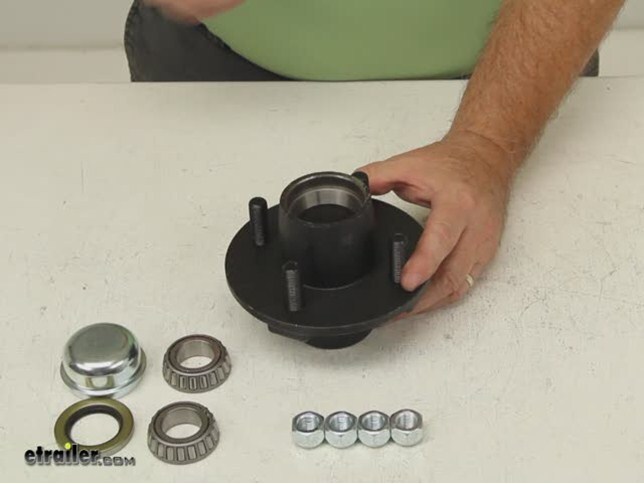

Today we're going to review part number 34822BX this is a Dexter Trailer Hub Assembly with a 4 on 4 bolt pattern for 2000-lb axles. This trailer hub assembly will include four of the 1/2-inch cone seat lug nuts. It will include the inner and outer bearing which will be the same part number that is L44643. It will include the grease cap and the grease seal which is part number 34823. Now the bearing races will also be included and they are already installed into the hub assembly. Here is the outer bearing race right there and if we go to the back you'll see the inner bearing race right in there.

Most all our hub assemblies will come pre installed with the bearing races. Now this application will fit on the 2000-lb axles. Now there is a note you want to make sure that some axles that are rated at 2000 lbs will require a different seal and bearing. Be sure that the bearings in the hub that you're replacing have the L44643 stamped on them. If it does use a bearing that will have L44649 stamped on them then you will need to use a totally different trailer hub which would be the part number 8-91-05UC1.

The capacity on this hub assembly is 1250 lbs. So if you use this or pair this with a hub assembly of the same thing on the other side of the axle would give you a max of 2500 lbs. Now we do mention this is a bolt pattern of 4 on 4 and basically on a bolt pattern that would normally even number of lugs, which in this case would be four. You could just measure directly across from the center of one stud to the center of the other. But in this case because this hub sticks up or protrudes up some it's going to be hard to actually get a correct measurement.

So what you can also do is just measure from the center of one stud to the center of the other and on a 4 on 4-inch bolt pattern that would measure up 2-7/8 inches. That will determine that this is a 4 on 4-inch bolt pattern. Now this hub assembly that uses the L44643 inner and outer bearing will be stamped on the back. It's stamped in it. It might be hard to see but it is stamped 8-91A.

And that should do it for a review on part number 34822BX.
