Curt Trailer Hitch for the 2013 Volvo C30

Curt Trailer Hitch

ratingratingratingratingrating (2 reviews)


Code:   C11337

Retail:$286.26

Price:$163.76


Shipping Special

Shipping Weight: 26.05 pounds

Quantity:






Curt Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" - 2013 Volvo C30

Perfect for light-duty towing, this custom, Volvo C30 trailer hitch receiver features fully welded, gloss powder coated steel construction. Drawbar sold separately.

Features:

  • Custom fit is designed specifically for your Volvo C30
  • Precision, robotic welding maximizes strength and improves fit
  • Bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Gloss black powder coat finish over protective base coat offers superior rust resistance
  • Drawbar sold separately - pin and clip included
  • Made in the USA


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class I
    • Maximum gross trailer weight: 2,000 lbs
    • Maximum tongue weight: 200 lbs
  • Limited lifetime warranty


Note: All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from Curt.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



11337 Curt Class 1 Trailer Hitch Receiver



Video of Curt Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video install trailer hitch 2013 volvo c30 c11337
Trailer Hitch Installation - 2013 Volvo C30 - Curt

Video Transcript for Trailer Hitch Installation - 2013 Volvo C30 - Curt

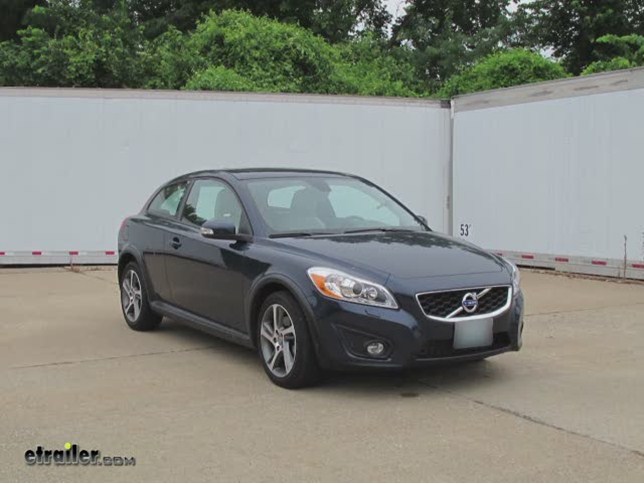

Today on this 2013 Volvo C30 we're going to install part number C11337 from Curt. This is what the hitch looks like when it's installed on the vehicle. Next we'll give you some measurements to help you out in selecting some accessories, such as a bicycle rack or a cargo carrier. From the top of the receiver opening down to the ground is going to be about 11 inches. From the center of the hitch pin hole to the edge of the bumper will be about 2 1/2 inches. Now we'll show you how the hitch is installed. The first thing we need to do is remove the plastic fascia that's on the very bottom edge of the bumper. We'll remove two torque set screws from the plastic mounting brackets using a T25 Torx bit. Then we'll simply unsnap the plastic from the vehicle.

There are some edges inside there, but you can push and move around to get it to release. We'll set this aside for now and then we can go ahead and start installing our hardware into the bumper. Before we do that, we'll show you how the hardware interacts the hitch first. It'll be easier to see. We'll take our 3-inch long block and a carriage bolt through the bumper then the through the hitch. Then our flange nut will go on the back side. Behind the bumper is a frame mounting lip.

The hitch will mount on top of that and behind it we'll 00:05:15 get another plate. The plate has four weld nuts and we'll install a hex bolt and a conical tooth washer from the front to the rear to install it. When we install a conical tooth washer, you always make sure that the teeth always face towards the hitch. Now that we know how our hardware works, let's go ahead and install it into the bumper. We're going to take our provided fish wire and run it through the hole on the bottom edge of the bumper. There's two of them.

Then we'll route it over to the driver's side where there's a large oval opening on the inside edge. We did find out that a bolt leader is a little bit too short, so we had to add some length to it using another piece of wire. Once we have it through the bumper and out the access hole, we'll thread on our 3-inch long block and then our carriage bolt. We'll push them one at a time into the bumper structure and then pull them out the bottom. We're done with the passenger side. We'll repeat for the driver's side.

Now we'll slide the mounting plate up behind the frame mounting lip. There's a heat shield right behind it. We'll slide it up there and use the heat shield to help hold the plate in place. Now I can go ahead and install the hitch. First we'll install it onto the hardware installed into the bumper structure. We'll put it into place and then install the flange nuts. Next we'll take our hex bolts and run them through the hitch and through the frame mounting lip and into the bracket in the back. Once all our hardware is loosely installed, we can go ahead and tighten it down and then we'll torque the bolts down as specified in the instructions. You'll notice that the heat shield is hanging down around the hitch. What we'll do is, we'll trim out edges on the side of the hitch, bend the heat shield up and out of the way so it can't be seen from behind the vehicle. Now we'll take our plastic fascia and we'll loosely put it back into place. We do have to do some trimming. We'll hold it up to its original location and then we'll mark out what we need to trim. Once we've made our two marks, we'll cut it with some tin snips. Then we'll go all the way across with a knife to score the plastic, then we can break it free. Then we can go ahead and reinstall the plastic fascia. That's what it takes to install our hitch. That'll finish it for part number C11337 from Curt on our 2013 Volv0 C30. .


2013 Volvo C30 Owners Who Purchased this Trailer Hitch Also Bought...








Customer Reviews

Curt Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" - C11337

Average Customer Rating:  ratingratingratingratingrating4.0 out of 5 stars   (2 Customer Reviews)

Perfect for light-duty towing, this custom, vehicle trailer hitch receiver features fully welded, gloss powder coated steel construction. Drawbar sold separately.


- C11337

ratingratingratingratingrating by: joel09/24/2014


Unit was fairly easy to install, took about an hour The wiring on the other hand took much longer (removal of trim to hide the power wire, debating where to route the wires & how to get them from inside the car to outside to the battery). took about 3hrs 152848






- C11337

ratingratingratingratingrating by: ray anderson07/09/2013


difficult to install had to drill a hole in frame to mount top bolt on passenger side of car. this is the third such hitch I've installed one on a Honda one a Subaru. it took three hours not 20-40 minutes per your spec's.. 88534




4
4



Volvo C30 Accessories




Weight Carrying Capacity
Gross Towing Weight (GTW):
2,000 lbs.

Tongue Weight (TW):
200 lbs.


Weight Distribution Capacity
Hitch does not allow
use of weight distribution


Trailer Hitch Installation Instructions C11337 Installation instructions C11337 Installation Instructions

Tech Tip
No drilling required for installation,Underbody panel(s) or fascia must be temporarily loosened or removed,Heat shield must be modified or trimmed for hitch installation,Underbody trim panel must be modified or trimmed if present

Manufacturer Estimated Installation Time



Recommended Wiring:
Curt Manufacturing 56146KIT
56146KIT

Recommended Ball Mount:
Curt Manufacturing recommends:
Curt Manufacturing C45521
C45521


1-7/8" hitch ball - 19256


2" hitch ball - 19258
