Trailer Hitch > 2012 > Toyota > Prius C

Draw-Tite Trailer Hitch for the 2012 Prius C by Toyota

Draw-Tite Trailer Hitch

(3169 reviews)


Code:   24889

Retail:$207.50

Price:$132.95


Shipping Special

Shipping Weight: 18.5 pounds

Quantity:






Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" - 2012 Prius C by Toyota

This fully welded, corrosion-resistant Toyota Prius C trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.

Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Toyota Prius C
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Drawbar sold separately - pin and clip included


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class I
    • Maximum gross trailer weight: 2,000 lbs
    • Maximum tongue weight: 200 lbs
  • Limited lifetime warranty


Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.



Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.


In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



24889 Draw-Tite Class 1 Trailer Hitch Receiver - Sportframe





Video of Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

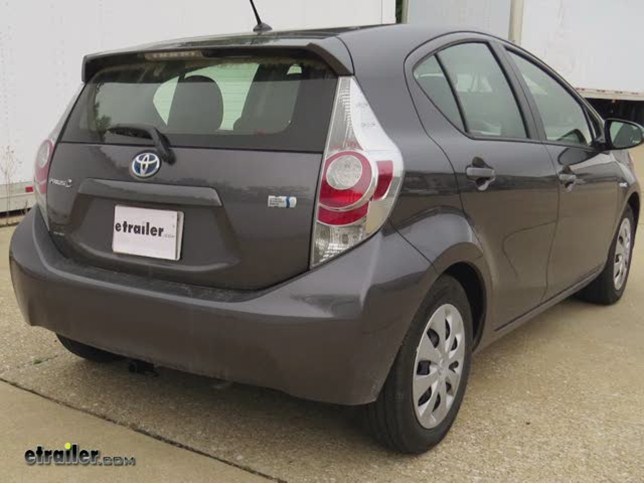

Video Transcript for Trailer Hitch Installation - 2012 Toyota Prius c - Draw-Tite

Today on our 2012 Toyota Prius C we'll be installing the Draw-Tite hitch, part number 24889. Here's what our hitch looks like installed on our vehicle. Now we'll go ahead and give you a couple measurements in helping you choose some accessories for your hitch, such as a bike rack or a cargo carrier. From the center of the hitch pinhole to the outermost edge of the bumper is approximately 3-1/4". From the top of the opening in the receiver to the ground is approximately 12". Now let's go ahead and install our hitch. To begin with we'll need to remove some push pin fasteners that hold the lower fascia, as well as a small center section of plastic fascia.

It will need to be removed and will not be reinstalled. Now that we have all of our push pin fasteners removed we'll go ahead and set that small section of plastic aside. To install our hitch we will need to remove two existing bolts and they will be replaced by two M8 fasteners as well as two conical tooth washers, one on each. There are a total of four mounting locations for this hitch, two on each side. We are actually using the bumper bracket structure or the mounting for the bumper to connect our hitch to this vehicle.

When you remove the two bolts, the bumper will not move, as it is still held in place by the outermost bolt. Now with all the hardware removed from the factory, now we're ready to go ahead and put our hitch up into place. You'll need to work it around the exhaust pipe, as well as pulling the two tabs on the lower bumper fascia out, to allow your hitch to slide up into place. With the hitch up into place we can go ahead and install our new bolt with the conical tooth washer. You want to make sure that the teeth on the washer face towards the hitch. Go ahead and loosely tighten down all four of the bolts.

Once all four of the bolts are in, go ahead and tighten them down and then torque them to the manufacturer's specification. With everything torqued down, now we're ready to go ahead and reinstall two of the plastic push pins or rivets that we removed earlier that hold the lower bumper fascia in place. Again, the center section of lower plastic fascia will not be reinstalled. With that, that will conclude the installation of our Draw-Tite hitch, part number 24889, on our 2012 Toyota Prius C. .




Customer Reviews

Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" - 24889

Average Customer Rating:  4.8 out of 5 stars   (3169 Customer Reviews)

This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.


- 24889

by: Joseph D05/31/2015


The hitch design is very nice. Seems very sturdy. Looks great, once installed. I have no problems installing my bike carrier. While it seems precarious having $3,000 in bikes and equipment hanging off the back of my Prius with this tiny tow hitch held on by 4 small bolts, so far so good. I hope that's just my paranoia talking. The only problem I had was in the installation. There is very little clearance between the bumper and hitch mount. I had a difficult time trying to reach into the space to install the upper bolts on each side. I had to have my wife reach in there to get the bolt partially installed. Also, there's no room for a regular socket wrench to move. You need a deep socket to clear the hitch bracket or a powered socket wrench like on the video. Which meant an extra trip to Home Depot to buy. 199180






- 24889

by: Robert04/08/2013


Very clean install. The top bolts are a bit difficult to reach but ultimately went in easy and without hassle. Looks great too! 74801





Comments

UPDATE: Well a year later the hitch still looks new and there are no issues or worries. Perfect for carrying a bicycle rack!

Robert - 04/08/2014

3477

- 24889

by: Ethan01/20/2015


Installation took me about an hour but I took my time. I didn't want to risk scratching the wife's Prius. Backed the car onto ramps to lift the rear end and removed the small panel clips, panel and mfg's 4 bolts. I worked alone and found that after lifting the hitch in place it was easier to start the bolts on the bottom and then ever so gently use a floor jack placed at the tip of the hitch opening so I could tilt the hitch back just enough to make threading the top bolts easier. Product is great, shipping was fast and now the little Prius is more useful. 170497






- 24889

by: Scott Wilkinson06/24/2014


Hitch looks great on our Prius C and almost invisible. Great hitch. Great company with excellent service. Thank you! 137414






- 24889

by: James07/19/2014


Received on time and very quickly, the experience itself with etrailer was pleasant. Receiver was cheap and fairly easy to install. Any DIYer with a tool set can tackle it themselves. Used it on a 2,000 Mike road trip hauling two road bikes without any issues. The two ears that stick out the sides of the receiver are a nice addition, as they allow you to route a cable lock through then for extra security. 142233






- 24889

by: Lisa R.04/27/2015


The hitch was easy to install. I would recommend watching the video as the paper instructions that come with the hitch are minimal but enough to get the job done. I am happy with the product and my experience with etrailer.com. Will buy products and or recommend to friends in the future. 188486






- 24889

by: Chris M08/07/2014


Worked out great! 144916






- 24889

by: coptoby09/27/2013


Installation was much easier than I expected. I tend to overthink every little project but this was easy. Toyota clips are very easy to work with. A bike rack fit into the tow bar easily. No hidden issues. 101755






- 24889

by: jason05/05/2015


Easy install and works excellent for my Kuat bike rack! Install time took a little longer than 30 minutes due to the fact I was using a socket wrench in a tight space. 190187






- 24889

by: Melanie Rice09/11/2014


Love it -- super easy to install -- took all of 15 minutes -- the hardest thing was taking the "clips" off the inside of the bumper!! Fits my Prius C great! 150719






- 24889

by: andy B09/19/2014


Good morning all, It took me about an hour to installed the hitch but it's looks great. Thanks to etrailer.com Andy B 152132






- 24889

by: Marcus04/17/2014


I got my order super fast! this hitch is super easy to install on a prius c. very happy with the service and the hitch! 125775






- 24889

by: Bill F08/12/2014


Went on without a hitch ha ha looks good havenot put bike rack on it yet but it doesn't look like it will be a problem 146353






- 24889

by: Daniel03/30/2015


Simple to install. I performed the install solo with a socket wrench and a flat head screw driver. Works great. 181596






- 24889

by: Justin S05/14/2015


Quick delivery, install video easy to access. Was as easy as it looked. Customer Service excellent. 193044






- 24889

by: tad01/14/2013


Works great, easy enough to install. The bolts are difficult though and there's not much clearance. 63038






- 24889

by: scott E12/02/2013


Bolted up easy all fits well looks good 108768






- 24889

by: Richard W.05/05/2013


Very good product.easy installation, 79065






- 24889

by: Jerry01/21/2015


Easy install 170634






- 24831

by: Scott C05/27/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


This went on our 2012 Infiniti G37x pretty easily. I haven't actually mounted the bike carrier on it yet, but I was happy that the installation went pretty smoothly. I put a horizontal piece of painters tape along the bottom of the license plate before I took it off so I would be sure not to extend the holes too far down such that they would be visible. This added an extra bit of confidence the process. The instructions don't give specific locations for holes to drill to access the lower bolts that you have to remove. See the attached pictures: the hole on the left was placed better than the hole on the right. If doing it again, I'd aim for the center of the holes to horizontally align with the bottom edge of the rectangular dimple in the bumper fascia. Vertically the holes alight with the bolts that are visible when you remove the license plate. I'd also use a 7/8" or even 1" bit: the 3/4" hole was a bit tight for my sockets. That combined with being off just a little bit on the right hole meant that I had to extend the right hole a bit with a utility knife. I cut the bumper fascia and the under tray with my Sonicrafter, which made it super quick and easy. You could do it with a utility knife but it definitely would be more work. The other trick I did was that I used a bit of double-sided tape to stick the aluminum fascia support to the hitch while getting the whole works wedged into place. That's the only somewhat difficult part: you have to pull back on the fascia while maneuvering the combination of the hitch and support plate into place. An extra set of hands would have been useful, but I managed it by myself. Just be careful to not pinch your fingers between the fascia and the hitch like I did. Trimming the under-tray is required and some idea of the right cut-out would have been helpful, but was not present in the instructions. See the attached photos to get an idea of the area I cut out. It's a little bigger than need be, but not by too much. I'm a little concerned that the hardware (bolt, nut, washer, plate) for attaching the hitch to the tow loop is bare steel. Maybe it's really stainless steel and will be fine, but I'm considering spraying it just to help keep it from becoming a mass of rust. Sprayed black, it would blend in better under the car too as it is visible from the rear. All done, none of the trimming is visible, and the hitch seems like it belongs there. 132728


Comments

It carried the bikes around just fine last year. I confess I havent actually had to use it yet this year but will be shortly.

Scott C - 06/03/2015

12294



- 24845

by: John S.01/24/2011

Review from a similar Draw-Tite Sportframe in Trailer Hitch


After being told by a local hitch installer that they'd have to fabricate a hitch for my 2009 Nissan Cube, I hit the internet and found etrailer.com. They had the Drawtite Class I hitch for my car available at a reasonable price, and the instructins (available online prior to purchase) made it seem like it would be a fairly easy install. So I went ahead and ordered the hitch. My first surprise was a very nice email letting me know that the hitch had been shipped - ahead of schedule! My second surprise was when it arrived ahead of schedule. Off to a good start! This past Saturday, I undertook the installation. As promised, it was a fairly easy job, but took about two hours (not the 50 minutes in the instructions). In all fairness, if I had a car lift, I could have done it in less than an hour - but using a small floor jack and two jackstands in a small garage made it much more difficult to move around. The installation required only one modification to my car, a 1" hole drilled in the frame (in a non-load bearing area). The instructions didn't give any hints on this, so I went to Home Depot and purchased a 1" round cylindrical band saw blade (looks like a prescription bottle without the cap, with teeth on the open end) with a special bit with a 1/4" pilot drill. I thought it was going to take forever, and the 1/4" pilot drill did take several minutes to punch through, but the 1" round saw actually carved through the frame very quickly. The installation required a bit of innovative engineering on the part of etrailer (hence the 1" hole), but it worked flawlessly. Altogether, including cleanup, the installation took less than 2 1/2 hours. It was helpful that my wife was there to hand me tools, hold up one end of the hitch while I got a bolt in place to hold up the other end, and generally give me encouragement. One very minor suggestion - there are five conical washers, four of one size and one a bit smaller. They're the same color, and I inadvertently used one of the larger ones on the one smaller bolt (and had to take it off and do it again). Only a couple of minutes lost, but if the smaller washer had a dash of color on it to distinguish it from the others, it would be helpful for those of us who are somewhat mechanically challenged. :) Summing up, the quality of the hitch is excellent, the installation was relatively easy even for someone with little mechanical experience, the instructions were clear and concise, the hitch fit perfectly, and the final installation looks like it came from the factory. Kudos to etrailer! 5986



- 24847

by: Rick Z09/17/2012

Review from a similar Draw-Tite Sportframe in Trailer Hitch


My son-in-law and I installed this hitch on a 2012 Toyota Prius V. The video for the install on a Prius is accurate for a Prius V with the exception that a Prius V does not have cosmetic cowling on the underbody that has to be removed. The install was straightforward and we had the hitch on in about 45 minutes. Other than the receiver on the hitch, you can't see the hitch without bending down and looking under the bumper. I personally like the aesthetics. We're using the hitch with the Swagman XTC-2 bike carrier and the combination is ideal for transporting our two bicycles. The fit between the hitch and bike carrier is tight and the Swagman allows us to drop the middle bar down for access to open the rear hatch of the vehicle when the bikes are not in the carrier but leaving the bike carrier attached. We bought the Prius V so we could carry passengers, gear and two bicycles on trips. The draw-tite hitch and Swagman XTC-2 give us the flexibility to do that. Here's some pictures to demonstrate as I've had a difficult time finding photos on the web showing a Prius V with hitch and bicycle carrier installed. I have a cover on the hitch receiver in some photos, sorry I took the photos at night with a flash, but hey, I did the review! Good luck. Oh, by the way, like others have written, E Trailer was on top of things from the get go and I received numerous e-mails about the status of my order and follow-up after my receipt. Only took three business days between the date of my order and delivery to my home. The hitch and bike carrier were boxed and then inserted into another heavy duty shipping box. There were a few small tears in the outer box (assume from rough handling by the delivery carrier) but the contents were not damaged in any way. I would definitely order again from etrailer.com. 54981


Comments

I just bought the V and your great pictures have made up my mind. Thanks!

comment by: Brian s - 12/07/2012


592

Glad to hear, that is why we ask our customers to show off their setups. Please post pictures of yours when you get it.

Patrick B - 12/10/2012




- 24847

by: MP08/30/2013

Review from a similar Draw-Tite Sportframe in Trailer Hitch


This is a very solid product that fits perfectly on my 2012 Prius. I looked at the video several times and read the comments posted here. Installation took me about an hour and twenty minutes, with the time spent as follows. I did this with the car on the ground, not on a lift. Ducking under and back to get tools, etc. adds to the installation time, but it is easier to support the hitch during installation. I did not really have a helper, except for asking my 12 year old daughter to aim a flashlight for me. Not having a helper also adds to the installation time, but it can be done. 1. Removing tie-down hook. Easy, took about 5 minutes. Made sure not to drop the bolts/washers behind the appearance panel. 2. 10-15 minutes trying to remove the muffler from the support post before heeding the advice on the instructions and spraying soapy water onto the rubber isolator, after which it took just a minute. 5 minutes removing the bolts from the rear muffler hanger. Had a U-joint on my wrench, but the length of the socket was such that it was a tight fit with the muffler exhaust. The video shows use of a "cat's paw" type of socket wrench, which would have been really handy for the bolts near the muffler. 3. Installing driver's side of hitch. 20 minutes spent fishing out a bolt and washer that dropped behind the appearance panel. My magnetic finding tool did not work well, had to use my hand to find them--not easy. As some other posts have noted, the old bolts were tapered, allowing installation at an angle a degree or two from perpendicular. The new bolts are not tapered, and must be inserted exactly perpendicular to the insertion hole. If you are off even a degree, the threads will not bite. That is how I dropped the bolt behind the panel. Since I was installing this myself with no helper, I had to hold up the hitch with one hand and work the socket wrench with my other hand. Ultimately, I opted to use the original tapered bolts to install the hitch initially, then removed them one at a time and used the new bolts, which were then easy to install because everything was already aligned. 4. Installing passenger side of hitch. This was definitely a tighter area to work through, and I ended up using the original bolts for one of the fasteners because the new bolt and washer interfered with the heat shield and I did not feel like bending the heat shield. I really wish I had the cats paw socket/wrench for the passenger side, but it all worked out fine in the end. Conclusion: after installation, I was impressed by how securely this hitch fits. It is rock solid. If I had to do the installation over again, I would probably get a real helper, use the tapered bolts initially to get things aligned perfectly, make sure not to drop bolts behind the appearance panel, spray the soapy water on the rubber isolator right away, get a better light to see what I was doing, especially with the driver's side, and get a cats paw type of socket for the passenger side bolts. 97669



- 24831

by: Ben C.05/04/2012

Review from a similar Draw-Tite Sportframe in Trailer Hitch


Installed on a 2008 G35x Sedan: Installation was easier than I expected, took about 1 hour total. Product feels Solid and is not too noticable when installed. I'm no real handy man but was able to to get this installed pretty quickly. Be prepared to make some minor cuts to the plastic bumper panel, two holes behind the licence plate to access the bolts which fasten the hitch and a 3.5" x 2" cut underneath where the hitch reciever extends from. I found a dremel worked perfectly for making the cuts. I also used painters tape to ensure I didn't drill beyond where the rear plate would cover. Thankfully, no other drilling or cutting is required as the holes for the bolts already exist on the bumper frame. Simply remove an aluminum spacer from the bumper frame by removing the 4 bolts pictured, slide the hitch up through the bottom and place the aluminum spacer back over the hitch. Use the bolts that came with the hitch as they are much stronger than the pre-existing bolts, and your done! *Shown with a Thule Doubletrack Platform-style 2 Bike Rack For 1-1/4 & 2" Hitch recievers 39423



- 24899

by: Charles W.07/13/2013

Review from a similar Draw-Tite Sportframe in Trailer Hitch


Comparison Review Draw-Tite or Drawtite 24899 and Curt 11681 hitches for 2013 Honda Accord 4-dr. Due to a manufacturing defect on the first hitch I installed, I had the pleasure of installing both of these hitches in the past 3 weeks on my Accord. This experience makes me uniquely qualified to write this review. Mounting hardware: Draw-Tite came with SAE Grade 5 carriage bolts, Curt came with stronger Grade 8 carriage bolts and nuts. Apparent strength of the hitch: reviews of the Curt state that a strap is needed to stabilize bike racks, Draw-Tite does not incl. this warranty condition. However, the Curt’s receiver channel has a welded collar that reinforces the square tube that is the business end of the receiver, the Draw-Tite does not. I suspect that Curt’s collar makes the receiver’s square tube less likely to split due to the high leverage of a bike rack. Ease of Installation: Both hitches require a “spacer” or block that fits into the Accord’s rails with the carriage bolts. The width of the Draw-Tite’s spacer required the entrance hole to be enlarged by drilling, filing, or prying open the hole on my brand new Accord, the Curt’s spacer is sized so that it just slips in the existing hole without modification. Appearance: Both reveal about the same amount, the rounded cross section of the Curt tubing results in a more attractive look. Ground Clearance: When installed, the Curt hitch has better ground clearance that the Draw-Tite. Paint finish: the same for both. Manufacturing Quality Control: The sample of Draw-Tite (bearing a “Made in Mexico” sticker) I installed was defective. Drawbars had to be pounded in by sledge hammer and awkwardly pounded out by same, ruining the finish on the drawbar. Apparently, the receiver channel was deformed when the manufacturer “punched” the holes in the receiver channel that the drawbar pin fits through. Once the drawbar was pounded in, a welded button or stop within the channel prevented the drawbar from going in deep enough so that the drawbar holes and receiver channel holes lined up. Draw-Tite Customer Service acknowledged the defect and said that they had had several calls on this, were manufacturing new ones, orders were on backorder and I’d have to work with the place I bought the hitch for replacement. E-Trailer Customer service was superb, they contacted Draw-Tite, confirmed backorder status, shipped me the slightly more expensive Curt at no extra charge, provided pre-paid return shipping label for the defective Draw-Tite. The sample from Curt installed and worked perfectly. Thorough this experience with Draw-Tite, I had the pleasure of spending the time installing a hitch twice on the same car and gathering the data to write this review. You have the benefit of reading this comparison review. 89392


Comments

Just a quick note, the button or stop is intended to be present on Draw-Tite and Hidden Hitch Class I, 1-1/4 inch hitches. That stop will prevent the use of Class II Only designed ball mounts, carriers and racks.

Patrick B - 07/16/2013

1763
Comments

Thanks for this comparison!!

comment by: R s - 02/23/2014


2904

- 24763

by: Ryan L.09/26/2011

Review from a similar Draw-Tite Sportframe in Trailer Hitch


I am reviewing the trailer hitch receiver AND the etrailer customer service. First off, the trailer hitch installation was straightforward, and the videos showed me exactly how to do it. I was able to install it myself, using my hydraulic jack at certain points to help me lift the hitch into position to bolt it in place. Please see the pics below. The customer service at etrailer is phenomenal! My order was upgraded to express shipping as a nice unexpected treat. I ordered the hitch receiver and also a bike rack. Both items arrived two business days later! However, there was a problem: the bike rack didn't have the included hardware kit (bolts, nuts, pins, etc.). Here's where I was impressed- etrailer reps immediately rush shipped me the missing hardware kit, and were absolutely pleasant on the phone and in emails. I am extremely impressed with this company, and will be ordering again. I highly recommend etrailer.com! Thanks! 24646



- 24808

by: srpinaz12/23/2013

Review from a similar Draw-Tite Sportframe in Trailer Hitch


So, let's start with the good. Etrailer packed the item well. It wasn't just thrown in a box like the last hitch I ordered. Now the bad. This hitch is very poor quality. The hitch pin is not straight or square, so anything I put in it is going to be off to one side. Also, the hitch pin plate and chain clip are also welded crooked. Lastly, they painted over the welding tailings and whatever else was on this rack when coated. All they had to do was simply wipe it off before painting. It looks like it has boils all over. In the end, I think whoever assembled this rack was either intoxicated, or just didn't care. Needless to say, I will never buy a drawtite product again due to low quality. I wish return shipping didn't cost so much, because I would love to return this piece of... junk! See my pics of the issues. I hope this helps others in their decision to not by this rack, and be careful buying a rack online. 110907


Comments

We will be in contact with Draw-Tite on the matter and we will follow up with you.

comment by: Patrick B - 12/26/2013


2461

- 24911

by: Gator08/29/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


Etrailer actually has their items in stock in their warehouse. No waiting for drop shipments from manufacturers not even knowing if the item is in stock. Had the shipment on my doorstep within 3 days of placing order. Shipping was included. Hidden Hitch is a known brand name, price was better than any other manufacturers, hitch is well built, great looking welds, heavy duty materials, nice thick powder coat finish with absolutely no runs however hitch will not be seen anyway, thus hidden hitch. All bolt holes lined up perfectly, bolts are large and hardened and withstand the torque specifications. This is really an overbuilt class 1 hitch meaning it will never fail. The install was super easy and very quick. Wells designed, and well hidden. The little plastic rivets on the Yaris are easily removed by gently prying out the little center tab. Just pull it out gently til it stops, not all the way. The rivet is now released and will remove easily from the hole. When ready, slide the rivet back into the hole, then press the center tab back in. The instructions mentioned that a small amount of the fascia may have to be trim to clear the hitch. I did not have to do this. It was a tight fit but I was able to push it in enough to line up the holes and fasten the rivets without trimming. It took me longer to find my sockets and torque ratchet than it took for the actual install. See attached photos. 149160



- 24847

by: Randy L07/26/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


I purchased this hitch for my 2013 Toyota Prius 2 so I could attach the Swagman XTC-2 bike rack. I was able to install it properly by myself using the instructions that came with the hitch, but it did take some patience and creativity. The hitch itself is sturdy, fits well on the car, and is unobtrusive. etrailer did a great job packaging the hitch with none of the problems and damage that have been reported by users who purchased the same hitch from Amazon. Installation is theoretically very simple. Take the muffler off the rubber hanger on the passenger-side tow hook. Remove the four bolts that hold the two tow hooks to the frame of the vehicle with a 19 mm socket. Bolt the hitch to the frame with the four 19 mm bolts and the conical washers that come with the hitch kit. At this point you will also replace the tow hook that includes the hanger for the muffler but not the driver-side tow hook. Reattach the muffler to the rubber hanger. Here are some tips that I think will make the installation process smoother. 1. Spray a soapy water solution on the muffler hanger before attempting to remove it. The lubrication will significantly decrease the effort needed to remove the muffler pin from the rubber hanger. 2. Make sure you have at least a 6" extension for your socket to give you enough clearance when removing and attaching the bolts. I would say that an 8" extension would be ideal. 3. On the passenger side, you should probably bend the edges of the muffler heat shield down about 1/4" to provide clearance for the flange of the hitch. You could just bolt the hitch in without doing this, but the trailing edge of the heat shield will be clamped between the hitch flange and the car's frame. This seemed like a bad idea to me because it would transfer heat from the shield directly to the frame of the car and it might facilitate vibrations from the shield to the frame, which could produce an annoying sound. (I've been in cars with heat shields that had been bent so they touched the frame, and it created an unpleasant buzzing at times.) 4. If you're installing the hitch by yourself, have something that you can prop up the the hitch with until you have started at least one bolt on either end of the hitch. If you don't, getting the bolts started is going to take a lot of contortions to hold the hitch in the correct alignment. 143058



- 24904

by: Altaf03/30/2015

Review from a similar Draw-Tite Sportframe in Trailer Hitch


The hitch and etrailer get 5 stars. Fast shipping, price match policy and excellent customer service and support! - Two people will make the install go a lot easier. - It took a couple of hours to complete the installation, not 30 minutes. - Have extensions to use with your socket wrench. Also a breaker bar will help when you get to step 4 in the instructions as this bolt is very tight. - My car is a 2014 VW GTI Wolfsburg Edition 4-door. My comments below may or may not apply to all years of this generation. It is not mentioned in the instructions but you'll have a lot more room and visibility if you remove the black valence below the rear bumper. Make this step #0. Here's how to remove the valence: #0A. Remove the 4 torx screws that secure the valence underneath the bumper. #0B. As you're facing the rear bumper, start from one corner and pull the valance straight back towards you. There are several horizontal plastic clips molded into the valence that secure it to the bumper. This step will remove the valance. In step 1 of the instructions, it is not necessary to disconnect the driver's side (US) exhaust hanger, just leave it in place. You do need to remove the passenger's side exhaust hanger. In step 2 of the instructions, instead of cutting or folding the heat shield, I poked a hole large enough for the carriage bolt to go through. I have zero rattles or noise from the heat shield, plus it looks OEM! :-) You do want to remove the bolt (13mm?) that's holding the heat shield up on the driver's side so you can see the frame hole and have room to operate. Just screw it back in at the end of the install. Step 4 in the instruction's has an error. The M12 hex bolt they are referring to is on the passenger's side (US), not driver's. The diagram is correct. I had a difficult time with reinstalling the passenger's side exhaust hanger bracket because the hole's weren't lined up. I'd recommend loosely installing one bolt on each side of the hitch first just to hold it up. Get the exhaust hanger lined up and tightened, then proceed with tightening the other bolts. That's about it. Otherwise follow the instructions that came with the hitch. Just take your time and have plenty of lighting so you can see underneath. Back the GTI up on ramps or a lift. Be safe, don't work under the car with just a jack, have proper jack stands! 181603



- 24843

by: Alan M.03/10/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


The hitch is pretty much what I was looking for. We're only using it to mount a carrier to haul two bicycles around with no intention of asking it to any more than that. In that regard the hitch receiver is exactly what we wanted. I think it could have been boxed better as the hitch had punched thru the box in a couple of places and the box was way too big for the product so it bounced around during shipping, I suspect. The interesting part was that the instructions that came with the hitch were for a Chevy Impala! The instructions and drawings had nothing to do with mounting the hitch to a Mazda 3 but the good thing is that etrailer has excellent photos showing how the hitch is attached to the car and I used those. I was working at night with a single flashlight but it only took me about 20-25 minutes to get everything where it's supposed to go! It fit perfectly to the car and is rock solid. The bike rack tends to wobble a bit but with it secured in place we know it's not going to go anywhere while on the road. I've included a picture of the whole setup with bikes. The main thing is that I'm quite pleased with how it all turned out. We got what we wanted and installation was simple. When we get another car we will order another receiver hitch from etrailer. 120137


Comments

Still using it! Nothings come loose and Id still recommend it. The only issue I have with the hitch is that the two looped bars I guess to attach a chain from a towed trailer can get in the way when I or remove a cotter pin for the bike rack. But I can work around that and get the job done. I thought about cutting them off but when we eventually sell the car the next owner might want that feature.

Alan M - 03/10/2015

9949



- 24886

by: Jim F.07/01/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


received my trailer hitch on Thursday and took Friday afternoon off from work to install it, not knowing how long it would take. Upon opening the box, everything I needed was there and the hitch was in great condition. You never know how shippers will handle heavier objects, but the box seems a good fit for the hitch. With everything all laid out, I proceeded to use my Dremel tool to enlarge the two from mounting holes under the car to accept the carriage bolts and supporting bracket that had to be fished from one side to another via the "fishing" wire. This was a handy and ingenious device that allowed for easy transfer of bracket and bolt through the front hole and pulled through the back hole. Once all four bolts and brackets were in place, I laid on the ground with the hitch on my chest and easily lifted it into place. I had read that I would have to lower my exhaust to put the hitch in, but it was not necessary. There were two spacer blocks that I added to the front bolts to even out the hitch. When everything was in place, I tightened all of the bolts and was complete. I had a hitch ball from my other car, so I transferred to the ball bracket and was done. In all it took about an hour and a half from start to finish. 138555


Comments

I am extremely satisfied with the products I purchased. I use theTow Hitch almost daily for my bicycle rack and a trailer I have to tow. The installation was a quick and easy. I have recommended your website to about 20-25 people over the past year. Hopefully you received some business from my recommendations. Thanks for following up. Not all companies take the time.

Jim F - 07/01/2015

12972



- 24826

by: Craig E12/20/2013

Review from a similar Draw-Tite Sportframe in Trailer Hitch


Etrailer has a great website. It describes the product very well. Has many references and videos on install combined with reviews made this a very easy product to get and installation was easy and as described. However the product was poorly made. The powder coating had huge bubbles in several places and had chipped off. I decided to install it instead of returning it. The product will rust over time and the flaws wont be visible from the outside. When I was installing the hitch everything went great until I tried to do final adjustments before torqueing down the bolts. The hitch receiver tube was not sticking out straight. When I crawled under the car and looked. The tube is welded on about 5 degrees off of 90 degrees so I had to install the whole product on as much of an angle to compensate. It still sticks out at an angle. Will it effect use. Probably not, but it is on a new car. Have not contacted Etrailer yet. 110638


Comments

We are sorry to hear about the hitch. We will be in contact with you shortly.

Patrick B - 12/20/2013

2434

- 24873

by: Luppie12/31/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


This trailer hitch fits my 2015 Fiat 500e perfectly without any needs to drill additional holes. It took about 45 minutes to install if you are handy. The Fiat 500e is not designed to tow anything so the trailer hitch is really to hold my bike rack since it's designed to latch on to the left/right bumber brackets and to the right side of uni-body above the spare tire mount. If the hitch is re-designed to attach to both side of the uni-body, then I would consider towing a very lite weight trailer but I will not with the current design. It'd helped to watch the eTrailer installation video to a 2012 Fiat 500, on YouTube. The 500e does not have a spare-tire mount nor a muffler so it is easier to install since you would skip those steps. I had search the internet for an inexpensive trailer hitch and I am glad some dude recommended this particular hitch for the 500e and it fits! The best part of this whole installation is that you can remove the hitch and return the vehicle to the original configuration. 167461


Comments

Hi: I to have the 500E and am very interested in this hitch as the trunk mount is a risk to the window. Di you need to buy anything else such as the hitch mount Have you tried 2 bikes? does it drain the battery excessive/ Thanks

comment by: mark - 05/06/2015


11449



- 24814

by: Mark04/17/2013

Review from a similar Draw-Tite Sportframe in Trailer Hitch


This is the second time I have ordered from etrailer.com. I ordered two hitches from them in the spring of 2008. Those worked perfectly. I returned to etrailer last week because of my favorable experience 5 years ago. Etrailer’s service remains first-rate. Within moments of ordering, I received email confirmation. I received a second email approximately 24 hours later, stating that my order had shipped and identifying tracking information. Three days after that when I could not track my order online, etrailer promptly replied to my email with delivery information. The order I placed just before midnight on a Tuesday was delivered to my driveway the following Monday morning. Packaging was bulletproof all components two hitches and two wiring harnesses were well restrained, padded, and delivered unharmed. A final email was sent to me the next day to indicate that the shipment should have arrived and asking for me to rate my experience. Printed installation instructions for the Draw-Tite are simplistic but straightforward. There is not much to mess up. I had the proper tap from installing the hitch on my old Corolla and cleaned out the threads before installing this one. The hitch is lightweight, so it was no trouble lifting it into place with one hand and starting bolts with the other. Cranking down the bolts to 67 foot-pounds was the toughest part of the half-hour installation! TAKE NOTE: This is a CLASS I hitch limited to 200 pounds of tongue weight. Inside the receiver just past the hole for the hitch pin, is a partially punched second hole. The resulting detent that protrudes inside the channel, prevents certain longer tow bars and other accessories from sliding completely inside. This is intended to prevent loads that exceed the recommend tongue weight. Such bars and accessories are intended for CLASS II hitches which have a tongue weight rating of 350 pounds. Because of the punch, my Thule bike rack did not slide in far enough by about ½” to allow the hitch pin hole to line up. Wish I had paid attention to this beforehand. Other than that oversight, I had a good experience. Still have to wire the towing harness for this car and install the hitch and harness on my other vehicle. 76540



- 24825

by: Eric C.02/24/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


This was a bit tricky to install. Had to wrestle it into place to secure the right side of the hitch. Having to hold it while inserting the bolt, I was afraid I would cross the bolt threads. Eventually got it into place, got the nuts and bolts on and torqued to specs. Looks great. Have not experienced any ground scrape as others have reported. Have another car that will eventually need a hitch and I'll be buying from etrailer again. 117454


Comments

No problems after a year. Functions flawlessly. No rust or paint peeling. Probably looks better now as the paint has gotten less glossy. People who look at my car never notice the hitch until I tell them about it. They then assume it was installed by a professional. Then I surprise them. Harness is hidden under the carpet in the trunk. I have only scraped a speed bump maybe once by going too fast. I do have a suggestion I found helpful. Where the hitch passes just beneath the tail pipe. I would always hear the tail pipe tapping the hitch when I went over larger bumps. It was a little aggravating, but no discernable damage was occurring. So I took some exhaust gasket material and gasket sealant. I cut and installed a small piece on the top surface of the hitch where the tail pipe would make contact. Now, I dont hear the tapping anymore. No damage to the hitch or the tailpipe. The gasket has been in place almost a year. No worries about it melting from heat as it is designed to get hot. Maybe a fix e-trailer can install for future buyers or include the materials in the hitch kit? Im totally satisfied and will order again if I ever need another hitch for another vehicle.

Eric C - 02/24/2015

9721

Thanks for coming back and checking in with us on the hitch. There are several ways to correct exhaust & hitch contact. There are a number of tricks that we employ in our installation shop and we put together a tech article on them I've added a link to. Your gasket will work, but eventually the sealant could wear and the material fall away. It would definitely work for light contact situations, but it may have to be re-done in a couple years.

Patrick B - 3/2/2015




- 24775

by: Jim M.04/24/2013

Review from a similar Draw-Tite Sportframe in Trailer Hitch


Thursday evening I called etrailer.com to place an order for a Draw-Tite hitch and a Swagman XC bicycle carrier. I talked with Laura H. at etrailer.com. She was very friendly and I was so impressed with her knowledge of the products and her thoroughness. Laura took the time to make 100% sure that I was ordering the correct hitch for my car and the correct carrier to fit the hitch. I was notified when my order shipped the next morning and was provided with tracking information that kept me informed of where my order was and when it would be delivered. As promised, my order was delivered the following Monday. I was totally surprised when I opened the box. The hitch and bike carrier were packaged so much better than more for more fragile products I have ordered from other companies in the past. Every part I needed for installation was included along with clear instructions for installation and use. Everything on the Draw-Tite hitch lined up perfectly and it was very easy to install on my car. The Swagman XC carrier is very well made and sturdy and it holds our bicycles very securely. I am very impressed with the staff at etrailer.com and also with the products they sell and I would highly recommend them to anyone. 77708


Comments

I LOVE both the Draw-Tite Hitch and the Swagman Hitch Bike Rack. I have used them numerous times over the past year and they performed flawlessly.I have highly recommended both of these products, and etrailer.com, to my friends and family.You can be sure that when I am in the market for these types of products again I will most assuredly buy them from etrailer.com.

Jim M - 05/16/2014

4231

- 24715

by: Dan S01/10/2015

Review from a similar Draw-Tite Sportframe in Trailer Hitch


Like the hitch - it's nice that the bar goes over the muffler instead of under it like 90% of the other hitches for Camrys. I was worried about scraping if I got one of those that bent under the muffler. I was a little nervous about the bolt holes on my old 97 car from some other reviews I read (people saying you should buy a tap to get it in there, etc), but the bolts went in after I sprayed some wd-40 up in there and cleaned as far in as I could with an old toothbrush. Then threaded the bolts by hand as far as I could go, backed them out, threaded a little further,etc. I made sure I could drive the bolts all the way with my ratchet prior to attempting it with the hitch held up in the air and they did go in with a little wrenching and a lot of lube. One weird installation issue - I am not sure if my car is a bit odd, but the right side of the hitch on the muffler side sort of hit the underside of the bumper so it couldn't seat all the way by just holding the hitch up to the underside. To get it on, I loosely bolted on the left side and the rear bolt on the right and then threaded the bolt closest the bumper a couple threads by hand and proceeded to basically wrench it down from there. I think it sort of "smushed" the piece of the bumper that was in the way up a bit and after a bunch of turns, it went on and looked fine. Overall very happy with the end product and pleased with the customer service from etrailer.com. 168538



- 24844

by: Richard D07/18/2013

Review from a similar Draw-Tite Sportframe in Trailer Hitch


I found a local auto shop that installed the trailer hitch and wire harness for $80. They said the hardest part of the job was getting the wiring done because they had to take about everything out of the back of the Elantra Touring (small Huyndai station wagon) to get to the place to put the "plug and play" wiring in place. It is amazing how the right tools and the proper knowledge makes jobs like this so much simpler. I appreciate the prompt delivery of the hitch and wire harness and the free shipping was wonderful. I will recommend your firm to anyone in the market for any trailer or additional items for any kind of vehicle. You have a great selection and your tips for the installer really helped (per the guy working on the installation). 90217


Comments

The trailer hitch and extension work great. Since this is on a small station wagon not a truck the extension seems to rattle a little more than I expected when the trailer is not attached. I realize that there is probably no practical way to eliminate that noise without messing up the way the devices go together and can be swapped in and out, that is the only thing that is at all even a minor thing. I have been totally satisfied with the hitch and the way it handles my mall canoe trailer. I would certainly order any other items I might need that your firm could supply from you. Many thanks for the good service and in taking a continuing interest in how your products satisfy your customers. Wish every company took this much interest in the satisfaction of their customers. R. Dentino

Richard D - 07/28/2014

5940

Thank you very much for your one year follow up. To help eliminate the rattling that you are hearing when the trailer is not loaded you could use the Boone No Rattle # 93347
No-Rattle Trailer Hitch Wedge for 1-1/4" and 2" Trailer Hitches by Boone Outdoor Hardware
$7.99
Device. This would attach to your current pin and clip and would snug the ballmount up to the hitch to eliminate the rattling. This part is designed to work with solid shank ballmounts like your # 3594.

Rachael H - 7/29/2014




- 24839

by: Rodger06/09/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


The package arrived very quickly. The hitch had broken through the carboard and was sticking half out of the box, but it is a solid metal piece and didn't show any signs of damage. Installation was a pain in the butt, but it's doable. Taking off the splash guards is not as easy as it sounds. The instructions say there are 4 screws, there's actually 9 per side. And they don't just "unscrew", you can turn it counter clockwise until you're blue in the face and they won't loosen. It's a screw inside of a plastic housing that needs the center screw piece to turn while the housing stays still. Once you figure out how a way to keep the outer housing still, it's possible to get the screws out. But "40 minutes" install time was actually a 2 day install for me. Granted, I have no experience installing hitches. Once you have the splash guards off, taking off the tow hook is easy (as long as you have the proper 17mm ratchet). When you lower the exhaust, make sure you undo TWO attachments. I accidentally only did 1 and it didn't drop much at all. Also, I installed this without jacking up the vehicle or driving it onto ramps or anything. It CAN be done, but it would have been way easier to have the car lifted up. Once the splash guards are off, and the exhaust is *properly* lowered, putting the hitch in place is easy. BUT, then I ran into a problem where only 3 of the 4 new screws fit. Problem was with the rusted car, not with the screws. Upstate NY has rough winters and the car is 2 years old... problem was solved with a rust removal spray. After the hitch is in place, it's not too hard to raise up the exhaust and re install the splash guards. Overall, good product but if you have no experience... don't count on a 40 minute install. 134868



- 24826

by: Joel Robinson06/07/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


This is the first trailer hitch I've owned or installed so I have little to compare it to. My overall impression is that the hitch sits too low to the ground and is less rigid than I feel comfortable with for hauling bikes. It's also rather heavy in part because it loops around the exhaust. It was easy to install and has worked well but I'm considering building my own hitch that is more rigid, puts the receiver higher off the ground and has more ground clearance. Regarding installation, while it's true that no drilling is required, you are still supposed to put a notch in your "frame" rails so that the 1" backing washers fit through the 7/8" hole. I opted to grind the 1" washers on one side to make them about 7/8" wide so they'd fit through the holes without modifying the body. For a custom-designed hitch, I wasn't pleased that they didn't just include washers that fit...the Fit...in the first place. I like to keep my OEM rust proofing intact if at all possible. I painted the edge of the washers where I ground them down so they don't rust either. Regarding the hitch height, with Swift Sport springs that lower the car about 1/2", my receiver is about 8" off the ground and result in my brand new Yakima Highlite 3 bike rack to scrape entering/exiting my driveway apron (which is pretty steep). When I put 2 adult bikes and 1 kid trailer bike on the Highlight 3 (<110 lbs total w/bike rack), the hitch had WAY more bounce/flex than I felt comfortable with, especially when you tilt the rack down to access the trunk. So I added an extra strap attached to my Yakima roof rack to give the bike rack some extra support. I'd prefer not to do that. In summary, if you need an easy to install hitch that will support a bike or two, tow a light trailer and don't mind grinding into your car's frame a bit, this is a decent hitch for a nice price. It's far from perfect for me though. 134686



- 24855

by: Charles. 2013 Ford fiesta SE Hatchback11/17/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


Purchased primarily for bumper protection with draw bar added for my teenage daughter's new car. The Fiesta is a good first car for the novice teenager. But living in NYC one learns quickly that you have to fortify your vehicle like a tank in order to minimize damage from idiots parking behind you. This fits the bill. You'll be surprised how effective it is. They know to keep their distance if they don't want a gaping hole in their front bumper, lol. Oh and mounting a bike carrier on it, which I do have, is nice too. Originally ordered the Hiiden Hitch brand because I was familiar with product and liked it. But customer service said I had to wait at least a month because they were on back order. I didn't want to wait so they recommended Draw Tite. It is frankly of better quality than The Hidden Hitch. Heavier steel. I had to buy a draw bar since this one did not come with one as Hidden Hitch does. Another 20 bucks but even that piece is of better quality. It is made of solid steel unlike the other. Installation: well it took me about 90 minutes. I did it on my own without a lift. It's difficult to do on your own but with a bit of ingenuity it can be done. It's heavy so I had to place a box about 10 inches high under the vehicle and resting the hitch on top. After removing rubber hangers from muffler, I slippped right side of hitch over the top of muffler and resting it there. NOT NECESSARY TO REMOVE HEAT SHIELD as instructions tell you to do and cut. I did not do this thereby eliminating extra work. Besides I did not want to compromise integrity of vehicle as not to give Ford any excuses to void warranty for exhaust system. I connected left side first and hand tightened nuts and bolts (one nut and one bolt). Then connected the muffler side. Then tightened all. Highly recommend this product as I believe it will out live the life of the vehicle. Solid choice. 161390



- 24776

by: MAC08/16/2012

Review from a similar Draw-Tite Sportframe in Trailer Hitch


I received this just yesterday, after getting my shipment in fewer days than expected! BACKGROUND: I just installed it onto my 2007 Honda Fit Sport for the sole purpose of using a hitch bike rack. The small spoiler on the Sport's roof inhibits using a trunk-mount rack with straps and a roof rack for that model for two bikes is just not a cost-effective solution for a 5-year old car. INSTALL: The instructions were extremely simple to follow and I will be testing it out with the new rack soon. I greatly appreciated the sizing of the sockets that one needs to do the job listed on the instructions. It might also be noted that you should have a torque wrench or ratchet to tighten all nuts/bolts to specifications. As one other suggested, I used the box it came in for lifting it to the right height when installing and that worked great once the skid plate was removed. I was able to install the hitch without raising the car off the ground. Be sure to mark "front" on the skid plate visibly. My install took about 30 minutes from start to finish. Read the instructions, lay out your tools, and have a look at the underside of your vehicle first and you'll be great. AESTHETICS: The clearance on the hitch is very good. It does not protrude further down than the skid plate, which is good; it should not drag if you go over a high bump. If you happen to bottom out, it may drag some, but honestly, it's better than your bumper hitting. It does not sick out from the bumper, which means no hitting your leg on it. I ordered a rubber cap to go in the end when the bike rack is not attached, which will keep moisture out as well as helps the look. If anyone notices, they'll simply think that it's a nice custom feature. All in all, it was easy and fun project to do, and I'll soon be able to take my bike without using the precious cargo space in my vehicle. 51907



- 24826

by: Peter H09/17/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


Thanks to the excellent video tutorial, I was able to install this quickly and easily. A couple of suggestions for others who plan on installing this yourself: * Cut up the cardboard box and lay it flat on the ground behind and extending under your car. Put the hitch on it and you can slide it under the car and back out much more easily, as well as sliding yourself under the car more easily. * Once you cut the small notches in your frame, spray each with a bit of rustoleum and give it a few minutes to dry before installing the hitch. * On my 2009 Honda Fit, I did not have to move the muffler much at all. This is because I picked up the part of the hitch which bolts above the muffler and slid it into the bumper inside the hole for the muffler, right over the muffler pipe. It wraps nicely around the muffler pipe and will slide through the bumper and into place quite easily. * If you are doing this alone, get the car jack out and start on the muffler side. After you've placed all the bolts and washers, slide the muffler side of the hitch through the muffler hole in the bumper and into place, leaving the other end sitting on your cardboard on the ground. Put the car jack under the muffler end of the hitch and extend it until the hitch is touching the frame, with the bolts sticking through the hitch holes. Put on the washers and nuts and get them started, but don't tighten them all the way. Now move the car jack to the other end of the hitch and use it to hold that end of the hitch in place while you get the washers and nuts started. Once all four nuts are started and attaching the hitch to the car frame, now you can tighten them all. * Use a foot-long extension on your torque wrench when you're finishing off the nuts so you don't have to reach around the muffler. PRESTO! I can carry my bikes! 151680



- 24873

by: Richard C03/30/2015

Review from a similar Draw-Tite Sportframe in Trailer Hitch


Not as easy on my '12 Sport as the video shows. Took several hours to install. First of all the video doesn't show snaking the smaller carriage bolt through the hole with the rubber plug. You screw the bolt on to a spring wound in the end of fish wire. That worked brilliantly but low and behold the bolt was too long by three threads to "go around the corner" and had to be cut. Also there is a rectangular plate that goes in the hole too. The factory instructions makes it sound like you do the bolt and the plate at the same time. Forget that, just stick the plate in the whole and push it over. When I tightened the main bolts, this little forward sub-bracket was a good 3/8" below the body, and this is with the tire lifter in place. Required shimming with washers and getting a longer machine bolt for the rear hole. The muffler hanger rubbers are a real pain to get off. I would recommend you take off the rear driver side tire to access the outer one. Also the aluminum muffler shield is in the way a bit but that can bent easily. Just remember to bend it back or the spare tire will not go up. The biggest problem was that there was an interference with the two long inboard carriage bolts and two bolts that hold the bumper to the frame. Right where they come down from the upper clamp plate and try to go through the hole on the main hitch these two bolt prevented me from lining everything up. Out came the sawzall and cut the tips of the bolts off right next to the nut. Also on my car, the hitch wouldn't lift straight up to contact the frame. You kind of have to roll it in to clear a tiny lip on the bumper. Once all done, the hitch is great. Very very solid and good looking under the bumper. Might even paint it the color of the Fiat to make it totally stealthy. Hope this helps someone. 181763



- 24867

by: Todd11/10/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


I installed this hitch on our 2013 Juke Nismo AWD. bolted right in without any modifications needed to the Nismo rear fascia. I did need to purchase some aftermarket exhaust hangers so the exhaust tip wouldn't rattle against the hitch. 160187


Comments

I did this on my 2013 awd nismo. A couple of problems I ran into. 1. it pushes up 1/4 inch on the rear fascia 2. These hangers let a lot of movement in the exhaust. So much that barley pushing left or right the exhaust hits the hitch assembly. I havent noticed any hitting while driving yet. I will keep an eye out there for a better solution I just dont like how loose the hangers are. Just wanted to leave a comment. Idk if this will be everyones experience. Just what I ran into. Yet to tow anything with it. Thanks Todd for the comment wouldnt have tried it without seeing someone else do it.

comment by: Jerry - 03/23/2015


10246

Thanks for the follow up and details about your installation. I have also included a link to one of our FAQ Articles about making adjustments to eliminate hitch rattling.

Rachael H - 5/4/2015




- 24726

by: Tony12/31/2010

Review from a similar Draw-Tite Sportframe in Trailer Hitch


Even my wife said so Prior to our family trip I purchased the following items for my 2004 Hyundai Tiburon: Draw-Tite Class I Trailer Hitch Receiver #24726 20x48 Cargo Carrier Fits 1-1/4"" Trailer Hitch Receiver Hitch #6500 Rola Expandable Cargo Bag, 9.5 to 11.5 cubic feet #59102 Tiburons do not have a lot of cargo space, and mine has even less as I have 2 twelve inch subwoofers in an enclosure in the cargo area. I did the installation myself, which was easy, and the setup worked flawlessly. I was able to take luggage for two adults and two teens for a three day trip without stuffing items between the kids in the back seat and floor spaces. I could not even tell I had a cargo carrier on the back of the car. My fuel economy was not adversely affected because the carrier rides behind the car instead of on top where it would cause drag. I still had complete access to my rear cargo area via the lift back. This was one of the best purchases I have made, even my wife said so. 4838



- 24816

by: Russell V08/21/2013

Review from a similar Draw-Tite Sportframe in Trailer Hitch


I received the hitch and had it installed quickly with the exception of 1 trip to the store. I have included a picture of the socket extensions required to tighten the two horizontal bolts which might be useful to others installing this hitch. I'm a pretty big guy and though I could barely fit my hands in the gap there was no way a wrench was getting in there. All in all it looks like it should work very well. Also another note. For those of us installing this on a mazdaspeed3, you need the 9-9/16 inch drawbar to clear the bumper. The 7-1/2 inch bar is not long enough. 96163



- 24750

by: Jeremy04/30/2014

Review from a similar Draw-Tite Sportframe in Trailer Hitch


First, etrailer is great to work with. I ordered this product on a Friday and had it the next Tuesday with standard shipping. This is the second hitch I have bought from etrailer and both times service was great. Now onto the hitch itself. This is a great little hitch that I bought for a Nissan Sentra so that I can attach a bike rack to it as I am frequently carrying my bike places. I have no real complaints about the product itself, but as others have indicated the directions are not the best. While I found most of it to be easy to follow, one step has you attaching a small metal plate and a bolt to a wire which is fed through the rear bumper and down a hole that the hitch attaches to. As easy as that sounds, space is very limited and it is hard to get your hands into the areas needed to help accomplish this. Additionally, the directions tell you to kink the wire to keep the plate and bolt separate, there is a drawing of this, but I found it hard to figure out what exactly they wanted you to do. In the end, it did not matter as I found it nearly impossible to accomplish this step as instructed. Instead I put the bolt through the plate and put it into the bumper at an angle. Then I used the wire to pull the two as a unit to the location of the hole. With a lithe patience, and persistence I was able to jiggle and move the bold and plate around as one unit until the bolt fell into place. This was the hardest step and once I did it that way, it was easier, but still took some time. Besides that issue, the hitch went on easily and will work great for my bike rack and carrying around my nice bikes. I certainly recommend this part and etrailer, just be prepared to work hard to complete that one step (which has to be done twice). 128255



- 24850

by: Martin M.06/14/2012

Review from a similar Draw-Tite Sportframe in Trailer Hitch


I couldn't be happier with the customer service and the unbelievable fast shipping. I order my hitch on Monday at I installed it Tuesday night. You guys are the best and if I need another hitch I will without a doubt order a hitch from your fine company. 44154


Comments

I realize you put the trailer hitch on even though you had the Ground Effects Package. I also have the Ground Effects Package and I was wondering if you had any problems installing the hitch? It looks like the hitch is pushing up on the bottom piece of the ground effects on the back, is this true?

comment by: Eric F - 07/23/2013


1800
Comments

You are correct it is pushing up on the ground effects. It is barely noticeable when you are behind the car. I plan to paint the lower portion of the ground effects black this winter so the trailer hitch disappears.

comment by: Marty - 07/30/2013


1827

Thanks for the follow up and the added info!

Patrick B - 7/31/2013


124
3456
Show More Reviews

Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?


  • Hitch Receiver Extension for Draw-Tite Trailer Hitch # 24847 On 2012 Toyota Prius
  • The Draw-Tite Trailer Hitch # 24847 is a good fit for your 2012 Toyota Prius and the receiver will not jut out past the fascia once installed. I have provided a graphic showing the end of the receiver in comparison to a Prius as well as a Prius V. I have also provided a link to the installation instructions for this product as well as a link to a video showing the installation of this hitch on a 2010 Toyota Prius. While not the same model year as your car, the installation technique is...
    view full answer...

  • What Bike Racks Are Good Fits for 2012 Toyota Prius C
  • The 2 Bike Hitch Mounted Folding Rack with Frame Mount Cradles # 63120 will fit your 2012 Toyota Prius C as long as you have a 1-1/4 inch trailer hitch receiver installed on your vehicle. If you need a hitch receiver, I recommend the Draw-Tite Sportframe Trailer Hitch Receiver # 24889. A link is included on the product page providing instructions on proper installation of the hitch receiver. The first thing you are going to want to look at, however, is the owners manual for your 2012...
    view full answer...

  • Trunk and Hitch Bike Carrier Options for 2013 Toyota Prius C
  • The Thule Raceway 2 trunk-mount rack is a solidly-built quality unit whose sturdy construction results in about a 20-lb weight. On smaller and lighter vehicles like your Prius C the sheet metal may not be strong enough to handle this weight along with the weight of your loaded bikes. This is why this carrier is not recommended for your car. We do offer other trunk racks whose lighter weight makes them a better choice. The link provided will let you select the version of the Prius C you...
    view full answer...

  • Options for Carrying 3 Bicycles with 2013 Toyota Prius C
  • The Draw-Tite Trailer Hitch Receiver, # 24889, that you mentioned, as well as the others available for your 2013 Toyota Prius C, are all Class I trailer hitches. Due to the low tongue weight capacity of the Class I hitch, both the bike rack and the hitch manufacturers agree that no more than two bikes should be carried on a Class I hitch. Adding additional bikes would place too much weight too far away from the receiver opening, and would exert enough leverage on the hitch that it could...
    view full answer...

  • Custom Fit Trailer Hitch Receiver for 2014 Toyota Prius C
  • You are correct, the Draw-Tite Sportframe Trailer Hitch Receiver, # 24889, has been confirmed to fit your 2014 Toyota Prius c. I have included a short installation video for you.
    view full answer...

  • Recommended Trailer Hitch and Accessories for Towing Small Trailer With a 2014 Honda Accord Sedan
  • Let's begin with the hitch. The Hidden Hitch and Draw-Tite models are manufactured by sister companies and for all intents and purposes are identical. However, since you'll be towing with the hitch, I'd recommend the Hidden Hitch # 60325 because it includes the ball mount and a pin and clip. You'll then need a trailer connector, but the one you need will depend on whether your Accord has the LED or incandescent taillights. If you have the LED lamps, use the Tow Ready # 118586 wiring...
    view full answer...

  • Metal Tab Preventing Bike Rack From Going into Class I Trailer Hitch
  • Sounds like you purchased a Class I trailer hitch with a 1-1/4" receiver. The Yakima HoldUp 2 Bike Rack, # Y02445, is designed for 2" hitch receivers due to distance of the hitch pin to the rear of the shank. The tab you referred to is inside the shank to prevent users from installing Class II accessories which have the potential of overloading a Class I trailer hitch leading to damage to the hitch, accessory, and even the vehicle. Unfortunately that rack is not compatible with the Class...
    view full answer...

  • Hitch and Bike Rack Recommendation for a 2012 Toyota Prius c
  • To install the Thule Helium Bike Rack # TH9042 that you referenced you will first need a hitch installed on your 2012 Toyota Prius c. For that I recommend the Draw-Tite Trailer Hitch # 24889. The # TH9042 should clear your rear bumper easily. This rack has a distance of 14-3/8 inches from the center of the hitch pin hole to the nearest upright bar of the rack, and if you check out the picture I attached of the # 24889 you will see that the bumper does not go much past the hitch opening...
    view full answer...

  • Can Hitch Adapter Be Used With Bike Rack on Draw-Tite Class I Hitch # 24889 for the 2012 Prius C
  • Your 2012 Prius C can be equipped with one size and class of trailer hitch receiver, a light-duty 1-1/4-inch Class I hitch such as your Draw-Tite # 24889. Class I hitches can carry the weight of only 2 bikes, no matter what the capacity of the bike carrier itself may be. The problem with hitch adapters - any of them - is that they cut the weight capacity of the hitch in half. They also introduce a second connection point that will allow the bike rack to have even more random motion while...
    view full answer...


Do you have a question about this Trailer Hitch?





Weight Carrying Capacity
Gross Towing Weight (GTW):
2,000 lbs.

Tongue Weight (TW):
200 lbs.


Weight Distribution Capacity
Hitch does not allow
use of weight distribution


Trailer Hitch Installation Instructions 24889 Installation instructions 24889 Installation Instructions
No drilling required

Tech Tip
No drilling required for installation

Manufacturer Estimated Installation Time



Recommended Ball Mount:
Draw-Tite recommends:
Draw-Tite 3593
3593


1-7/8" hitch ball - 19256


2" hitch ball - 19258

If you have any questions you can contact our customer service department.

Info for this part was:


Video Edited:
Joshua S

Expert Research:
Adam R

Updated by:
Laura H

Video Edited:
Dustin K

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.










Stay Connected


Subscribe to email newsletter

Email

privacy - we don't send unsolicited email






etrailer.com reviewsetrailer.com reviews

All images, layout and content copyright etrailer.com
