Trailer Hitch > 2014 > Subaru > Outback Wagon

Hidden Hitch Trailer Hitch for the Subaru Outback Wagon, 2014

Hidden Hitch Trailer Hitch

ratingratingratingratingrating (238 reviews)


Code:   87568

Retail:$283.11

Price:$192.95


Shipping Special

Shipping Weight: 37 pounds

Quantity:






Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - Subaru Outback Wagon, 2014

This durable, fully welded Subaru Outback Wagon trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.

Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Subaru Outback Wagon
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Ball mount, pin and clip sold separately


Specs:

  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 4,000 lbs
    • Maximum tongue weight: 600 lbs
    • Not rated for use with weight-distribution systems
  • Limited lifetime warranty


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



87568 Hidden Hitch Class 3 Trailer Hitch Receiver





Video of Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2"


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

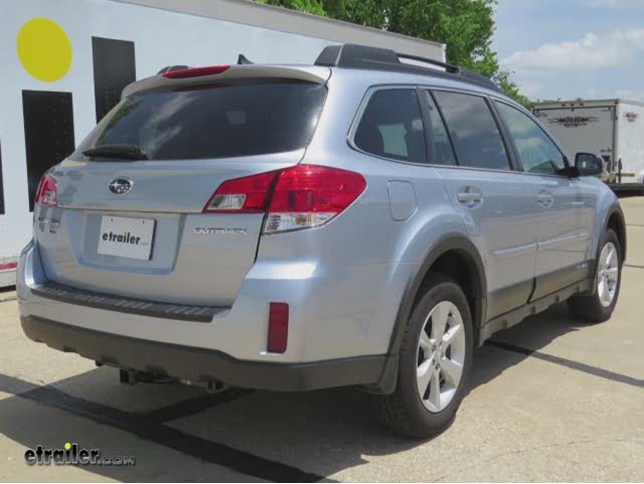

Video install trailer hitch 2014 subaru outback wagon 87568
Trailer Hitch Installation - 2014 Subaru Outback Wagon - Hidden Hitch
Video install trailer hitch 2012 subaru outback wagon 87568
Trailer Hitch Installation - 2012 Subaru Outback Wagon - Hidden Hitch
Video Hitch Install 2011 Subaru Outback
Trailer Hitch Installation - 2011 Subaru Outback Wagon
Video install trailer hitch 2010 subaru outback wagon 87568
Trailer Hitch Installation - 2010 Subaru Outback Wagon - Hidden Hitch
Video install trailer hitch 2011 subaru legacy 87568
Trailer Hitch Installation - 2011 Subaru Legacy

Video Transcript for Trailer Hitch Installation - 2014 Subaru Outback Wagon - Hidden Hitch




Customer Reviews

Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 87568

Average Customer Rating:  ratingratingratingratingrating4.8 out of 5 stars   (238 Customer Reviews)

This durable, fully welded vehicle trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.


- 87568

ratingratingratingratingrating by: Jim H.05/15/2014


I finished the hitch install on my 2014 Subaru Outback today. It went without a "hitch" so to speak. I did the job alone (age 69) and managed it well because of some hints from previous writers. First, I drilled access holes from inside the trunk area as suggested. Remove the black adhesive dots over each hole and drill them out to 1 1/8" using a step drill (see photos 1.jpg, 2.jpg, 3.jpg). I didn't have a vacuum cleaner handy so I used a small magnet to collect all the metal cuttings. (see photo 4.jpg) I then raised the rear of the car with ramps to get easier access underneath. I took off the muffler which was not too difficult once the rubber shock-absorbers were liberally doused with WD-40. Getting it back on later was another story. That thing is heavy and it took quite a few "bench-presses" to get it up and slid onto the outboard rubber shock-absorber. After that, the inner one and the final bolt-down was a lot easier. I also removed and drilled out the heat shield to clear the hitch bolt. The step-drill was perfect for this as well. I removed the small rubber plugs from the four hitch holes under the car. The holes could then be clearly seen from above so guiding the bolts and plates into the holes using the included guide-wires turned out to be extremely easy. I used my 3 ton hydraulic jack to suspend and position the hitch. I clamped it to the jack pad using two small c-clamps. Once in position an raised up, I could easily finger-tighten the rear nuts (rear of the hitch/front of the car). Then I took off the c-clamps in order to push the front of the hitch up into place with the jack. Tightening everything down to 50 ft/lbs. finished the job. I also found some plastic snap-in covers that perfectly fit the drilled holes in the trunk. I used these to seal the holes from dirt and to give it a finished appearance. (see photo 5.jpg). Next was the wiring harness. That turned out to be a bit tricky. I searched the wheel well housing on the drivers side but couldn't feel any wires. Then I found a YouTube video from a 2011 Outback that made it clear that the carpeting behind the rear seats had to be removed as well as the long foam strip adjacent to it. It is held down with three snaps...one in the front (fixed) and two loose plugs in the back. Once this was removed I was able to find and pull out the connector. The rest was easy. Plug in the connector, thread the wire back a bit, hide the black box under the wheel well housing and continue the wire around the outside edge of the trunk and into the spare-tire area. Everything went back together nicely. I brought the hitch cable up into the foam tray where it would be easier to get when needed. I plan to run it out the tailgate and I don't at all think it will be damaged by the rubber weatherseal. 130920





Comments

I did my install the same way your did. Thanks for the instructions. Helped me out A LOT.Where did find the plastic snap-in covers for the drilled holes? Would love to cover mine up as I left them open. Thanks,Joe

comment by: Joe Broswick - 07/23/2014


5875


Comments

Joe, I found the gray snap-in covers at my local hardware store in the nuts and bolts section. There are cabinets with pull-out drawers and I found them there. The ones I got said 1 but they fit the slightly larger holes just fine. I liked the idea that the holes were covered to keep stuff from falling in, especially liquid spills. If you cant find the plastic covers, just use some heavy-duty duct tape.

comment by: Jim H. - 07/24/2014


5895



- 87568

ratingratingratingratingrating by: Kevin H08/02/2013


Excellent hitch, and super fast shipping! Arrived in pretty good condition (see picture of my "Frankenbox" which likely helped), especially considering how mangled the first one arrived (*see below). The only damage was to the labels - both the Hidden Hitch label and the weight-rating label were scraped up. I don't really care about the HH label, but having the weight ratings visible is a nice safety feature. Installation went really well. Hitch and Wiring Harness took about 3 hours, and that was working slowly and includes all cleanup. I love the video (in fact, I stumbled across it the night before my car was scheduled at the Subaru dealer for the hitch install, and it prompted me to cancel my appointment and buy/install on my own - SO glad I did too - saved me over $400!). That said, I did make a few modifications to the process shown in the video. I decided to access the frame holes from the top, as others have mentioned, rather than the bottom as shown in the video. This meant drilling through much softer metal, and cutting a hole in a place much less likely to be exposed to the elements. I had a whole saw bit (vs. step bit) so I opted for a new hole rather than expanding one of the existing holes. This also worked well because I was able to center the hole between the two "peek holes" giving fairly easy access to both the front and rear holes in the frame when snaking the bold leader cables through. That said, coming from the top did make this step harder than it would be from the bottom because the leaders are curved, and want to bend back in the direction they came from. This meant that they want to curve UP when you put them in from the top, but they need to go down. Since I had a partner in crime, it worked out alright, but it would have been very tough alone. After the hitch was installed, I simply held the heat shield back up in place and marked where the front bolt hit it with my finder. Then I drilled a hole there with the same 1 1/8" hole bit, and it worked perfectly, leaving much more heat shield in place than if I had cut off the entire corner as seen in the video.i * I originally ordered a 1 1/4" Hidden Hitch Mount (see below), which arrived in a smaller box. The box was clearly too narrow, and because it bulged out, it was ripped open and the metal was sticking out a bit. I had already ordered the 2" version at this time, and was returning this one, so I didn't open the box. 92925






- 87568

ratingratingratingratingrating by: Brett H.05/25/2013


I was a little intimidated by the prospect of installing this hitch, but it turned out very well in the end. Many thanks to the excellent videos at etrailer and the comments from my awesome fellow-customers. Looks great, works great, and total install time was only about 2 hours. I'm reasonably good with tools in general, but little to no auto mechanic experience. Here are a few tips I found very helpful (many of them from the other reviews). Some would have helped me decide sooner to take the plunge: 1) The hitch actually installs on four bolt holes already provided in the frame by Subaru for installing a trailer hitch. The only reason the instructions have you drilling new holes under the car is to provide a way to fish the bolts through from the top, which takes us to our next point... 2) I highly recommend drilling down from the trunk area, rather than drilling up from under the car (thanks to the other reviews for this tip!). It's not only easier, but also means your holes aren't exposed to the weather. In fact, your new holes will be entirely covered by the snap-in panels in the trunk. Other reviewers have talked about removing the bumper -- in that case you don't have to drill any holes and I'm sure it's the best approach if you're comfortable doing that. 3) You must fully remove the rubber bumper hanger that is closest to the rear of the car. It wasn't clear to me initially, and I just took the bumper off the hanger, leaving the rubber hanger attached to the car. The hitch won't fit over the rubber hanger, and you'll be in no position to deal with it once you start trying to lift the hitch into place. 4) As others have said, removing the muffler entirely is probably the best way to go. I was a little concerned about doing that, but it was easy to get off and back on. If your car is very old, it might be tougher. 5) I had a second person assist me in lifting the hitch assembly into place, and cannot imagine trying to do that by myself. Definitely get a helper! 81947





Comments

Oops - when I said bumper hanger I meant muffler hanger. Whether you remove the muffler or just it down, youll need to fully remove the rubber hanger that is closest to the back of the car.

comment by: Brett H. - 06/02/2013


1590

Thanks for the update, very appreciated.

Patrick B - 6/3/2013



Comments

Wow, you did an excellent job of explaining everything you did. I agree, it sounds like drilling down instead of drilling up from the bottom of the carframe is the way to go. Once again thanks for the great job, Im ordering the hitch for our 2013 Outback today!

comment by: bruce v. - 09/30/2013


2119



- 87568

ratingratingratingratingrating by: Microbiker01/28/2014


I just installed the 87568 Hidden Hitch 2" Receiver on my 2014 Subaru Outback (2.5). Dealing with etrailer was wonderful and I highly recommend them - not just OK - they are a real pleasure to deal with. The website is helpful and clear, product was exactly as described and was shipped the same day I ordered (delivery in 5 days). It arrived in excellent condition with everything I needed (including fish wires they used to sell separately). Videos, written comments/pictures from other customers and even the instructions that came with the hitch were very helpful. It took me about 2 hours to install in my garage. The Outback is pretty high off the ground so I had no problems fitting under the car. I followed the approach other customers suggested, expanding access holes inside the car, instead of drilling new holes in the frame below the car. Basic procedure was as follows. 1) Remove muffler by spraying rubber hangers with WD40 and loosening 2 bolts. 2) Remove the heat shield. 3) Remove cargo tray and spare tire cover from inside the car. Snap off the carpeted covers from the left and right sides (these just snap off). 4) Remove the polystyrene trays on left and right - note these are clipped to the metal below (I found it very tricky to get these loose and actually broke the tabs on a couple of the clips). 5) Peel off the black tape circles covering access holes (you can see the hitch attachment holes by looking through these). Enlarge holes (2 on each side) to 1 1/8" using a step drill bit. Note that metal shavings will fly so use safety glasses and cover spare tire so they don't get where you don't want them. 6) Fish the bolts through holes as described in the instructions. 7) Flatten the cardboard box and use it to slide the hitch under the car below the mounting bolts. 8) Raise the hitch and put washers and nuts on as described in instructions. Note this step is a little tricky physically. I did it alone but an assistant would be helpful. The rubber muffler hanger has to go through the cutout in the hitch so think this through before you start. I did it by raising the right side of the hitch (non-muffler side) first and securing loosely with washers/bolts. I then raised the left side and slid under it so hitch was briefly supported on my chest. I pressed the hitch up while twisting the rubber muffler hanger to guide it through the hitch hole. I then tightened all fasteners as instructed. I sprayed some undercoating material on the bolts. 9) Hold up the heat shield to see where on of the hitch bolts interferes. I used the step drill to create a hole in the heat shield instead of cutting as instructed. Attach modified heat shield. Reinstall muffler. 10) Inside car, cover access holes with tape and reinstall interior padding and trays. Clean up and done! 114980






- 87568

ratingratingratingratingrating by: Ryan M08/30/2012


I wanted a 2" hitch for my 2013 Subaru Outback. I was not looking for a specific manufacturer or model. I found etrailer.com via google results. I was very surprised to find as much information regarding installation of this hitch, including a detailed instructional video on installing the hitch on a 2011 Subaru Outback which is nearly identical to the 2013 model from a structural standpoint. I was completely impressed. Without this video, I probably would not have had the confidence to install the hitch myself, especially once I would have realized I had to drill holes in the frame of my brand new vehicle. The hitch is sturdy and well built. It fits extremely well on my car. It does not stick out from under the rear fascia. In fact, just as the video shows, it is quite nicely recessed underneath. I probably would not be able to tell you the difference between the Hidden Hitch, the Curt or the Draw-Tite. I bought this hitch simply because of the incredibly accurate and helpful installation video. The installation process took about 2 hours working solo. I am not extremely handy, but I can follow directions well. I probably would have been done sooner, but my hammer drill battery was not fully charged. It took me probably 40 minutes to drill two holes in the frame because I had to quick charge the drill battery several times. Installing the hitch was not difficult with one person. The Outback has nearly 9" of ground clearance, so I was able to slide under the car myself and align the hitch with the mounting bolts fairly easily. Also to note, the instructional video is installing on a 4 cylinder Outback, thus there is only one exhaust pipe and one heat shield to mess with. I have the 6 cylinder version so I had two mufflers and two heat shields to deal with. Instead of lowering the exhaust as the video shows, I removed the two mufflers by removing the two bolts on each muffler pipe about 8" from the actual muffler using a 14mm (I think) socket wrench. Doing so really opened up the underside of the car and made it very easy for the rest of the installation. I did not have any issues removing the rubber muffler hangers as some other reviewers mentioned. I simply sprayed them with some Tri-Flow lubricant and was able to remove them by hand. Perhaps this is because my car was fairly clean and fairly new. 53535






- 87568

ratingratingratingratingrating by: John A04/11/2014


First of all, let it be said that nothing trumps good engineering. My hitch and wiring harness harness arrived 2-3 days after I ordered it. Unlike others here, my shipping container was completely intact. Like others, the etrailer.com decal was crooked, wrinkled and looked silly. I removed it. The installation of the wiring harness was just as simple and the video suggests. In spite of the fact that the Molex connector was right where it was supposed to be, I could not find it right away. I used a bathroom mirror reflecting up and behind the trim panel to find it. There are some sharp edges and this may have saved a cut or two to my hand by not having to dig around for it. The hitch was also no more difficult to install that the video suggested. I strongly advise that you use a lubricant to remove the muffler hangers as they slide right off (and on again) with ease. Unlike some others, I had no problem drilling the access holes in the frame. Be sure your bits are sharp and good quality. I did however buy two plastic plugs to cap the holes and sprayed the bare metal with auto primer. One nice surprise was that the parts bag included 4 of the wire fish tapes. I planned to have to create these myself. They were absolutely perfect. I entered through my access hole and the lead end popped right through the other hole with almost no effort each time. I left the wires attached until after I positioned the hitch to the bolts. I made it easier to line the four up, install the spacer washers in the front and I also didn't risk pushing the unattached bolts up and into the frame. One word of advice: don't torque the hitch until you reattach the heat shield. Two of the heat shield screws need to pass through the hitch. If it's tight to the frame and the holes don't line up you need to loosen the hitch and reposition it. Total install time, including the wiring harness was about 2-1/2 hours. I didn't have an extra set of hands or it would have taken about 15 minutes less. It can be done alone, but it's awkward. The hitch looks great in that it's barely noticeable (and nicely recessed) under my bumper. I can't say enough good things about this product and etrailer. I saved hundreds of dollars and have the knowledge that nobody boogered up the undercarriage of my beloved Subie. 124715






- 87568

ratingratingratingratingrating by: kevinh07/26/2011


Completely satisfied with this hitch. Looks great, not very noticeable, and is of quality construction. Details of my experience: 1) ordering/shipping - placed order at 11pm, had an email an hour later saying product shipped. Well, that seemed highly unlikely, but by next morning I had the tracking number. Package arrived in 5 business days. Box was a bit roughed up and hitch had some scuff marks, but it was going under my car so didn't make much matter. 2) installation - the video was a huge help. I mounted this hitch by myself and did it without using a lift or jacking the car up. Space was tight, and I had to use some creativity to support the hitch up on wooden blocks in order to get the bolts in place, so all that made the install take longer than it should have (about 2 hours total). You'll find that even though the muffler was lowered, it still gets in the way for drilling holes. I was skeptical about how easy the little guide wires would work for feeding the bolts into the car frame. I found it does work just like you see in the video -- I was completely impressed. One key step, which is mentioned in the instructions, is to thread the heat shield bolts part way in before torqueing down the nuts on the hitch frame. I found that the front heat shield bolt on the driver side did not line up perfectly no matter how much manual positioning of the hitch -- so I had to use a small board to pry the frame open a bit, leveraging off the spare tire well, in order to get that bolt started. Had I not done that before torqueing the nuts, never would have got the bolt in. Also had a frustrating moment when my 5/8" hitch pin would not go into the receiver hole -- thought the hole was undersized. Turned out a small metal "ear" was sticking out from where the hole was punched through. A few strokes of a file took care of that. My wife is completely happy with this hitch -- she uses it for a bike carrier and can now take her bike wherever she want to go. and, if the wife is happy, I'm happy. 20309






- 87568

ratingratingratingratingrating by: Evan S.01/11/2014


First, I'd like to reiterate how great the customer service was from etrailer.com - honestly one of the best online shopping experiences I've had. On to the install...mine wasn't quite as trivial as some others, but it was nobody's fault but my own. I installed the hitch without jacking up the car which, while possible, made for very tight working quarters. I also forgot to re-install the heat shield, so had to remove the hitch completely. Typical me. All in all the install took me a couple hours. Thanks to the suggestions from others, I also went through the trunk to gain access rather than drilling a hole in the frame, which I really didn't want to do. It wasn't hard to go through the trunk, I used a step bit (also thanks to someone's suggestion) and enlarged one of the existing holes in the body. It did add some time though. It was trivial to thread the front hardware through, a little more challenging to fish it through to the back ones. I also removed the muffler, definitely made things a lot easier, especially since I didn't jack the car up. I did use my jack to lift the hitch into place, but it was still extremely nice to have a second set of hands to keep everything balanced and aligned. I'm extremely pleased with the result - the hitch is tucked away nicely under the bumper and looks great. Thanks etrailer.com! 112558






- 87568

ratingratingratingratingrating by: Alex H08/12/2014


I'll echo most of the reviews for etrailer.com and say that the install guides were thorough and the ordering process was easy. Kudos to etrailer.com for providing such great information including the videos and reviews from previous installers (they helped immensely). I fed the bolts in from the trunk (as suggested by others) and found it quite easy. Do the rearmost cables first - I had to use another cable guide to meet the first and guide it through to both holes. I fed the first cable through the bottom until I could see it through the hole in the trunk, then I could hook it with the curly end of the second cable and bring it up through the trunk hole. The forward holes are easy. BTW, I drove my rear wheels on some 4x wood to give me some extra clearance while working under the car - I highly recommend this for comfort's sake. I'll also echo that if you can remove your muffler, you should. I couldn't remove mine, and while it didn't make things impossible, it just made everything on that side harder, especially dealing with the heat shield bolts. Which leads me to... I had only one issue with the product itself, which was mentioned in passing in other reviews - I had to flex the hitch to match up the heat shield hole. It was off by quite a bit and required me to flex it with tools. I couldn't bend it enough by hand even with all the other bolts left loose. Having my muffler in the way didn't help with this task either. I'll echo others to say that you should leave the hitch bolts only hand tight until you get the heat shield back in place for this reason. I also found that the hitch was thick enough that I had to get a slightly longer heat shield screw. Because of this trip to the local hardware store and the heat shield screw alignment issue, the install took me 3 hours instead of the 2 that others have been reporting. Now that it's in, I'm happy. It looks like it should and does what I need it to do. 146200






- 87568

ratingratingratingratingrating by: Steve G07/29/2013


I am getting old enough that the idea of putting a trailer hitch on was not appealing but several reason drove me to etrailer. The dealer cost was staggering but the deal breaker was their hitch stuck out of the bumper and I just knew I would be banging my old shins on it every time I reached into the rear of the Outback. After doing a Google search, I found etrailer and was encouraged by the installation videos and the reviews. Based on reviews, I chose the Hidden Hitch and the T-one wiring harness. They arrived incredibly fast and in good condition. Based on all the reviews, I was able to install it myself in about three hours without even jacking up the car. All of the helpful hints discovered reading the reviews really helped. Removing the muffler completely really helped and was not that difficult. I also drilled the 1 1/8" holes for the bolt installation from the top and that worked great. I sprayed undercoating on all the exposed hardware underneath and sealed the holes I drilled on top. I used the 1 1/8" hole saw to drill the heat shield instead of cutting the entire corner off. One thing I would definitely recommend would be to use a torque wrench on the final tightening of the mounting bolts. I was able to get the wiring harness connected easily without removing the side panels - I just reached under the panel right were they said it would be and was able to pull it down enough to plug in the harness. Definitely would have been easier with a hoist and two people, but this old man got it done anyways! I would recommend the Hidden Hitch because of its perfect fit and no need to drill any additional holes into the bottom of the frame rail. It looks great on the car - definitely "hidden"! 92193






- 87568

ratingratingratingratingrating by: Bob B06/23/2012


Ordered this hitch late on Thursday evening expecting to receive it late the next week. Order was processed immediately and hitch was here on Monday. Used the inside inspection port method as it was not only easier, but retained more structural integrity. As I only had 2000 miles on the car, I removed the muffler ( removed two hangers and unbolted from the tailpipe. This made the muffler side install very easy. I also chose to use a hole saw to cut a 1.5" hole in the heat shield for the bolt rather than cut the corner off. ( After removing the plugs from the frame, I reinstalled the heat shield and marked through the holes where the bolt would be). I did the install on the ground by myself. I used a motorcycle lift to lift and support the hitch while connecting the bolts. A few tricks made it easy. Insert the metal pieces in the frame with the long side front to back. It seats better in the frame and allows the bolt to stick through the frame more. After installing the bolts using the fish wire, I used masking tape to tape the spacer washer to the frame over the bolt. This made its install easier. I used a heavy chisel in the drilled holes ( inspection ports) to hold the bolt down while working on them. This prevented pushing them back up into the frame once the fish wire was removed. If you have a two people, one can do this with their finger. Total time to install was about 1.5 hours. Prior to the install, I used a grinder to round the corners and edges of the four steel bolt plates so they would not scratch the inside of the frame. I also coated with undercoating to prevent rust. 45379






- 87568

ratingratingratingratingrating by: John S08/14/2012


Just installed this hitch this weekend on my 2012 Outback. Certainly the most-intrusive thing I've ever done to an automobile and apart from a bloody knuckle and sliced thumb, all went pretty smoothly. I opted to go through the observation holes as recommended by other reviewers. Seemed making two existing holes larger would be better than creating two new ones. I opened up the two holes nearest the front of the hatch area which made threading the guide wire to the back holes a bit tricky. I solved it by running a fish wire of my own up through the rear hole then attaching the provided wires to that and pulling the whole shebang back through. I installed this so I could use a hitch-mounted bike rack. I purchased the Softride Dura Parallelogram and had read on this site that it was necessary to also purchase the extender bar for that rack, so I did. Turns out this was an unnecessary purchase as it fit fine with the standard bar. So if you're planning on going that route, hold off on the extender bar until you find out if it's really needed. Oh yeah, have help. Although I'm certain I could have done this alone with some cleverness, having a couple extra hands made it far easier. 51683






- 87568

ratingratingratingratingrating by: Tim J09/04/2013


I installed this product on a brand new, less than 50 miles, 2014 Subaru Outback 2.5 Limited. Product was delivered promptly with all the parts. The box worked as a great platform to slid in and out from beneath the car, instead of rolling around on the concrete drive. Installation, due to others comments, tips, and the video made this a great experience, saving me at least half when compared to the dealer cost of a hitch. I did drive the rear up onto a set of solid paver blocks when I started, to give me just a few extra inches to get under the car comfortably once the hitch was placed up under the car and finish the install. I used a jack to lift the entire hitch into place, which made the wife very happy. I also drilled down with a step-bit from the trunk, using one of the existing inspection holes (the front-most hole). Doing this required the use of a wire snake to get the wire leads for the retainer and bolts threaded from the rear-most hole to the access hole. If you drilled an entirely new hole in the middle of the two existing access holes, you may not need the snake to get the wires into place. The unit aligned with the factory holes perfectly, making the final steps of bolting down the assembly a real breeze. I sprayed the trunk access hole with undercoating just to be safe, then covered it with metallic HVAC duct tape. I would recommend this hitch to anyone contemplating adding a hitch to a Subaru Outback. 98192






- 87568

ratingratingratingratingrating by: Happy Customer07/03/2013


etrailer processed and shipped my order promptly. The package arrived the next day in perfect condition. The installation instructions were very easy to follow. I installed the hitch via enlarging the drain-holes in the rear cargo compartment area (inside the vehicle) rather than drilling the frame rails (underneath the vehicle). Additionally, I did not cut a large rectangle out of the heat shield, rather I drilled a 3/4" hole through it to allow for the hitch bolt/nut to pass through. Total installation time was 1.25 hours and I was going slow and cleaning up as I went along. I would recommend this product and vendor in anyone. 87209





Comments

I like the idea of drilling the heat shield and shall follow suit. Thanks

comment by: Frank - 06/22/2014


5020


Comments

Both products are holding up very well. I am still 100 satisfied with their performance. Thank you for the great products and stellar customer service. Have a great 4th of July weekend.

Happy Customer - 07/09/2014

5468



- 87568

ratingratingratingratingrating by: J.F.08/17/2013


I installed this hitch on my 2013 Outback 3.6R. Even though I am somewhat mechanically inclined this installation took me a couple of hours due to a bit of OCD and not having any help lifting the hitch into place. The etrailer.com video was helpful but I made some changes. As some others have done, I enlarged the holes in the trunk versus drilling the frame underneath. The trunk metal is much thinner than the frame underneath and not really a structural part of the frame so it didn't bother me as much to drill it. I also drilled the heat shield holes versus cutting them as they are visible once everything is put back together (pic). To do this I just put the heat shields back with two bolts after removing the plugs in the frame, then I used a marker inserted through the factory holes in the trunk to mark the location for drilling with my hole saw. After the install was done I used metal hvac tape to cover the trunk holes for a clean look. For those interested, my local Home Depot sells 11/8" metal plugs in the hardware aisle that will snap right into your holes. The finished install is quite clean looking and the hitch is hardly noticeable. Note... the installation instructions say to torque the 7/16" nuts to 50 lb. ft. but they are actually 11/16". 95574





Comments

Bolts and nuts are measured and identified by the shank diameter and threads. In this case 716 - 14, is the bolt size. This is how they are identified in the parts list and torque ratings. 11/16 is the size of the socket needed to tighten the hardware, but that does not tell us the actual size of the bolt and nut.

Patrick B - 08/19/2013

1919

- 87568

ratingratingratingratingrating by: Aaron T.06/08/2013


This hitch was installed on my 2011 Subaru Outback 2.5i. I received the hitch with a few paint chips where it poked through the box. No big deal. Since I'm OCD, I had a can of hi-temp flat black paint and started touching up spots and before I knew it, the entire hitch was painted flat black, which actually looks great. As far as the install goes, I definitely recommend increasing the hole size of the 4-holes in the trunk. They are covered with black circular tape. I took a 1-1/4" hole saw and took about 10 minutes to increase all 4 hole sizes. This is a far better alternative than removing the bumper. (Why anyone would want to do that is beyond me, or increase the hole size in their frame for that matter). I took some gray Rust-Oleum paint and painted around all of the increased holes and used black duct tape to cover all of the holes after that. Overkill on this part, but what's done is done. I used a Rino ramp to help me keep the hitch off the ground so I could install it myself. This method worked great. I ordered the wiring harness and installed it as well. All in all, the videos and reviews on this hitch were invaluable. I can't recommend etrailer enough, and I plan to order more accessories for my hitch as soon as I decide on the gear I want to haul. 83846






- 87568

ratingratingratingratingrating by: Roderick11/24/2013


As others have suggested, I drilled a hole from inside the spare tire area for installing the bolts. Again, as has been noted before, it is difficult to run the fish wires to the bolt holes as the fish wire's natural bend makes them want to go in opposite direction. Doing this job myself, I solved this problem by shoving another piece of semi-flexible wire (about 20" long) up through the bolt holes. With a small loop at the end to this piece, I was able to snag it when I saw it near the hole I had drilled. I then ran the end of the fish wire through the loop of the second "fish wire", bent it back onto itself to form another loop. For added security I taped both loop ends securely so I wouldn't loose the fish wire inside the frame channel, and pulled both wires out the bolt holes. Worked great! One other small note, just before you do the final tightening of the four hitch bolts, screw the two heat shield bolts through the hitch and into the frame. Now tighten and torque the hitch bolts. You can now remove the two heat shield bolts and install the heat shield. The alignment of the predrilled holes in the hitch were not exactly dead on and this step will prevent some frustration and spewing of expletives when trying to install the heat shield. 108312






- 87568

ratingratingratingratingrating by: Bob P04/03/2014


The hitch fits the Subaru Outback (2014) perfectly, and it does not stick out beyond the bumper, which is good. I would mention three things. First, it IS possible to perform a 1-man installation, fairly easily, if you have a car jack. As shown in the picture, put a bucket with a cover on the car jack and raise the hitch up. Use 2x4 scraps or anything else you have to push the rails up exactly where you want them, attach the washers and nuts, and you're done. Second, pay close attention to the backing plates for the carriage bolts. The shorter one MUST go in the rear hole and the longer one MUST go in the forward hole. Otherwise the plate in the forward hole (which is too short) will spin and you won't be able to tighten the nut. Then, everything has to come out and you start over. Bad karma. Third, to drill the 1 1/8 inch holes through the frame, go to Harbor freight Tools, or to a good hardware store and buy a step drill as shown in the picture. It will cut through the frame like butter, and cut exactly the right size hole in seconds 123592






- 87568

ratingratingratingratingrating by: Suman C.02/01/2014


etrailer is amazing. I ordered on a Saturday night late in West coast timezone and within a hour my order was processed and a shipping label was created. Daniel upgraded my order to 3-5 business days shipping at no additional cost and it arrived promptly. No damage to the box or the hitch. Followed all the great reviews here and took the trunk approach. Removed the muffler completely is the way to go. Widened the holes in the trunk and once the screws are snaked in, rest of the installation was easy. I used two jacks to lift the hitch in place and it made it was so much easier. With the help of my 13 year old son, we were able to finish the installation in under 2 hours. Now it's time to shop for a good bike rack to hold our 4 bikes :-) 115425






- 87568

ratingratingratingratingrating by: Henry Taber01/24/2011


Wow, this is a hard review...because everything fit up perfectly and went together exactly like the online video. I was amazed how easy it was. Took my nephew, who had never installed a hitch before, about 30 minutes for the hitch itself and about 20 minutes installing the wiring. Since the Outback had less than 500 miles on it he didn't want to break any interior plastic. I'm in a wheelchair and was getting the hitch to install a chair carrier platform on the back. It took longer to put the carrier together than install the hitch. 6029






- 87568

ratingratingratingratingrating by: Thurman K.09/16/2013


The hitch appears to be of high quality. It is heavy-gauge and the finish looks like it will withstand the weather for a long time. It came well packaged, and with all the hardware securely attached to the hitch itself -- not just loose in the box -- very nice. Installation went almost as smoothly as in the video :-/ After getting past 1. Deciding it was OK to drill two big holes in my new car, and 2. Actually drilling two big holes in my new car, the installation went pretty smoothly. The toughest part after the hole drilling, since I did it in my driveway, without benefit of a lift, was wrestling the hitch into position and getting the first two nuts threaded on. I used a floor jack to help me get the hitch in position. In hind sight, I should have cut a wooden bar of about 2 x 2 inches, and stuck it through the receiver out the front side so the jack could lift the hitch at its center of gravity, then I could have jacked it straight up into position. A nice addition to the kit would be two plastic plugs to use to fill the access holes. I used some spray-on undercoating to protect the drilled edges. 100094






- 87568

ratingratingratingratingrating by: Jason H08/12/2012


The Hidden Hitch installed easily onto my 2011 Subaru Outback and looks great. Everything came in the box ready to install. I suggest taking off the back bumper to gain access to the frame rails to avoid drilling an access hole in the frame rail, the same as the OEM hitch installation. It only added approx 45 mins to my install. I preferred the 2" receiver over the OEM 1 1/4" because it allows for a much broader range of accessories. I have a 4x8 utility trailer and a cargo tray that will get some great use with this hitch. 51464






- 87568

ratingratingratingratingrating by: Colin04/02/2013


I couldn't be happier with the hitch and the ease of installation. I read over the reviews and honestly, almost every review helped, and of course the video was very well done. For those who are little tweaked, I chose to mount the hitch without drilling a hole. All you need to do is remove styrofoam compartments in the truck section, locate the 4 black adhesive caps and remove. The forward holes, one left, one right, now need to be reemed out to a little over an inch. Using an round one inch rock grinding bit I enlarged each hole, took about 30 seconds for both holes. Next, using about 18 inches of somewhat medium gauge wire I went from the bottom mounting hole, underneath the car, to the access hole I earlier made larger. From there I taped the medium gauge wire to the fish wire with tape and proceeded to pull down the mounting spacer and carriage bolt. Without drilling a hole the hitch was mounted. The customer support was excellent, I don't do reviews, but felt compelled to do so after being treated with great service and a quality product. Patrick is a very good employee! 73900






- 87568

ratingratingratingratingrating by: PvO05/10/2014


Great product, well designed, good not be easier to install. I am very handy but was intimidated by the prospect of this installation. You should not hesitate to install your own trailer hitch. Less than an hour of working time, I over thought the process so spent another hour preparing to make sure I did not make any mistakes. Wiring harness I bought was also very simple to install (less than 10 minutes). A few simple do's and don'ts based on my experience: Don't: - remove the bumper - remove the exhaust - not necessary, just lower it using a strap to hold it and prevent damage, I had plenty of working space - drill holes from the bottom Do: - enlarge the already existing holes from the trunk area - VERY easy to install this way - drill a hole in the heat shield to fit over the bolt, no need to trim the entire corner - get some help to lift the hitch into place - watch some of the excellent install videos on the website, I watched a few from different years and they offered slightly different tips that were very helpful. 129895






- 87568

ratingratingratingratingrating by: Stephanie C.06/25/2014


Product arrived very promptly, but ends of hitch had torn through the cardboard box and paint was scraped, as other reviewers have also noted. Touched it up with some black Rustoleum. DH went with the "bumper removal method" of installation to avoid adding extra holes to my Outback. This probably doubled the installation time! Total installation time about 5 hours, including a trip to the hardware store to replace a broken bolt-head (his fault - forgot to reinsert washer). Instructions that came with hitch did not include torque needed to tighten bolts - we were able to find that online elsewhere. Installation of the hitch itself went very easily except it was quite heavy to lift into place and get the nuts onto the bolts - I cannot imagine how one person could do this alone. Definitely a 2-person job at our house. Did not need to jack up the car - there was plenty of clearance under the Outback for an average-sized person. Once attached, it seems rock solid! Can't wait to load up our bike rack and go on vacation. 137578






- 87568

ratingratingratingratingrating by: Paul03/19/2013


Rack went on very well to my 2013 Subaru outback (4 cylinder). I recommend taking the muffler off (vs. lowering) and reattaching after the hitch is applied. Took me about 90 minutes. If you can read and operate a drill you can install this rack. Outback has enough clearance to just lie underneath and work right there. Pictures taken with the Kuat NV bike rack attached ... another excellent product. 71530






- 87568

ratingratingratingratingrating by: Benny T.01/05/2014


Excellent fit on my 2014 Subaru Outback. I did not drill a hole underneath because the 2014 Outback has 4 observation holes in the trunk directly above the hits mounting holes covered with tape. All I need to do was enlarge them to insert the rectangular washer. Also instead of cutting the heat sheild I just drilled a hole where the bolt needs to pass..Easy installation. Took me less than 45 minutes. 111961






- 87568

ratingratingratingratingrating by: Paul H.03/30/2012


Easy to install providing you have some sort of mechanical knowledge . I did as another fellow did , I drilled my holes from inside the trunk area , as there was pilot holes already in place from the factory ! Much easier to install the plates/bolts this way , as they drop straight down , and at the same time , it keeps the frame rails sturdy . I didn't like the idea of weaking my frame rails , by drilling such a large hole in that area , and at the same token , allowing water to eventually rust the frame , even if a sealer is used . And last of all , be sure you have a second person to help align the hitch , when installing the nuts , washers and spacers . Unfortunately , Subaru only recomends a 200lb. tounge wieght , which to me is unexceptable and in turn limits me in what I'm able to tow . Just be sure you weigh your load before towing it ! 35607





Comments

thanks for the tip about drilling the holes from inside the trunk area.I agree with your reasoning on this. tc

comment by: Tom Crane - 05/23/2013


1539

We have seen a lot of people having success with this method.

Patrick B - 5/24/2013




- 87568

ratingratingratingratingrating by: Todd H02/06/2014


Etrailer.com was the perfect site for me. I am an research junkie and I was able to select the best hitch for my 2012 Subaru Outback using all of the tools available (customer reviews, installation videos, photos, Q&A, etc.) The hitch was delivered in 2 days in great condition. Installation took me about 1:30. I could not get the muffler bolts to move and didn't want to risk breaking anything, so I lowered the muffler assembly. That added a little time. I elected the top down installation that others customers suggested and found that to be pretty easy. The one thing I would add is that most DIY customer reviews overlooked torquing the bolts to specification. I would highly recommend purchasing a torque wrench ($25-30) at your local hardware store and doing so. I suspect the etrailer.com techs would say this is a must do for good reason. Not only would I use etrailer.com again, I just upgraded my bicycle rack to a platform style. 115874






- 87568

ratingratingratingratingrating by: marsh25103/21/2014


Installation was on my new 2014 Subaru Outback Limited 2.5. Received Hitch and wiring lighting quick. Installation took about 2 hours (mainly because I would stop and check out the NCAA tournament). Used technique posted by others who posted on this site. I did the installation solo. Used a step bit and enlarged holes already provided by Subaru. Removed muffler completely. Drilled hole using my step bit, in heat shield rather than cut out (gives it a more finished appearance). One thing I did that helped considerably since it was a solo install. I have a floor jack and I clamped the hitch in the mouth of the receiver with vice grips to the lift platform of the floor jack. I just rolled the hitch under the bolts, threaded the wire attached to the bolts through the hardware, jacked the hitch up slowly until bolts came through the hitch holes and secured and torqued the nuts. Highly recommend this hitch. Will use e-trailer again. 121595






- 87568

ratingratingratingratingrating by: Rick O11/19/2012


The hitch arrived on schedule and the install was pretty easy. Thanks to the suggestions of other customers I widened the observation holes from inside the car rather than drilling new holes in the frame. I also pulled the muffler rather than mess with holding it up with a strap. I propped the hitch into place using a couple of 2x4s so an extra set of hands were not needed. The only issue I had was that the nuts supplied in the package were 3/8 and the carriage bolts were 7/16. I spent a little too much time trying to get the too small nuts on, thinking that I was just not coordinated enough. I finally pulled one of the bolts back out and verified that the nuts were the wrong size. I made a quick trip down to Ace and got the correct size nuts. All went well after that. The video instructions, the correspondence and the quick turn around on the order were all excellent but I have to give 4/5 for the wrong size nuts. 59704






- 87568

ratingratingratingratingrating by: Joe D10/28/2013


I ordered the hitch on a Tuesday and received it Thursday, and this was with the free shipping. I had watched a couple of installation videos at etrailer before ordering. They convinced me the project was doable. The instructions that came with the hitch were accurate and all parts were included. The Subaru has just enough ground clearance that I was able to install the hitch myself with the car sitting in the carport. A few tips: -Safety glasses or face shield for the drilling. Long sleeved shirt will keep hot chips off of your arm too. -If you're scooting around on the floor as I was, make sure to slide out and sweep up the chips after drilling. -Remove the rear-most rubber muffler hanger before mounting the hitch. The clearance hole in the hitch is large enough for the hanger post but not the rubber. Based on my experience, I highly recommend etrailer. I will be purchasing from them again. 105378






- 87568

ratingratingratingratingrating by: Bob A.08/18/2012


The hitch arrived 2 or 3 days after I ordered it, not bad for free shipping. Installation took a leisurely hour and a half, including set up and clean up. The video gave me all the information I needed to install this solo on my 2013 Outback. The only thing I did different was instead of drilling 1 1/8 inch holes into the frame from the bottom, I enlarged a couple of access holes which already exist in the top, which can be accessed from the trunk. This was a piece of cake and feeding the hardware through these 2 enlarged holes was easy. I didn't jack up the car and I don't think jacking it up would have made the project any easier. Just make sure the exhaust has cooled down before starting the install. My only complaint about the hitch itself is that it had a lot of patches where paint had chipped off, or had never been applied. I sprayed some black rust inhibitor on those patches. 52195






- 87568

ratingratingratingratingrating by: Brian E06/11/2012


Hitch is great. It was pretty easy to install. There was a little persuading needed to have the bolt holes line up as the mounting bracket ends seemed to be bent toward the center on both sides. I used the interior inspection holes and drilled them larger to install the blocks and bolts instead of drilling holes from the bottom exposed to the weather. I did the job myself, using a jack to help raise the hitch in place to bolt it up. I really recommend following the instructions provided by having someone else help you lift it in place. I think it would have been much easier. The hitch looks good and is tucked under the bumper, unlike the knee/ shin grabbing factory hitch for the Subaru Outback. 43629






- 87568

ratingratingratingratingrating by: J B04/11/2014


MY Hidden Hitch for my '14 Outback was a great price, arrived promptly, fit perfectly and installed easily (I used the method where you make your holes to install the bolts from inside the spare tire area). Took me about an hour and a half from start to finish, with a extra pair of hands needed only to help me actually bolt it up. Only knock I can think of is that I can see why some people report that their trailer hitches arrived hanging half out of their boxes, as my box had a softball size hole in it where one corner of the hitch had torn through in shipping. eTrailer should definitely work on improving their packing dept's procedures to ensure that the boxes contents (ie: heavy steel items with serious corners) can NOT shift around and so easily punch through their boxes. A few pieces of cheap pallet wood, or thick cardboard zip tied to the hitch would go a long way toward that goal. 124640






- 87568

ratingratingratingratingrating by: Spencer W.08/08/2014


Excellent product, and quick shipping. LOVE how the hitch is hidden and you won't bang your shins on it. I drilled the holes using a step drill bit on the top side (inside spare compartment), and installed the trailer lighting harness at the same time. I used extra wire from the bottom to feed up and attach to the fish wires, then pulled them all the way through - took about 10 minutes total to get all the bolts/plates in place. Used same step drill to drill hole into the heat shield. Used my chest to rest the hitch on, and attached one nut at a time. Total install took about 2 hours and 15 minutes from beginning to end, with clean-up. Works perfectly with a trailer, and an Allen hitch-mount bike rack. Was going to purchase a competitor's "no drill" version, but price, style, and quality got me to buy this instead. VERY HAPPY with Hidden hitch, and eTrailer! 145111






- 87568

ratingratingratingratingrating by: Terry in Golden04/05/2012


Excellent service and excellent product. The hitch fit perfectly and the installation video was spot on. My Subaru dealer wanted almost $900.00 for the hitch and installation. They were going to charge for 3.5 hours of labor at around $100.00 per hour. It took me 1.5 hours to do it my self with your very helpfull video. Two key things I learned were use plenty of WD-40 to help with the exhaust system mounts, and I used my roller floor jack in conjunction with a ball mount to hold the hitch in place when I bolted it on. I would have taken more pictures, but it went too fast and too easy. Thank you for the great product and service. Terry 36218






- 87568

ratingratingratingratingrating by: Drayer1012/30/2013


This fits a 2014 Outback perfect. Do not hesitate if you are considering this hitch. The 2014 Outback actually has 4-1/2" holes in the frame directly above the 4 hitch mounting holes. They are covered with a round black piece of tape. I just drilled these out with a step bit big enough to allow the rectangular washer slip through. The advantage in doing so is your helper can push straight down on the bolt head when your underneath bench pressing, aligning washers and turning nuts. Simply tape over the enlarged holes when finished. Excellent fit and finish and highly recommended. Trailer connector 118467 also perfect fit and finish. 111487






- 87568

ratingratingratingratingrating by: Mike B08/27/2012


Everything was great. A couple things to note: The box arrived with a MASSIVE hole in the side. Good thing all the small bits are shrink-wrapped to the hitch. The e-coating had rubbed through in several spots. I took care of that with a little chassis black spray paint the day before installation. The written instructions for the wiring harness leave A LOT to be desired. There are many pieces of interior trim that need to come off and it would be handy to know where the attachment points are when taking these off. But we figured it out. By the way there is no way this will only take an hour to install. I went fast and was prepared before I started and it took 2 hours from beginning to end. This is my second hitch from etrailer. Super fast shipping and great customer service. I recommend them to all my friends and family. 53147






- 87568

ratingratingratingratingrating by: penoby06/30/2013


Quick delivery! Made my bolt access through the interior as suggested by other reviews.Great idea! An electrical knockout stepped bit works well for holes. Sabre saw or hole saw would also work. My wife operated floor jack with a block of wood on it to lift the hitch, while I positioned and bolted it in place. 86787





Comments

Good hitch. Would buy again.

roland leclerc - 06/30/2014

5225



- 87568

ratingratingratingratingrating by: Tom06/11/2013


I mounted my new trailer hitch on my Subaru Outback '12 today. I made the installation from above in the trunk rather than below. I've attached a few photos to illustrate this approach. It's a great product and it fits beautifully. 84020






- 87568

ratingratingratingratingrating by: Christopher W.07/09/2014


Product Review:Ordering from etrailer.com was great. Customer response from email was quick. The Hidden Hitch, Ball Mount Kit and the T-one Vehicle Wiring Harness all arrived within a few days. Installing the wiring harness was an easy plug in. The ball mounts are great, ready for any trailer tongue height. The hitch receiver did require an extra set of hands but everything lined up perfectly making installation easier. 140219






- 87568

ratingratingratingratingrating by: Hugh V.10/03/2011


Quick shipping. Had the hitch installed about an hour and a half after UPS dropped it off. Only issue was the width between the uprights was off a little and it took some prying to get the holes to line up. Suggest you measure the width before lifting up against frame. I had to spread it about 3/4" to get it to line up. From the look of the box it arrived in the problem may have been caused in transit. There were good sized holes in the box at both ends. It really looks nice on the Outback and is really tucked up and out of the way. I am very satisfied with the hitch and the service from eTrailer. 24996






- 87568

ratingratingratingratingrating by: Eric M.04/09/2012


The hitch shipped and arrived promptly. I don't have a lift, but I put my Outback up on car ramps and instllalled the hitch that way. I had it installed in under 3 hours. I am very satified, and my wife is excited to be able to haul her bike! 36584





Comments

I have a 2011 Outback. Thanks for the picture with the bike rack. I plan on doing the same thing. Do you find the hitch sturdy enough for the rack 2 bikes and enough clearance between the bumper and the point on the rack? May I ask what type of rack you have? Were going from roof mount to hitch mount. Not getting any younger.Thank you,Joe

comment by: Joe - 05/20/2013


1522

A 2 inch hitch on an Outback will be quite robust and have no problems supporting a bike rack and 2 bikes, provided they fall within weight capacities. That particular rack looks to be a Yakima BigHorn 4, part Y02404. You can check out some other bike racks and many of them will have links to videos of test-fits on various vehicles. We have had several 2010-2012 Outbacks come through and tested.

Patrick B - 5/20/2013




- 87568

ratingratingratingratingrating by: BC05/12/2012


just installed HH on my 2012 3.6R Outback LTD. I choose to use the access holes in the cargo area and enlarge them with a step drill. I removed the mufflers and the rest was fairly easy. The supplied wires are just the right length without any excess so I added some wire to them (needed for the holes further away from the access hole). I did the install on the ground and used a tool box to support one side of the hitch while I fastened the other side. I used the step drill to make holes in the heat shields instead of cutting the shield. Looks great. Just take your time and don't rush. I also added the wiring kit just in case . The hitch will mainly be used for a bike rack. This is the second HH I have installed The other is on my wife's 07 CRV. That install took 30mins. 40212






- 87568

ratingratingratingratingrating by: Becky & Read08/20/2011


The hitch came quickly and as described. With the help of the video we were able to install the hitch on the Subaru under a shade tree. It' summer in southern Mississippi and the temperature quickly goes to 90 in the middle of the day. We didn't have a 1 1/8 hole drill so we had to use a step drill instead. This worked fine, just took a little longer. Safety glasses are a must since there are lots of metal filings flying around while drilling. All holes lined up and the fish wires worked perfectly once you understand how they work. A little trouble getting the rubber hangers back on the muffler, just needed a little more leverage. I did most of the work under the car and my husband was the assistant. Can't wait to hitch up the camper and head to where its cool! 22345






- 87568

ratingratingratingratingrating by: Bob J03/11/2014


I bought the Hidden Hitch Trailer Receiver with electrical harness and ball mount. It was all very easy to order using the step by step method on etrailer's web site. I have a 2010 Subaru Outback and it took about 20 seconds to figure out what I needed. I wanted a hitch that I wouldn't be hitting with my chins everyday and etrailer had it. I haven't installed it yet, but it looks easy, and the videos etrailer supplies will answer any of my questions. I've ordered from etrailer before and have always received the right parts in just a few days....and the parts are always of the highest quality in my opinion. Their free shipping is another amazing service they supply. I am completely satisfied with the products and service I receive from etrailer. 120248






- 87568

ratingratingratingratingrating by: Steve C.05/16/2014


Online ordering was a cinch and shipping was lightning fast. I had my usual mechanic install it for me for $135 which was well worth the expense. It looks great and is barely noticeable. I am only going to use it for my bike rack and possibly a cargo carrier. Will definitely get the cargo carrier from etrailer. I am a highly satisfied customer. 131008






- 87568

ratingratingratingratingrating by: Brian D.10/09/2012


I purchased my hitch from Etrailer.com for a 2012 Subaru Outback. I was completely happy with the hitch, and impressed with the speed of the free delivery. The installation was done for me, by a local shop, and took less than twenty minutes. The shop owner noted that all of the parts were included and no additional pieces were needed. The hitch is well placed and is hardly visible. I have included a picture of the car, hitch, and new bike rack (with bikes). I will highly recommend Etrailer.com to anyone looking to buy a hitch. 56805






- 87568

ratingratingratingratingrating by: Scot03/04/2013


Followed the video and instructions and installation was straight forward. I used an extra set of hands while holding it in place to first attach the washers and nuts and one rubber connector for the exhaust system was tougher to get back on because of the tight space, but persistence and patience got it done. I widened the forward observation holes in the trunk with a dremel to drop in the plates and bolts. I used black rust paint to protect the edges and duct tape to cover the holes to keep and exhaust out. The hitch came a little dinged up with some of the paint on the corners chipped off (no box, just the address and parts bag shrink wrapped to it). I painted it, but expected it to come in a little better condition. 68704




83
274
Show More Reviews

Ask the Experts about this Hidden Hitch Trailer Hitch
Expert Answers about Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 87568Do you have a question about this Trailer Hitch?


  • Draw-Tite # 75673 Class III Receiver Hitch Versus Hidden Hitch # 87568 for 2012 Subaru Outback Wagon
  • Hidden Hitch and Draw-Tite are sister companies. The Hidden Hitch # 87568 and Draw-Tite # 75673 hitches share identical design and weight capacity. They would install in the same manner using identical instructions and would both have the same 7 inch distance between the receiver hitch pin hole and the furthest rearward portion of the rear bumper when installed on a 2011 model Subaru Outback Wagon. Although the hitch will attach to the vehicle using existing holes in the frame, a 1-1/8...
    view full answer...

  • Compatibility of Thule # TH956 Parkway Bike Rack and Hidden Hitch # 87568 on a 2011 Subaru Outback
  • Yes, the Thule Parkway 4 Bike rack, # TH956, will work great with the Hidden Hitch Class III Trailer Hitch, # 87568 on your 2011 Subaru Outback. We installed this hitch on a 2011 Outback, see video, and measured the distance from center of hitch pin hole to the farthest back part of the rear bumper and the measurement is 7 inches, see photo link. The distance from center of hitch pin hole to the upright bar on the Thule # Th956 bike rack is 9-1/2 inches so it will work great on your...
    view full answer...

  • Bike Rack Recommendation for a 2013 Subaru Outback Wagon with Trailer Hitch 87568 Installed
  • On a Subaru Outback Wagon we installed trailer hitch # 87568 on, it measured 5-3/4 inches from the center of the hitch pin hole to the back of the rear bumper. This was on a 2012 model and this measurement should be taken after the hitch is installed on the vehicle. After you have the measurement for your specific vehicle you will then know what bike racks will fit. The Kuat Sherpa, # S101 or # S102, measures 5-5/16 inches when folded so the measurement you come up with will need to...
    view full answer...

  • Is Bumper/FasciaTrimming Required to Install Trailer Hitch # 87568 on a 2010 Subaru Outback Wagon
  • To install the Hidden Hitch Trailer Hitch, # 87568, you will not have to trim or cut out a hole in the rear bumper or fascia on your 2010 Subaru Outback Wagon. There is some minor heat shield trimming required, however. I have included a link to the installation instructions below that shows where the trimming will occur. If you plan to tow with this hitch, I recommend adding etrailer Ball Mount Kit # 989900 and Tow Ready Custom Fit Vehicle Wiring, part # 118467. This wiring plugs in...
    view full answer...

  • Hitch Recommendation for Towing A Pop-Up Camper with a 2011 Subaru Outback
  • A 2 inch hitch will be able to handle more weight and be compatible with more hitch accessory applications, like bike racks or hitch cargo carriers. If you can order the vehicle without the factory hitch, it would be a better option for you. For your 2011 Subaru Outback V6, I would recommend the Hidden Hitch Class III 2 Inch Hitch, part # 87568. This hitch has a towing weight capacity 0f 4,000 lbs. and a tongue weight capacity of 400 lbs. It will not allow the use of weight distribution. There...
    view full answer...

  • Drilling Holes to Install the Hidden Hitch Trailer Hitch # 87568 on a 2010 Subaru Outback Wagon
  • When installing the Hidden Hitch Trailer Hitch, # 87568, on a 2010 Subaru Outback, you will want to drill the new access holes to fishwire the bolts through as specified in the instructions, linked for reference. Enlarging holes on the frame or hitch is not advisable because the hitch will be relying more on the square block rather than the frame of the vehicle and that could cause failure.
    view full answer...

  • Which Trailer Hitch Receiver Will Have the Most Ground Clearance For 2011 Subaru Outback
  • Each hitch is positioned to sit tucked up and close to the bumper as you can see on the product page pictures. All of the hitch receivers available for the 2011 Subaru Outback will sit in the same general position with ground clearance varying slightly from each hitch. For example, from the ground to the top of the receiver on the Hidden Hitch Trailer Hitch, part # 87568, measures 14-1/2 inches. So you would have approximately 12-1/2 inches from the ground to the bottom of the receiver,...
    view full answer...

  • Why Is Hidden Hitch # 87568 Not Recommended For Weight Distribution On A 2011 Subaru Outback
  • The Hidden Hitch Class III 2 Inch Hitch, part # 87568, for your 2011 Subaru Outback is only a weight carrying hitch. It is not designed to be used with a weight distribution system. To be rated as a weight distribution hitch the hitch would need to be rated for a much higher gross towing weight than 4,000 lbs. and the # 87568 hitch is not designed to handle that amount of weight. Also, the vehicles (Legacy,Outback Wagon) that the # 87568 hitch is designed for are not designed to handle...
    view full answer...

  • Will Hidden Hitch Class III Hitch # 87568 Fit the 2014 Subaru Outback Wagon 2.5i Limited
  • The Hidden Hitch Class III Trailer Hitch # 87568 will indeed fit your 2014 Subaru Outback Wagon as long as it is not the Sport Edition. This particular 2-inch hitch offers a substantial 600-lb tongue weight rating and a 4000-lb towing capacity. Please note this hitch is not rated for use with the weight-distribution systems often employed for larger trailers. The hitch includes all required mounting hardware for bolt-on installation; the linked video shows the installation process. Some...
    view full answer...

  • Trailer Hitch and Roof Mount Cargo Box Recommendations for a 2011 Subaru Outback
  • While I am not certain how much additional clearance you will need to fully open the hatch on your 2011 Subaru Outback, I can tell you that the Thule Atlantis 1800, # TH687BXT, is 6-1/2 inches shorter than the 2100. So, the rear hatch should be able to open that much further. The next step down, the 1600, # TH686XT, is 18-1/2 inches shorter. If your factory crossbars are adjustable forward, that could offer some additional clearance, but an adapter is not available for this application. For...
    view full answer...

  • Will Trailer Hitch # 87568 Fit a 2011 Subaru Legacy or Outback with Factory Dual Exhaust
  • I spoke with my contact at Hidden Hitch and he stated that trailer hitch # 87568 will fit the 2011 Subaru Wagon (except Sport) and All Legacy models. This would include dual exhaust models. There is some heat shield modification that will need to be done so the trailer hitch will fit properly. I have included a link to the installation instructions for reference and a video showing installation on a similar model. For the 2011 Subaru Outback (except Sport), you can use Tow Ready Custom...
    view full answer...

  • Using Class III Receiver on 2011 Subaru Outback for a Snow Plow
  • When considering a hitch mounted accessory such as a snow plow, the tongue weight capacity of the vehicle/ hitch needs to be taken into account. The tongue weight capacity is the maximum amount of weight that can be suspended from the receiver without damaging the hitch or the vehicle. We typically calculate tongue weight capacity as 10 percent of the maximum towing capacity of the vehicle, which would give us 240 lbs in the case of your Outback. (I would recommend confirming this by checking...
    view full answer...

  • Trailer Hitch Mounted Bike Rack Recommendation for a 2011 Subaru Outback
  • When installed on your 2011 Subaru Outback, there will be approximately 7 inches from the center of the hitch pin hole out to the rear edge of the bumper. The Tow Ready 4 Bike Hitch Mounted Folding Rack, # 63124, measures 8 inches from hitch pin hole center to the back of the up right bar, and tilts down at about a 45 degree angle. This should be enough for you to be able to open the rear hatch on the vehicle. Even though there is an inch of clearance between the bike rack and vehicle,...
    view full answer...

  • Will a Yakima Swingdaddy Work on a 2011 Subaru Outback with a Hidden Hitch # 87568
  • Yes, the Yakima SwingDaddy 4 Bike Swing Away Rack # Y02464 will work on the Hidden Hitch Trailer Hitch, part # 87568 for your 2011 Subaru Outback Wagon. The # Y02464 is designed for hitches with 2 inch openings, and the # 87568 has a 2 inch opening so it will work perfectly for you. I attached installation instructions for both products as well for you to check out. If you plan on carrying womens or childrens bicycles you might be interested in purchasing a Yakima Tube Top Bike...
    view full answer...

  • Will the Thule Doubletrack Bike Rack # TH990XT Fit on a 2011 Subaru Outback and How to Install Bikes
  • Yes, the Thule Doubletrack Bike Rack, # TH990XT, should work nicely on your 2011 Subaru Outback. We installed the Hidden Hitch Trailer Hitch, # 87568, on a 2011 Outback and measured the distance from the center of the hitch pin hole to the farthest part of the rear bumper, see end of video, and got 7 inches. The Doubletrack rack measures 7-1/2 inches, see attached photo, to the closest part of the rack, so you will need to take that measurement on the hitch that is installed on your Outback....
    view full answer...

  • Installation of Hidden Hitch Trailer Hitch # 87568 on a 2013 Subaru Outback Wagon
  • First, since the vehicle was in an accident, the installer will need to make sure the frame has not been damaged before installing the hitch. They will most likely do this any way but just make sure that they do. The hitch cannot be installed and used if the frame is damaged at all. Drilling that hole instead of trimming the heat shield has not been the tested method of installation so I would say it is better to follow the manufacturer hitch instructions. Drilling a hole could work...
    view full answer...

  • Will The Hidden Hitch Class III Hitch, # 87568, Fit A 2011 Subaru Outback
  • The Hidden Hitch Class III Hitch, # 87568, will fit a 2011 Subaru Outback Wagon, it will not fit the Sport model. The Curt Class III Hitch, # 13390, and the Curt Class II Hitch, # 12290, are also available for the 2011 Subaru Outback. These hitches will not work on the Sport model. See instructions to the right. The Curt Class III Hitch, # 13390, is a Class III hitch rated at 3,500 lbs. gross trailer weight and 350 lbs. tongue weight capacity. It is a 2 inch receiver. See instructions...
    view full answer...

  • Compatibility of Thule T2 Part # TH916XTR with 2011 Subaru Outback
  • The Thule T2 platform-style bike rack, part # TH916XTR would work well with your Outback using the hitch you referenced, however there would be insufficient clearance to fold the rack into the upright storage position. When the rack is folded into its carrying position, the closest portion of the bike would be approximately 19 inches rearward of the hitch pin hole in your receiver. There should be sufficient clearance for the rear hatch to clear the bicycles when the rack is folded downward.
    view full answer...

  • Location of Hidden Hitch Class III 2 Inch Hitch # 87568 on a 2011 Subaru Outback Wagon
  • The Outback Sport is referring to the Subaru Impreza model that is called the Outback Sport. The Hidden Hitch Class III 2 Inch Hitch, part # 87568, is visible underneath the rear fascia, but the receiver tube does not protrude from under the vehicle. When the factory hitch is installed the rear fascia is removed from the vehicle and mounted behind the fascia, but the receiver tube does stick out about 2 to 3 inches from the fascia. Because of safety issues I would NOT recommend to...
    view full answer...

  • Roof Rack Bike Rack, Hitch and 2 Bike Hitch Bike Rack For a 2012 Subaru Outback
  • Yes, the FrontLoader, # Y02103, will work on the factory crossbars on your 2012 Subaru Outback Wagon. This would be an excellent choice for safely and securely carrying bikes on your roof rack. We have a video installation on a Subaru Outback for you to check out, see link. For a 2 inch receiver hitch, I recommend going with the Hidden Hitch Trailer Hitch, # 87568. We have an installation video for you to review before the installation that should help, and I have attached the installation...
    view full answer...

  • Will the Swagman XTC4 Bike Rack Have Bumper Clearance When Folded on a 2011 Subaru Outback
  • To determine if the Swagman XTC4 Bike Rack will work on your vehicle when carrying bikes and folded on your 2011 Subaru Outback, the measurement from the center of the hitch pin hole to the farthest back portion of the rear bumper is needed. We installed the Hidden Hitch Trailer Hitch, # 87568, on a 2011 Outback and measured 7 inches from the center of the hitch pin hole to the farthest back part of the rear bumper, see video link. The XTC4 bike rack has 12-3/4 inches clearance from...
    view full answer...

  • Trailer Hitch and Custom Vehicle Wiring Recommendations for a 2010 Subaru Outback Wagon
  • While some of the capacities are pretty close, the bottom line is that on the Class III hitches available for your 2010 Subaru Outback Wagon have a higher tongue weight capacity, even if the gross trailer weight capacity on some is the same. As far as looks, on all of the available hitches, the tubes will be visible below the bumper fascia. I recommend going with the highest capacity hitch available because you never know what you might be towing or carrying in the future. The higher...
    view full answer...

  • Trailer Hitch, Ball Mount, and Trailer Hitch Ball Recommendations for a 2011 Subaru Outback
  • Yes, the 87568 hitch will carry over and fit the 2011 model Outback. The same applies for the Draw-Tite, part # 75673 hitch. We also have the Curt Trailer Hitch, # 13390. This is a Class III trailer hitch rated at 3,500 pounds of gross trailer weight and 350 pounds tongue weight capacity, and it has a 2 inch receiver. I have included a link to the installation details below for the hitches. If you plan on doing some towing with the hitch, I recommend the etrailer.com Ball Mount Kit,...
    view full answer...

  • Compatibility of Yakima HoldUp Bike Rack with Hidden Hitch Class III Receiver on 2011 Subaru Outback
  • While the Yakima Holdup will fit and work well with the Hidden Hitch Class III receiver, there will probably not be enough clearance between the receiver hitch pin hole and the furthest rearward point of the rear bumper for the rack to fold into the upward position. The hitch pin hole to end of bumper measurement on your Outback is approximately 7 inches, which is also how long the shank of the bike rack is once it is folded. The Kuat Sherpa, which is available in black chrome, part...
    view full answer...

  • Will Thule Boxter Premium Roof Rack Cargo, # TH611, Fit 2010 Subaru Outback
  • I contacted our representative at Thule and he informed me that the Thule Boxter - Premium Roof Rack Cargo Box, part # TH611, will fit your 2010 Subaru Outback. The Thule Boxter will be perfect for hauling skis, snowboards, and other equipment in non-winter months. Another good option from Thule would be the Thule Atlantis 1800 XT - Premium Roof Rack Cargo Box, part # TH687BXT, which is also designed for hauling skis and snowboards. He also informed me that all the newer model Subaru...
    view full answer...

  • Will Thule T2 Platform-Style 2 Bike Carrier, # TH916XTR Fold Up on a 2011 Subaru Outback Wagon
  • I can tell you that with the Hidden Hitch Trailer Hitch, # 87568 installed, it will measure 7 inches from the center of the hitch pin hole out to the distance required to clear the rear bumper on a wagon model of the 2011 Outback. On Curt Trailer Hitch, # 13390, it is potentially less at 4 inches (the measurement was taken on a 2010 model) so it would offer more clearance. On the Thule T2 Platform-Style 2 Bike Carrier, # TH916XTR, when in the down position, the rack measures 19 inches...
    view full answer...

  • Trailer Hitch and Bike Rack Recommendations for a 2011 Subaru Outback Wagon
  • If ever given the option between a smaller 1-1/4 inch hitch and a larger 2 inch hitch, I always recommend the 2 inch because it is more versatile, can handle more weight, and there are more accessory options. The most popular hitch that we carry for the 2011 Outback Wagon is # 87568. The 2 inch receiver is more cable of handling the 4 bikes. The rack you referenced, # TH9029 would be an excellent choice but there are several factors to consider. For example on hanging bike racks, If...
    view full answer...

  • Trailer Hitch Recommendations for a 2011 Subaru Outback Wagon
  • There are some Class II trailer hitches available for the 2010 Subaru Outback Wagon, but no Class I trailer hitches. A Class II trailer hitch still has a 1-1/4 inch receiver like a Class I, but you will have a higher capacity and more accessory options. If weight of the hitch is an issue, a Class III, # 87568, weighs less at 37 pounds, than a Class II, # 90208, at 39 pounds. Honestly, I would go with a Class III for several reasons. First, you never know what you may want to tow or...
    view full answer...

  • Will the Rola Platypus Roof Mount Cargo Bag Fit a 2011 Subaru Outback
  • Provided that your 2011 Subaru Outback has side rails that run front to back, crossbars that run side to side or both, you will be able to mount the Rola Platypus, # 59100, on the roof of your car. Loss of some gas mileage will most likely occur but will vary depending on how much the bag is filled, driving conditions, terrain, and driving style. However, on most vehicles, gas mileage loss may not even be all that noticeable but you can still expect some loss. Another option is to...
    view full answer...


Subaru Outback Wagon Accessories




Weight Carrying Capacity
Gross Towing Weight (GTW):
4,000 lbs.

Tongue Weight (TW):
600 lbs.


Weight Distribution Capacity
Hitch does not allow
use of weight distribution


Trailer Hitch Installation Instructions 87568 Installation instructions 87568 Installation Instructions

Tech Tip
Drilling required for installation,Exhaust must be temporarily lowered for installation,Minor heat shield modification may be required,

Manufacturer Estimated Installation Time



Recommended Wiring:
Hidden Hitch 118467
118467

Most Popular Ball Mount:
Hidden Hitch 2923
2923


1-7/8" hitch ball - 19260


2" hitch ball - 63845


2-5/16" hitch ball - 63847


If you have any questions you can contact our customer service department.

Info for this part was:


Test Fit:
Joe V

Photos by:
Theodore B

Expert Research:
Michael L

Video Edited:
Zack K

Expert Research:
Sarah L

Video by:
Andrew K

Written by:
Lindsey S

Expert Research:
Patrick B

Expert Research:
Michael H

Expert Research:
Jeff D

Expert Research:
Reno H

Expert Research:
Jameson C

Video Edited:
Joshua S

Test Fit:
Nicholas E

Expert Research:
John H

Updated by:
Adele M

Expert Research:
Adam R

Expert Research:
Rachael H

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




Stay Connected


Subscribe to email newsletter

Email

privacy - we don't send unsolicited email






etrailer.com reviewsetrailer.com reviews

All images, layout and content copyright etrailer.com
