Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Rating:
26 reviews
Code: 75282
Retail:$238.45
Price:$167.95
Shipping Weight: 38 pounds
Shipping SpecialFully welded Nissan Frontier trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.
Features:
Specs:
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

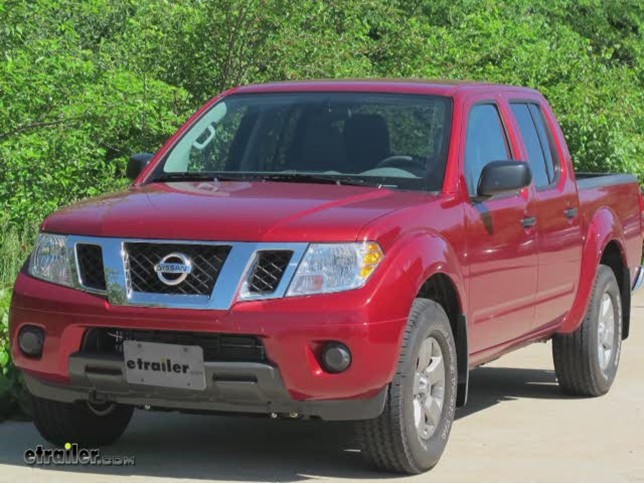

Today in our 2012 Nissan Frontier, we'll be installing the draw tight hitch part number 75282. This is what our hitch will look like once it's installed. Now we'll go ahead and give you a couple of measurements to assist you in selecting accessories for your new hitch. From the center of the hitch, pin hole to the out most edge of the bumper is 3-1/2 inches. From the top of the receiver, tube to the ground is 17-1/2 inches. This will assist you in selecting accessories such as a draw bar, a bike rack or a cargo carrier.
Now lets go ahead with the installation. We have a total of six attachment points. There will be weld nuts in the frame, three on the drivers side and three on the passengers side. Before we put our hitch in place will want to go ahead and clean out the weld nuts because over time theyll build up with rust, dirt and debris. To clean out the weld nuts, well be using a half inch nylon tooth brush, part number 814092 and spray lubricant.
Well go ahead and start with the rear most fasteners on the drivers side. Now once we have it cleaned out well go ahead and take one of a new bolt and thread it in just to make sure its going to go nice and easily. Now with that done well go ahead and repeat the same process with the other five attachment points. Each process we do hear on the drivers side is going to get repeated identically on the passengers side. Now with all six attachment points cleaned out we are ready to go ahead and put our hitch in place.
Well be using the new ten millimeter bolt, lock washer and flat washer. Now we are ready to put our hitch in place. Its good idea to get an extra set of hands to help you hold the hitch while you install your fasteners. Now with all our fasteners in place well go ahead and tighten them down. We once have all the fasteners tightened down we can go ahead and torque the specifications as indicated in the instructions.
With all of our fasteners torque to specifications, this is going to complete the install of our draw tight hitch part number 75282.
2005 Frontier by Nissan Owners Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 4.9 out of 5 stars (26 Customer Reviews)
by: Stewart06/03/2011
Is this review helpful?
Hitch arrived on the estimated day and it fit perfectly. A fully satisfied customer.16086
by: Mike M02/16/2011
Is this review helpful?
Shipping was great. Easy to install took about 45 minutes wiring harness worked like a dream. I highly recommend.7266
by: Jim F05/18/2013
Is this review helpful?
Purchased for a 2012 Nissan Frontier. The product arrived as scheduled and took only 20 minutes to install! Great product.80842
by: Ray05/14/2013
Is this review helpful?
Got it on time. Installed in only 30 minutes. Really simple. Great hitch, great company. Thanks.80222
by: Dan Feeney05/08/2013
Is this review helpful?
In general the product was easy to install, but only after I put a call into etrailer.com. When initially installing the trailer hitch receiver the bolt holes did not line up. Etrailer.com ended up needing to provide instructions for bending the mounting brackets out to get the holes to line up. Once the brackets were bend out the installation was simple and straight forward.79376
by: Joe04/05/2013
Is this review helpful?
Excellent product-Arrived on time, bolted right on. Fit and finish is excellent, I would definitely recommend this company and their products.74417
by: Carl H.03/21/2013
Is this review helpful?
I took my new hitch out of the box and had it installed in 20 minutes. It bolted right up with no problems whatsoever. I plan to use my new hitch to pull my pop-up camper. I can't wait to try it!71696
by: George D.10/17/2012
Is this review helpful?
Product shipped the next day. All of the parts were as ordered and the hitch took about as long to install as it took to get out of the packaging. A great product and fine service.57454
by: Pat Garcia09/21/2012
Is this review helpful?
Hitch fit like a glove & was very easy to install! Probably took longer to unpack it then to install it!55474
by: Srinath08/23/2012
Is this review helpful?
Just installed yesterday so none available but installation was very simple. It took longer to back up my truck and get my tools tan it did to install. 6 bolts into a frame with pre positioned weldnuts and i was done :-) 52713
by: Nicholson T06/22/2012
Is this review helpful?
FIT LIKE A GLOVE. I INSTALLED IT IN ABOUT 30 MINUTES BY MYSELF. DIDNT RUN INTO A SINGLE ISSUE WHILE INSTALLING IT. VERY WELL BUILT AND WILL PUT IT TO WORK THIS WEKEND WHEN I HOOK UP MY TRAILER TO THE TRUCK. 45189
by: Wendell E.06/17/2012
Is this review helpful?
Easy installation with a nice tucked up fit.44536
by: Bill Vincent04/25/2012
Is this review helpful?
From ordering to installation there were no problems at all. In fact, my tow hitch arrived sooner than expected. I certainly would do business with you again.38379
by: Karl K04/07/2012
Is this review helpful?
Free delivery only took a few days. Hitch did not line up quite right. Customer service provide explanation and strategies to line up the holes. The hitch was fully installed 20 minutes after I got off the phone with customer service. I have bought several hitches for etrailers and the service has been flawless each time. 36471
by: George S.03/14/2012
Is this review helpful?
Order received in 2 days. I had to gently flex one side in a bench vice to correctly align the holes. (This was a tech tip from CS, Thanks, worked perfect). Installed in 30 mins with extra hands provided by my wife. 33871
by: Ed C03/03/2012
Is this review helpful?
Didn't fit as well as advertised. Had to use a pry bar to get holes to align. This being said, looks like a factory receiver. Great finish. Very speedy delivery.33046
by: Gary09/09/2011
Is this review helpful?
I told my wife I could install this hitch and the wire harness in less then ten minutes! She did not believe this so when I walked back in the house after ten minutes, and said all done and tools put away, she had to come out and see! Great product very easy to install, I did it with no help just a jack to hold up the hitch!23707
by: Mark G.09/06/2011
Is this review helpful?
My 2008 Nissan Frontier. Turns out it didn’t have the trailer tow package but I was able to purchase the relay harness from my Nissan dealer. It also included the trailer wiring harness that not only fit the vehicle frame but connected perfectly with the mounting plate on the new hitch. Bought the DrawTite bolt on hitch kit. It had a slight bend on the passenger side which required me to use a small block of wood between the hitch and the rear bumper to prevent it from slipping while I used a light tug on a small crowbar to move the bracket into place directly over the mounting holes. Once I got the four corner bolts in it was a snap after that. I took these photos with the truck up on a pair of ramps while I was installing the tow package relays and the trailer wiring harness a few days after I installed the hitch. Photo 1: A rear view of the mounted hitch. Nice clean lines, doesn’t hang too low or stick out too far in back. A perfect fit! Photo 2: Another angle of the hitch. The receiver is in place while the rest of the hitch is barely visible below the chassis. Photo 3: From beneath. The reason I ordered the DrawTite hitch is the drawbar goes completely through the mounting brackets rather than simply welded to the sides. The six mounting bolts are snug up under the frame and the tab on the driver side is perfect for mounting the wiring harness/plug. Photo 4: The wiring harness that came with the tow package relay harness attaches directly to the drawbar perfectly. Rather than using the two 10mm hex head screw/bolts that came with the kit I attached the wiring bracket to the drawbar plate with two 7/16” x ½” coarse thread screws with washers and lock washers that I had on hand in the workshop.23623
by: Jack A08/04/2011
Is this review helpful?
2011 frontier metal hitch good fit easy to install wiring to be installed by friend Thanx for good service21087
by: kevin oneil07/24/2011
Is this review helpful?
Easily installed myself in 25 minutes. Purchased for towing a boat with mynew truck. Everything went so smooth with etrailer and products will definitelly use again and reccomend to all my friends. Thanks very much for a great purchasing experience.20136
by: Richard H.05/24/2011
Is this review helpful?
Installation was easy and quick...10 minutes tops! Looks great!15309
by: Joe G04/03/2011
Is this review helpful?
EXCELLENT, cannot believe how easy it was....I agree, the hardest part was taking it out of the box, i mean it was that easy to install less than 30 minutes....thank you so much10996
by: Gary P08/03/2010
Is this review helpful?
Super Product, Great Price Fit my Nissan Frontier Excellent. Very easy to install, Customer Service was a great help in finding the right hitch. I Highly Recommend these people. I called around price shopping, noone could beat them!!! 3317
by: Steve04/29/2010
Is this review helpful?
Easy to install, shipped fast I ordered this hitch on a tuesday morning, the following thursday it arrived. Very easy to install, just make sure you have someone help you hold it up to the frame while you screw in bolts. Also purchased wiring harness for 2008 frontier, perfect match and easy to set up. Highly recommended product.2979
by: Greg04/15/2008
Is this review helpful?
Recommended Easy install/ took less than 1/2 hr. Perfect fit on my Nissan Frontier. Priced right also. 767
by: Vuman02/08/2007
Is this review helpful?
Easy to install Fast Shipping Great product! Very easy to install! Perfect Fit Hitch & Wiring Harness!! 67
Ask the Experts about this Draw-Tite Trailer Hitch
Complete Towing Package
2005NissanFrontier
Tech Tip
Vehicles using the 33525 wiring may need to see a local Nissan dealer for a relay. The relay is needed to activate the tow package wiring circuit.No drilling required for installation
