installation instructions And specs For complete information.
Perfect for light-duty towing, this custom, Nissan Altima trailer hitch receiver features fully welded, gloss powder coated steel construction. Drawbar sold separately.
Note: All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from Curt.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Drilling required for installation , Requires temporary removal of muffler during installation , Heat shield must be permanently removed for hitch installation
Video of Curt Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"
installation instructions And specs For complete information.

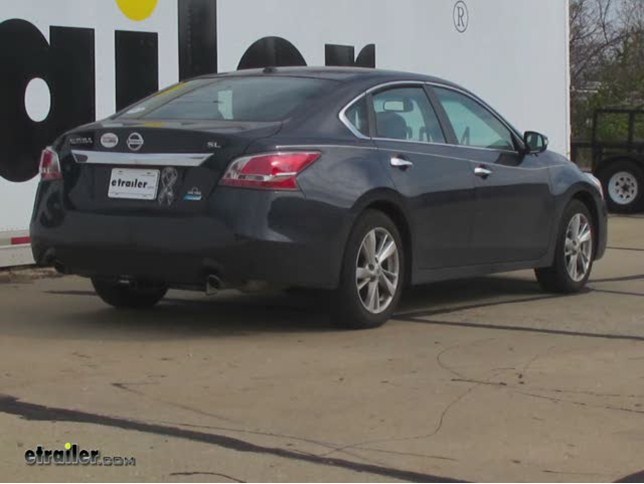

Today on our 2014 Nissan Altima we're going to be installing the CURT trailer hitch receiver, part number C11352. Now here's what our hitch looks like installed on our vehicle. Now we'll go ahead and give you a couple measurements in helping you choose some accessories for your hitch. From the center of the hitch pinhole to the outermost edge of the bumper is approximately 6-1/2". From the top of the opening in the receiver to the ground is approximately 10-3/4". Now before we begin our installation of our hitch let's go over the tools that we're going to use to do that. Now to speed things up you may see us an impact driver but you can get away with just using a standard ratchet wrench.
You're going to need a drill. You'll need a torque wrench. You'll need some drill bits as well. Either a hand file or a round file to go on your drill; it will speed things up with the round file. Now the sockets we're going to be using, we'll need a 15mm, a 3/4", a 10mm, 12mm.
Couple extensions will make things a little easier, but not necessary. Flathead screwdriver or a trim panel removal tool. That's all the tools you'll need to install your hitch. Now we're going to go ahead and begin our installation here underneath the vehicle. We're going to temporarily need to remove both of the mufflers as well as the tail pipe assembly area. Now we'll start over here on the passenger side.
We're going to need to take off this clamp right here. There's also a rubber hanger that's up on top of the muffler. Once we loosen up the clamp we'll be able to slide the muffler free from the rubber hanger. Go ahead and loosen up the nut here on the clamp. We'll then take the muffler, rocking it gently back and forth.
We'll need to release it from the exhaust pipe here and slide it out of the rubber hanger like this. Go ahead and set it aside for now. Now with our exhaust removed, next we're going to need to drill out these two rivets here on the heat shield: one here and one here. Now the heat shield will not be reinstalled. There's two attachment points for the passenger side. We'll be using this hole here, and this hole here. We'll be using a 1/2" carriage bolt, square hole spacer block, and a 1/2" flange nut. Now in order to get the carriage bolt and square hole spacer block into the vehicle's frame we'll be using the supplied bolt leader or pull wire to do that. This hole here we're going to need to enlarge using a drill bit or a file to make it large enough that the square hole spacer block as well as the carriage bolt can fit through it. We're going to go ahead and just use a drill bit and drill a hole right next to the existing hole. Next we're going to go ahead and use the file to finish opening up the hole. You can either just use a hand file like this or to speed things up a little bit we're going to use a round file attached to our drill. Now that we have our access hole opened up to allow the square hole spacer block and the carriage bolt to fit we're going to need to take the coiled end of the fish wire or bolt leader, go through the rearmost mounting location. We'll then pull it out the forward mounting location and access hole, put the square hole spacer block in place, and thread the carriage bolt on. We'll then push both back up into the frame of the vehicle, pulling them down into place. Now for the forward mounting location we'll be using the reverse pull method, so we'll go ahead and slide the spacer block onto the pull wire. We'll then put the carriage bolt in place. This time we'll fish the carriage bolt in first and then slide the square hole spacer block in, again pulling them back down into position. We'll then go and repeat all the same steps we performed here on the passenger side over on the driver side. To make removing the other side exhaust a little bit easier we're going to remove the two bolts right here and here. Next we're going to need to remove this underbody panel here, and it will not be reinstalled. We will however be reinstalling this fastener here as well as here. Now there's a total of seven fasteners that will need to be removed. There's these two push fasteners as well as five nuts, using a 10mm socket. We'll need to remove those as well. Now for the push fasteners we'll just simply take a flat head screwdriver, slide it in underneath the center section of the fastener. You can also use a trim panel removal tool if you want. Slide it down like that. Now with all the fasteners removed we can go ahead and pull the panel down. Again, this one will not be reinstalled. Now with our panel removed we'll need to put the two fasteners here at the rear, the two push fasteners, back through the lower bumper cover and into the metal tab. Now it's a good idea to get an extra set of hands to help you raise the hitch up into position. Be careful when putting the hitch up that you don't push the carriage bolts back up into the vehicle's frame. Once you have the hitch up into position we'll go ahead and loosely install all four flange nuts, and then we'll tighten down the hardware and torque it to the manufacturer's specification. Now with the hardware on our hitch torqued down we can go ahead and reinstall our exhaust. That will do it for the installation of the CURT trail hitch receiver, part number C11352, on our 2014 Nissan Altima. .
Average Customer Rating: 4.8 out of 5 stars (6 Customer Reviews)Perfect for light-duty towing, this custom, vehicle trailer hitch receiver features fully welded, gloss powder coated steel construction. Drawbar sold separately.
by: Scott C.10/11/2014
The hitch went on just fine. If I have anything negative to say about the components is that the 4 bolts that were supplied with the kit could have been 1/8-1/4" longer. When fully torqued there was still 1-1/2 threads left unused in the mounting nuts. Why not go for full thread engagement? It is only stronger & there was nothing that would've been interfered with by a slightly longer bolt protruding from the nut. 155589
Arrived on time and installed per instructions works great. 121832
by: Bruce W.09/22/2016
Hitch installed easily, has given us no trouble since. 297719
by: Brian A08/12/2011
quick delivery, quality hitch receiver, very impressed! 21691
works well instructions where very easy to follow. 226131
by: SCOTT G06/17/2014
GREAT PRODUCT AND SERVICE THANK-YOU,SCO TT 136035
