Trailer Hitch > 2005 > Lexus > RX330

Draw-Tite Trailer Hitch for the 2005 RX330 by Lexus

Draw-Tite Trailer Hitch

(14 reviews)

Code:   75153



Shipping Special

Shipping Weight: 36.69 pounds


Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" - 2005 RX330 by Lexus

Fully welded Lexus RX330 trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.


  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Lexus RX330
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at
  • Black powder coat finish covers e-coat base for superior rust protection
  • Stylish, round-tube design
  • Ball mount, pin and clip sold separately


  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 3,500 lbs
    • Maximum tongue weight: 350 lbs
    • Not rated for use with weight-distribution systems
  • Limited lifetime warranty

Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.

Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.

In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario. Technical Support

At we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.

75153 Draw-Tite Class 3 Trailer Hitch Receiver - Max-Frame

Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

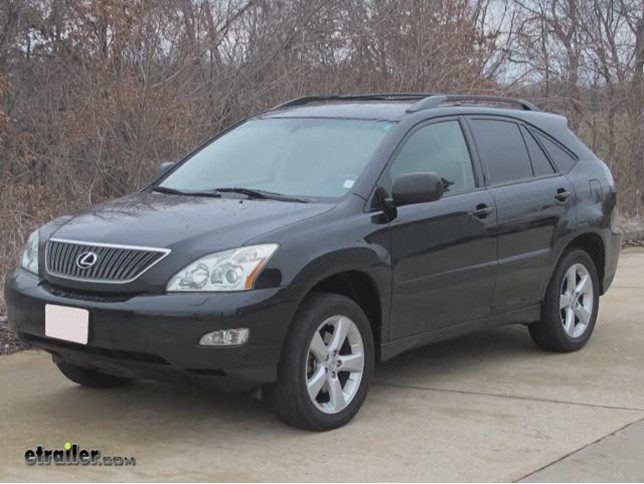

Video Transcript for Trailer Hitch Installation - 2005 Lexus RX 330 - Draw-Tite

Today on this 2005 Lexus RX 330 were going to install part number 75153 from Draw Tite. Alright this is what the hitch looks like once its installed on the vehicle. Next well give you some measurements that will help you out in some selecting some accessories such as a bicycle rack, a ball mount or a cargo carrier. From the center of the hitch pin to the edge of the bumper is going to be about inch and from the top of the receiver opening down to the ground will be 14 inch. Now Ill go ahead and show you how the hitch is installed. For the first step is to go ahead and remove the tie-down bracket and rubber plugs.

Now when you look at the passenger side, it should be identical on the driver side as well. Lets go and repeat for the driver side. At this point we can go ahead and install the hitch. Now its definitely good idea to have an extra hands to help hold up while you run the hardware into the frame. And when we install a hardware, well make sure that the teeth on the conical tooth washer point towards the hitch.

Alright, now youre gonna leave all your hardware loose so you can move it around to help get the bolts in place. With all the hardware loosely installed, now we can go ahead and snug everything down. Once we have the hitch drawn up to the vehicle, we can go ahead and torque everything as specified in the instructions. There we have it for part number 75153 from Draw Tite. .

2005 RX330 by Lexus Owners Who Purchased this Trailer Hitch Also Bought...

Replacement parts available for this product

Lexus RX330 Accessories

Customer Reviews

Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" - 75153

Average Customer Rating:  4.8 out of 5 stars   (14 Customer Reviews)

Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.

- 75153

by: Suzanne04/05/2012

The hitch was a snap to put on the car - EASY!!! Took 15 minutes max from start to finish. It looks well made and rugged. A HUGE negative for me, however, is how far from the back bumper it sticks out. It is easy to knock your shin on it and looks obnoxious. I thought it would be tucked under the bumper or at least flush with the bumper but it is not. I am NOT AT ALL happy with how far it sticks out. The quality, however, does appear to be top notch. If you could make one that doesn't stick out and exchange it I would be 1050% HAPPY!!!!! 36267

- 75153

by: Roger B.02/22/2012

Of the three available hitches for my Highlander hybrid, this DrawTight was the one most recessed, so very little but the receiver is visible. Free shipping arrived (UPS) in three days. All holes lined up perfectly. Installed in 20 minutes without jacking or lifting. I had expected it to be fairly straightforward, but it turned out to be rediculously easy. (Don't tell my wife...) 32240


I just bought an 06 Highlander and am looking for a hitch that will NOT stick out too far beyond the bumper. Can you send any photos? If possible I am looking for a side view.Any input from others that have a Highlander and have various brands of hitch would be appreciated.Thanks a lot

comment by: Cycling G - 05/23/2013


I have added links to 3 videos that will show how the 13530 from Curt, the 75153 from Draw-Tite and the 70778 from Hidden Hitch install and fit on the 2006 Toyota Highlander. The videos have a good profile shot in the first minute or so. The Draw-Tite and Hidden Hitch will be close, if not identical in position.

Patrick B - 5/24/2013

- 75153

by: Steve07/27/2012

The Draw Tite class III receiver I got for my RX350 was as advertised. Fast shipment and very easy to install. I had to use a clamp to pull one of the mounting brackets into alignment so I could get the bolts in, hence the very good rather than excellent rating. The entire job took about 20 minutes. I still have the much longer job of installing the wiring harness left to do. I installed a similar Draw Tite class III receiver on my 2007 RAV4. It provided 5 years of good service but was rusty after 3 years. Auto makers seem to have solved the rust problem for the most part on their cars. Now hitch makers need to do the same. 49508

- 75153

by: Quique07/25/2009

Can't wait to tow stuff! I'm deducting one star only because it's pretty hard to persuade a hitch to bend. In the installation video, which was great by the way, the installer had to bend the hitch a little using a 2x4. I tried the 2x4, but the hitch had to move pretty far to get the back hole to line up. So my brother-in-law put his 2 ton jack on end and we cranked it open pushing against the spare tire and the hitch. Whew! Nevertheless, the installation was still very quick and I saved a lot of money by buying the hitch from Etrailer, installing it myself, and not going to my Toyota dealer. 2169

- 75153

by: John A05/12/2014

I called to order my trailer hitch and Cathy was very helpful. She made sure I ordered the correct wiring kit. The hitch came on time and it installed easily on my Highlander. The hitch, a rigid brand, seems to be made of a high quality steel. I look forward to using it. I highly recommend ordering for me trailer. 130256

- 75153

by: Barry09/16/2007

Easy installation, factory fit Hitch fit perfectly. Obviously custom-made for the Highlander. Only things I didn't like were some welding splatter and the paint was a bit thin in some places so it may need to be painted one day, but I would recommend it anyway. Great service and fast shipping 407

- 75153

by: Hans05/03/2015

2008 Lexus RX400H The product was exactly as described and installation as easy as advertised. The sales staff I spoke with on the phone were extremely helpful and professional. I would certainly do business with this company again. 189505

- 75153

by: Wayne05/15/2012

Great product. It fit perfectly and only took about 20 minutes to fully install. I ordered this in anticipation of installing it on a weekend and it came very quickly with plenty of time to spare. Great service. 40548

- 75153

by: Kevin T.07/08/2012

Great product! It fit well and was easy to install. We've towed thousands of miles with no issues at all, I highly recommend this hitch and 47168

- 75153

by: Matt w.06/07/2015

Quick delivery, online videos are perfect and specific to your car, compared to dealer who wanted $750 this is a no brainer purchase and and easy dyi 201324

- 75153

by: Joe M04/19/2011

20 minutes start to finish. the predrilled holes on the mount are elongated making alignment and installation of the bolts very easy. 11988

- 75153

by: Bob04/29/2007

Easy installation High quality hitch, easy installation and a GREAT PRICE!! 151

- 75153

by: Russell in Dallas01/21/2012

Product bolted right in place as it should. Fit and finish is excellent. 30106

- 75153

by: Ed B.08/29/2012

Wonderful service. Could not expect anything more. 53400


Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?

  • Which Hitch for the 2009 Lexus RX350 Sticks out the Least
  • It looks like the Curt trailer hitch # 13530 extends the least past the rear bumper. If you check out the picture I attached you will see that it sticks out the least. To complete your towing setup you may be interested in the following products: etrailer Ball Mounts # 989900 Curt Custom Fit Vehicle Wiring # C55563
    view full answer...

  • General Towing Information for a 2004 Toyota Highlander V6
  • A VIN is not required, just the year, make and model of a vehicle. Sometimes certain configurations need to be stated such as Hybrid engine, 4WD or sport packages. On some vehicles, spare tires need to be removed. The Draw-Tite hitch, part # 75153 does not require removal of the spare tire and yes it can still be accessed. The trailer wiring harness for tow package 2004 Highlanders is part # 118248. The port for the tow package vehicles is located behind the driver side cargo access...
    view full answer...

  • Difference Between Hitches for 2006 Toyota Highlander
  • The only difference between the Curt Class III Hitch # 13530, the Hidden Hitch # 70778 and the Draw-Tite # 75153 is that the Curt hitch has the safety chain loops welded to the bottom of the receiver, while the Hidden Hitch and Draw-Tite models have the safety chain loops welded to the top. All three hitches are very similar in appearance, share the same weight capacities and would install in the same manner. I have linked to the install instructions as well as some install videos...
    view full answer...

  • Recommended Receiver Hitch for 2007 Toyota Highlander Sport Non-Hybrid
  • We currently offer three different hitches available for a 2007 Toyota Highlander Sport. The Curt Class III part # 13530, Hidden Hitch # 70778 and Draw-Tite # 75153 would all be good choices. They all offer a similar design and all have the same weight capacities. In this instance, I would prefer the Curt model, due to the high gloss finish Curt uses, and also due to the fact that for your vehicle, the Curt is the more reasonably priced choice. I have confirmed with Curt Manufacturing...
    view full answer...

  • Availability of Hitch for 2005 Lexus RX330 That Will Be Hidden At the Rear of the Vehicle
  • I will have three choices of trailer hitches to fit your 2005 Lexus RX330. The Curt Class III 2-Inch Hitch, part # 13530, the Hidden Hitch Class III 2-Inch Hitch, part # 70778, and the Draw-Tite Class III 2-Inch Hitch, part # 75153. All three of the hitches are a Class III 2-inch receiver size and will have a maximum towing weight capacity of 3,500 lbs. The installation and where the hitch will be located on the vehicle is the same on all three of the hitches. When installed the...
    view full answer...

  • Trailer Hitch and Hitch Mounted Bike Rack Recommendations for a 2009 Lexus RX350
  • There are ways to carry bikes with your vehicle, but according to Thule and Yakima, there are no trunk mount bike rack options that will fit a 2009 Lexus RX350. I recommend installing a trailer hitch and using a hitch mounted bike rack. For a trailer hitch, I recommend the Draw-Tite Trailer hitch, # 75153. This is a Class III trailer hitch with a 2 inch receiver. This Class and size hitch will afford you many bike rack options. I have included a link to the installation instructions...
    view full answer...

  • Trailer Hitch Recommendation for a 2004 Lexus RX330
  • We offer three trailer hitches that are compatible with your 2004 Lexus RX330 and all three hitches are Class III hitches that will provide plenty of support to carry a bike rack and bikes. Our most economical option is the Curt Round Tube Hitch, part # 13530. We also offer the Hidden Hitch Round Tube Hitch, part # 70778 and the Draw-Tite Trailer Hitch, part # 75153. All three hitches have a tongue weight of 350 lbs and a gross towing weight of 3500 lbs, but these ratings can be limited...
    view full answer...

  • Trailer Hitch for a 2007 Toyota Highlander Towing a Boat
  • The three available hitches for your 2007 Highlander, the Hidden Hitch # 70778, the Draw-Tite # 75153 or the Curt # 13530 are all rated as Class III. All three hitches are similar in design, all share the same weight rating and all would install in a similar manner. The only difference is that the Curt model has the safety chain loops welded to the bottom of the receiver tube, while the Hidden Hitch and Draw-Tite have the loops welded to the top of the receiver tube. Any of the three...
    view full answer...

  • Trailer Hitch Recommendation for a 2009 Lexus RX 350
  • All of the available trailer hitches for the 2009 Lexus RX 350, see link, will share about the same amount of visibility. A more hidden trailer hitch is not available. Out of the available hitches, the most popular is the Curt hitch # 13530. If you want to use a bike rack or cargo carrier with this hitch, you must also use a stabilization strap # 18050 per Curt warranty requirements. I recommend the Draw-Tite trailer hitch # 75153. A stabilization strap is not required with this hitch....
    view full answer...

  • Which Hitch Does Not Extend Past the Rear Bumper on a 2008 Lexus RX350
  • We have a video installation of the Draw-Tite Class III Max-Frame Trailer Hitch, item # 75153, on a 2007 Lexus RX350, see link, that shows the distance from the center of the hitch pin hole to the farthest out part of the rear bumper at 1-1/2 inches, this leaves the receiver portion of the hitch out about 1/2 inch past the rear bumper. The Curt Class III Hitch, item # 13530, installs flush with the farthest out part of the rear bumper, so it would be the model that extends the least...
    view full answer...

  • Trailer Hitch Recommendations for a 2005 Toyota Highlander
  • On the 2005 Toyota Highlander, the available hitches all clear the bumper and stick out past it about 4 inches, The Draw-Tite and Hidden Hitches (75153, 70778) will be nearly identical since they come from the same manufacturer. The Curt Hitch (13530) in this case is actually very similar to the other two, so it will look the same. All three hitches have the same basic specifications. They are all Class III hitches with 2 inch receiver openings. All have a tongue weight capacity of 350...
    view full answer...

  • Does the Draw-Tite Trailer Hitch # 75153 Extend Past the Rear Bumper on a 2006 Toyota Highlander
  • All of the hitches available for the 2006 Toyota Highlander are designed with the end of the receiver very close to flush with the back of the rear bumper. The hitch itself will not extend past the bumper, without a drawbar installed in the hitch. I have posted a photo that should help you visualize where the receiver on the Draw-Tite Max-Frame Trailer Hitch, item # 75153, will be placed. I have also provided links to instructions and a installation video for you to review. The K78229...
    view full answer...

  • Why are Hitches for a 2005 Toyota Highlander Not Rated for Weight Distribution
  • You're correct. A class III hitch is typically rated for use with weight distribution. However, the Highlnder is one of a few exceptions. According to our hitch manufacturers, a hitch installed on a 2005 Highlander isn't compatible with weight distribution. This is because the vehicle uses unibody construction instead of a conventional frame. A weight distribution system applies a great deal of leverage and torque to the vehicle frame (much more than what would be applied in a normal...
    view full answer...

  • Trailer Hitch for a 2005 Toyota Highlander with a Japanese Bumper
  • The Hidden Hitch Class III 2 Inch Hitch, part # 70778, will not work with your Japanese rear bumper configuration. The installed hitch receiver sits pretty tight under the US bumper. The Curt hitch # 13530 and the Draw-Tite hitch # 75153 will be in the same location. You might want to look into having a hitch fabricated for you.
    view full answer...

  • Which Ball Mount is Right for a 2007 Lexus RX350 Towing a Trailer With a 12 Inch Coupler Height
  • The Draw-Tite hitch model # 75153 will sit right below the bumper on your 2007 Lexus RX350, so your 17 inch measurement from the underside of the bumper to the ground should be pretty close to the installed hitch height. If you are measuring to the bottom, flat part of your coupler and are getting 12 inches, then yes, a 4 inch ballmount like part number # 2753 would be the best choice for your application. I have included a link to the instructions for the # 75153 hitch, as well...
    view full answer...

  • Class lll Trailer Hitch And Transmission Cooler Recommendation For 2006 Toyota Highlander
  • The Draw-Tite Class lll Hitch, part # 75153, and the Hidden Hitch part # 70778, are made by one parent company so they will have the same features and installation. These hitches are Class lll hitches with a 2 inch receiver opening, and are designed to fit your 2006 Toyota Highlander. If you plan on doing some towing you might be interested in etrailer ball mount kit # 989900. It comes with 2 ball mounts; one with a 3/4 inch rise or 2 inch drop and one with a 2-3/4 inch rise or 4 inch...
    view full answer...

  • 2005 Lexus RX 330 Trailer Hitch Recommendation
  • All three of the hitches recommended for your 2005 Lexus RX330, the Curt Hitch part # 13530, the Hidden Hitch part # 70778, and the Draw Tite Hitch part # 75153 will not interfere with the spare tire of your vehicle. It will install and remove on your vehicle just like normal. If you plan on doing some towing you might be interested in etrailer ball mount kit # 989900. It comes with 2 ball mounts; one with a 3/4 inch rise or 2 inch drop and one with a 2-3/4 inch rise or 4 inch drop....
    view full answer...

  • Spare Tire Interference with Hitch Installation on 2006 Toyota Highlander with 3rd Row Seat
  • The Curt trailer hitch you referenced, Class III hitch # 13530, is shown in the linked video being installed on a 2006 Highlander. On this vehicle the spare tire does not need to be removed. My technical contacts at Hidden Hitch and Draw-Tite have not heard of any issues on the 2006 Highlander related to the spare tire interfering with hitch installation. To their knowledge the 3rd seat is not an usual feature. The instructions for all three hitches offered for the vehicle make no reference...
    view full answer...

  • Will a Trailer Hitch from a 2001 Toyota Highlander Fit on a 2007 Toyota Highlander
  • The 2001 Toyota Highlander and your 2007 Toyota Highlander cannot use the same trailer hitches. Toyota made a few changes to the Highlander in 2004 because they introduced the optional third row seating for seven passengers. The new designed created a depression in the trunk for all models and the rear bumper was changed as well. Due to these changes trailer hitch manufacturers had to design a new trailer hitch for the Highlander beginning in 2004 through 2007 so it would not interfere...
    view full answer...

  • Draw-Tite Mounting Bracket Recommendation for a 2007 Toyota Highlander with a Round Tube Hitch
  • What I would recommend you get is the Mounting Bracket # 18138 that you referenced and then use the included hardware to install it onto the lower bumper on your 2007 Toyota Highlander. You would use the self-tapping screws from this kit to drill into your the bumper to attach the # 18138 to it. Another option would be for you to get a 6 and 7-Way Trailer Connector Mounting Box # 18159. This will mount to square hitches and round tube hitches like your Draw-Tite Hitch # 75153.
    view full answer...

  • Hitch Recommendation for a 2006 Toyota Highlander
  • We have rear mounted hitches available for our 2006 Toyota Highlander, but we don't carry any front mount hitches. For a rear mount hitch I would recommend the Draw Tite Hitch part # 75153. This is a Class III hitch that will fit the hybrid and non-hybrid models and should work very well for you. I attached an install video for you to check out as well.
    view full answer...

  • Replacement Hardware Kit for Draw-Tite Hitch # 75153 on a 2005 Toyota Highlander
  • What you will need is to get the Replacement Hardware Kit # RHK, when you order this you will need to enter the part number for the hitch you have, in your case you would enter the number 75153, select the brand Draw-Tite from the drop down window and then hit add to cart.
    view full answer...

Do you have a question about this Trailer Hitch?

Weight Carrying Capacity
Gross Towing Weight (GTW):
3,500 lbs.

Tongue Weight (TW):
350 lbs.

Weight Distribution Capacity
Hitch does not allow
use of weight distribution

Trailer Hitch Installation Instructions 75153 Installation instructions 75153 Installation Instructions
No drilling required

Tech Tip
Hitch will not work on models with air suspension. No drilling required for installation

Manufacturer Estimated Installation Time

Recommended Wiring:
wiring 118478

Most Popular Ball Mount:
Draw-Tite 2923

1-7/8" hitch ball - 19260

2" hitch ball - 63845

2-5/16" hitch ball - 63847
