Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Rating:
6 reviews
Code: 75338
Retail:$212.13
Price:$144.95
Shipping Weight: 25 pounds
Shipping SpecialFully welded Jeep Grand Cherokee trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.
Features:
Specs:
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

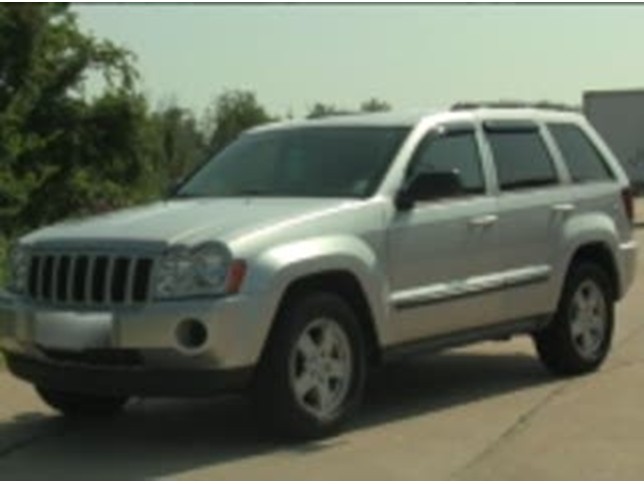

Today on this 2007 Jeep Grand Cherokee we are going to be installing Hidden Hitch part number 87752. This installation will also apply to the Draw-Tite part number 75338. Okay we are underneath the vehicle. We are looking at the rear bumper structure, we have four holes that we will be using as our attaching point for the trailer hitch. The hitch is actually going to go up around both sides of the bumper structure and we are going to put the bolts through each one of the holes and attach it to the weld nuts built into the hitch.
Before we get started we need to remove two of the plastic push rivets that are holding the bumper to the bumper structure. Okay with those two removed we can kind of push the bumper fascia away from the bumper structure here enough where we can get the hitch up and around. And we will be attaching the hitch to the bumper structure using the 4 inch long 1/ 2 inch hex bolts along with the conical tooth washers.
If you are finding that there is an excessive gap in between the trailer hitch and the bumper structure itself, you can go ahead and use these flat washers that are provided in the installation kit and slide them in between the hitch assembly itself and the bumper structure around each one of the bolts and that will help ship up the extra space that is in there. Now you can see by tightening those down it pulled the hitch up nice and tight to the frame, so we do not have to worry about putting any extra flat washers in there. I am going to go back through and torque the bolts down now. You want to check with the directions to verify the appropriate torque rating for each individual bolt. Okay with the bolts torqued down we can go ahead and put our push rivets back into place. And this will conclude the installation of part number 87752 on a 2007 Jeep Grand Cherokee.
2009 Jeep Grand Cherokee Owners Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 5.0 out of 5 stars (6 Customer Reviews)
by: Rod R.08/01/2009
Is this review helpful?
Great Fit 2009 Grand Cherokee Etrailer.com had this item instock, Shipped it very fast, Product fit my Jeep perfect. Excellent Communication, Their instruction videos helped alot. A+++ Sellers. Thanks!2200
by: Michael04/20/2013
Is this review helpful?
Very simple and easy to install! I was a little skeptical to add it on that it wold sit to low on my 08 Grand Cherokee, and not look clean. I was very happy to be wrong and think it looks great. I was also very pleased with the t-harness for the trailer wiring. All said and done it was well in the affordable category and about 45min total for the install of both parts. Great work to everyone in the etrailer.com family! 77041
by: Jon L06/13/2012
Is this review helpful?
high quality, easy to install after lowerign spare tire in 2006 Grand Cherokee43963
by: Gustav Schumacher03/20/2012
Is this review helpful?
Received trailer hitch, etc. but have not yet installed. But everything looks in order. Impressed with short delivery time plus excellent packaging. One of the best order logistics received so far ever. Thank you34499
by: Becky01/20/2012
Is this review helpful?
Great product that was easy to install.. 29992
by: BP05/24/2008
Is this review helpful?
Excellent, affordable hitch I have a 2006 Grand Cherokee. I installed this myself in about 30 minutes with very little experience. It's a tight fit to get it placed, but once you do, it looks great and hangs about 2 millimeters below the bumper. I've towed a fully loaded 6x12 U-haul from Florida to Chicago with it and it worked like a charm. Since then, I've only used it for bike racks and cargo carriers, but it hasn't let me down yet. I love it.902
Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?
Jeep Grand Cherokee Accessories
Complete Towing Package
2009JeepGrand Cherokee
Tech Tip
Additional installation time required on models with OEM tow hooks.No drilling required for installation
