Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Rating:
5 reviews
Code: 36362
Retail:$184.26
Price:$111.95
Shipping Weight: 16 pounds
Shipping SpecialThis fully welded, corrosion-resistant Jeep Grand Cherokee trailer hitch is perfect for your light-duty towing and hitch rack needs. Tested Tough guarantee ensures that this hitch exceeds industry strength standards. Drawbar, pin and clip sold separately.
Features:
Specs:
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

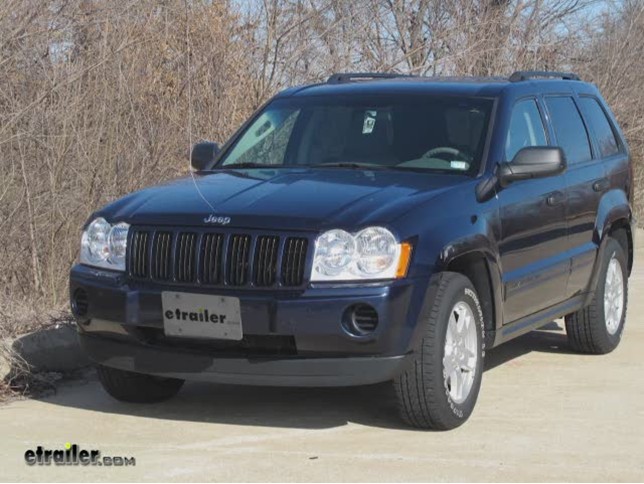

Today on this 2005 Jeep Grand Cherokee were gonna install part number 36362 from Draw Tite. Alright, this is what the hitch looks like when its installed. Next well give you some measurements thatll help out in selecting some accessories. From the center of the hitch pinhole to the outside edge of bumper is going to be 4 inches and from the top of the receiver opening down to the ground will be 17 inches. Now well go ahead and show you how the hitch is installed. First thing that you need to do is go ahead and lower spare tire and get that out of the way.
Then when need to remove 2 plastic pins that hold the bumper fixture into the bumper structure. Well take the hitch, do a test fit and what were looking for is a gap between the bumper structure and the hitch. It does come with washers to take up the gap. These are thin washers were just gonna take some electric tapes and just use them to hold them in place while I push the hitch up. So well go ahead and put our hitch back into place.
Then well take our hex bolt with conical tooth washer and the teeth point towards the hitch and well just run it into the threaded nuts that are welded on the back side of this hitch. With all of our hardware installed, we can go ahead and snug them down. We can go ahead and torque everything as specified in the instructions. Alright, with the hitch installed well go ahead and reinstall our plastic rivets and there you have for part number 36362 from Draw Tite on our 2005 Jeep Grand Cherokee. .
2009 Jeep Grand Cherokee Owners Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 5.0 out of 5 stars (5 Customer Reviews)
by: Ken K11/12/2012
Is this review helpful?
The Drawtite hitch was "snap" to install and took me approx. 20 minutes w/no special tools, just laying on my back on my garage floor. Fron the rear the hitch looks as if it were installed at the factory. I'm very please w/the product and the service I received from etrailer. 59297
by: Rodney R04/24/2012
Is this review helpful?
Ordered on saturday and got it on tuesday! Thanks for the upgraded shipping! Too bad the bolts weren't shipped with it!38256
by: jt03/06/2011
Is this review helpful?
Outstanding experince, from order, timely delivery, competitive price, no hidden cost and easy installation. The customer service level was superior to the point of providing video on "how to install".8608
by: Ray C03/03/2011
Is this review helpful?
great selection....great prices....fast delivery8329
by: P03/29/2009
Is this review helpful?
Really was easy Installed on 09 Grand Cherokee. It took me an hour from start to finish taking my time. I used nothing but a flat screwdriver to remove the bumper fascia pins and a good quality 1/2" socket set. It says to torque to a specified setting, but I'm only using it for a bike rack so I just leaned into it pretty firmly. I also don't need the wiring so add time for that. No alterations needed to bumper, etc.1694
Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?
Jeep Grand Cherokee Accessories
Tech Tip
Additional installation time required on models with OEM tow hooks.No drilling required for installation
