Hidden Hitch Trailer Hitch for the 2008 Santa Fe by Hyundai

Hidden Hitch Trailer Hitch

(78 reviews)

Code:   87414



Shipping Special

Shipping Weight: 41.84 pounds


Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 2008 Santa Fe by Hyundai

This durable, fully welded Hyundai Santa Fe trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.


  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Hyundai Santa Fe
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Easy, bolt-on installation - no welding required
    • includes all hardware needed for installation
    • Complete installation instructions are included
  • Lifetime technical support from the experts at
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Ball mount, pin, and clip sold separately


  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 3,500 lbs
    • Maximum tongue weight: 525 lbs
    • Not rated for use with weight-distribution systems
  • Limited lifetime warranty Technical Support

At we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.

87414 Hidden Hitch Class 3 Trailer Hitch Receiver

Video of Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2"

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

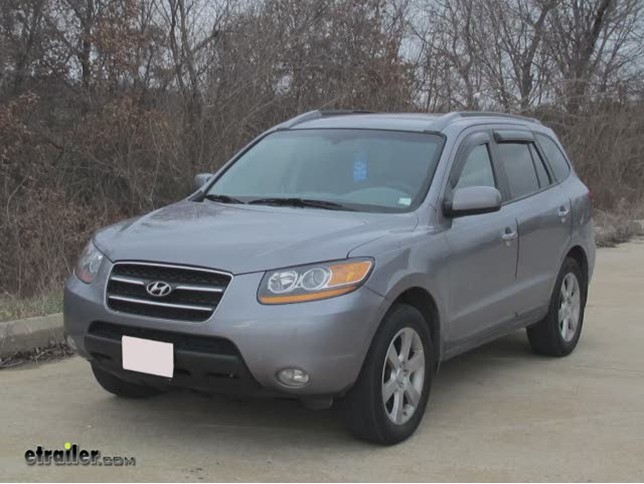

Video Transcript for Trailer Hitch Installation - 2008 Hyundai Santa Fe

Today on this 2008 Hyundai Santa Fe, we're going to install part number 87414 from Hidden Hitch. This is what the hitch looks like when it is installed on the vehicle. Next, we'll give you some measurements that will help you out in selecting some accessories such as a ball mount, a bicycle rack, or a cargo carrier. From the top of the receiver opening down to the ground is going to be 13 inches and from the center of the hitch pinhole to the outside edge of the bumper will be 5-3/4 inches. First thing we'll do is we'll show you where the hitch mounts up to the frame as these two existing threaded holes here. Next step is to go ahead and clean up the threaded holes.

The older the vehicle it is, the more work it will take. We're going to spray a lubricant and tube brush to help clean up the threads. In worst case scenario, if it is clogged up then you have to use the thread cap to clean them up. And the tube brush we're using is part number 814092. At this point, we can go ahead and start installing the hitch.

Now, you definitely want an extra set of hands to help hold it up there while you install the hardware. With all our hardware installed, now we'll go ahead and tighten down the hardware and then torque it down as specified in the instructions. With all our hardware tightened down, that will finish it for our install of part number 87414 from Hidden Hitch.

2008 Santa Fe by Hyundai Owners Who Purchased this Trailer Hitch Also Bought...

Replacement parts available for this product

Hyundai Santa Fe Accessories

Customer Reviews

Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 87414

Average Customer Rating:  4.9 out of 5 stars   (78 Customer Reviews)

This durable, fully welded vehicle trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.

- 87414

by: Drew G.04/17/2013

I received the trailer hitch and wiring harness in the morning and leisurely installed everything in a couple of hours. The online videos were useful, and by using blocks and one scissor jack, installed the hitch myself. The wiring harness was also an easy install. No pinched fingers, no scratches and no swearing. This was my second purchase from e-trailer and the service has been excellent both times. 76635


I couldnt be happier with e-trailers service. They go out of their way to find parts, and their videos are very helpful.

DrewG - 04/18/2014


- 87414

by: Lawrence F.08/17/2013

Great company, delivery was exceptional, cust support was excellent and product was as described..... installed hitch and harness in 90 min. by the instructional videos, nothing helps more than seeing it done first. overall very satisified and will be a return customer. 95623


product worked perfect, trailered my camper and even bought a bike rack that attaches...unfortunalety I sold the car but will definitely be doing future business with this company.

Lawrence F - 02/15/2015


- 87414

by: R. Smith12/02/2014

This hitch fit perfectly my 2009 Hyundai SantaFe. Installation took no more than 20 minutes on the ground (no lift). And the work was done by two of my "less qualified" shop personnel! Really how hard can lining up four bolts/holes that fit and matched perfectly. The quality of the hitch is very good, and looks very rugged/strong. I am sure I would rip the frame out of my car before this hitch would break! Recommend it to essentially anyone to install, and the video is nice too. Biggest variable would be if the weldnuts are clogged, which mine were not. But we sprayed them with WD-40 anyway and ran the bolts in first to clear out anything. NOTE: This is not a one man job however, as you need someone to hold the other end up while you put your end on and get it bolted. Guess a cement block would work, but an extra set of hands is soooo much easier. 163069

- 87414

by: Chuck in Indy06/15/2012

The 30 min doesn't include the time to clean up the nut plate threads - I am so glad the video explained that the bolt may even seem oversized. I was convinced I would end up with a buggered bolt and nut plate or break it off, but I took my time, lots of liquid wrench, a thread chaser, and finally ran it in and out with an impact wrench (delicately). Also used a battery terminal cleaner - like the video. After that, I used a tie-down strap and held the hitch up (no helper) and got the bolts all in with no problem. The install after the treads were clean was about 15 min. Looks good, now after a rest I will try pulling the camper a little. Also while down there I say the factory electrical connectors for the wiring - so that will be my next order. etrailer will get it here in three days, just like always, I am sure. 44354

- 87414

by: Larry S.05/05/2014

Hitch fit perfectly. Only issue was the corrosion in the pre-tapped holes of my 2009 Santa Fe. Had to run tap into holes to clean threads. It is clearly a 2 man job to install. Great fit and look when completed. 128855


Hitch is holding up well and still looks great. Works very well with our bike rack. Would purchase again!!

Larry S - 05/05/2015


- 87414

by: Thomas01/23/2013

Excellent!! quality heavy duty part 63956

- 87414

by: Tim01/07/2013

This is a high quality, heavy duty hitch. Simple bolt-on installation was straight forward, and easy. The installation videos provided by eTrailer were accurate and helpful. Shipping was fast! A++ One tech note: The older your vehicle gets (mine is a 2009) the more rust & debris you will likely have in the frame mounting holes. One of mine also had a piece of weld slag stuck in the threads. I bought a tap (~$6) to chase the threads prior to installing the hitch. The tap is 10mm by 1.25mm thread pitch. Spray the holes with WD40, guide the tap in and your threads will be clear for easy installation. 62548

- 87414

by: Rod J.05/25/2012

This heavy, welded hitch should last for years. It fit exactly as it should on my 2009 Santa Fe and it looks good. The product was "as advertised" and installation was straightforward. Unfortunately, the Santa Fe bolt holes were a problem with severe corrosion. I saw a "tap" bolt installed in a body panel next to where the hitch was to be bolted and used it to clean the threads of the existing mounting holes. One of the holes had almost no thread at all, so while the hitch installation only took about fifteen minutes, that was after spending an hour getting the bolts to thread in. 41718

- 87414

by: Lucas O12/28/2012

Really happy I went with etrailer for my towing needs. Ordering was a breeze and the helpful install videos were a major plus! Very happy with trailer hitch I got and install was pretty easy. The only I problem I had was the bolt holes in my 2007 Santa Fe were corroded and it took a good amount of time to get them clean. I used the battery terminal cleaner tool and A LOT of wd40 as suggested by etrailer...worked great. I ended up stripping the very last bolt so I am taking it in to get retapped but other that.....AWESOME PRODUCT and GREAT SERVICE! Thank you Etrailer. 62150

- 87414

by: Steve06/10/2012

Decided to put a trailer hitch on my wife Santa Fe for when we go on vacation so we can use the cargo rack. Saw this model was a perfect fit , easy install 4 bolts and you are done. Installed it in my driveway without having to lift the car up. Took me about 30 min (did it by my self). so it took a little longer if you had 2 people it could have been quicker. 43544

- 87414

by: Ricky U06/04/2011

I cant think of any thing else this company could have done to make this transaction any better. I was notified when the order was accepted, shipped, tracking information and finally when my hitch was delivered. Plenty of installation information in print and online videos. My only suggestion for improvement would be to have the hitch automatically installed by the time I got home. Thank you etrailer, I wish I needed another trailer hitch because I know right where to order one. I wonder if I can install one on the front of my truck..... Rick 16133

- 87414

by: Larry P.03/08/2011

Just received my trailer hitch today from E-Trailer. It was my first ever purchase on line. The experience was so positive with etrailer that I shall shop this way many times in the future. The order entry prosess was a snap and their response that my order had been received and entered was immediate. Customer service e-mailed back within five minutes thanking me for my order and advised they had arranged earlier shipping at no expense to me. My product is exactly what was conveyed to me by etrailer. Much better than driving to the mall. 8746

- 87414

by: Joe H08/21/2010

Great Hitch.. great price! Got this hitch for our 2009 Sante Fe. Holes line up, its shape fits the car perfectly! A little tricky getting the bolts to thread, definitely need a second person, one to hold the hitch and one to thread the bolts. Done in less that half an hour. Got the Valley Wiring kit 30159 for the Hyundai Trailer package. Check their video out and check your Sante FE, the harness connectors are their even if you didn’t order the Trailer Package!! (Driver side behind the rear wheel, on the panel opposite the muffler) 3369

- 87414

by: Joe08/30/2010

Very Happy with Hitch Based on the other reviews I purchased this hitch. Looks great and a snap to install. My son bolted it in while I held it steady. PS: I have a 2009, and this model year has the wiring hookups installed even if you don't order the Trailer Package from Hyundai. I got the Valley T-Connector Vehicle Wiring Harness with 4-Pole Trailer Connector (30159) which plugged right into the Factory terminals behind the driver side rear wheel. No splicing required! 3398

- 87414

by: Greg P.04/23/2012

I ordered the Hidden Hitch for my 2008 Santa Fe. Delivery was quick within 2 days. The instructional video and reviews were priceless. It took longer than the estimated 30 minutes but only because the bolt holes needed cleaning out and thanks to the reviews and instructional video I was prepared. The hitch is heavy so providing support under it while attaching to the vehicle is necessary. All in all very satisfied and glad that my hitch went on without a hitch. Thanks 38052

- 87414

by: Bernd E.12/16/2010

Trailer Hitch The Hidden Hitch Trailer Hitch met my expectations. It is truly a hidden hitch. The fit was perfect but the installation took longer than expected due to the limited space available. It was difficult to get the bolts started. The electrical harness installation was easy. I followed the instructions provided by the video rather than those enclosed with the harness. There is no need to take the whole trunk bed apart. 4194

- 87414

by: Richard K.02/24/2013

Shipping was very fast, and the online videos really helped me understand how to install it on my vehicle. It was a little hard and heavy to install the hitch receiver by myself, but I used two jack stands to hold it in place while I bolted it in. A second set of hands would have really helped. The wiring went very smooth, just like the video. I would recommend doing it yourself and purchasing through any time. 67592

- 87414

by: Mike B06/07/2011

Hitch was shipped and delivered very quickly. Only point not in the installation instructions or video is that there was a Tie Down Bracket on the passenger side frame that had to be removed. The muffler must be dropped and the heat shield removed to access the bolt which goes horizontally through the frame rail. Other than that, installation was very simple. 16401

- 87414

by: George M.07/13/2011

We received the trailer hitch earlier than expected which was a nice surprise. The hitch was very easy to install and took less than 30 minutes from opening the box to looking at the finished installation. We are looking forward to being able to tow our 20' boat. Thank you etrailer for the great service and for providing such a great product. 19344

- 87414

by: Jonh B.04/05/2011

Doing the install in my driveway was a little rough. I had to retapping the rusted threads in the frame. Found if I used rope around the tail pipes to draw the mufflers together, made it easier to do. Plus I used a floor jack ( my second hand) in the center to hold help hold it in place. The video was a great help. 11127

- 87414

by: Ron08/05/2008

Excellent product I just installed my hitch on a 08 Hyundai Santa Fe. It was real simple. Everything lined up correctly. It is well made and like the name says it is hidden nicely with just the receiver showing. I also bought all my accessories and they are all top quality products. 1141

- 87414

by: Ian B.12/22/2009

Hitch works great The hitch works great. Installing it was another issue. Once I got the rust cleaned out of the threads on my vehicle it went it pretty smoothly. I used my motorcycle lift to assist with getting the hitch in place. All in all a great product. 2603

- 87414

by: Phil W.07/14/2014

Easy to install with two people. Arrived in excellent condition, Fit perfectly. Placed a second order for bike carrier parts that I needed without fail before my vacation because I knew they would have them and get them to me on time. Great experience. 141296

- 87414

by: cassie p03/12/2015

My husband is disabled so my 22 year old daughter and I installed the hatch at night in the rain with no troubles. Our only issue is that I have a full size spare and the hitch would not fit until we removed the tire. Which is now inside my car. 178072

- 87414

by: Steve D.08/15/2012

Had several questions---Answered proptley by E-mail Had great help ordering correct equipment Had good understanding of install with great video's Received shipment two days after ordering e-trailer is the way to go in my book 51815

- 87414

by: Len Torstenbo03/23/2011

It was a pleasure to deal with a company that goes through the extra effort and professionalism to get a product to the customer in a timely manner. I will recommend you to everyone I know.. Thank you for your followup. Len 10150

- 87414

by: Tim Y.04/29/2011

The hitch was delivered ahead of time and customer service is excellent. Will do business with you guys again. Thanks Ps. It is a tight fit between quarter panel and muffler on the Hyundai Santa Fe. Small hands a plus 12571

- 87414

by: Keith H05/18/2013

Hitch was shipped and recieved very quickly. Like the video suggested it is heavy and second person would have been nice. However a motorcyle jack ( wide panel ) worked niclely. Would recomend this to anyone 80896

- 87414

by: Bob P05/29/2011

Installed as described. When they said the space is tight, they meant it. The trick of pulling the mufflers together really made a difference. Still rather easy for a non mechanically inclined guy like myself. 15665

- 87414

by: Paul S03/08/2012

I purchased the hitch and wiring harness for a Hyundai Santa Fe. Ireceived the package within a couple of days and had it all installed within a couple of hours. Verry happy with the service and products. 33240

- 87414

by: yuri02/25/2011

The produce is great . The holes lined up and it took about 20 minutes to install. The only thing i would advise is to run the bolts into the holes in the SUV first to clean the holes from road grime. 7909

- 87414

by: Chris04/28/2014

Simple design and installs quick! It can be done with one person, but is less awkward with two. Only down side is a problem with the vehicle. The stock exhaust got in the way while installing. 127690

- 87414

by: Cartha11/11/2013

The hardest part of the installation was definately cleaning out the pre threaded holes to install the hitch. The videos provided took all the uncertainty out of ordering and installing. 106958

- 87414

by: Brandon Z.03/28/2011

Easy to install. Clearances were correct and exact. Heavy duty construction and very low profile besides the brackets that fall below dual exhaust. Overall very impressed. 09 Santa Fe. 10565

- 87414

by: Robert L.04/20/2011

Installation was a breeze. I did take somone elses advice and used my floor jack and jack stands to hold the hitch up while I attached it. Only took about 45 mins to install by myself. 12060

- 87414

by: Monticello03/06/2012

I order a hitch for my 2007 Sante Fe and I must say I was very pleased. The hitch arrived sooner than expected and it was very easy to installed. Actually did it by myself in 1hr. 33155

- 87414

by: Kevin S.04/15/2011

The hitch bolted up perfect, and the wiring worked out great. I was impressed how easy the installation was. The hitch looks really good on the vehicle. I recomend these products. 11812

- 87414

by: Lou C.08/26/2012

Exactly as described, packaging could have been better. Would have helped more if there had been a check list of needed parts and their sizes. Assembly was by the book. 53118

- 87414

by: Caleb A.02/25/2014

This was extremely easy to put on, however make sure you have an extension set to properly tighten the bolts to your frame. Great hitch, great company to deal with. 117724

- 87414

by: Larry F.07/14/2013

if you have any age on tow rust will form on weld nut it was hard to get bolts to start soak with penetration oil. If you have floor jack its an easy one man job. 89472

- 87414

by: Darlene W09/11/2012

Fast delivery, product description perfect and easy install. Very happy with website and how easy it was to find the perfect hitch for my car Hyundai Santa Fe 54360

- 87414

by: Craig C08/12/2010

Great product Was easy to install, just couldn't get last bolt into the final hole, but beside that, my wife and I did it and really didn't have any problems. 3347

- 87414

by: nigel D.03/26/2012

Everything was exactly as it was promoted. Delivery was exceptional and it installed in a matter of minutes. Time to hook up the boat and go fishing! Thanks! 35151

- 87414

by: Jim C04/13/2012

Excellent service, fast delivery, and clear instructions. Followed the video and installed the hitch in less than 30 minutes by myself with no problems. 37141

- 87414

by: Luis Figueroa11/18/2011

The part fit perfect and it loos awesome on the truck. Installation video was a lot of help and the delivery was fast and accurate. Thanks a million. 27129

- 87414

by: Ron08/15/2008

Great hitch Excellent quality, it fit perfect on my 08 Hyundai Santa Fe. All holes lined up with the threaded holes in the frame. Best price around. 1181

- 87414

by: Larry B06/30/2015

First, the info on your website was very good and helpful. My order came in on time. Good instructions. Over all experiance was very good. Thanks 208360

- 87414

by: Jim J06/01/2011

I wish everything in life went this smoothly. Two of us installed the hitch in about 15 minutes. Bolt alignment was perfect and it looks great. 15911

- 87414

by: tom b03/29/2011

had no problems it was everything i thought it was going to be and my shipment was early, great doing business with e trailer thank you 10574

- 87414

by: HARRY S.03/12/2011


Show More Reviews

Ask the Experts about this Hidden Hitch Trailer Hitch
Do you have a question about this Trailer Hitch?

  • How to Retap Stripped Frame Weld Nuts When Installing a Trailer Hitch
  • Your best option is to re-tap the threads, if you take your time and follow the tapping directions carefully you should be able to mount your hitch on your 2008 Hyundai Santa Fe in no time. I have also included a link to a video that shows how you can make your own thread tap. First, you will want to select a tap that is slightly bigger than the M10x1.25 bolts that you originally tried to install in your Santa Fe. You will also want to buy a new bolt that is the same size of the tap...
    view full answer...

  • Will the Anti-Rattle Lock Part # 63147 Fit an Allen Sport S535 Premier Hitch Rack
  • As long as the shank of the bike rack you have is hollow the Anti-Rattle Hitch Lock part # 63232would be an excellent choice for you as it would provide you with a hitch lock as well as work as an anti-rattle device. I attached a review video for this product for you to check out as well.
    view full answer...

  • Purpose of Mounting Plate Extending From Crossbar on Draw-Tite Class III Receiver Hitch # 87414
  • The plate you see on the hitch (see photo) would provide a mounting point for the trailer connector bracket. For a 4-pole connector, you would use # 18144. For a 5-pole, use # TR20046 and for a 6 or 7-way connector, use part # 18138. Hardware is included with the brackets. If you were planning on using the hitch for towing purposes, you will need the following items if you do not already have them: Trailer wiring harness, part # 118415 or with tow package, part # 118258 Ball mount,...
    view full answer...

  • Trailer Wiring Harness and Receiver Hitch for a 2007 Hyundai Santa Fe with Factory Tow Package
  • For a 2007 Santa Fe with the tow package, you would need part # 118258. For a hitch, I would recommend the Hidden Hitch Class III Receiver, part # 87414. You might also need the following: Ball mount, part # 2923 1-7/8 Inch Trailer Ball, part # 19260 2 Inch Trailer Ball, part # 19247 To see install details for the hitch and the wiring, as well as a video showing the hitch being installed, click on the provided links.
    view full answer...

  • How to Retap Stripped Frame Weld Nuts When Installing Trailer Hitch # 87414 Hyundai 2009 Santa Fe
  • Your best option is to re-tap the threads, if you take your time and follow the tapping directions carefully you should be able to mount your hitch on your 2009 Hyundai Santa Fe in no time. First, you will want to select a tap that is slightly bigger than the M10x1.25 bolts that you originally tried to install in your Santa Fe. You will also want to buy a new bolt that is the same size of the tap you selected. Next, you will want to lubricate the bolt hole you are trying to re-thread...
    view full answer...

  • Differences Between Draw-Tite Max-Frame # 75471 and Hidden Hitch Trailer Hitch Receiver # 87414
  • Draw-Tite and Hidden Hitch are sister companies so the Draw-Tite Max-Frame Trailer Hitch Receiver, # 75471, and the Hidden Hitch Trailer Hitch Receiver, # 87414, are basically identical. Either would be a great choice for your 2007 Hyundai Santa Fe. If you plan on doing any towing with your Santa Fe, you may need the following: Trailer Wiring # 118415 If your Santa Fe is equipped with a tow package use part # 118258. Ball Mount like # 2923 Please see attached article that covers...
    view full answer...

  • Hidden Hitch Recommendation for a 2009 Hyundai Santa Fe Carrying a Thule Doubletrack Bike Rack
  • I would recommend you get a Hidden Hitch Trailer Hitch # 87414 for your 2009 Hyundai Santa Fe. This hitch would work very well on your vehicle with a Thule Doubletrack Platform-Style 2 Bike Carrier # TH990XT. I attached an installation video for the hitch as well as installation instructions for you to check out also. I also attached a review video and installation instructions for the # TH990XT for you to check out.
    view full answer...

  • Recommendations for Cleaning Weldnuts on a 2007 Hyundai Santa Fe for Installing a Hidden Hitch
  • We actually have a really nice FAQ article on cleaning weldnuts on vehicles for installing hitches. I attached it for you to check out. The recommended methods in the FAQ should work well on your 2007 Hyundai Santa Fe. We also have a video on how to make a thread tap you might find useful also.
    view full answer...

  • How to Remove and Replace Broken Weldnuts for Trailer Hitch Install
  • Broken weldnuts can be rather annoying when trying to install a hitch. It's a fairly common problem that we see and because of that we made an FAQ video on how to address this problem. Check out the video I attached to the right to see it. You will need a bolt leader like part # 80101-1 as well.
    view full answer...

  • Trailer Hitch and Bike Carrier for 30 and 40 Pound Bikes on a 2007 Hyundai Santa Fe
  • The most popular hitch for a 2007 Hyundai Santa Fe is Hidden Hitch trailer hitch # 87414. This is a Class III hitch with a 2 inch receiver that is going to afford you many options for bike racks. I have included a link to a video that shows the hitch being installed a link to the instructions. For a bike rack I recommend a platform style rack like # S64681, has the capacity to handle both bikes (90 pounds total) and it is compatible with many different types of bikes. I have included...
    view full answer...

  • Bolt Size and Thread Pitch of Attachment Hardware for Hidden Hitch Class III Hitch # 87414
  • The bolts included with the Hidden Hitch Class III # 87414 Hitch are Class 10.9. They're 10mm in diameter, 30mm long and have a 1.25 thread pitch. If you're needing replacement installation hardware, we can supply a replacement hardware kit for you. You'd use part # RHK, and on the product description page you're taken to, you'd input 87414 for the hitch part number and Hidden Hitch as the name of the manufacturer (as shown in the diagram I provided.) To see other accessories available...
    view full answer...

  • Hitch Recommendation for a 2009 Hyundai Santa Fe
  • The Hidden Hitch part # 87414 that you referenced is designed to fit your 2009 Hyudai Santa Fe so I can guarantee it will fit. The distance between the mounting holes from one side of the hitch to the other is 52 inches. You might also need the following: Ball mount, part # 2923 1-7/8 Inch Trailer Ball, part # 19260 2 Inch Trailer Ball, part # 63845 Trailer Wiring # 118415
    view full answer...

  • Best Location for Trailer Connector Bracket on 2011 Hyundai Santa Fe
  • The plate you see on the hitch (see photo) provides a mounting point for the trailer connector bracket. For a 4-pole connector, you would use # 18144. For a 5-pole, use # TR20046 and for a 6 or 7-way connector, use part # 18138. Hardware is included with the brackets. If you do not want to locate the connector at this location you may be able to remove a grommet in the spare tire compartment in the cargo area of your Santa Fe and locate it there.
    view full answer...

  • Wiring Harness and Towing Setup Recommendation for a 2008 Hyundai Santa Fe
  • If you do not have a tow package on your 2008 Hyundai Santa Fe, then you would have to contact a local Hyundai dealer to inquire about activating the tow package. There may be additional fuses and relays that would need to be installed by the dealership to activate the tow package. The trailer wiring harness, # 118258, that you referenced was designed for vehicles that came with the factory tow package. If the dealer is not able to activate your tow package, then you will want to use...
    view full answer...

  • Will a Trailer Hitch from a 2011 Hyundai Santa Fe Fit a 2009 Hyundai Santa Fe
  • None of the trailer hitches for the 2011 Hyundai Santa Fe will fit the 2009 Santa Fe. They require completely different hitch designs and the measurements are all different as well. I strongly advise not to install a 2011 hitch on a 2009. But to answer your question, the 2009 also takes M10 bolts. The issue is not that the bolts are too big, it is that the weld nut threads in the frame of the vehicle are packed with corrosion and road grime. They have to be cleaned out before a bolt...
    view full answer...

  • What Size Ball Should I Use to Tow a Trailer with my 2007 Hyundai Santa Fe
  • That will depend on the trailer you plan on towing with your 2007 Hyunda Santa Fe. Most likely it will be either a 1-7/8 inch ball and you would want the part # 19260 or a 2 inch ball and you would want part # 63845. To find out which ball diameter your trailer uses, I recommend looking on the trailer coupler, as the ball size should be stamped into the metal on top of the coupler. Either way the recommended ball mount you would want is the # 2923 for use with the hitch part # 87414...
    view full answer...

  • Can the Spare Tire be Lowered After Installing Trailer Hitch 87414 on a 2007 Hyundai Santa Fe
  • Provided that the spare tire on your 2007 Hyundai Santa Fe is a factory size and not a larger one that was added later you should not have much if any problems getting the spare down should you need to. Normally what you would do to release the spare in this situation is move it forward like you have said but also angle it down at the front. It will not just drop down so it does take a little bit of persuasion but you can get it out. It might be worth doing a practice run to find the best...
    view full answer...

  • Hitch Recommendation for a 2009 Hyundai Santa Fe
  • The Draw Tite Hitch part # 75776 that you referenced would not fit your 2009 Hyundai Santa Fe. The design of the hitch is very different from what is confirmed to fit your vehicle so it would not work for you. For a hitch for you vehicle I would recommend the Hidden Hitch part # 87414, only thing is that it is not rated for weight distribution. It does have a 3,500 lb trailer capacity and a 525 lb tongue weight capacity. For trailer wiring you would want the Tow Ready wiring harness...
    view full answer...

  • Options for Carrying 4 Bikes with 2008 Hyundai Santa Fe
  • A trunk-mounted bike rack can carry three bikes, at most. The Thule Raceway 3 Bike Rack, part # TH9002PRO is one of our best selling trunk mount racks. The Raceway uses an innovative ratcheting cable mounting system that eliminates the awkward straps and buckles used by other racks. The cable system allows the rack to be installed or removed in seconds. The Yakima KingJoe you referenced is also available in a 3 bike model, part # Y02625. Although not as easy to install or remove as the...
    view full answer...

  • Trailer Hitch Recommendations for a 2008 Hyundai Santa Fe
  • I am sorry, but none of our suppliers offer a 1-1/4 inch trailer hitch for your vehicle. They all offer the 2 inch trailer hitch with a 3,500 lb tow capacity except the Valley - it is rated at 4,000 lbs. The capacity technically makes the hitch a Class 2, but the 2 inch opening classifies it as a Class 3.
    view full answer...

Do you have a question about this Trailer Hitch?

Weight Carrying Capacity
Gross Towing Weight (GTW):
3,500 lbs.

Tongue Weight (TW):
525 lbs.

Weight Distribution Capacity
Hitch does not allow
use of weight distribution

Trailer Hitch Installation Instructions 87414 Installation instructions 87414 Installation Instructions
No drilling required

Tech Tip
No drilling required for installation

Manufacturer Estimated Installation Time

Recommended Wiring:
wiring 118415

wiring 118258
With Tow Package Use:118258

Most Popular Ball Mount:
Hidden Hitch 2923

1-7/8" hitch ball - 19260

2" hitch ball - 63845

2-5/16" hitch ball - 63847

If you have any questions you can contact our customer service department.

Info for this part was:

Expert Research:
Michael L

Video Edited:
Zack K

Video Edited:
Andrew K

Written by:
Lindsey S

Expert Research:
Patrick B

Expert Research:
Michael H

Expert Research:
Jameson C

Updated by:
Laura H

At we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.

Stay Connected

Subscribe to email newsletter


privacy - we don't send unsolicited email reviews

All images, layout and content copyright
