Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Perfect for light-duty towing, this custom, Ford Taurus trailer hitch receiver features fully welded, gloss powder coated steel construction. Drawbar sold separately.
Note: All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from Curt.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Curt Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4"
installation instructions and specs for complete information.

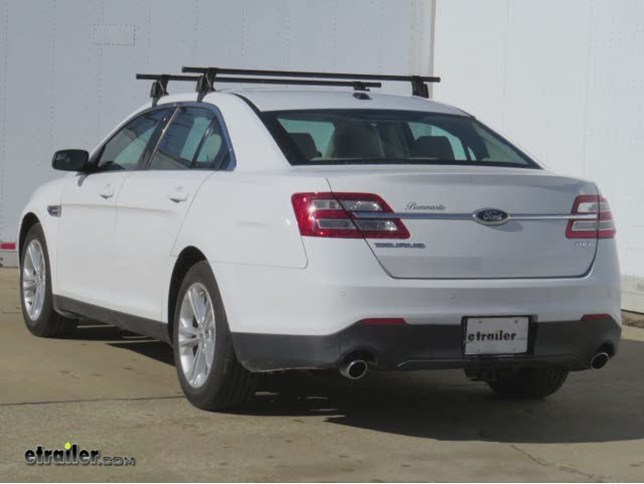

Today on our 2013 Ford Taurus, we'll be installing the CURT 1 1/4" receiver tube hitch, part number C12296. This is what our hitch will look like once it's installed. Next we'll go ahead and give you a couple of measurements to assist you with selecting accessories such as a ball mount, bike rack, or cargo carrier. From the center of the hitch pinhole to the outermost edge of the bumper is 5 3/4". From the top of the receiver tube opening to the ground is 12 1/2". Now, we'll go ahead with installation.
Now, before we can begin our install, we'll first need to lower the exhaust. To lower the exhaust safely, we're going to put a safety strap underneath it first. Then, we'll be removing the 3 rear rubber isolators from the metal hangers. To remove the rubber isolator from the metal hanger, can be made easier by spraying each one with some spray lubricant. Then, using our pry bar we'll go ahead and remove the rubber isolator from the metal hanger.
Next, we'll use the safety strap to safely lower the exhaust down and out of the way. Next, we're going to go ahead and remove the 2 rear rubber isolators from the metal exhaust hangers that are bolted to the frame. Then, we'll go ahead and remove the exhaust hangers. We'll remove the fasteners and then the hangers. We'll go ahead and set the hardware and hangers aside, as they will not be reinstalled. Now, let's go ahead and put our hardware into the frame.
Starting on the driver's side, we'll go ahead and take the pull wire, feed it through the forward attachment point and out the rear attachment point, which will also be the access hole. Then, we can slide on the block and thread on the carriage bolt. We'll feed the block into the frame, followed by the carriage bolt, and pull them into position. Now, go ahead and remove the bolt leader. We'll reuse the same bolt leader for the rear attachment point here on the driver's side and we'll use the reverse pull method, where we'll slide the block onto the bolt leader first and then thread on the carriage bolt.
We'll feed the carriage bolt into the frame first, followed by the block and then pull them back over the access hole, creating our rear attachment point. We'll leave the bolt leader on as it will assist with getting the hitch up into the position without pushing our hardware back up into the frame. Now, we'll move over to the passenger side and repeat the same process with the rear attachment point and using the reverse pull method. Next, we're ready to put the hitch in position. It's a good idea to get an extra set of hands to help you hold the hitch while you put it in position. We'll feed our pull wire through the attachment point. Be careful not to push your hardware back up into the frame for the forward attachment point on the driver's side. Then, once we have our hitch up to the frame, we can go ahead and install the 1/2" flange nut. Moving over to the passenger side, we'll remove the bolt leader, install the flange nut. For our forward attachment point, install the 12 mm bolt and conical tooth washer. Note that the teeth of the conical tooth washer should face the hitch. Now, we'll move over to the driver's side and we'll remove the bolt leader and install the 1/2" flange nut. Now, with all our hardware in place, we'll go ahead and tighten it down. Next, we'll torque to specifications as indicated in the instructions. We'll go ahead and take the rear rubber isolators we removed from the exhaust and install them directly onto the exhaust hangers built into the hitch. And now we're ready to reinstall the exhaust. Once we have our exhaust reinstalled, we're now ready to hit the road. And that does it for the install of our CURT hitch, part number C12296, on our 2013 Ford Taurus. .
Average Customer Rating: 5.0 out of 5 stars (7 Customer Reviews)Perfect for light-duty towing, this custom, vehicle trailer hitch receiver features fully welded, gloss powder coated steel construction. Drawbar sold separately.
by: Jack H.05/19/2014
Bought the hitch to use solely to carry a bike rack. When I saw I would have to fish three of the bolts and spacers through the frame I was a little intimidated. However after studying the instructions on using the fishing wire, it was really a snap. I completed the installation without even having to jack up the car! It took more time to clean out the one threaded weld than to fish the other three. This is my second Curt hitch. This one is on a 2010 Ford Taurus. The other on a 2012 Hyundai Elantra Touring. Both for bike racks. Both perfect fits. Shipping was free and quick. Highly recommend etrailer and this hitch. 131262
by: Al G.08/21/2013
Hitch was shipped in a timely manner. Upon arrival, I installed on a 2013 Ford Taurus. Pretty straight forward. The pictures that can be found on eTrailers website accurately depicted the installation procedure. The hardest part was getting the fishing cable to the hole so I could fish the bolts to the correct holes. I like the way the hitch looks on the car. It is hidden and not really noticeable. I won't be able to give towing feedback as this hitch will only be used to carry bicycles. Good product and good company to do business. Would recommend eTrailer!! 96156
by: Bobby S.12/18/2013
I love my new trailer hitch. It looks great on my ford Taurus. My wife was worried about it sticking out from the bumper but this hitch is a perfect fit ,barely visible .AND was so easy to install. 110338
Came fast and everything in the box. Installed, looks great and well hidden and impossible to bump your shin on it. Now I am ordering a new rack from you guys. 88590
by: Tom L.03/12/2013
Easiest hitch install I've ever done! Now I can haul my race kart to the track. Thanks etrailer! 70337
Service was Fantastic. Shipped quickly, and was very easy to install, on my 2013 Ford Taurus, Very satisfied 98444
by: Jeff W.01/06/2015
Curt Trailer Hitch is rock solid. I couldn't be happier! Thanks eTrailer! Jeff 167920
