Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Rating:
12 reviews
Code: 13355
Retail:$286.56
Price:$171.94
Shipping Weight: 50 pounds
Shipping SpecialThis fully welded trailer hitch receiver bolts onto your Ford F-150's frame with no welding required. Powder coated steel is sturdy and corrosion resistant.
Features:
Specs:
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Curt Trailer Hitch Receiver - Custom Fit - Class III - 2"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

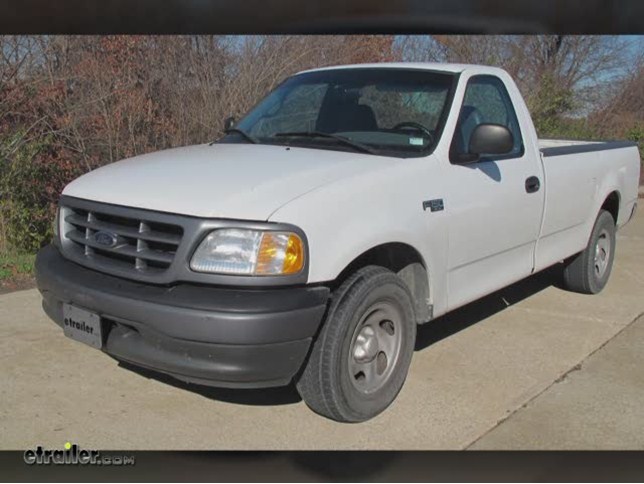

Today, on our 2002 Ford F-150, were going to install part number 13355 from Curt. All right, this is what the hitch will look like once its installed on the vehicle. Next, well give you some measurements to help you out in selecting some accessories such as a ball mount, a bicycle rack or a cargo carrier. From the top of the receiver opening down to the ground will be 18 1/2 inches and from the center of the hitch pin hole to the edge of the bumper will about 2 1/2 inches.Now, Ill go ahead and show you how the hitch is installed. The first thing were going to do is go ahead and show the attachment points on the frame. There are three attachment points located at the bottom edge of the frame, two close to the bumper and one further up.
Were looking at the passenger side, its going to be identical on the driver side.Next, well go ahead and install the hardware for the hitch. We have the block and the carriage bolt and the flange nut. Well take our block, run a bolt through it and then install it into the frame. Well use this block and bolt combination on all six holes. All right, now with an extra set of hands well go ahead and lift the hitch up and install the flange nuts.
Okay, with all the flange nuts loosely installed we can go ahead and tighten down the hardware and then go ahead and torque the bolts down as specified in the instructions. Now, some vehicles spare tire might be in the way, so you may have to loosen up the spare tire to install the hardware. Once all our bolts are torqued down, thatll finish it for our install of part number 13355 from Curt on our 2002 Ford F-150.
2002 F-150 by Ford Owners Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 4.8 out of 5 stars (12 Customer Reviews)
by: kevin williams05/15/2013
Is this review helpful?
at 63 years of age first new hitch needed a second truck to move trailers always got used had to chase hardware wire brush paint splice wires try to find relays wife said buy new got hitch best part has id sticker with weight cert no more dot wars bought plug and play plugs worth the money fast shipping great guys to do business with thanks aaa plus rating note about 20 minutes install hitch/plug /brake controller80372
by: kenneth02/25/2013
Is this review helpful?
The hitch for my f-250 arrived in perfect condition , installed myself in about 30 minutes , fit perfectly ! Dale Brown67659
by: David M.09/04/2012
Is this review helpful?
I installed this hitch receiver by myself in less than an hour. I didn't time it but probably between 30-40 minutes. I did not let the spare down as I had plenty of clearance without doing so. I placed all the bolts through their holes, then I braced one side of the receiver up with my knee while I started a nut on the other side. Once I had that side secured, I did the same for side I was holding up with my knee. After that it was a piece of cake to get the remaining 4 nuts started and them all tightened down. I installed this on a red 2004 Ford F150 Heritage edition 4x4. I haven't towed with it yet but it seems sturdy and looks great. I must compliment etrailer on their service. They kept me well informed as to the status of my order and it was shipped and received quickly. Great service! 53929
by: jason smith04/19/2012
Is this review helpful?
Fit great bolted right up thanks 37785
by: James S04/02/2012
Is this review helpful?
My wife was disappointed with the installation. S used to the cussing and carryings on when I start a project but was deprived of a show this time. Half-hour, it was done. Thanks 35921
by: Joe M.04/01/2012
Is this review helpful?
Arrived without a scratch. It took longer to lower the spasre tire than to install the hitch. Very Pleased.35827
by: Chris C11/03/2011
Is this review helpful?
Really easy to install - took about 15 minutes. Looks heavy duty and well made. Quick shipment and delivery by etrailer (as usual).26489
by: Rick J.08/02/2011
Is this review helpful?
Ordered on Thursday arived Monday. Fast! Very good product. Installation was fast and easy, fit perfectly.20869
by: Luther W07/08/2011
Is this review helpful?
Great hitch, supper fast shipping. Replacing old hitch.18950
by: ScottW.06/21/2011
Is this review helpful?
Quality product at a great price, very easy install.17499
by: Buddy C04/21/2011
Is this review helpful?
I ordered this hitch for my '97 F-150 to tow a small travel trailer. It arrived in a timely manner. As promised, the hitch bolted into existing holes in the truck frame with the included hardware. I did have to put some spacers on the bumper to get it to squeeze in there, but that may have been because of a little fender bender in the past. Other than that, the hitch went on easily, and seems to work well. I'm very pleased with this purchase.12112
by: Jack B.03/19/2011
Is this review helpful?
Received my trailer hitch in three days, My wife helped me install the hitch in less than 35 minutes. Couldn't believe how easy it was just 3 bolts on each side. I have a 2003 Ford F150. Installed without even lowering the spare tire.9857
Ask the Experts about this Curt Trailer Hitch
Do you have a question about this Trailer Hitch?
Complete Towing Package
2002FordF-150
Tech Tip
Hitch will fit on vehicles with a 20 inch or smaller spare tire.No drilling required for installation, Spare tire will need to be lowered or removed temporarily for hitch installation
