Hidden Hitch Trailer Hitch for the 2005 Explorer Sport Trac by Ford

Hidden Hitch Trailer Hitch

ratingratingratingratingrating (13 reviews)


Code:   87008

Retail:$279.50

Price:$189.95

Buy a Hidden Hitch or Draw-Tite branded hitch with a 2 inch receiver and get a free anti-rattle hitch pin
Shipping Special

Shipping Weight: 36.39 pounds

Quantity:






Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 2005 Explorer Sport Trac by Ford

This durable, fully welded Ford Explorer Sport Trac trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.

Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Ford Explorer Sport Trac
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Stylish, round-tube design
  • Ball mount, pin and clip sold separately


Specs:

  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 5,000 lbs
      • Maximum GTW when used with weight distribution: 6,000 lbs
    • Maximum tongue weight: 500 lbs
      • Maximum TW when used with weight distribution: 600 lbs
  • Limited lifetime warranty


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



87008 Hidden Hitch Class 3 Trailer Hitch Receiver





Video of Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2"


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video install trailer hitch 2003 ford explorer sport trac 87008
Trailer Hitch Installation - 2003 Ford Explorer Sport Trac - Hidden Hitch
Video install trailer hitch 2002 ford explorer sport trac 87008
Trailer Hitch Installation - 2002 Ford Explorer Sport Trac - Hidden Hitch

Video Transcript for Trailer Hitch Installation - 2003 Ford Explorer Sport Trac - Hidden Hitch

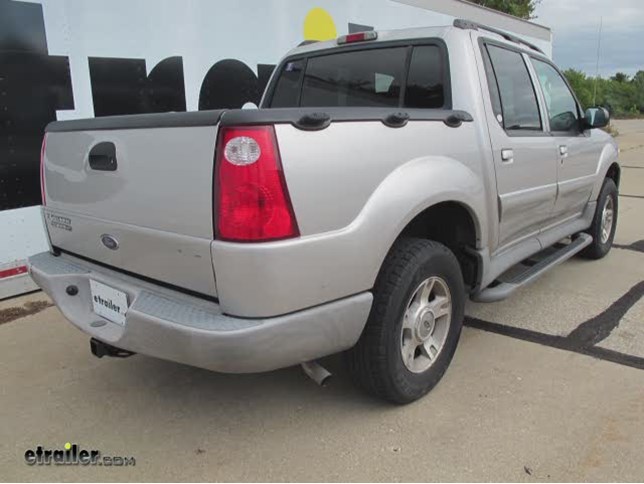

Today on our 2003 Ford Explorer Sport Trac, we're going to install part number 87008 from Hidden Hitch. This is what the hitch looks like once it's installed on our Sport Trac. Next we'll give you some measurements to help you out in selecting some accessories such as a ball mount, a bicycle rack, or a cargo carrier. From the top of the receiver opening down to the ground will be about 17". From the center of a hitch pin hole to the outside edge of the bumper, will be about 3-1/4". Now I'll show you how the hitch is installed. First off, we'll show you where the hitch attaches to the frame of our vehicle. First it will attach here at the bottom of the frame at the end. Also, there's an oval hole here that the hitch will attach to.

This is the passenger side. On the driver's side, it will be the same way. Here's our existing hole here and our oval hole. On the driver's side, we've got some wires in the way. I like to remove those to get them out of the way before we install our hitch and reroute them. You can pry them off with a screw driver.

I'm using a trim panel tool to help remove them. You can probably zip these out of the way, because the hitch will take up this area. I like to do is actually disconnect them right here and run them over the top of the bumper structure. That way you don't have to worry about getting them anywhere near the suspension that moves back and forth. Push in this tab and pull the connection apart. There's one on top, too, that's a little bit harder to move.

I'll pop mine loose here. If you push up on this tab here with a screw driver, you can release it and then pull it apart. We're just going to run our wires back over the top and snap them back together. Now that we've got these plugged back together, you won't have to worry about the wires being in the way of the hardware of the hitch. Next we'll show you how the hardware works for the hitch. On the holes on the bottom of the frame, we'll get this block and a carriage bolt. This will go through the frame and then through the hitch. Underneath we'll get a conical tooth washer.

Make sure the teeth in the washer always stays towards the hitch and a nut. For the hole in the side of the frame, we'll get the hex bolt and a thin block. This will go from the inside to the outside of the frame. Between the hitch and the frame, we'll also get this thicker block. Then on the outside of hitch we'll get a lock washer and then the nut. This will be the same on both sides of the hitch. Let's take our carriage bolts and blocks and put them on the bottom of the frame first. That helps to put the block in first, then the carriage bolt, because this nut gets in the way a little bit. With an extra set of hands, we'll put the hitch up into position. It's a tight fit, so it's a good idea to have something to support the hitch or a good friend that likes little things. Let's put our bolt and block into place into the oval hole just enough to get it started. Then we'll install our thick block. We got through the block but not through the hitch. We'll rotate the hitch and move it around as needed, line it up, and put the bolt through. There is it. Then our lock washer and nut. Now we're done with the passenger side. Let's do the same thing on the driver's side. At this point, will all our hardware loosely installed we'll tighten down the bolts. Then we'll torque them down as specified in the instructions. When you hold the bolt down from the inside, there's really not much room. You have to put your wrench at an angle to help get ahold of it. With all the bolts torqued down, that will finish it for our install of part number 87008, from Hidden Hitch Trailer on our 2003 Ford Explorer Sport Trac. .




Customer Reviews

Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 87008

Average Customer Rating:  ratingratingratingratingrating4.8 out of 5 stars   (13 Customer Reviews)

This durable, fully welded vehicle trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.


- 87008

ratingratingratingratingrating by: Charles04/13/2013


This would of been an excellent rating but the mount I recieved had one problem.. the L-shaped bracket that bolts to the bottom of the drivers side frame was welded on crooked, so the hole did not line up with the hole in the frame. But luckily for me, I have access to a well stocked garage and was able to work around that. If I hadn't I would of had to return this for a replacement. This wasn't any fault of E-trailers it was in the manufacture of the mount from Hidden hitch and just something that must of slipped through their QC department. Aside from that one defect the mount appears to be very sturdy and well made.. Overall I am pleased with my purchased. E-Trailers was very fast with shipping. 75822






- 87008

ratingratingratingratingrating by: David04/13/2012


Ordered Saturday for my 1994 Ford Explorer Sport Trac. It was at my front door on Wednesday! I took it out of the box, and with my wife's help, had it installed in about 30 minutes using a crescent wrench, socket wrench & torque wrench. Perfect fit, couldn't be happier! 37080






- 87008

ratingratingratingratingrating by: LJ06/29/2014


This resolved an issue I had with my bumper hitch-it wasn't designed to pull a trailer. A trailer rental company told me they could not install a hitch on the Ford Explorer Sport Trac. Not only was the hitch I purchased a good price, but I installed it myself and saved even more. It arrived sooner than I expected and I installed it the same day. I will definitely make your company the go-to company from now on. 138263






- 87008

ratingratingratingratingrating by: Mike B.03/11/2012


This was not my first Hidden hitch, nor will it be my last. The hitch is very well engineered and manufactured. The packaging ensured that my hitch arrived to my door undamaged with all hardware secure. I installed the hitch myself in about 20 minutes in my garage and it aligned perfectly. The shipping was fast! Another satisfied customer, thank you etrailer! 33543






- 87008

ratingratingratingratingrating by: Steven P.04/15/2012


Very good product. I have not hauled anything with it yet, but it bolted up nice and seems very sturdy. Only downfall is that you really do need another person to help you put it on. It's nearly impossible to hold it up and put the bolts through it. Still a great product and easy to mount with some help. 37299






- 87008

ratingratingratingratingrating by: gary r christopher10/15/2012


The hitch that I ordered was delivered within 3 days and very well made. installation was completed within 1/2 hour as stated on your web page. Thanks again for a well made product with a good price. 57294






- 87008

ratingratingratingratingrating by: Chad W.04/25/2014


I installed this hitch on a 2001 Ford Explorer Sport Trac. I installed it by myself in about twenty minutes. It went on easy and looks great. Would highly recommend etrailer to anyone. Thanks Chad 127437






- 87008

ratingratingratingratingrating by: Sidney robinson07/31/2012


This is a nice hitch came to my house real fast on the shipping . Also came with all the proper hardware and was real easy to instoll . I would purchase probucts from this sight again 49956






- 87008

ratingratingratingratingrating by: zack D.03/19/2014


Recieved on third day, took half an hour to install. need someone to help hold. love it !!! 121248






- 87008

ratingratingratingratingrating by: James Van Patten06/16/2011


Fast Shipping, Great product just as described and pictured. Thanks etrailer. 17101






- 87008

ratingratingratingratingrating by: Casey01/29/2013


good price, fast effecient shipping. Excellent Service! Love etratiler. 64450






- 87008

ratingratingratingratingrating by: Douglas02/03/2013


Fast delivery. Simple installation. Looks great. 64880






- 87008

ratingratingratingratingrating by: Paul03/07/2013


great product 69479




13
13


Ask the Experts about this Hidden Hitch Trailer Hitch
Expert Answers about Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 87008Do you have a question about this Trailer Hitch?


  • Parts Needed to Flat Tow a 2001 Ford Sport Trac Automatic Behind a Winnebago Adventurer
  • To flat tow your 2001 Ford Sport Trac Automatic behind your Winnebago Adventurer with the Blue Ox Alpha Tow Bar, # BX7365, you will need a base plate kit, light kit and supplemental braking system. Typically you would also need a set of safety cables, but they are included with the Alpha tow bar. Please note that if your vehicle is a 4wd automatic, then it is not towable. If your vehicle is a 2wd automatic, then you can use the Blue Ox Base Plate Kit, # BX2166. This base plate kit...
    view full answer...

  • Mounting Bracket for a 4-Way Trailer Connector on a 2002 Ford Explorer Sport Trac
  • The trailer wiring for the 2002 Ford Explorer Sport Trac, # 118344, can be secured to the trailer hitch using a bracket and mount for the 4-Way. I recommend the mounting bracket # 18144 with short arm # 18140 or long arm # 18136. The arms just clamp around the hitch and the mount attaches to the end of the arm. You do not want to drill into the hitch because it voids the warranty and can compromise the structural integrity of the hitch.
    view full answer...

  • Trailer Hitch and Wiring for a 1997 Ford E-150 Van and 2004 Ford Explorer Sport Trac
  • The 1997 Ford E-150 van and the 2004 Ford Explorer Sport Trac were built on different platforms and frames so the trailer hitches for each are not interchangeable. It sounds like you need a hitch for the 2004 Ford Explorer Sport Trac. I have linked the hitches available. For the most popular option use # 87008. I have linked the instructions for you. To complete your towing set up I recommend etrailer ball mount kit # 989900. It includes 2 ball mounts, 2 balls, a hitch pin with clip,...
    view full answer...


Expert Answers about Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 87008Do you have a question about this Trailer Hitch?



Ford Explorer Sport Trac Accessories


Complete Towing Package

2005 Ford Explorer Sport Trac




Retail: $335.17

Package Price:$267.41





Weight Carrying Capacity
Gross Towing Weight (GTW):
5,000 lbs.

Tongue Weight (TW):
500 lbs.


Weight Distribution Capacity
Gross Towing Weight (GTW):
6,000 lbs.

Tongue Weight (TW):
600lbs.


Trailer Hitch Installation Instructions 87008 Installation instructions 87008 Installation Instructions

Tech Tip
No drilling required for installation,Will fit with full size spare tire stowed under vehicle,,

Manufacturer Estimated Installation Time



Recommended Wiring:
Hidden Hitch 18252
18252

Most Popular Ball Mount:
Hidden Hitch 2923
2923


1-7/8" hitch ball - 19260


2" hitch ball - 63845


2-5/16" hitch ball - 63847
