Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.
Fully welded Ford Explorer Sport Trac trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
No drilling required for installation , Hitch will fit with full size spare tire stowed under vehicle
Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"
installation instructions And specs For complete information.

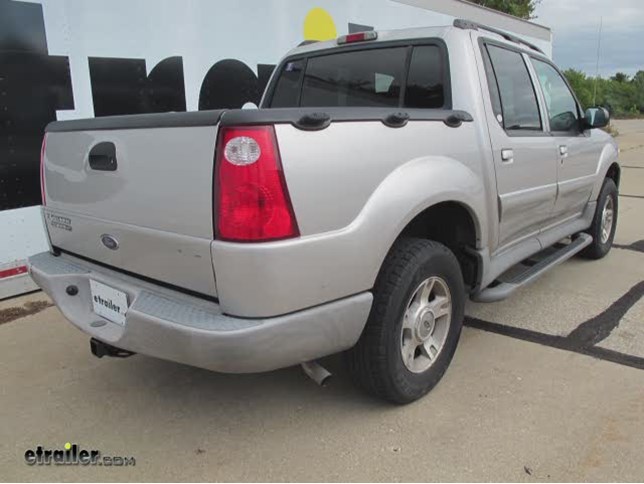

Today on this 2003 Ford Explorer Sport Trac we're going to install part number 75112. This is what the hitch looks like once installed on our Sport Trac. Next we'll give you some measurements to help you out in selecting some accessories, such as a ball mount, a bicycle rack or a cargo carrier. From top of receiver opening down to the ground will be about 17". From the center of the hitch pin hole, to the outside edge of the bumper will about 3-1/4". Now I'll go ahead and show you how the hitch is installed.
First off we'll go ahead and show you where the hitch attaches to the frame of our vehicle. First it'll attach right here at the bottom of the frame at the end. Also there's an oval hole right here that the hitch will attach to. This is the passenger's side. On the driver's side it'll be the same way. Using our existing hole here and our oval hole.
On the driver's side we've got some wires in the way, so I'd like to remove those to just get them out of the way before we install our hitch and just re-route them. You can pry them off with a screwdriver. I'm using a trim panel tool to help remove them. Now you can probably zip these guys out of the way; because, the hitch will take up this area. What I like to do is actually disconnect them right here and run them over the top of the bumper structure. That way you don't have to worry about them getting anywhere near the suspension it moves back and forth.
We'll push in this tab and pull the connection apart, maybe. There it is. There's one on top too. It's a little bit harder to move. Now I'll pop mine loose here and as you push up on this tab here with a screwdriver you can go ahead and release it and then pull it apart.
We're just going to run our wires back over the top. Snap them back together. Now we've got these guys plugged back together. We don't have to worry about the wires being in the way of the hardware of the hitch. Next we'll go ahead and show you how the hardware works with the hitch. On the hole that's in the bottom of the frame, we'll get this block and a carriage bolt. This will go through the frame and then through the hitch. Then underneath we'll get a contoured tooth washer. Make sure the teeth in the washer always stays toward the hitch and a nut. For the hole in the side of the frame will get the hex bolt and a thin block. This will go from the inside to the outside of the frame. In between the hitch and the frame will also get this thicker block. Then on the outside of the hitch we'll get lock washer and then the nut. All right, now this will be the same on both sides of the hitch. Let's go ahead and take our carriage bolts and blocks and put them on the bottom of the frame first. It kind of helps put the block in first and then the carriage bolt; because, this nut gets in the way a little bit. With an extra set of hands we'll go ahead and put the hitch up in position. It's a bit of a tight fit, so it's a good idea to have something to support the hitch or a good friend that likes to lift things. Let's go ahead and put our bolt and block into place into the oval hole. Just enough to get it started. Then we'll go ahead and install our thick block. Got it through the block, but not through the hitch. We'll go ahead and rotate the hitch and move it around as needed to line it up and put the bolt through. There it is and then our lock washer and nut. Now we're done with the passenger's side and let's do the same thing on the driver's side. At this point with all of our hardware loosely installed, we'll go ahead and tighten down the bolts and then we'll torque them down as specified in the instructions. Now when you hold the bolt down from the inside, there's really not much room, so you kind of have to put your wrench at an angle to help get a hold of it. With all the bolts torqued down that'll finish it for our install of part number 75112 on our 2003 Ford Explorer Sport Trac. .
Average Customer Rating: 4.6 out of 5 stars (22 Customer Reviews)Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.
I installed this on '02 Ford Explorer Sport Trac. While I didn't set the record for the quickest installation (or even come close), the installation was simple enough. I am pleased with the quality of the hitch; the welds are of good quality and the coating is also good. You can buy a cheaper hitch, but with this one you will feel confident that you have a quality hitch on your vehicle. I used it to pull a trailer from WI to AZ for a cross country move and couldn't be happier with how it performed. 307565
Ordered Saturday for my 1994 Ford Explorer Sport Trac. It was at my front door on Wednesday! I took it out of the box, and with my wife's help, had it installed in about 30 minutes using a crescent wrench, socket wrench & torque wrench. Perfect fit, couldn't be happier! 37080
by: Nick L08/12/2011
I received the Trailer Hitch very quickly...after order it I received before I knew it. I went to install it the hitch it went with little effort. The hardest part of my installation was raising the well built hitch off the ground. After moving the hitch into place it took a large screw driver slide it in to place. Four bolts and some tools and I was finished. I was surprised this project went so well. I would recommend this hitch to my friends and family. 21765
by: Carr Guy09/01/2010
Great product The trailer hitch was as described. Great quality, and instulation was easy. It took me about 45 minutes to install, because it was hard to hold up, line up and bolt in all at one time. After I use a floor jack, all went smooth. I recomend putting the top bolts in first, to make it easier to hold up and line up the bolt holes. A perfect fit and easy to install. Great quality and worth the money. 3402
This resolved an issue I had with my bumper hitch-it wasn't designed to pull a trailer. A trailer rental company told me they could not install a hitch on the Ford Explorer Sport Trac. Not only was the hitch I purchased a good price, but I installed it myself and saved even more. It arrived sooner than I expected and I installed it the same day. I will definitely make your company the go-to company from now on. 138263
Installation looked simple and we almost had it but our bumper was slightly out of alignment. Took it to our local mechanic who had the right tools and it was installed in minutes. We've been using it since then with our Hitch Rider Truckee Switch Rack to haul our recumbent trikes. We wish we had done this sooner! Thanks etrailer for an efficient website and prompt delivery. 264511
by: Steven P.04/15/2012
Very good product. I have not hauled anything with it yet, but it bolted up nice and seems very sturdy. Only downfall is that you really do need another person to help you put it on. It's nearly impossible to hold it up and put the bolts through it. Still a great product and easy to mount with some help. 37299
by: John Wesnesky10/13/2011
Excellent product and service received my order earlier then expected great quality and packing of merchandise. Easy to install with great instructions and quality fasteners. I will be doing more shopping with e trailer. Great Job!!!!!!! 25502
Everything was great from the order to the tracking, to the deliver. Once installed it has been worry free and has filled my needs completely. Thanks etrailer.com I pull a utility trailer or my pontoon boat. 243151
by: gary r christopher10/15/2012
The hitch that I ordered was delivered within 3 days and very well made. installation was completed within 1/2 hour as stated on your web page. Thanks again for a well made product with a good price. 57294
by: Chad W.04/25/2014
I installed this hitch on a 2001 Ford Explorer Sport Trac. I installed it by myself in about twenty minutes. It went on easy and looks great. Would highly recommend etrailer to anyone. Thanks Chad 127437
by: Sidney robinson07/31/2012
This is a nice hitch came to my house real fast on the shipping . Also came with all the proper hardware and was real easy to instoll . I would purchase probucts from this sight again 49956
by: Doug H08/24/2016
Perfect fit, no alignment struggle. Installed on a 2005 Ford Explorer Sport Trac within hours of arrival. The estimated delivery date was accurate, free freight! Thanks! 287094
Hitch was a perfect fit and was installed in about 15 minutes, minimal tools and no drilling. I would use this site again and would recommend it to my friends 314141
by: Bob D.07/09/2014
Excellent! Bolted in place with no problems. Took us less than 30 minutes to install. Towing a 21' Rinker cuddy cabin boat. 140280
by: zack D.03/19/2014
Recieved on third day, took half an hour to install. need someone to help hold. love it !!! 121248
Shipped fast and seems to be of good quality but haven't had a chance to actually use it yet 254647
by: James Van Patten06/16/2011
Fast Shipping, Great product just as described and pictured. Thanks etrailer. 17101
good price, fast effecient shipping. Excellent Service! Love etratiler. 64450
Fast delivery. Simple installation. Looks great. 64880
great product 69479
by: william B12/28/2011
GOOD JOB 28810
