Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Draw-Tite Trailer Hitch

(7 reviews)

Code:   75766



Custom Fit Product

Shipping Special

Shipping Weight: 34 pounds


Draw-Tite Trailer Hitch - 75766

Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.


  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your vehicle
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Stylish, round-tube design
  • Ball mount, pin, and clip sold separately


  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 3,500 lbs
      • Maximum GTW when used with weight distribution: 5,000 lbs
    • Maximum tongue weight: 525 lbs
      • Maximum TW when used with weight distribution: 525 lbs
  • Limited lifetime warranty

Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.

Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.

In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.

etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.

75766 Draw-Tite Class 3 Trailer Hitch Receiver - Max-Frame

Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

Video Transcript for Trailer Hitch Installation - 2015 Toyota Rav4 - Draw-Tite

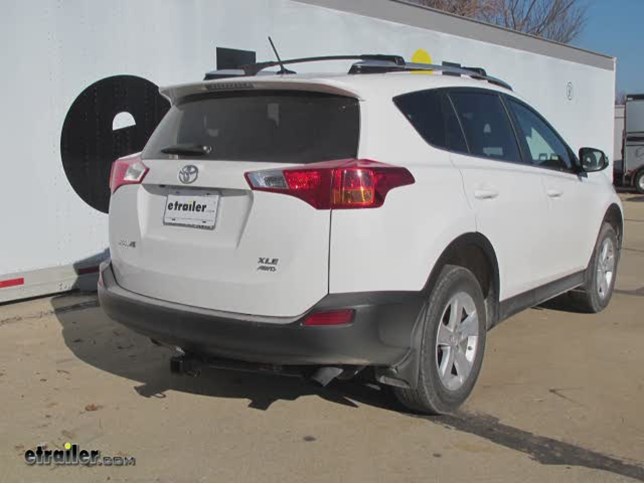

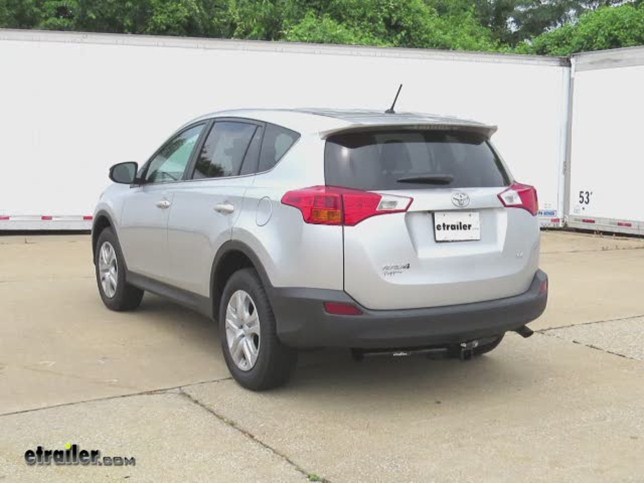

Today on this 2015 Toyota RAV4 we're going to install part number 75766 from Draw-Tite. This is a class three 2" receiver hitch. This is what the hitch looks like when it's installed on our RAV4. Next we'll go ahead and give you some measurements to help you out with selecting some accessories such as a ball mount, a bicycle rack, or a cargo carrier. From the top of the receiver opening down to the ground will be about 13-1/4". From the center of the hitch pinhole to the edge of the bumper will be about 3".

Now we'll go ahead and show you how the hitch is installed. First thing we need to do is go ahead and get our vehicle ready to install the hitch. To start off we want to go ahead and remove the tie-down bracket on the driver side. We're going to use a 17mm socket to do that. Next we'll go ahead and lower our exhaust out of the way. We're going to spray down the rubber hanger here with some spray lubricant and then we'll go ahead and just pry it off.

Now we got plenty of room right here for our exhaust but in our case just because everything's easier to see we'll go ahead and lower it by the hanger here as well. Block of wood gives you something to push against so we can remove it. There it goes. Pretty simple hardware. Got the new metric bolt and a conical tooth washer.

Make sure your teeth on the washer always face towards the hitch. For this fastener combination it's going to be the same on both sides of the hitch. Now we'll go ahead and show you where the hitch mounts up onto the vehicle. There's these two threaded weld nuts here and here. This is a brand new vehicle so the threads are going to be clean, but it's always a good idea to clean them out first and try them with the hitch bolt before we put the hitch into place. That was the passenger side and this is the driver side.

We'll go ahead and clean up the threads. We'll put some spray lubricant on it and use a tube brush to help clean out the threads. The tube brush we're using is part number 814092. We got one done. We'll go ahead and do the same thing for the rest of the threaded holes. At this point we can go ahead and install our hitch. It's a good idea to get an extra set of hands to help hold up the hitch while you put it in place and install the fasteners. We'll get one bolt started on each side to support the hitch. Then we'll install the rest of the hardware. Once you have all the hardware loosely installed you may have a little bit of play in the hitch so it's a good idea to move it left and right as needed to center it up with the vehicle the way you like it. We'll go ahead and tighten down the new hardware using a 19mm socket, and then torque them down as specified in the instructions. Now with our hitch installed we can go ahead and put the exhaust back into place. We'll spray a little more lubricant on the hangers and put them back. With that, that will finish it for our install of part number 75766 from Draw-Tite, the class three 2" receiver hitch, on our 2015 Toyota RAV4. .

This Product Fits The Following Vehicles

2013 - 2015 Toyota RAV4

Customers Who Purchased This Trailer Hitch Also Bought...

Replacement parts available for this product

Customer Reviews

Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" - 75766

Average Customer Rating:  5.0 out of 5 stars   (7 Customer Reviews)

Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.

- 75766

by: Blair H.05/12/2015

The hitch itself is VERY sturdy and arrived well packaged and protected. Installation was painless except for the need to have a torque wrench - luckily a neighbor let me borrow one and even crawled under the car to bolt it on with me. I was originally worried that I would need a ramp or a lift to jack the rear of the car up, but there was plenty of clearance so that wasn't needed. Oh - and I did have to slide the exhaust out of the little rubber bracket, but that turned out to be a piece of cake - you can do it with just your fingers. Great product - easy installation. 192112

- 75766

by: Luke C.10/01/2014

I purchased this hitch after extensive review of various models online. etrailer.com had the most comprehensive website with instructions, product details, videos and made it easy to choose who to purchase from. I received my order quickly and installed it to my 2014 RAV4 in under 30 minutes with the assistance of a friend. The unit installed so easily I was ecstatic!! I am still in the market for my trailer and haven't been able to use the hitch yet, though I am confident that it will perform exactly as intended. 154028

- 75766

by: M Green08/04/2015

Product shipped promptly and arrived in gear condition. Installation on my 2014 Toyota RAV4 was incredibly easy. I did all the preps and exhaust modification myself (20ish minutes) before calling my neighbor over to hold the hitch in place while I tightened the bolts (less than 10 minutes). I should add that I have never even looked under, let alone gotten under a car before. Haven't used the hitch yet, but so far I'm very happy with it and would highly recommend! 216582

- 75766

by: John B08/22/2014

This is a solid product and the second one I have bought. Installation is not difficult. I use this with a Thule bike carrier. I am pleased with this product and would recommend it. The only negative would be with the packaging. The box was not sturdy enough for the heavy metal hitch and came ripped open at the top and bottom. Fortunately all the hardware and instructions are taped to the unit so nothing was lost. 148044

- 75766

by: Brian Ahern08/11/2014

Easy to install and works and looks great, love it! 146087

- 75766

by: Chris K04/08/2014

Installed in less than 30 minutes by two of us. Did not have to drop the muffler - just had to pull it to the passenger side as far as it would go to slip in the torque wrench. Looks nice and tidy on my RAV4. 124281

- 75766

by: Doug Tramel03/03/2014

Looks great and will be installed by dealership next Saturday 3/15/14. 118284


Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?

  • Hitch Setup Recommendation for a 2013 Toyota Rav4 Towing 2,000-3,000 lb Trailer
  • For a hitch I would recommend you get a Draw-Tite Trailer Hitch # 75766. This is a Class III hitch that would have more than enough capacity to tow your 2,000-3,000 lb trailer. Instructions attached. Next, you will need a ball mount and hitch ball, I would recommend you get the etrailer.com Ball Mount Kit # 989900. For wiring you would want the Curt Custom Fit Vehicle Wiring # C56166. This will provide you with a 4-way to control the tail light functions of your taillights. I attached...
    view full answer...

  • Recommended Bike Racks That Allow Full Cargo Area Access for 2014 Toyota Rav4
  • I have two good bike rack options for you, one that would involve installing a hitch, the other would mount to the spare tire. For full access to your rear door without the need to remove the bikes from the rack before opening the door, I'd recommend the Thule Vertex Swing, part # TH9031XT. The rack is capable of carrying up to four bikes, can swing out of the way to allow full cargo area access, and features an anti-rattle hitch pin to prevent the rack from moving around in the hitch....
    view full answer...

  • Difference Between Hidden Hitch and Draw-Tite Class III Trailer Hitches for 2015 Toyota Rav 4
  • Hidden Hitch and Draw-Tite are manufactured by the same parent company, Cequent Performance Products. The Draw-Tite # 75766 and Hidden Hitch # 87631 are identical. I'd recommend going with the Draw-Tite model as it's slightly less expensive. If you live near or are traveling to the thriving metropolis of Wentzville, MO, we'd be happy to install the hitch for you. You can call our Customer Service folks for an appointment or for more details including the cost for the install.
    view full answer...

Do you have a question about this Trailer Hitch?
