Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Rating: rating rating rating rating rating
29 reviews

Code: 75586

Retail:$271.88

Price:$185.95

$165.95 after Mail In Rebate

20 dollars off Draw-Tite receiver hitches priced from 169.95 to 239.99 dollars

Shipping Weight: 47 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

Trailer Hitch Installation - 2012 Toyota Highlander - Draw-Tite - Video

Draw-Tite Trailer Hitch - 75586

Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.

Features:

Custom fit is designed specifically for your vehicle
Computer-aided, fully welded steel construction ensures strength and durability
Tested Tough - safety and reliability criteria exceed industry standards
Easy, bolt-on installation - no welding required
- Complete hardware kit and installation instructions included
Lifetime technical support from the experts at etrailer.com
Black powder coat finish covers e-coat base for superior rust protection
Sturdy, square-tube design
Ball mount, pin and clip sold separately
Made in USA

Specs:

Receiver opening: 2" x 2"
Rating: Class III
- Maximum gross trailer weight: 5,000 lbs
  - Maximum GTW when used with weight distribution: 5,000 lbs
- Maximum tongue weight: 500 lbs
  - Maximum TW when used with weight distribution: 500 lbs
Limited lifetime warranty

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.

Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.

In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.

etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.

75586 Draw-Tite Class 3 Trailer Hitch Receiver - Max-Frame

Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

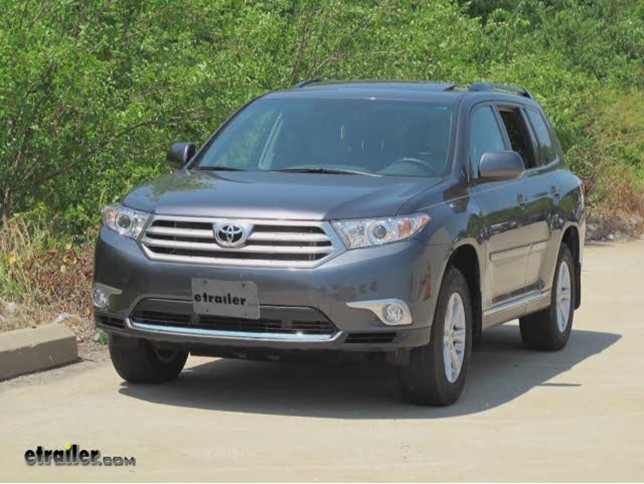

Video install trailer hitch 2012 toyota highlander 75586

Trailer Hitch Installation - 2012 Toyota Highlander - Draw-Tite

Video Transcript for Trailer Hitch Installation - 2012 Toyota Highlander - Draw-Tite

Today on our 2012 Toyota Highlander, we'll be installing the Draw-Tite Hitch, part number 75586. This is what our hitch will look like once it's installed. Next, we'll go ahead and give you a couple of measurements to assist you in selecting accessories for your new hitch. From the center of the hitch pin hole to the outermost edge of the bumper is 1-1/2 inches. From the top of the receiver tube to the ground is 14-1/4 inches. This will assist you in selecting accessories such as a drawbar, a bike rack, or a cargo carrier.

Now, let's go ahead with the installation. Before we can install the hitch, we'll need to remove both the driver and passenger's side underbody trim panels. These will get removed and will not be reinstalled. With this application, the manufacturer has suggested cutout lines if you wish to cut them out and reinstall them. However for this application, we will not.

To remove the underbody trim panels, there are multiple pushpin fasteners and bolt fasteners to remove. We'll go ahead and start on the driver's side and then remove the passenger's side. Now with both underbody trim panels removed, we'll go ahead and remove both tow hooks. There are two fasteners for each tow hook, one on each side. Once again, we'll set these aside as they will not be reinstalled.

Now, we're ready to go ahead and point out the attachment points. We'll have a total of three on each side in the bottom of the frame. We'll need to go ahead and remove the rubber plug for the forward fastener on the driver's side. Next, we'll go ahead and take our 1/2-inch nylon tube brush, part number 814092 and some spray lubricant and clean out each one of the weld nuts. We do this so that we can go ahead and take one of the new 10-mm bolts and make sure they're going to thread in nice and easily, because over time the threads can build up with rust, dust, dirt and debris, making it difficult to install the new fasteners.

Now, we're ready to go ahead and install the hitch. We'll be using the new 10-mm bolts with the conical toothed washer with the teeth of the washer facing the hitch. It's a good idea to get an extra set of hands to help you hold the hitch while you install the fasteners. Now with all six fasteners installed, we can go ahead and tighten them down. Next, we can go ahead and torque to specifications as indicated in the instructions. And that will complete our install of the Draw-Tite Hitch, part number 75586 on our 2012 Toyota Highlander.
