Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Rating:
13 reviews
Code: 75118
Retail:$275.66
Price:$190.95
$170.95 after Mail In Rebate
Shipping Weight: 31 pounds
Shipping SpecialFully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.
Features:
Specs:
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

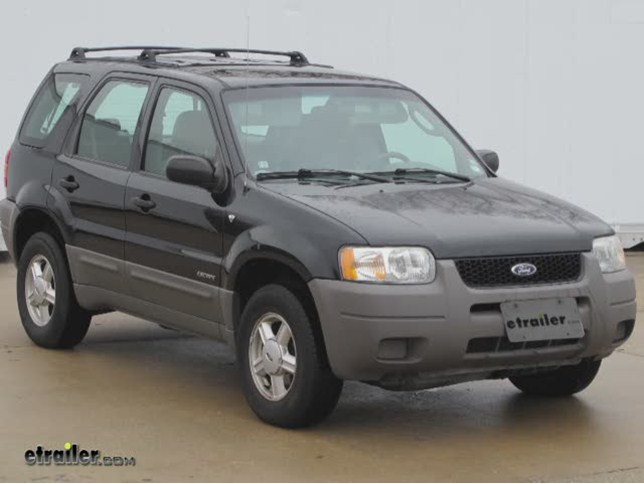

Today on our 2002 Ford Escape, well be installing a Draw Tite Hitch, part number 75118. This is what our hitch will look like once it is installed. Next well go ahead and give you a couple of measurements to assist you in selecting accessories for your new hitch. From the center of the hitch pinhole to the outermost edge of the bumper is 5 inches. From the top of the inside of the receiver tube opening to the ground is 14 inches. This will assist you with selecting accessories such as a ball mount, bike rack or cargo carrier. Now well go ahead with the installation.
First step of our install will be removing the heat shield above the muffler on the passenger side. There are a total of four fasteners thatll need to be removed. Once we remove the four fasteners we can then go ahead and pull the heat shield down and out of the vehicle. Well hang onto the fasteners and the heat shield as it will be reinstalled after we install the hitch. Next well go ahead and point out the attachment points.
There are a total of six attachment points, three on each side. These holes are predrilled into the frame by the manufacturer. Well be using the 7/16th carriage bolt and block, 7/16th conical tooth washer and nut to secure the hitch. Well go ahead and use a pull wire to pull our hardware into position by taking the pull wire going through the attachment point out the end of the frame, well slide on our block feed it into the frame and then thread on the carriage bolt. Well feed the carriage bolt into the frame and then pull them both into position. Once we get our bolt pulled through the frame well go ahead and remove the bolt leader and repeat the same process for the rest of our attachment points. Now with all of our hardware in the frame, were ready to go ahead and install the hitch.
Its a good idea to get an extra set of hands to help you hold the hitch while you install the fasteners. As you put the hitch up into position, be careful not to push your hardware back up into the frame. Once we have the hitch lined up, well go ahead and install the conical tooth washer again with the teeth of the washer facing the hitch and the nut to secure it. Well install each one of our fasteners finger tight. Once we have all of our fasteners installed well go ahead and tighten it down. Next well torque to specifications as indicated in the instructions.
Now with the hitch tightened and torqued to specifications, we can go ahead and reinstall the heat shield; however well first need to cut out the heat shield to go around the hitch. Following the manufacturers instructions, well use a paint market to indicate the lines and then were going to use a cutoff wheel to cut out the section. Now that we have it cut out, well go ahead and feed it back up over the exhaust around the hitch and into position. Well secure it with three out of the four manufacturers hardware; well use the new bolt and washer provided with the install kit to secure the rear frame attachment point as well need the length of the longer bolt. Now with all of our hardware in place this will complete the install of the Draw Tite Hitch, part number 75118 on our 2002 Ford Escape. .
2001 - 2004 Ford Escape
2001 - 2004 Mazda Tribute
Customers Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 4.8 out of 5 stars (13 Customer Reviews)
by: Charles H.06/27/2011
Is this review helpful?
Had little trouble installing. Hitch did not have fish wires included in kit. Had to fashion my own to install hitch.18043
by: Ernie03/17/2013
Is this review helpful?
Service from etrailer.com was beyond EXCELLENT. I received notice of shipment within hours of placing the order. They even upgraded the shipping to 3-5 days without any extra cost. I ordered the entire installation kit... hitch, receivers and wiring for my 2004 Ford Escape. The hitch installation was a bit on the tricky side only because you have to fish the bolts up through the frame. Once they were in place bolting up the hitch itself was a piece of cake. 5 stars for customer service.71187
by: Mark Jones11/09/2012
Is this review helpful?
Works perfectly. Delivery was amazingly fast. Ordered it at 7pm one night and it was on my front porch by 5pm the next afternoon. Highly recommend etrailer.com 59039
by: G.M.08/24/2012
Is this review helpful?
The Draw-tite hitch mounted perfectly. The installation was very straight forward and took about 45 minutes (one person) and would go faster and be easier with two people....but it can be done solo. It should be noted that bolt leaders are required for installation of the mounting bolts....by them with the kit as it will really save time!! The quality of the hitch is top notch. For the hardware, you may want to screw the nuts onto the bolts once or twice to clean up the threads, as a couple were a little rough for me. Other than that there were no problems or issues. Overall a great Quality item and price...shipping was FAST and FREE...can't get better than that!!!52972
by: Shawn F.06/22/2012
Is this review helpful?
The shipping was very prompt and the product was as described. I also bought the fish wire which saved my life...couldn't have done it without them. Also bought the OEM light kit and that was a breeze to install. One of the bolts/nuts was a bit of a pain, but that will happen. Overall I would recommend this product and etrailer.com45347
by: Troy O.05/02/2012
Is this review helpful?
I'm not very handy, but found this very easy to install.39140
by: wayne t12/01/2011
Is this review helpful?
This was awesome to install and worked quite well on a 1000mile trip with over 300 pounds of tongue weight on it. I haven't done the light install yet but the trailer hitch went on beautifully, shipping was awesome as well! So quick to get it. I was pleasently surprised.27509
by: Khrystal09/18/2011
Is this review helpful?
Great product and was an easy install. Don't even bother with the directions, watch the videos. That goes for the wiring harness especially. Enjoy! 24163
by: Mike G.08/04/2011
Is this review helpful?
2001 Escape, no fish wires in the kit but improvised. Installed hitch and wiring harness in just under 50 minutes. Fit like a glove.21098
by: John H03/20/2011
Is this review helpful?
Took about 25 minutes to install,,,very easy with their video's!!!!9909
by: John H03/08/2011
Is this review helpful?
Bought this product using etrailers site and used their recommended installation and I have to say,I may have even installed it quicker than the video. I have a 03 Mazda Tribute and this fit like a glove. Thanks so much Etrailer,,, will always trust you guys!8783
by: M Ellis08/21/2008
Is this review helpful?
Great price, easy installation A+A+A+A+ What more can I say, Thank You.1205
by: Mark M.02/02/2008
Is this review helpful?
Great Trailer Hitch Great hitch for the Ford Escape, very easy to install, I was surprised how simple it was to mount on the frame.596
