This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately. Lowest Prices for the best trailer hitch from Draw-Tite. Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" part number 24767 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
$134.95
Select Your Vehicle

View Cart


Trailer Hitch > Custom Fit Hitch > Class I > 1-1/4 Inch Hitch > Visible Cross Tube > 200 lbs TW > 2000 lbs GTW > Draw-Tite

Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"

Draw-Tite Trailer Hitch

(5 reviews)


Code:   24767

Retail:$233.81

Price:$134.95


Custom Fit Product

Shipping Special

Shipping Weight: 24 pounds

Quantity:






Draw-Tite Trailer Hitch - 24767

This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.


Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your vehicle
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Drawbar sold separately - pin and clip included


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class I
    • Maximum gross trailer weight: 2,000 lbs
    • Maximum tongue weight: 200 lbs
  • Limited lifetime warranty


Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.



Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.


In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



24767 Draw-Tite Class 1 Trailer Hitch Receiver - Sportframe

60830 Hidden Hitch Class 1 Trailer Hitch Receiver



24767 Installation InstructionsInstallation Details 24767 Installation instructions

This Product Fits The Following Vehicles

2003 - 2007 Cadillac CTS

2005 - 2011 Cadillac STS

2008 - 2009 Cadillac CTS CTS-V models

2008 - 2009 Cadillac CTS excluding CTS-V

2010 - 2013 Cadillac CTS Sedan - CTS-V

2010 - 2013 Cadillac CTS Sedan - excluding CTS-V




Video of Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Trailer Hitch Installation - 2007 Cadillac CTS - Draw-Tite

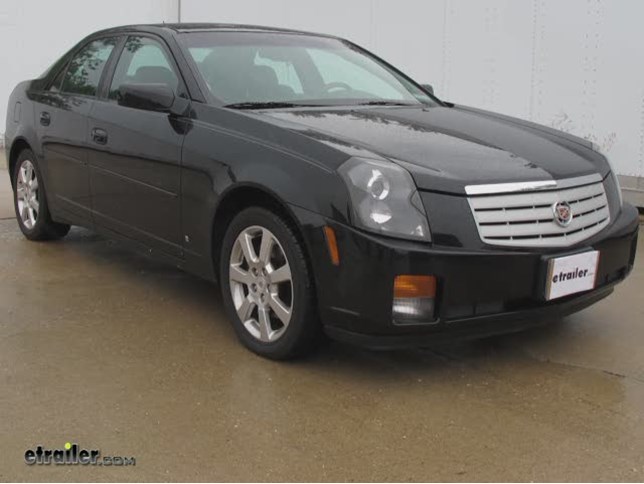

Today on this 2007 Cadillac CtS, we're going to install part number 24767 from Draw-Tite. This is what the hitch looks like when it's installed on our Cadillac. Next, we'll give you some measurements that help out selecting some accessories, such as a bicycle rack or a cargo carrier. From top of receiver opening down to the ground will be about 10" and from the center of the hitch pin hole to outside edge of bumper is going to be about 6-3/4". Now I'll go ahead and show you how the hitch is installed. To start off our install, we need to get inside the trunk area. We need to remove the floor coverings to get down to the bare metal by our spare tire.

So take off the spare tire first and then we can go ahead and remove the threshold. Now there are four tie-down points on the threshold that we have to simply unscrew to remove the threshold. Next we'll go ahead and take the carpet and roll it forward, push it up out of the way so we have access to the bare metal. Now we need to get underneath the car and we're going to go ahead and lower the exhaust to give us some more working room. This is a dual exhaust model, so there's going to be three exhaust hangers on a tail back that we're going to lower. One behind the muffler and then two by the tailpipe.

We'll spray them down with some lubricant and then we'll primarily them off and lower them out of the way. We'll also use a strap to help hold our exhaust up while I do this and then we can lower it using the strap. Now with an extra set of hands, we'll go ahead and lift the hitch up in position and then we're going to hold it there and make some marks for holes that we need to drill. It's also good to use a floor jack or some device to help hold it up while we make our marks. What we're going to do, use some spray paint to mark our holes. Then we'll go ahead and lower it out of the way and then using an extra long 1/4" drill bit, we'll go ahead and drill our pilot holes.

Then we'll get inside the trunk and then drill out to our final hole size. Now our final hole size will be 1/2". With our holes drilled, we're almost ready to install the hitch. We'll go ahead and show you how the hardware works with the hitch first before we install it. We'll have our plate that goes on the inside of the trunk put a note. Now you notice the two holes are offset on the plate.

The longer end will always face towards the front of the vehicle. Then our carriage bolts will go through the center, then they'll go through a trunk put a note and then through the hitch and then underneath the hitch, we'll get a lock washer and a nut. This will be the same thing on the passenger side. our next step is to go ahead and apply some sealant to the holes. Then we'll install our hardware. Also it's a good idea to put some weight on tops of the plates and bolts to help hold it in there while we install the hitch. With an extra set of hands one more time, we'll go ahead ad push the hitch back up into position. Then we can install our hardware, the lock washer and nut. Once we have all our hardware installed, we'll go ahead and tighten it down and then torque the bolts down inaudible 00:03:32. Then we can go ahead and reinstall the exhaust. And then take out our weight out of inside the trunk and go ahead and reinstall the floor coverings. With that, that'll finish it for our install part number 24767 on our 2007 Cadillac CTS. .


Customer Reviews

Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" - 24767

Average Customer Rating:  4.6 out of 5 stars   (5 Customer Reviews)


This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.


- 24767

by: Charles T.03/26/2011


The hitch is fine, however it was hanging halfway out of the box when it got here! Luckily all the small parts and other parts I ordered were taped to it VERY well, nothing lost. (there were no instructions with the wire harness but I'll figure it out) 10429



- 24767

by: John03/18/2013


Hitch arrived in good shape and quick. Install was very easy especially after watching the video. I plan on using the hitch to mount a bike rack. Very good. 71454



- 24767

by: Mark G03/19/2015


So far so good...took 3 hours to install not 1 hour as advertised but was easier than expected... 179762



- 24767

by: robert s12/23/2011


great service ,i recieved my hitch in four days i would recomend this company to everyone 28608



- 24767

by: Phillip Y.03/24/2013


Very happy with the hitch. 72122

5
5


Ask the Experts about this Draw-Tite Trailer Hitch


  • Trailer Hitch Recommendation for a 2010 Cadillac CTS
  • The location and visibility of a trailer hitch on your 2010 Cadillac CTS will be almost identical between Curt, # C11307, Hidden Hitch, # 60830, and Draw-Tite, # 24767. Each of these trailer hitches use the same mounting location and have practically the same dimensions. For an exact measurement, the end of the receiver from the Curt hitch will actually sit 1/8 of an inch closer to the rear edge of the bumper. As far as aesthetics are concerned, I agree that the Curt hitch has a more...
    view full answer...

  • Comparing The Available Trailer Hitches For A 2008 Cadillac CTS
  • All of the hitches available for the 2008 Cadillac CTS have the same characteristics in terms of towing and tongue weight capacity. Each hitch has a 2000 pound towing capacity and 200 pound tongue weight capacity. Where they differ is the towing components included with the hitch. The Draw-Tite Trailer Hitch, part # 24767, which is the lower priced hitch, does not include a drawbar, pin or clip. The Curt Hitch, part # 11307, which is the highest priced hitch for your vehicle includes...
    view full answer...

  • Roof Cargo Bag, Trailer Hitch, and Cargo Carrier for a 2005 Cadillac CTS
  • Rightline Sport 3 XL cargo bag # RL100S30 is a great option for your 2005 Cadillac CTS. The width on this bag is 40 inches which is less than the width of the roof of your CTS (the overall width of the vehicle is about 70 inches, the roof will be less). Since you have a naked roof I recommend a couple of accessories to go with this bag. First, car clips # RL100600 will allow you to mount the bag to the roof without having to run straps through the interior of the vehicle; definitely...
    view full answer...

  • Trailer Wiring Connection Points for a 2010 Cadillac CTS Wagon
  • The correct wiring for a 2010 Cadillac CTS is the Tow Ready Custom Fit Vehicle Wiring, # 119179KIT. The connection points for this harness are located behind each of the tail light assemblies. In a sedan, you would pull back the trunk lining to gain access to the back of the tail lights. But on a wagon, either the tail light assemblies will need to be removed or there may be an access panel in the cargo area that needs to be taken off in order to reach the connection points. I have included...
    view full answer...

  • How Far Does the Draw-Tite Hitch Reciever # 24767 Extend Below the Bumper of a 2008 Cadillac CTS
  • The bottom of the Draw-Tite Sportframe Trailer Hitch, item # 24767, will sit about 2-3/4 to 3 inches below the rear bumper on your vehicle. This dimension is a best guess for your vehicle because there is not a set dimension for the amount of extension below the bumper on your 2008 Cadillac CTS. Too many variables account for the final placement of the hitch receiver, such as the hitch itself, the vehicle frame and the vehicles rear bumper and fascia orientation on the vehicle. I based...
    view full answer...

  • Recommendations for Carrying Bikes With 2012 Cadillac CTS-V Sport Wagon
  • Your best bet for carrying bikes with your 2012 Cadillac CTS-V Sport Wagon would be to use a trunk mounted bike rack, like the Yakima KingJoe part # Y02619. Due to the fact that the upper hooks are secured by the included glass hatch hooks, you'd be limited to carrying 2 bikes on a trunk mounted bike rack. If you'll be transporting women's bikes or bikes with sharply-angled top tubes, you might also consider a frame adapter bar like part # UB01. The bar spans the distance between the...
    view full answer...

  • Installation of Draw-Tite Trailer Hitch on a 2003 Cadillac CTS to Tow Small Jet Ski Trailer
  • The Draw Tite trailer hitch part # 24767 that is a confirmed fit for your 2003 Cadillac CTS and has the towing capacities of 2,000 lbs total trailer and 200 lbs tongue weight. Most Jet Ski trailers weigh less than that so as long as the vehicle has the needed capacity as well you this will work. You will want to check the placard on the inside of your driver's door for your vehicles towing capacities. I also found a section of your owner's manual about towing a trailer you should check...
    view full answer...

  • Is there Drilling Required to Install Draw-Tite Hitch 24764 on a Cadillac CTS or STS
  • Yes, you will need to drill 4 holes in the trunk pan. YOu will use a 1/8 inch drill bit to start the holes then enlarge them using a 1/2 inch bit. I would use some sort of silicone sealant to seal the holes as well. I have added a link to the instructions below for you to review.
    view full answer...
