Trailer Hitch > 2005 > Dodge > Grand Caravan

2005 Dodge Grand Caravan Draw-Tite Trailer Hitch Receiver Class II - 1-1/4"

Draw-Tite Trailer Hitch

(54 reviews)


Code:   36320

Retail:$283.11

Price:$165.95


Shipping Special

Shipping Weight: 44 pounds

Quantity:






2005 Dodge Grand Caravan - Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4"

This fully welded, corrosion-resistant Dodge Grand Caravan trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.


Confirmed to fit your 2005 Dodge Grand Caravan



Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Dodge Grand Caravan
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Bolt-on installation - no welding required
    • Installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Drawbar and pin and clip sold separately


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class II
    • Maximum gross trailer weight: 3,500 lbs
    • Maximum tongue weight: 300 lbs
  • Limited lifetime warranty


Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.



Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.


In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



36320 Draw-Tite Class 2 Trailer Hitch Receiver

90718 Hidden Hitch Class 2 Trailer Hitch Receiver



36320 Installation InstructionsInstallation Details 36320 Installation instructions
Weight Carrying Capacity
Gross Towing Weight (GTW):
3,500 lbs.

Tongue Weight (TW):
300 lbs.


Weight Distribution Capacity
Hitch does not allow
use of weight distribution



No drilling required Manufacturer Estimated Installation Time

Tech Tip

No drilling required for installation





Video of Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4"


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

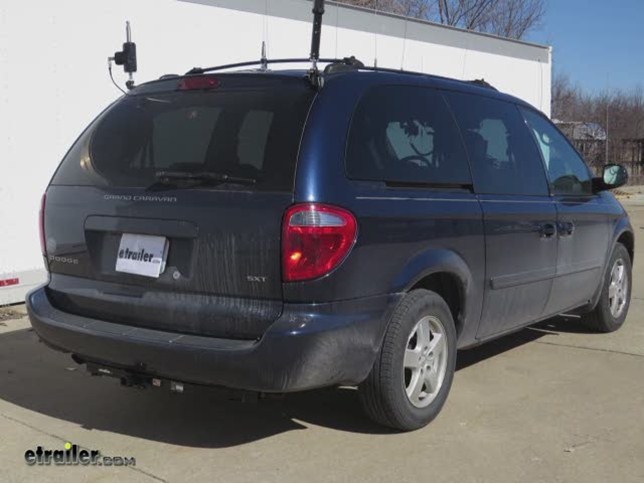

Video Transcript for Trailer Hitch Installation - 2005 Dodge Grand Caravan - Draw-Tite

Today on our 2005 Dodge Grand Caravan, we'll be installing the DrawTite hitch, part number 36320. This is what our hitch will look like once it's installed. Next, we'll go ahead and give you a couple measurements to assist you selecting accessories for your new hitch. From the center of the hitch pin hole to the outermost edge of the bumper is 3-1/2". From the top of the receiver tube opening to the ground is 12-1/2". This will assist you selecting accessories such as a ball mount, bike rack, or cargo carrier.

Now we'll go ahead with installation. Now to begin our install, we'll first note, each process we do on one side, we're going to repeat identically on the opposite side. Both sides have 3 attachment points. These attachments points are built into the frame by the manufacturer. We'll actually be removing the manufacturer's hardware and reusing it to secure our hitch. Starting at the rear of the vehicle, we'll remove the 2 rear outside shackle bolts that hold the leaf spring to the frame.

Then moving forward of the leaf spring on the frame, we'll remove the frame bolt. Once we've done this to both sides, we're now ready to install our hitch. It's a good idea to get an extra set of hands to help you hold the hitch while you install your fasteners. As we bring the hitch up to the vehicle, we'll feed the passenger side over the leaf spring first, and then rotate the hitch on the driver's side towards the rear axle. As we rotate towards the rear axle, we'll push the hitch above the leaf spring, and then rotate it back towards the bumper. As we rotate back towards the bumper, we'll raise it up into position and tie it to the frame.

There we can reinstall the manufacturer's hardware, the 2 leaf spring bolts and the 1 frame bolt, securing our hitch to the frame. We'll install each fastener finger tight until we have them all in place. We'll go ahead and tighten it down, and then torque to specifications, as indicated in the instructions. Now with our hitch secured and torqued to specifications, we're ready to hit the road. That does it for the install of the DrawTite 1-1/4" receiver tube hitch, part number 36320, on our 2005 Dodge Grand Caravan. .


Customer Reviews

Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4" - 36320

Average Customer Rating:  4.7 out of 5 stars   (54 Customer Reviews)


This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.


- 36320

by: curt o01/08/2014


great 112283


Comments

I usually install my hitches my self. I always get them from you guys. I was in Fl when I bought the hitch so I didnt have tools with me, so I Had a mechanic do it for me. He said he might charge me up to $100 to do so cause they are always a nightmare. When I came back he charged me $35. He said it was the easiest one he ever did. He obviously had not used you guys for his products.Its been on a year and the fit and finish are still perfect. Ive learned to expect that from you. Like your products, your price and service. Keep it up.

curt o - 01/14/2015

8609



- 36320

by: Jeff L.09/02/2014

Chrysler Town & Country


The installation would have been easier with 2 people ( as the video suggests), but I was able to get it done using strategically placed car jacks. It took about 1 1/2 hours to install it by myself. Perfect fit on my T&C and it works great. 149800


Comments

Thanks for the follow up, Rachael. Hitch, wiring, etc. are all still working great. Glad we got it!

Jeff L - 09/09/2015

14809



- 36320

by: Tory P.02/07/2012


Got this hitch to pull a small trailer with the families bicycles. We want to ride at more parks further from the house so this makes that possible. E-Trailer was wonderful through the whole process of buying this hitch and the installation and fit was exactly as advertised. The installation video was great. I could not be happier with the whole experience. Thanks E-trailer. 31256



- 36320

by: Clyde03/22/2013


When I first started installing this hitch I thought, wow, this is going to be easy (compared to other hitches I have had to install on other cars). But one hole on one side was off by 1/4". I can't imagine that Chrysler got that off, so I can only assume it was the hitch. I did not want to take it back down and drill, so a crow bar was put into service. Ever try to bend a thick piece of metal? I did get it, and probably only 15 minutes longer than should have... but it was frustrating. What is not frustrating is the ease of buying from etrailer. Great communication, great prices, easy! 71864



- 36320

by: curt06/28/2012


I would have given this hitch an excellent if it wasn't for the fact that I had to bend a piece of metal that might have got bent during delivery. It took me longer to get out the jacks and lift the car then to get this hitch in place. Install time minus jacking up the van was 20 min. tops. The service from etailer is the best online. I talked to a lady on the phone and it was on my porch in 3 days. The lady even emailed me to let me know it was on my porch. Too bad all companies can't have this kind of service. Very Happy. 45967



- 36320

by: Dave K04/12/2010


Very easy install Extremely satisfied. Installation was very easy. Product arrived very quickly. It is extremely beneficial to spray the existing bolts beforehand with a penetrating fluid such as PB Blaster and then let it work overnight. It made for a much easier removal of the bolts. Also, use a 1/2" socket with an extension instead of a 3/8" socket. This will enable you to get much more leverage when loosening and tightening the bolts. Finish the job with a 1/2" drive torque wrench. 2928



- 36320

by: Kevin P.10/06/2009


Easy Installation Item installed easier than expected. One helpful tip is that I used Car Ramps to raise the rear of my van, this provided the extra room for the installation. I installed it myself, but a second person would be nice to hole hitch in position for the bolt installation. I like the low profile look when installed, draw-tie could easily be stowed with the Jack stowage area. Design does NOT interfere/hit legs when loading van. Great look and finish... 2450



- 36320

by: David S.03/21/2011


Awesomely easy. If all websites sold products that were delivered on time and had detailed video directions there would be no complaints. Etrailer is all that. Install would have been much harder without the videos actually showing the instructions, that alone would be worth extra in the time it saved me installing the hitch. But it was still the lowest price on top of the great service. Will recommend to anyone looling into trailers to buy from etrailer.com 9989



- 36320

by: Kurt B07/23/2013


Great product very heavy duty and well built. Instructions said 6 out of 10 difficulty rating for install. We had three people and install was pretty easy - an impact wrench with a 6" extension makes short work of the install. Rebecca in c/s was very professional answered all questions I had thoroughly. Shipping and delivery was seamless . I'd order again from etrailer with no hesitation. I only wish my own company was run as well. 91023



- 36320

by: Dave C.07/08/2015

2007


I purchased this trailer hitch for my 2007 minivan. The hitch arrived within a few days with all of the correct parts, and very clear instructions, including how to maneuver the hitch over the springs and into place! The video instructions available online were also very clear and helpful. I would recommend purchasing from etrailer. The whole experience was very positive. Thanks etrailer, Dave 210162



- 36320

by: Preston W.04/28/2011


I did the install by myself in just under an hour. I do have an impact wrench and torque wrench, and I used both. I did not use any kind of lift or jack(s). Did the work in the carport, with my back on the ground. Etrailer shipped the product quickly, and provided timely status updates via email, and who can argue with free shipping on such a large item! All round awesome service. 12549



- 36320

by: Tim W09/11/2012


The hitch arrived in a timely manner. It was mostly easy to install. We did have some issues with the holes lining up. We stretch it with a ratchet strap to align the holes. Towed our new (new to us) pop up using the new hitch. Tows great. I liked that all we had to purchase was the ball. The brake light attachment we purchased and installed also went on without incident. 54291



- 36320

by: Richard12/21/2010


Superior Service E Trailer provided excellent service. My shipping was upgraded and the product arrived before I expected it. The wiring harness greatly simplified installation and was well worth the price. Draw Tight's hitch was well designed but the finish was of the usual poor quality that is associated with the industry. 4420



- 36320

by: David P05/28/2014


The pre-drilled holes were about 1/2 inch off requiring me to install one side of the hitch, attach the other side to a winch strap attached to a cement pillar, and then winch it as tight as possible to leave just enough room to install the bolts on the other side. Now that it is in place it seems to work great. 133054



- 36320

by: Mike C.06/23/2012


The trailer hitch is awesome we like the way our jet ski hooks up to it and doesn't sink. Communication of our shippment was very good and time to receiving our product was within a week. Instuctional video major plus on my decision to make purchase. My wife and I our very pleased with your company. 45395



- 36320

by: charlie06/19/2015


Another excellent product delivered quickly at a very fair price. My only suggestion is that you should have an extra helping set of hands during the easy installation. It's a bit of a tight fit, and be careful of the rear air conditioning lines when working on the passenger side. 205751



- 36320

by: Mark R.07/20/2011

2006 Dodge Grand Caravan


I recently ordered a hitch for a 2006 Dodge Grand Caravan with a stow and go rear seat. Free delivery took 2 days. Your web site estimated the installation time at 1 hour. This was a poor estimate. It really only took me 25 minutes. Its a geat, well built ( in the USA)hitch. 19759



- 36320

by: Gary S05/27/2014


I am very pleased with this hitch. It seems much sturdier than the one I put on my previous van. It fit perfect and was very easy to install. It does require two people, as stated. It shipped right away and I had it much sooner than expected since the shipping was free. 132710



- 36320

by: jack j08/24/2012


I was counting on timely delivery of the trailer hitch so I could put it on and take off fishing at the chesapeake bay. It came exactly on time as promised, fit perfectly and was EASY to install with only 2 sockets. Thanks for your prompt shipping and great product. 52791



- 36320

by: Calvin C.05/01/2012


Unit was delivered quickly. It took about 35 minutes for me to install by myself (no extra hands available). I had no lift, so I backed the van onto ramps (which raised the back of the van about 12" ) Easy instructions, easy install. Highly recommend! 38947



- 36320

by: Todd in Colorado07/19/2012


Unit almost fit perfectly. Had to attach one side, and then push on it very hard with my feet while my son inserted the bolts in the other side. Otherwise a great fit. etrailer is a great online retailer. Fast shipping and great email communication. 48578



- 36320

by: Bob F.05/15/2012


Well built solid hitch. Installation didn't go as easy as predicted. Wrestled with it on my back for 15 minutes till I finally realized it would not go on until I removed my right rear tire, Once that was done, it popped right in. Thanks 40623



- 36320

by: shopperjohn09/17/2012


Fantastic Experience! Prompt service, very fast delivery, fantastic Draw-Tite quality. My second Draw-Tite, very happy with the quality. Installation was easy following the video. Using a lift made the job very quick and easy. 54965



- 36320

by: Scott S.08/20/2012


Received ordered items ahead of schedule. All items were in perfect condition and ready to use. I would definitely buy from etrailer again and again. Online installation videos made my installation quick and easy. 52434



- 36320

by: Clifton Beckner03/31/2014


The hitch arrived in 3 days in very good condition and fit my van just as it should. I will buy again when ever I need a hitch. good instructions how to install as it was a very tight fit to get it by the springs. 123029



- 36320

by: George C.06/13/2011


Product is very well made and easy to install. It is unobtrusive and very functional. When you add in the free delivery, it was the best price on the internet. Delivery was amazingly fast...4 days. 16814



- 36320

by: kelli b03/26/2011


this was a easy install! we are very pleased we are just gettin started camping and this was the best price around. we will be coming back to etrailer for anything else we may need in the future! 10458



- 36320

by: Dan Eggleston08/29/2011


The hitch fit very well and as a certfied welder I would say that that fabrication and welds were very good. The instructions were also clear and easy to understand. Thank You! 23058



- 36320

by: James02/16/2013


I was surprised it installed so easy. Everything went in Just as you described. Very pleased. I can certainly say your Instructions were well written and easy to follow. 66585



- 36320

by: Robert R.07/16/2012

2006 Chrysler Town & Country


Perfect fit on our 2006 Town and Country; took only 30 minutes to install and good to go. I would recommend to anyone base on simplistic installation and quality. Thanks 48197



- 36320

by: Bob N06/14/2011


The hitch came in and I backed the van up on ramps. I took about one hour to install by myself. All holes lined up and I was very happy with the hitch installation. 16983



- 36320

by: Sandy L.05/08/2012


Great Product. Does require some knowledge to install, but overall a great product and a great price without having to pay a lot to a dealer to install. 39740



- 36320

by: Ruston07/07/2016


The hitch was great and works good. Had a little trouble getting it to fit exactly but reading the other reviews, that was to be expected. 269077



- 36320

by: Lyle v06/18/2014


Very easy to install. Had two bolts I had to warp a little bit to get to align but that is all. It fit just like it was made for it... 136244



- 36320

by: Fritz11/18/2011


This hitch was exactly what I would have expected from a Draw- Tite hitch. The quality was excellent and it fit perfectly! 27160



- 36320

by: Alan R.06/06/2012


WOW! Great product for a great price. Super easy to install. Always great to do buisiness with etrailer! 42944



- 36320

by: Russ S.01/11/2013


Prompt shipping,exactly what I ordered. The extra"hints" and instructions most helpful. 62698



- 36320

by: Brice03/29/2012


The delivery was fast! The Draw-tite hitch fit perfectly! The customer is satisfied! 35495



- 36320

by: John R.10/26/2011


Excellent prices and fast shipping. There is a reason I am a return customer. 26153



- 36320

by: Jeff08/30/2015


Ruggedly built, perfect fit. Shipped fast too. Thanks guys, this is perfect. 222866



- 36320

by: Tom G07/28/2016


great product looks good and price was great and installation was 30min. 277124



- 36320

by: Alex L.10/01/2014


Was easy to mount, pulls the trailer it needs to pull without problems. 153978



- 36320

by: Bryon02/24/2012


Great instructions and ease of installation. Great customer service. 32514



- 36320

by: RONALD07/08/2011


Great service, fast delivery, install was easy and works great. 18909



- 36320

by: William B.10/08/2014


Item was received in 2 days. Fits perfectly. Thanks. 155163



- 36320

by: Steve C07/23/2011


Good product. I really like the online video instructions. 20066



- 36320

by: Eric R05/25/2013


Item arrived in a timley manor and was easily installed. 81940



- 36320

by: Ken & Lynn05/15/2011


Great item, fast delivery, excellent price. Thank you! 14103



- 36320

by: robert b03/19/2012


very easy installation. fast order and shipping. 34346



- 36320

by: Mary B06/20/2011


Easy to install, fast delivery and great hitch 17289

51
55
Show More Reviews


Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?


  • Comparing Curt # 13389 & Hidden Hitch # 87719 Class III Hitches for 2005 Dodge Grand Caravan
  • Both the Curt # 13389 and the Draw-Tite # 36320 are confirmed fits for your 2005 Dodge Grand Caravan with Stow-N-Go seating and both share the same tongue weight (TW) and gross trailer weight (GTW) ratings of 350-lbs and 3500-lbs. If used with a weight distribution system such as Pro Series # PS49903 both hitches' capacities increase to 400-lbs TW and 4000-lbs GTW. The installation difficulty ratings for these two hitches differ really only because those ratings are determined by each...
    view full answer...

  • Moving Hitch from 2005 Chrysler Town and Country to 2006 Model
  • This hitch is a fit for the 2005 - 2007 model year with the stow-and-go seating. As long as your 2006 Town and Country has the stow-and-go seating, the Draw-Tite Class II receiver, part # 36320, will work just fine. In the event that you no longer have them, I have provided a link to the installation instructions as well as a link to an installation video.
    view full answer...

  • Trailer Hitch Recommendation for a 2004 Dodge Grand Caravan SXT With Stow N Go Seating
  • According to Draw-Tite, their Class II Trailer Hitch, # 36296, fits all models of the Dodge Grand Caravan from 1996 to 2004. They do not list Stow 'N Go compatibility until 2005. This hitch will not fit the 2005 models with the Stow 'N Go seating. Instead, part # 36320 would be required. After doing some research, it looks like the Stow 'N Go option was first released in 2004 for the 2005 model years. It may be possible that your 2004 model was an early production 2005 model. You should...
    view full answer...

  • Recommended Trailer Hitch And Trailer Wire Harness For 2005 Dodge Grand Caravan
  • The trailer hitches we offer that are designed to fit your 2005 Grand Caravan do not come with a wiring harness or ball mount kit but I can help you out with that. First, I recommend installing a Class lll trailer hitch like part # 75305 with a 2-inch receiver opening. It is a more heavy-duty hitch and it offers many more options for accessories. For the Class lll hitch I recommend the etrailer ball mount kit # 989900. It comes with 2 ball mounts; one with a 3/4 inch rise or 2 inch...
    view full answer...

  • Hitch Recommendation for a 2010 Chrysler Town and Country
  • There was a generation change between your 2006 Chrysler Town and Country to your 2010 model so the hitch from your 2006 would not fit your 2010 model. Instead I would recommend the 2 inch hitch part # 75579. 2 inch hitches will have more capacity and more hitch accessories like bike racks and cargo carriers are designed to fit them as well. I attached an install video for you to check out as well. For trailer wiring you would want the part # 118552. For ball mounts I recommend...
    view full answer...
