Code: C11555
Retail:$205.06
Price:$123.04
Shipping Weight: 21 pounds
Shipping SpecialPerfect for light-duty towing, this custom, vehicle trailer hitch receiver features fully welded, gloss powder coated steel construction. Drawbar sold separately.
Features:
Specs:
Note: All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from Curt.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Curt Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

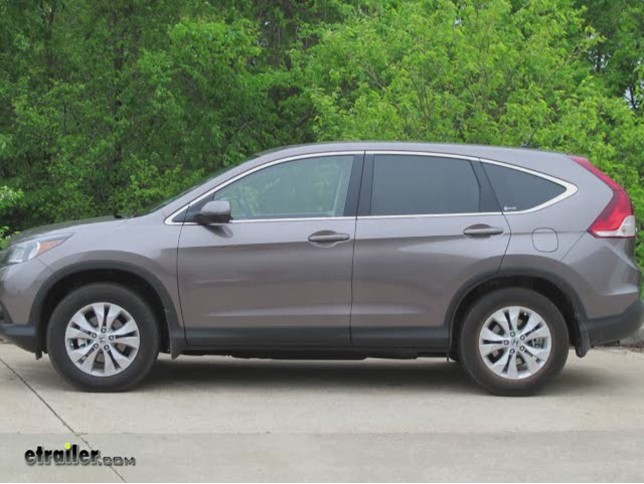

Today on our 2012 Honda CR-V, were going to be installing the Curt Hitch, part number 11555. This is what out hitch will look like once its installed. Here are a couple of measurements to assist you in selecting accessories for your new hitch. From the center of the hitch pinhole to the outermost edge of the bumper is 6 inches. From the top of the receiver tube to the ground is 11-1/2 inches. This will assist you in selecting accessories such as a bike rack or a cargo carrier.
Now, lets go ahead with the installation. Before we can install the hitch, well first need to remove the underbody trim panel. There are multiple fasteners that will have to be removed. Next, were going to lower the exhaust. To do this, well remove the two rubber isolators at the rear of the muffler.
To remove the isolators, first well spray each one with some spray lubricant and you can take your pry bar, pliers, or exhaust hanger removal tool to remove the isolators. A quick tech tip to give yourself additional working room, we need to remove the isolator at the exhaust pipe also. And if that doesnt give you enough working room, you can also remove the two spring bolts that hold the muffler in place. Now, with the muffler out of the way, you can see it will give us complete access to the frame and our attachment points, which will be this hole here. Next, well need to enlarge that hole so that we can fit the 1-inch x 2-1/2-inch spacer into the frame.
Well simply drill through our hole on both sides, just large enough so we can get our block in place. First, I'm going to use a small bit and make a pilot hole. Each process we do here on the passengers side will get repeated identically on the drivers side as far as installing the hardware and the hitch. Alright, now with the holes drilled, you can see we can fit our block up into the frame. Next, we need to go ahead and put our hardware into the frame.
To do this, well be using the pull wire provided with our install kit and were going to be using a reverse pull method where we put the block onto the pull wire and then go ahead and thread on our bolt. Well take the bolt up into the frame and then our block. Pull our bolt back into position through the access hole we just used to put our hardware into the frame. Now, well go ahead and remove my bolt leader and repeat the same process on the drivers side. Next, we need to mark and then cut out a hole in our underbody trim panel. From the cutout from the tow hook, were going to measure over 13-1/2 inches. It should be right at the rib of one of the trim panels. Next, well measure up 4 inches to mark our front corner. The total depth will be 3 inches. Now, we can measure over 3 inches to get our width. Now, we can go ahead and connect the dots and cut it out. You can use a rotary tool or, in this case, a sharp utility knife that should get to the panel. Next, well go ahead and cut out the insulation on the underbody trim panel. Now, we can go ahead and reinstall the underbody trim panel. Now, with our trim panel up and so fastener is secure in position, well go ahead and put our hitch in place. Well use our 7/16 flange nuts to secure the hitch to the frame first. Be careful not to push your hardware back up in the frame while you install your flange nut. Well loosely install these as well have a third attachment point at the tow hook. Well start by putting one of the spacers on our carriage bolt. Well then going to install two spacers between the tow hook and the hitch bracket, and securing it with the 1/2-inch flange nut. Now, we can go ahead and tighten our hardware down. Now, with all our fasteners tightened down, we can go ahead and torque to specifications as indicated in the instructions. Now, with all our fasteners torqued to specification, we can go ahead and finish reinstalling the underbody trim panel. Now, with the underbody trim panel completely installed, well go ahead and reinstall the exhaust. Now, with everything installed, that will complete the installation of our Curt Hitch, part number 11555, on our 2012 Honda CR-V.
2007 - 2013 Honda CR-V
Customers Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 4.4 out of 5 stars (25 Customer Reviews)
by: Alan H.02/26/2012
Is this review helpful?
The product delivery and finish was very good. I ordered it for a 2012 CR-V and it came with instructions dated in 2010, nothing for the 2012. It was much more difficult to install than the 30 minutes stated in the instructions, more like 2 hours. Most of the extra time was due to the plastic cover panel on the 2012. I ground just a little off the edges of the spacers (then painted them) to get them through the holes as others have done. I also didn't lower the muffler, it isn't real easy to install, but can be done. The templet 3" X 3" hole in the plastic cover, shown below, is way larger than needed. I would go to the right from the tow hook slot 13 1/4" and make the hole 1 1/2" wide. I would also go up from the tow hook slot 3 3/4" and make the hole only 2" high. It would be a much better fit. I cut mine out 1/2" smaller all the way around, 2"x2" and trimmed as necessary and it still ended up bigger than I would have liked.32583
by: John Robertson06/11/2011
Is this review helpful?
11555+S63360. Honda 2009 CRV + bike rack. Delive packaging. Hitch had punched 3 holes in the cardboard box. Thankfully the bolt kit was well secured to the hitch center, else it would have fallen out and got lost. The bike rack packaging was excellent. Fitting the hitch. Thanks for providing the fish wire, very easy to use per the instructions. Why are you asking the customer to damage their vehicles by filing? I ground chamfer edges on the 1" bar 'bolt washers' and they fitted thru the vehicle holes snugly. Fitting the bike rack to the hitch. Straight forward fitting but note that a 3/4" wrench is required to tighten the retaining bolt and undo it when you want to access to the trunk. My wife keeps a dedicated socket wrench in the car so this aspect of the rack is now a theft deterrent. 16732
by: Ed02/25/2013
Is this review helpful?
Very happy with my order . The trailer hitch fit perfect. Wire kit was correct. And it came very fast! Just three days and free shipping. Great job. 67760
by: Victor01/13/2013
Is this review helpful?
Perfect fit 62850
by: Ray's Services Unltd., Inc.11/28/2012
Is this review helpful?
I love the convenience and pricing that etrailer.com offers. You make it so easy to find the correct wiring and accessories and that is important. Thank You60096
by: Trailer hitch11/09/2012
Is this review helpful?
The main body fit very well. Minor adjustments are needed for some bolt holes. 59102
by: Marla V10/15/2012
Is this review helpful?
Good hitch. Not too bad to install 57267
by: Dave D09/17/2012
Is this review helpful?
Everything installed easily and according to directions and time estimated. Looks and works great! Couldn't be more satisfied. Thank you.54906
by: Sam09/11/2012
Is this review helpful?
Trailer arrived in a short manor and everything looks great! 54277
by: tom grover07/16/2012
Is this review helpful?
just arrived today and have not installed it yet. instructions seem perrty forward, and easy to follow, i'm a retired hospital maintence mechanic and don't think i'll have any problems. wireing haress seem very well built and also easy to install.48236
by: steve s05/07/2012
Is this review helpful?
love it. fast and free shipping and easy to install. 39688
by: Ron G04/21/2012
Is this review helpful?
Installs in about 2 hrs, most of time is associated with removing, trimming and replacing underpanel which is cumbersome and complicates torquing bolts, etc. Agree it is important to shift suggested trim location back toward bumper about 1/2" plus you can reduce overall size a little. Really pay attention to orientation of the underpanel behind the rear wheelwell when removing, it will save you time getting it back together since this was the fussiest area for me.37943
by: David04/07/2012
Is this review helpful?
Very fine product. Deliver FAST! Instructions complete. Installed in 10 minutes. Perfect match wl car.36430
by: Bill B04/02/2012
Is this review helpful?
The instructions for slicing the vinyl cover are a little misleading. I had to hunt around and make exploratory cuts but did end up opening the cover up enough to mount the hitch safely. I didn't want to mess with replacing clips so I didn't take the vinyl shroud off altogether and made a bit of a mess (thank goodness for duct tape), still, the hitch installed easily enough with grinding down the rectangle washers and the fish wire..you only need to take a few millimeters off the edges of the washers to slip them into the frame opening. Lowering the muffler was simple, just use Dawn dish soap on the rubber bushings and it will slide off and then on with ease. The end result of using a 2" adapter left me with an unreasonable amount of sway in the hitch with a bike rack mounted. I'm going to look into having the 2" receiver welded in place on the hitch. I only use the hitch for a bike rack. I wouldn't dream of trying to tow something with a 4 cyl CRV.35877
by: Millard R.03/20/2012
Is this review helpful?
Order was received on time. Instructions were included and easy to follow. Quality of the product is good. etrailer customer assistance people were helpful. Price was not cheap but a lot better than Honda doing the work. "Happy Customer" 34421
by: Dennis E.03/03/2012
Is this review helpful?
Seems to work well with our Hitch Bike Rack. This is a light duty Class I hitch; we'll see how this Hitch performs pulling a trailer load of spring mulch.33054
by: Jon R.02/24/2012
Is this review helpful?
Hitch is of good quality and mounts easily. On a 2012 CRV the rear underneath air valance is difficult to trim and reinstall. Took 2 and a half hours to complete job.32460
by: Louis H.02/08/2012
Is this review helpful?
Hitch arrived early and one end of the hitch was protuding thru box. Hardware was securley taped to hitch. Best to download the latest installation instructions to get the panel cutting template. 1 1/2 hour job for the 2012 CRV. Waiting for the T light connector to be made. No trouble supporting hitch or working with exhaust. Thanks Curt31347
by: Boris G.02/01/2012
Is this review helpful?
I purchased 2012 Honda CR-V in December 2011. O.E. trailer hitch is $363 + $200 installation. At this time Curt trailer hitch #11555 is the only afetrmarket one to fit my car. Instructions & installation: Instead of enlarging the frame holes I filed down the 1x3 blocks to fit the holes. Under body panel trim diagram is not for a redesigned 2012 CR-V. It took moor then two hours of tinkering lying on my back, but the result is very satisfactory. Sales people at "etrailer" have been very helpful in finding out which hitch fits my CR-V Thanks30785
by: Mark L.09/02/2011
Is this review helpful?
Overall, product is as represented. Purchased to mount Thule 4 bike hitch mounted bike rack. Installation was a little more cumbersome than I expected. I needed a helper to hold the hitch in place so that the mounting bolts and rectangular washer were not pushed up into the mounting holes in the frame. The muffler had to be lowered from it's mounting blocks for the installation, and was a little difficult to get back in place because of the one arm of the hitch. Finally, a spacer block for the towing loop was missing, and had to be replaced by a 1/4" pc of aluminum stock that I had. On the plus side, I like the center support afforded by the tow loop bolt, more stability right near the load. The hitch looks great, doesn't protrude a lot from the bumper and has a neat appearance. I would appreciate stainless steel fasteners, using the hitch in the northeast U.S. there's lots of snow and salt in the winter. I would recommend this manufacturer to a friend.23510
by: Kendal S08/10/2011
Is this review helpful?
Installation instructions were clear and straight forward as was the actual installation. My only comment is the 1x3 blocks that fit the chassis rails do not require the cassis holes to be cut with a cold chisel. Rather as pointed out by another user, the blocks can be slightly modified by camphering the edges with a file or stone. This saves the chassis rust protection which is important for users in states that uses salt in the winter. 21538
by: Dave B.04/27/2011
Is this review helpful?
The hitch installaion and wiring installation went without a hitch (no pun intended) thanks in part to the excellent demonstration videos provided on your website. My only negative comment is that I wish your carrier was a little more attentive to handling the product in shipping. I have ordered before and each time the hitches have arrived protruding from the shipping container. I suspect that there is a lot throwing around during the handling process.12429
by: Jan C.02/23/2011
Is this review helpful?
Hitch installed fast and easy on my 2009 Honda CRV.7696
by: Wayne01/13/2011
Is this review helpful?
Great Service The entire process of ordering the parts was as smooth as could be. The information on installation was excellent and extremely handy. I was even informed that the parts had been delivered before I noticed them on my porch. Now that was service. A+ experience.5464
by: Quincy Honda CR-V01/29/2012
Is this review helpful?
Solid design, easy to install once you mange the fishwire trick. One comment on etrailer's packaging: those staples... I hate them as much as they hate me... Articles arrived in perfect condition and fast and good communications, but those darned staples!!!!30517
